50~1000MM Linear Scale 5um Milling Drilling Lathe 2 3 Axis Digital Readout DRO

Product Description

Features:

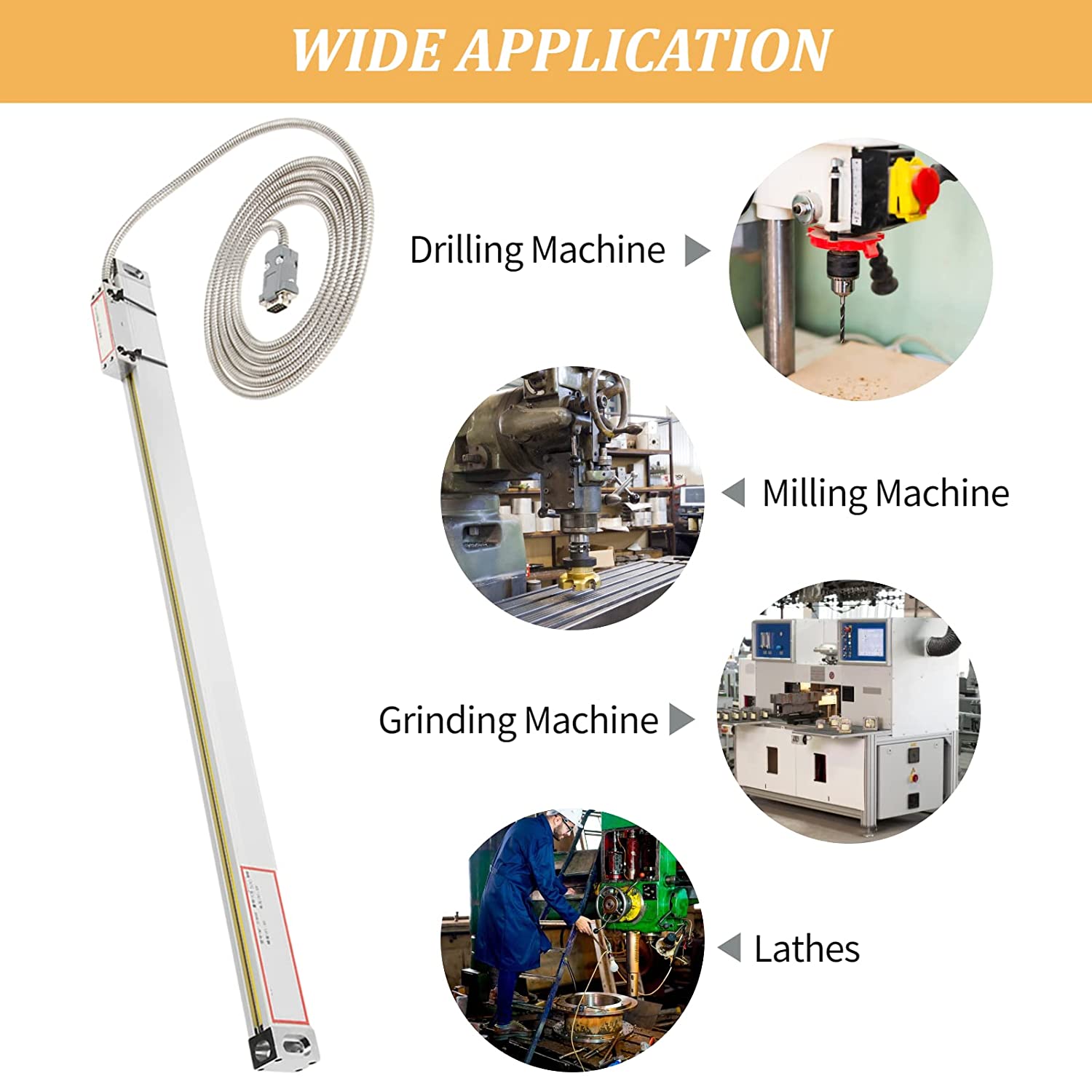

  • Application: lathe,grinding machine,milling machine,boring machine and EMD TOmake the position detection.
  • The sliding part adopts the five-bearing system which has been proved to be the most reliable and durable. The main grating adopts 90-degree assembly, which is more accurate and accurate.
  • The repeatability of the measurement is more stable.
  • The signal line adopts multi-layer isolation steel and metal soft shell protection, waterproof and anti-interference fine.

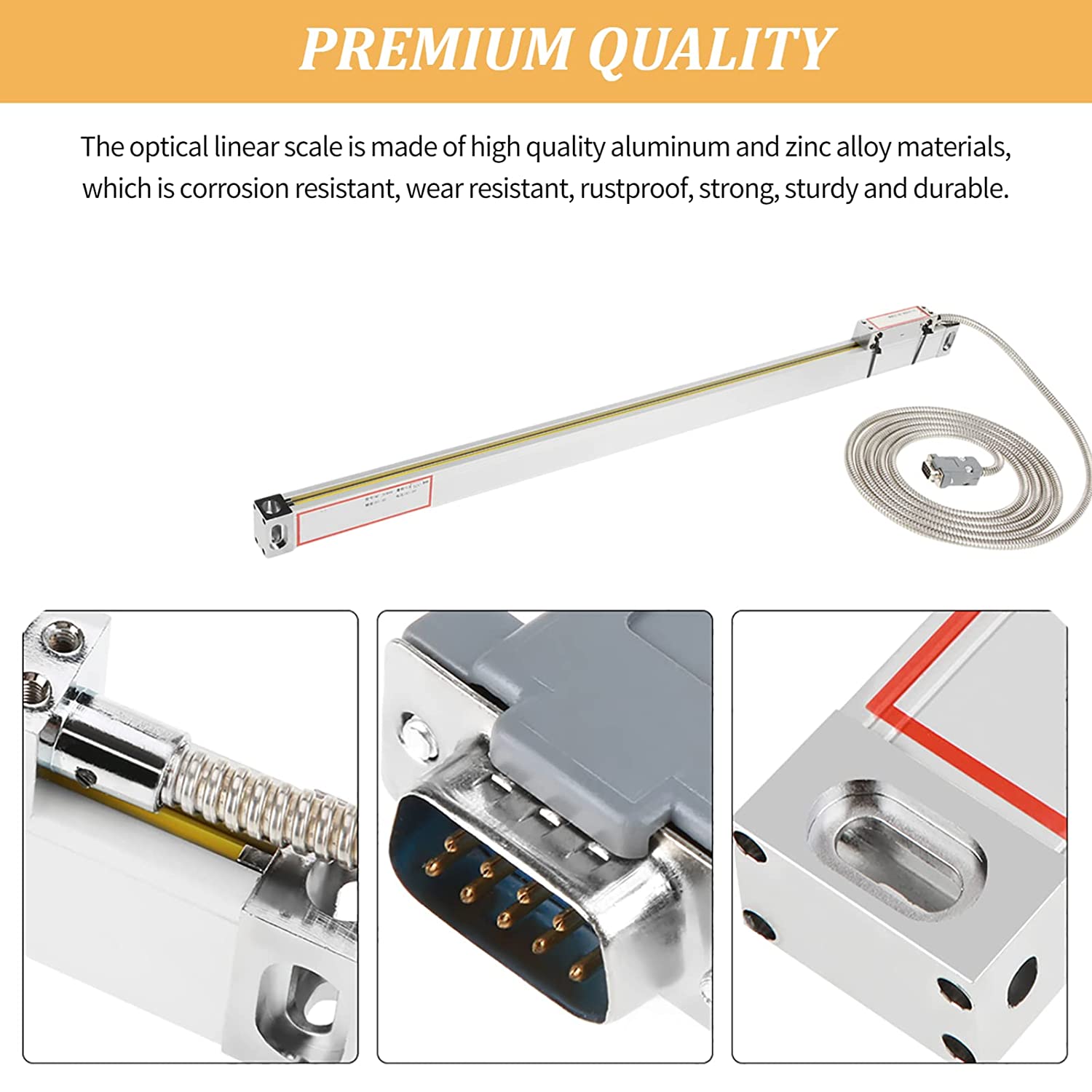

  • Ruler body with aluminum die-casting, hard chrome plating, corrosion-resistant.
  • Dust bar with special plastic, corrosion resistance, scratch resistance, friction resistance.
  • Parts individual, installation, maintenance, easy maintenance, waterproof, dust-proof good, long service life.
  • The sensor uses a glass precision metrology grating as the measurement reference.
  • Multi-function, easy to operate, reliable and durable, so that the necessary processing of mechanical products.

Digital readout Basic Functions
  1. Zero clearing
  2. Reset
  3. mm/inch mode
  4. ABS/INC
  5. 200sets sub datum
  6. Power off Memory;
  7. Center of 1/2
  8. Liner error compensation
  9. Sleepping mode
  10. Clear 200 sets Sdm datum;
  11. Calculator
  12. Drilling of circumference
  13. Drilling of oblique line
  14. Machining of inclined plane
  15. Machining of circular arc
  16. Lathe function(match)
  17. Rectangular lumen gradual processing
  18. Digital filtering (grinder machine )
  19. R function
  20. Radius/Diameter function (lathe machine )
  21. Z+Z1 sum (lathe machine)

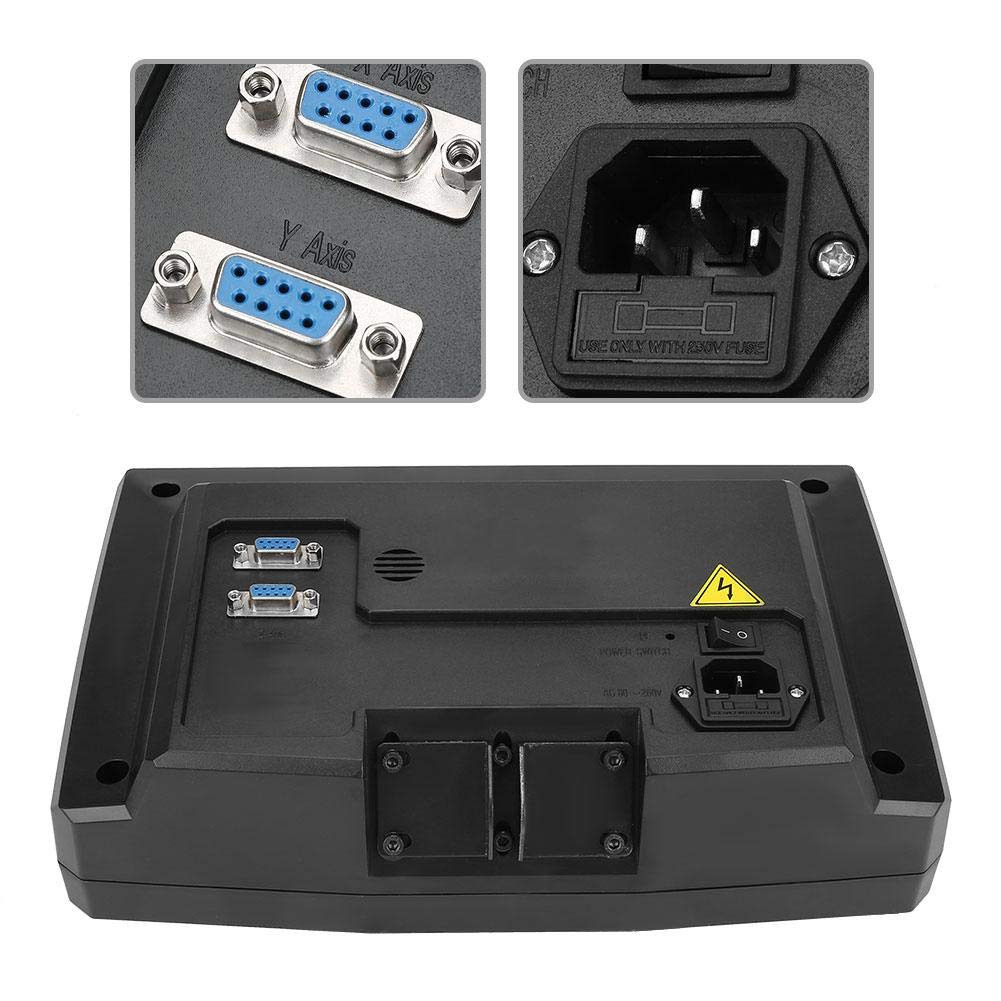

Technical Parameters
  • Voltage Range: AC 85V~250V/50HZ~60HZ
  • Power Consumption: 25VA

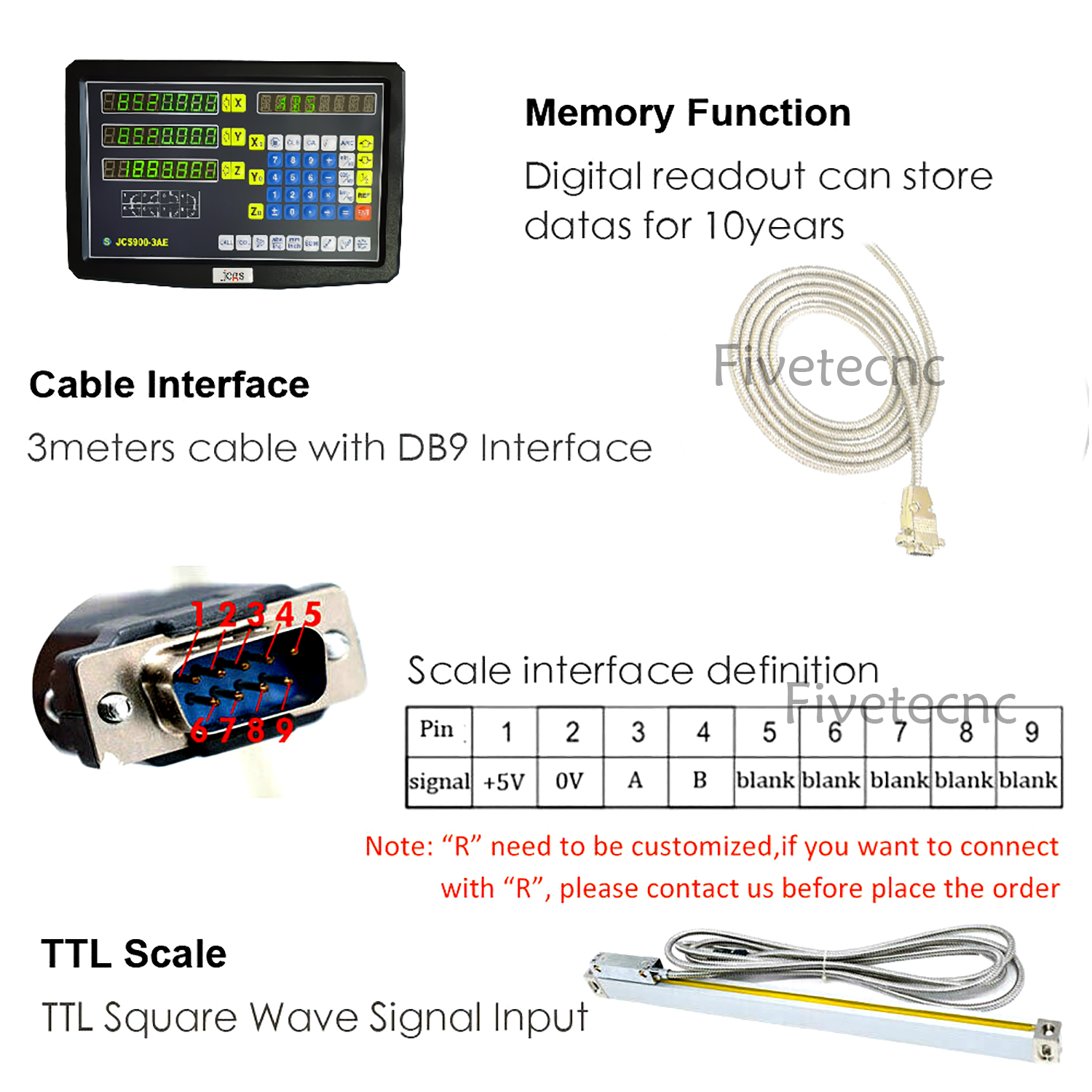

  • Input Signal: TTL square /RS422
  • Input Signal frequency: 100KHZ
  • Length resolution: 10um ,5um ,2um ,1um , 0.5um


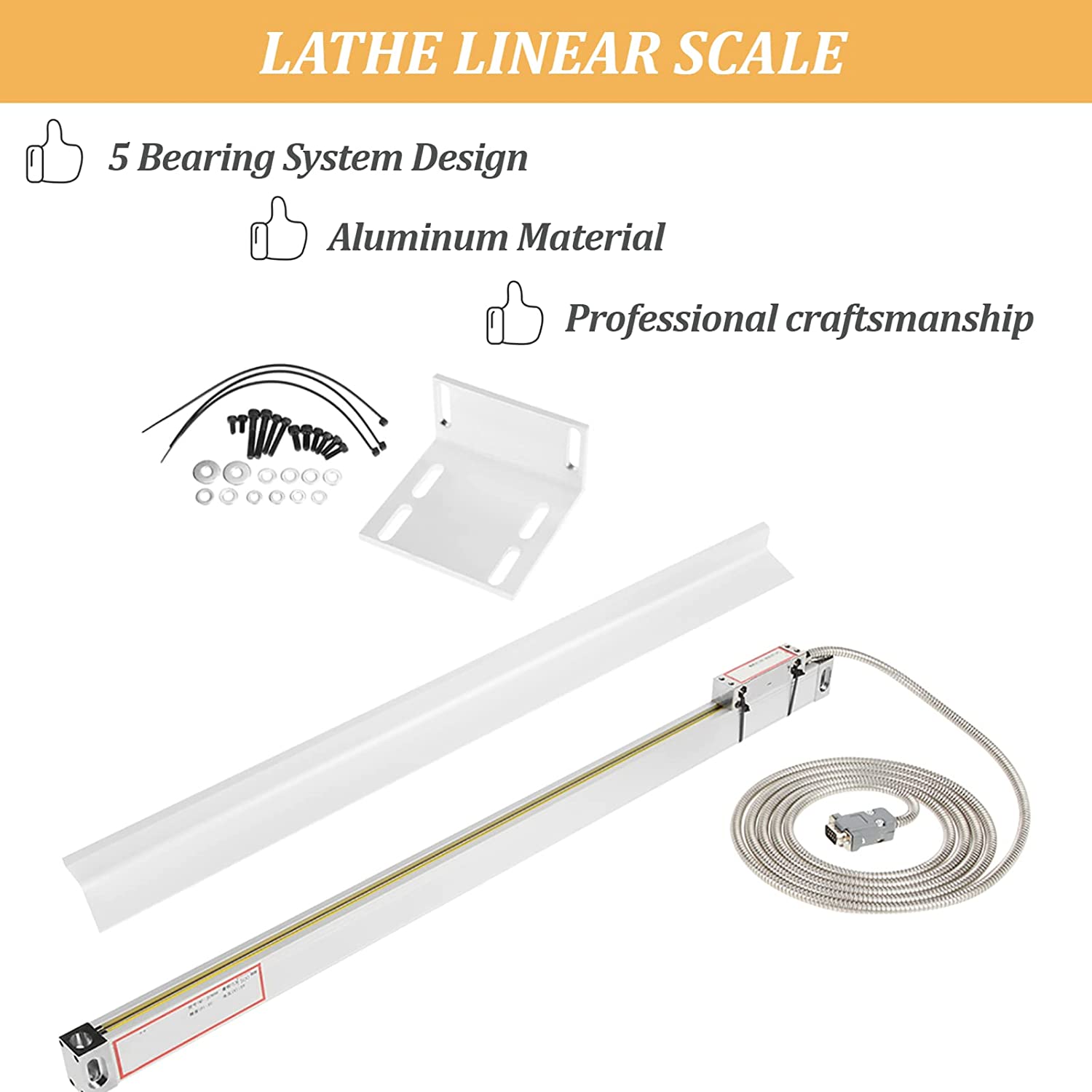

TTL Linear Scale

  1. Physical length is differnt from the travel length 50,100,150,200,250,300,350,400,450,500,550,600,650,700,750 ,800,850,900,950,1000mm.
  2. High Precision linear scale
  3. Resolution: 5um (0.005mm)/0.0002”
  4. Signal: TTL square /wave EIA-442
  5. Grating pitch: 0.02mm (50LP/min)
  6. Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
  7. Reference marks at interval of 50mm
  8. Response Speed: 60m/min or 40ins/sec

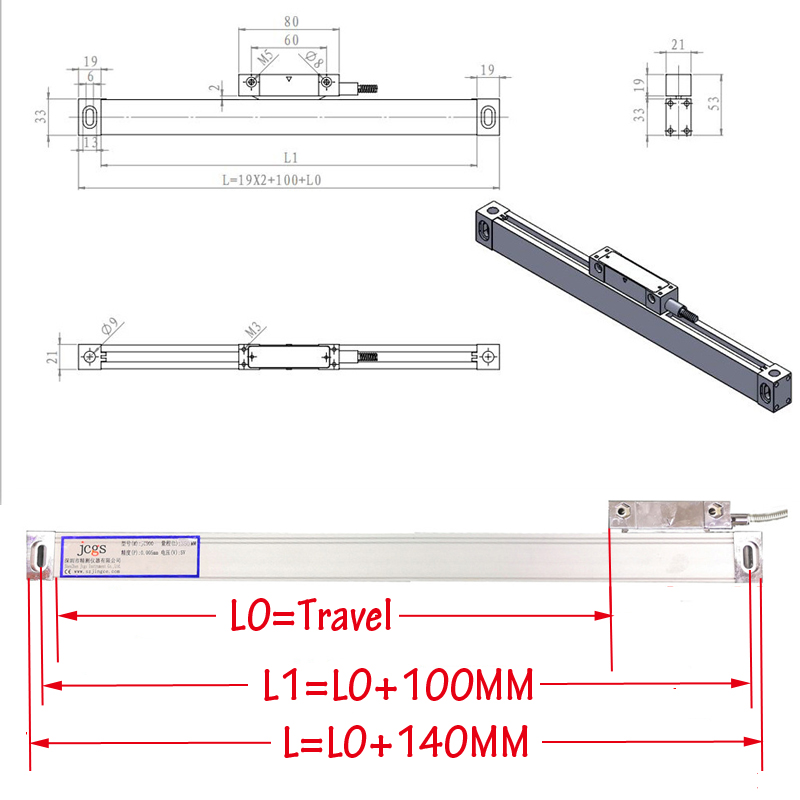

  9. Note: Buyers may choose any scale measuring length under 1000mm at this price.In fact,The scale can be made from 0-3000mm.Scale length above refers to the real travel of the linear scale. Actual physical length is 140mm longer than travel. One inch equuals to 25.4mm.


Package Included:

-Axis Digital Readout

  • 1 x Axis Digital Readout
  • 1 x Set of brackets
  • 1 x Cable
  • 1 x User manual

OR

-TTL Linear Scale

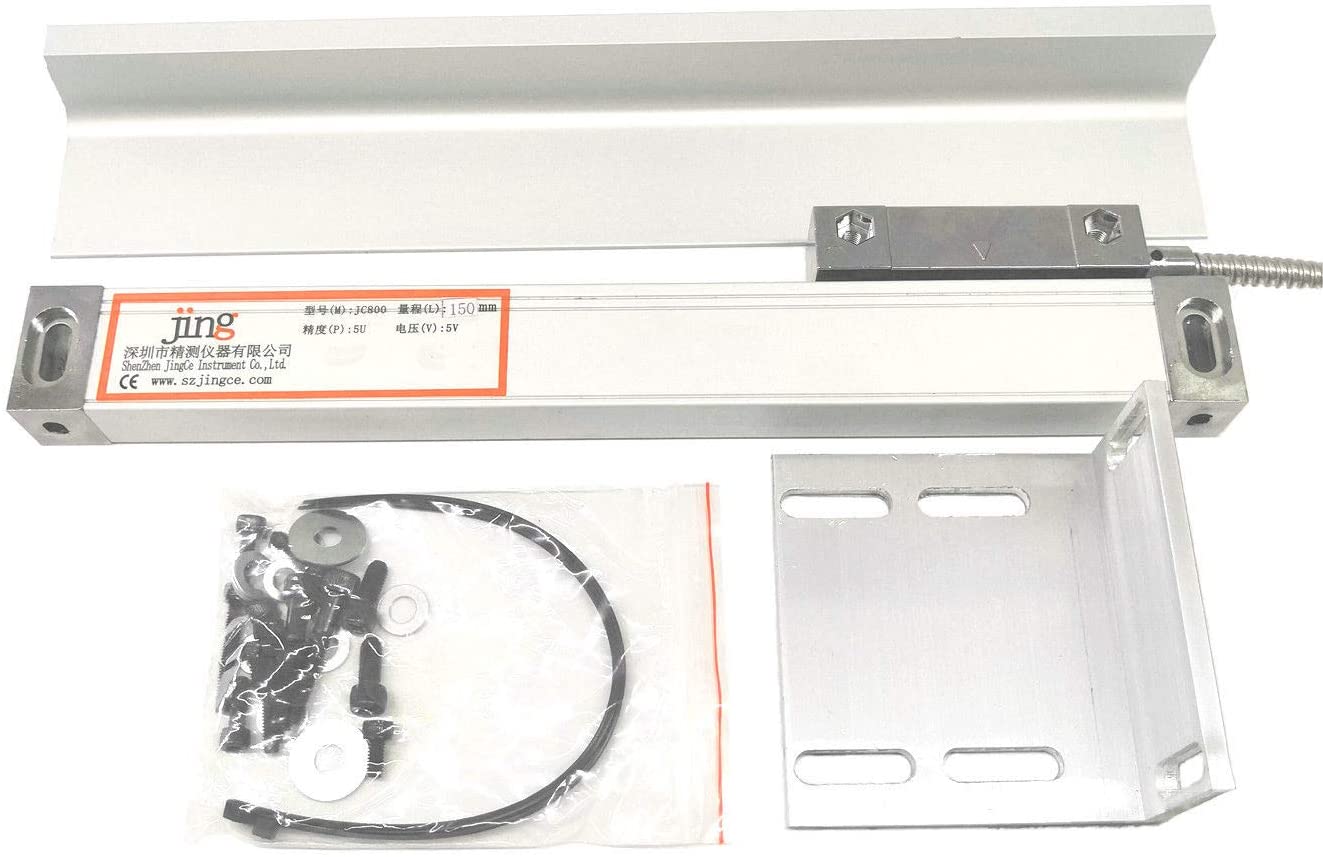

  • 1 x Linear Scale
