1080P 8CH GPS 4G MDVR 10" Monitor Backup Camera for Truck Remote App PC View

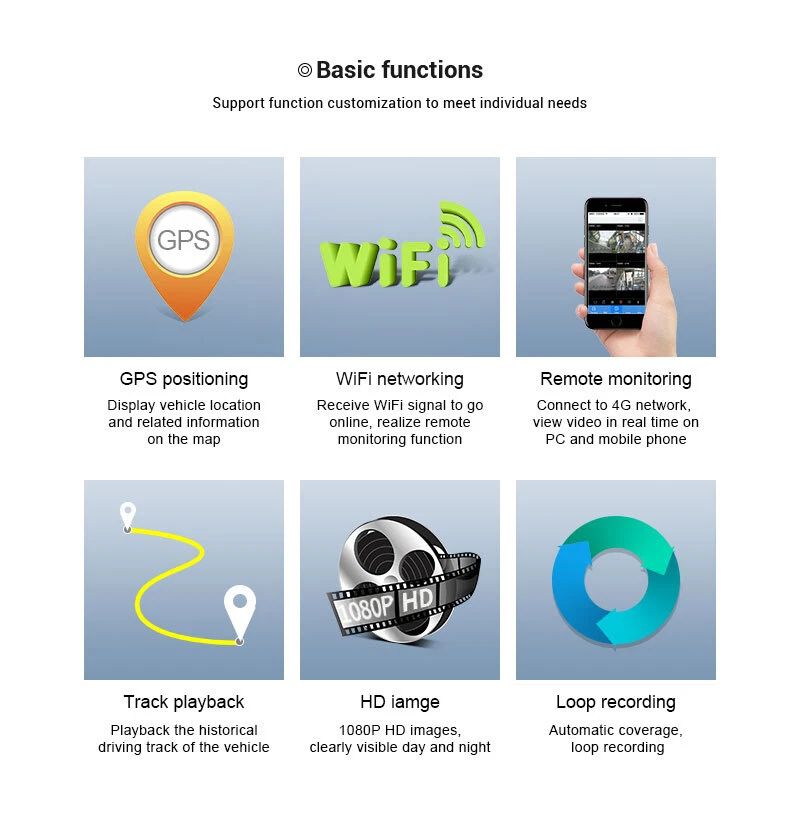

Product Features:

• Easy wiring via 4-pin connector system, monitor draws power directly from MDVR via DC connector. Free PC software included for video playback on computer.

• Built-in intercom talk port on MDVR allows voice communication between vehicle and CMSV6 center when connected to an intercom handset.

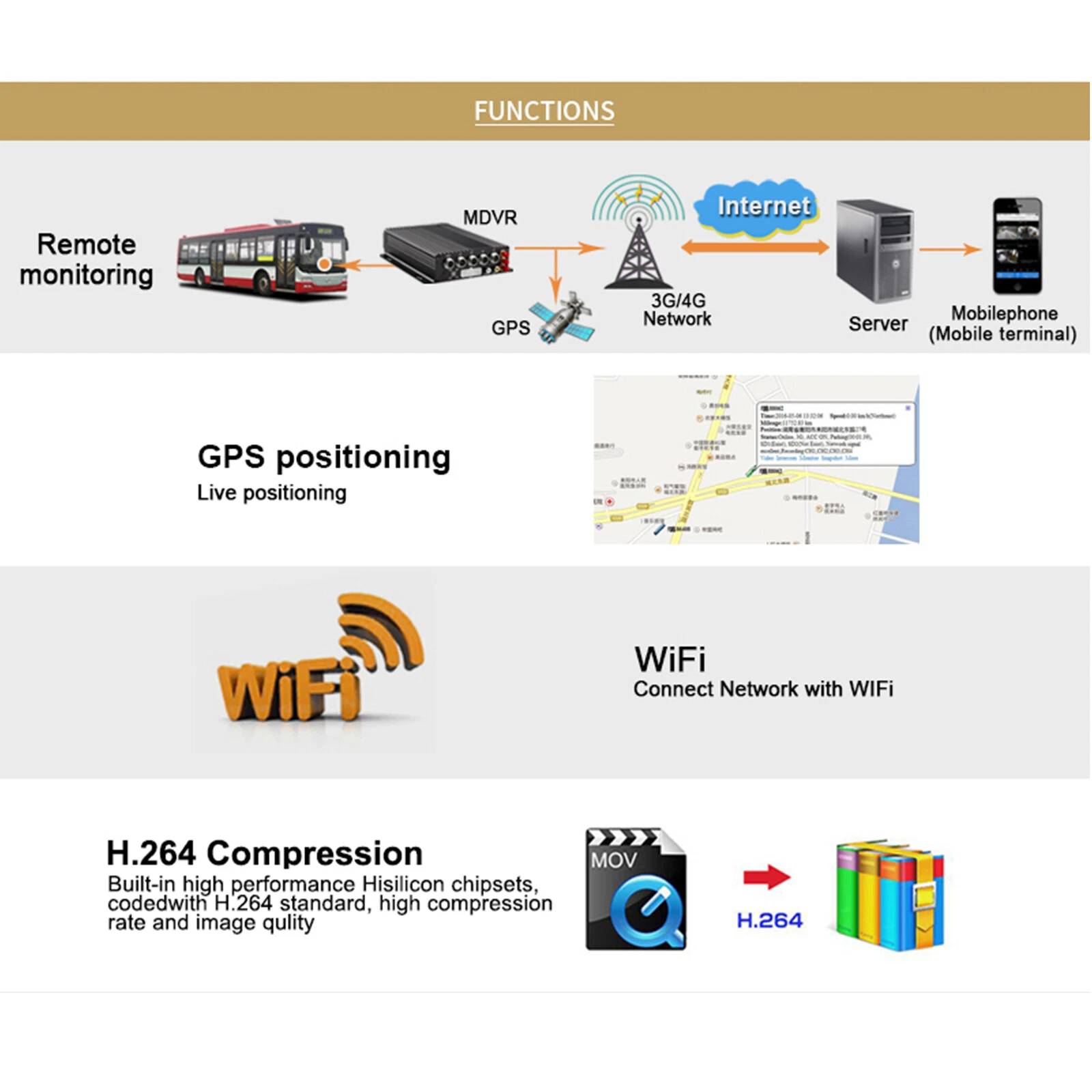

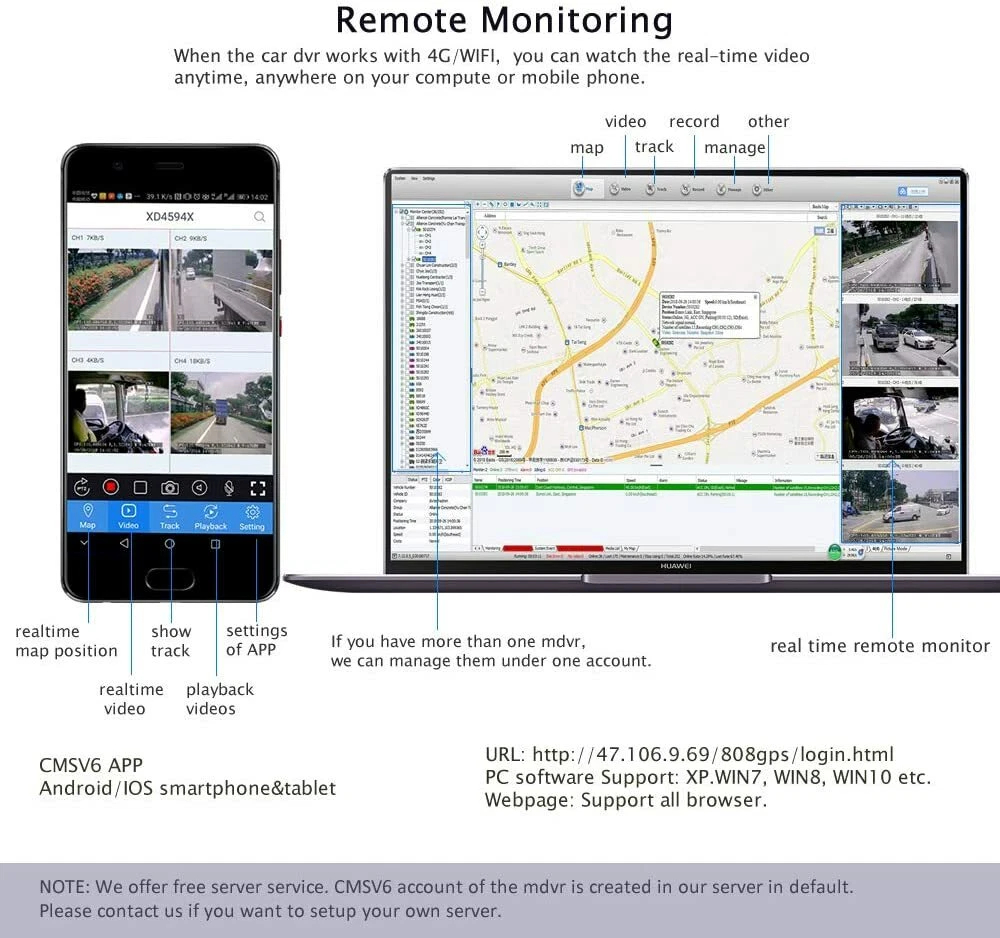

• Integrated 4G and GPS modules support 4G SIM cards with remote live view accessible via PC, web browser, and CMSV6 app on iOS and Android devices, backed by free server and BEIDOU platform.

• HDMI output allows connection to any TV or external monitor with HDMI input for larger display.

• Built-in G-sensor records alarm video and sends alarm messages to CMSV6 when a crash occurs.

• Continuous loop recording with 8 channels of 1080N real-time recording, supporting one HDD up to 2TB and 2 SD cards up to 512GB each.

• Firmware updates and video backup via USB port with on-screen playback and time-based search for easy file retrieval.

• IP68 rated cameras are suitable for outdoor use, delivering clear color images at night without IR LEDs, with 2.1mm lens and 150° ultra-wide viewing angle.

• Full metal housing with true 2.0MP HD resolution for durable performance.

• 10.1 inch IPS car monitor features VGA and HDMI connectors with 1280x1024 resolution for crisp image quality.

• Motion detection with customizable alarms for added security.

• Programmable delay recording and power-off via OSD menu, with delay time configurable up to 24 hours.

• 4-channel sensor inputs support automatic full-screen display when trigger signals are received, such as reverse gear or turn signals.

• Backed by 2-year warranty with free replacement for defective items and 24/7 customer service support.

Product Specifications:

• Operating System: Embedded Linux OS

• Voltage Output: DC12V (+/-0.2V, max. 2.0A) / DC5V (+/-0.2V, max. 0.5A)

• Language: Chinese / English / Russian / OEM

• OSD: Graphical User Interface OSD Menu

• Video Input: 8CH AHD or Analog Video Inputs

• Video Output: 1CH Video Input (1.0Vp-p / 75Ω), 1CH VGA Output

• Recording Ratio: PAL 25 Frame/s / NTSC 30 Frame/s

• Image Compression: H.264 or H.265 Main Profile / MJPEG

• Video Standard: PAL / NTSC

• USB 2.0 Port: Yes

• 3G/4G: Optional, Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE

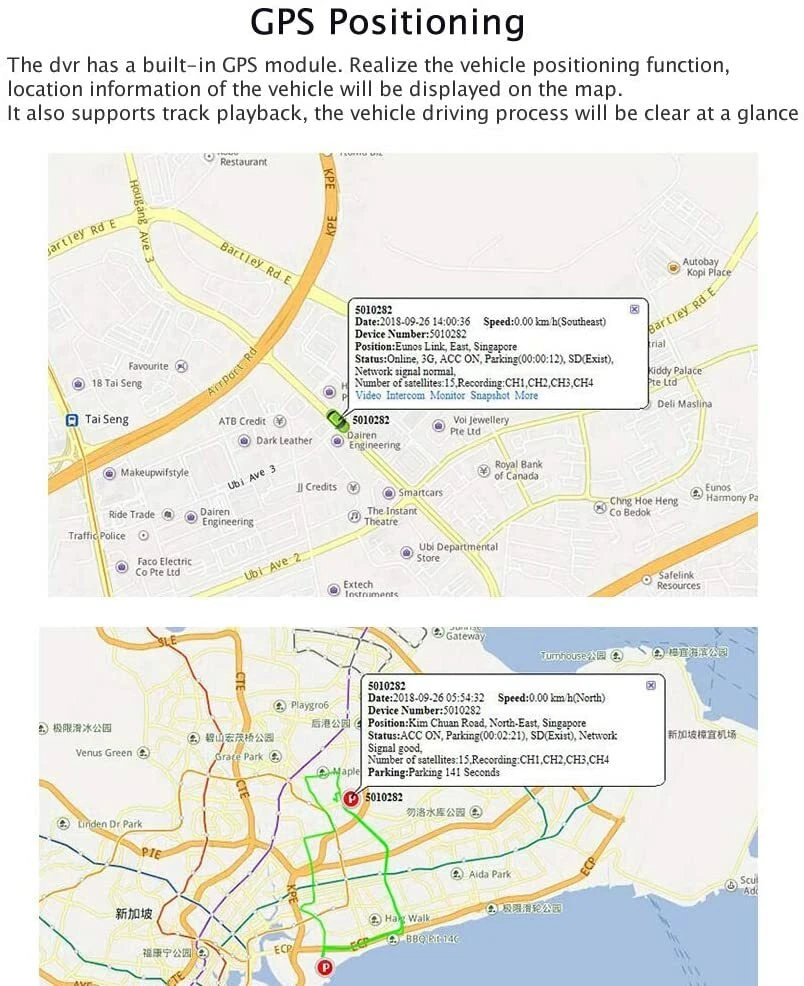

• External GPS Module: Supports Antenna Plug In/Unplug/Short Detection

• Application: Bus, Truck, etc.

• Working Temperature Range: -20°C ~ 70°C

• Type: Video Recorder, Dash Cam, Rearview Mirror Camera

• Screen Size: 10 Inch

• Angle: 120°

• Resolution: 1080P

• Warranty: 1 Year

• Screen Type: IPS, LCD, TFT

• Voltage: 12V – 36V

• Material: Metal

• Features: Live Video, Remote Control, Loop Recording

Package Includes:

• 1 x 8CH 1080P HDD 4G GPS Mobile DVR

• 8 x 1080P AHD NTSC Mode Mini Car Cameras

• 1 x 10.1 Inch IPS VGA Car Monitor

• Connection Cables:

• 1 x Accessory Kit for MDVR Mounting

• 1 x 10ft GPS Antenna

• 1 x 10ft 4G Antenna

• 1 x 10ft WiFi Antenna

• 1 x 2TB HDD

• 1 x User Manual

Please Note:
• SD cards are not included.
• Longer cable lengths are available upon request (shipped from China, approx. 4 working days).
