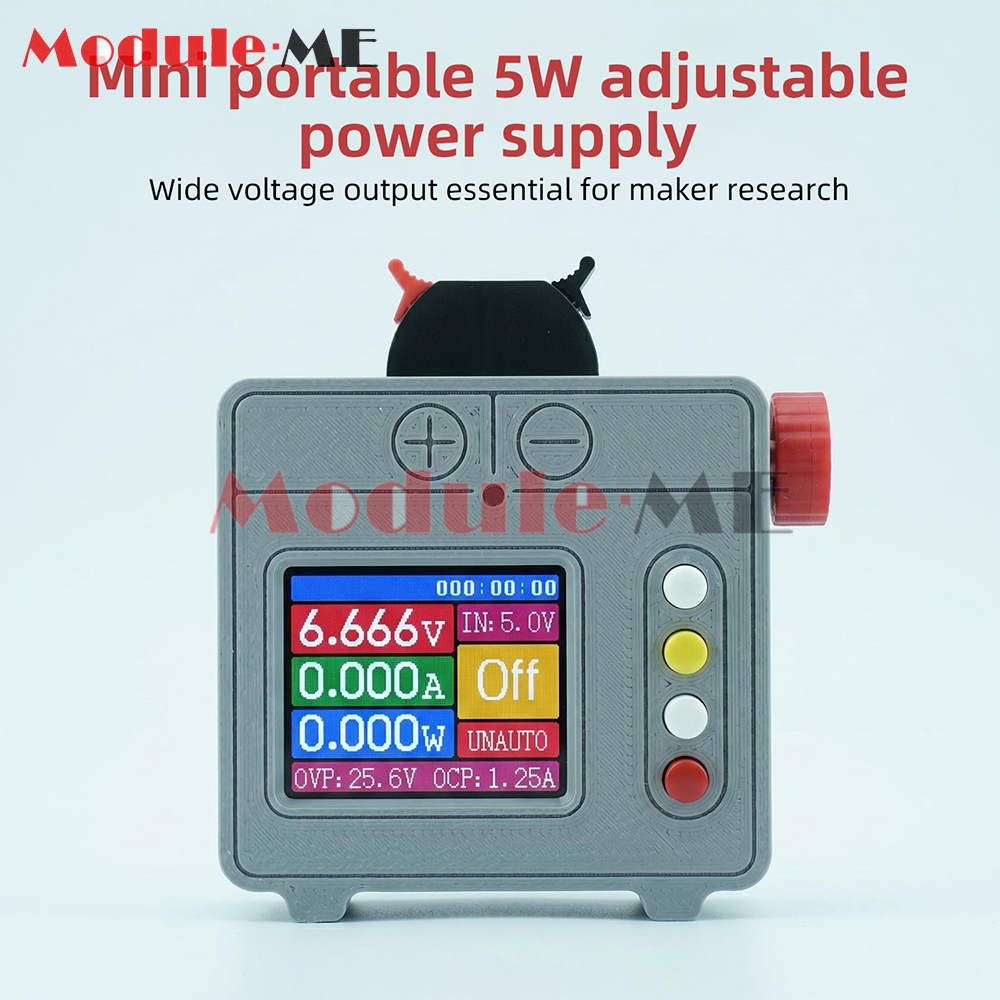

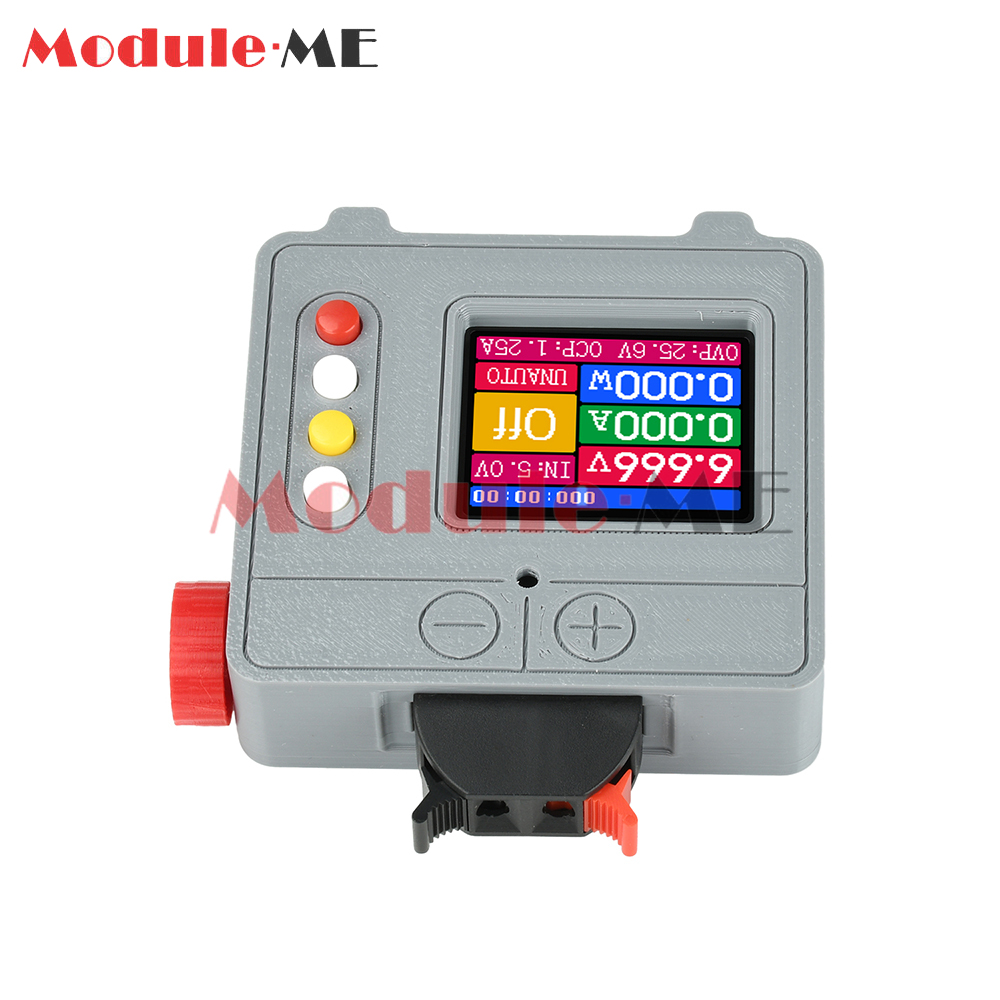

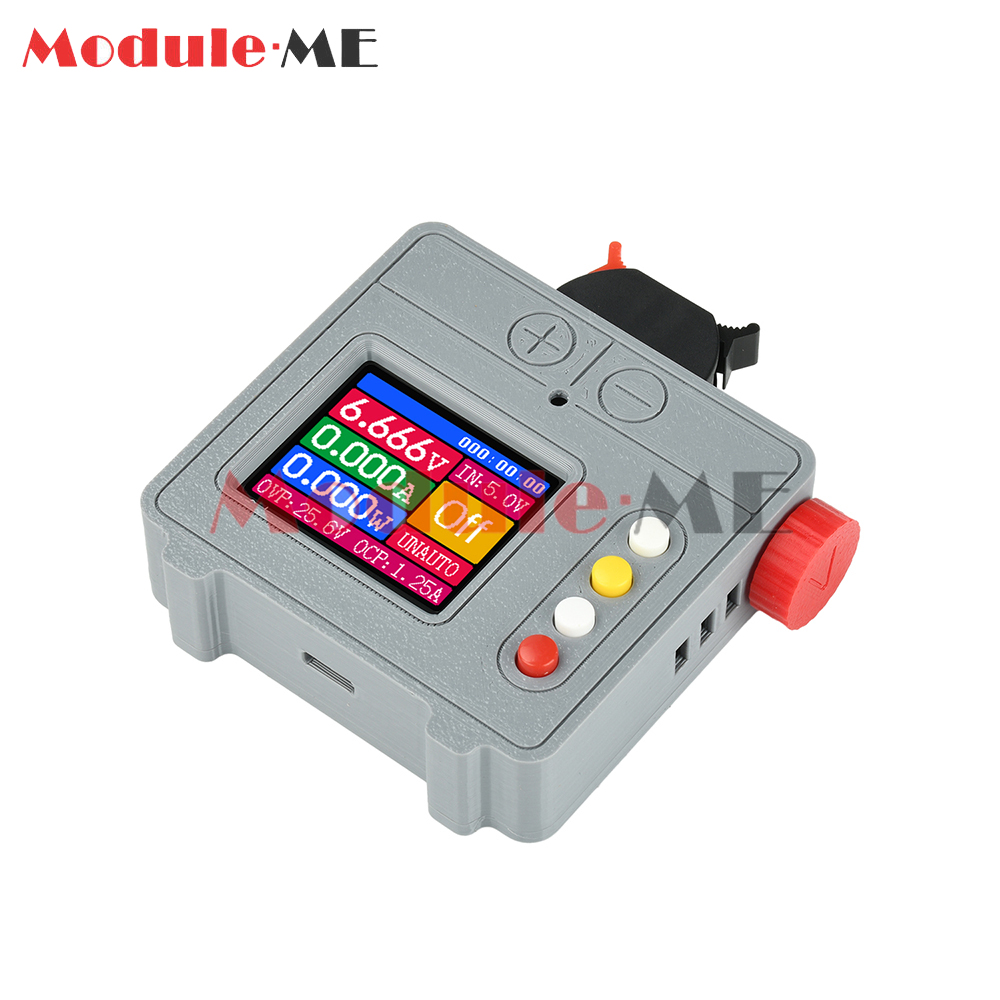

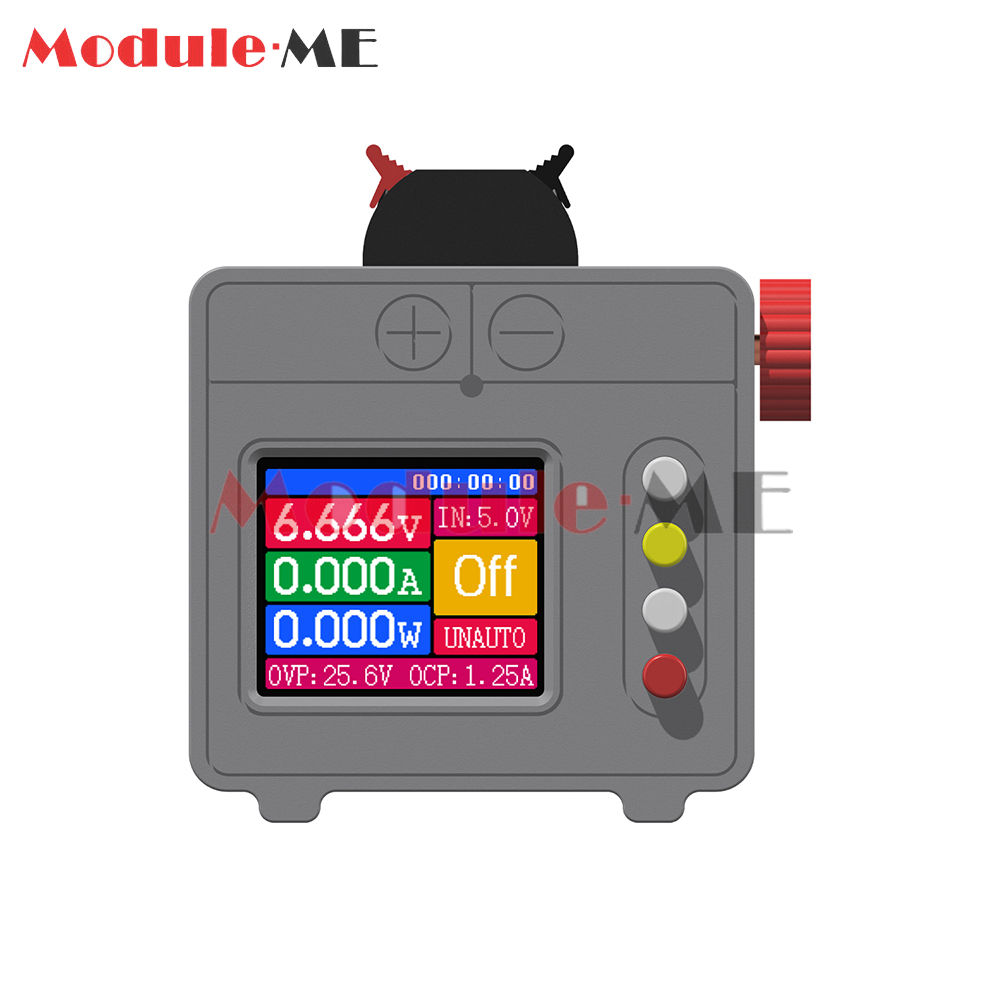

Portable Mini Desktop Power Supply Color Screen 5W Adjustable Auto Buck-Boost

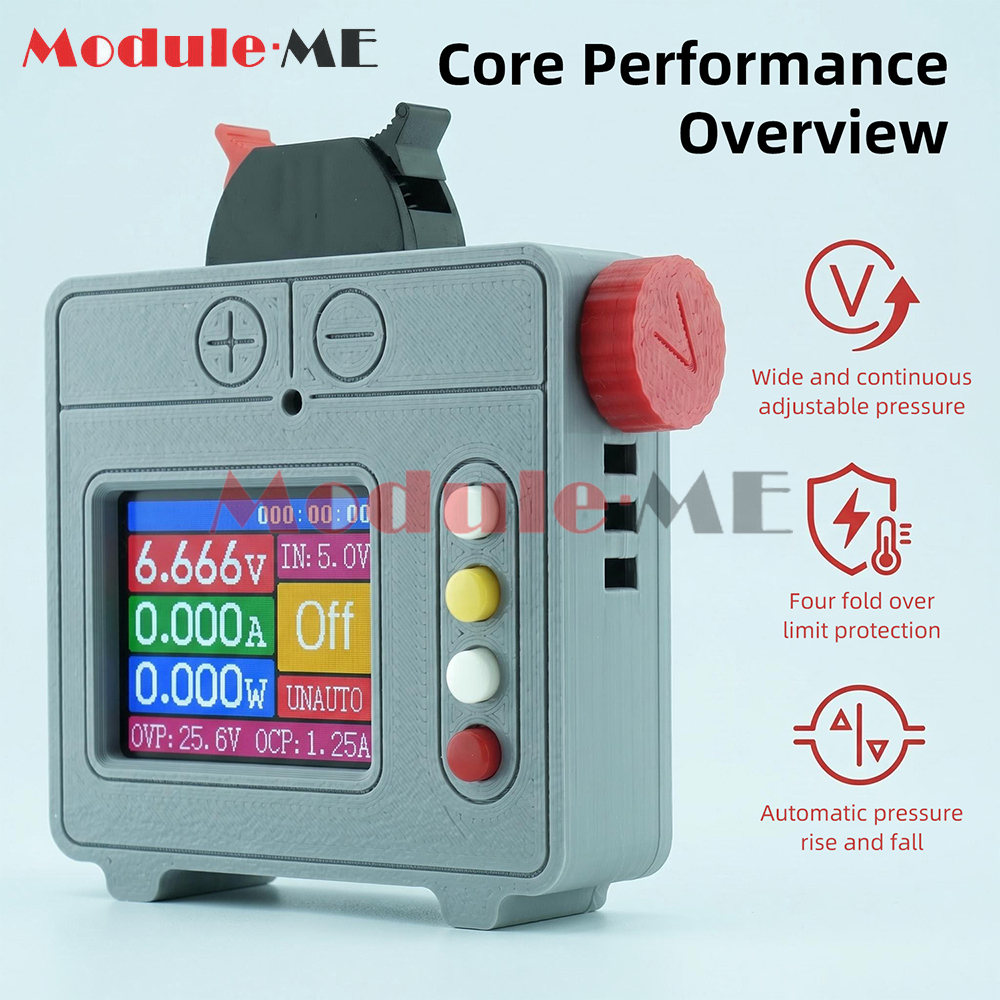

Features

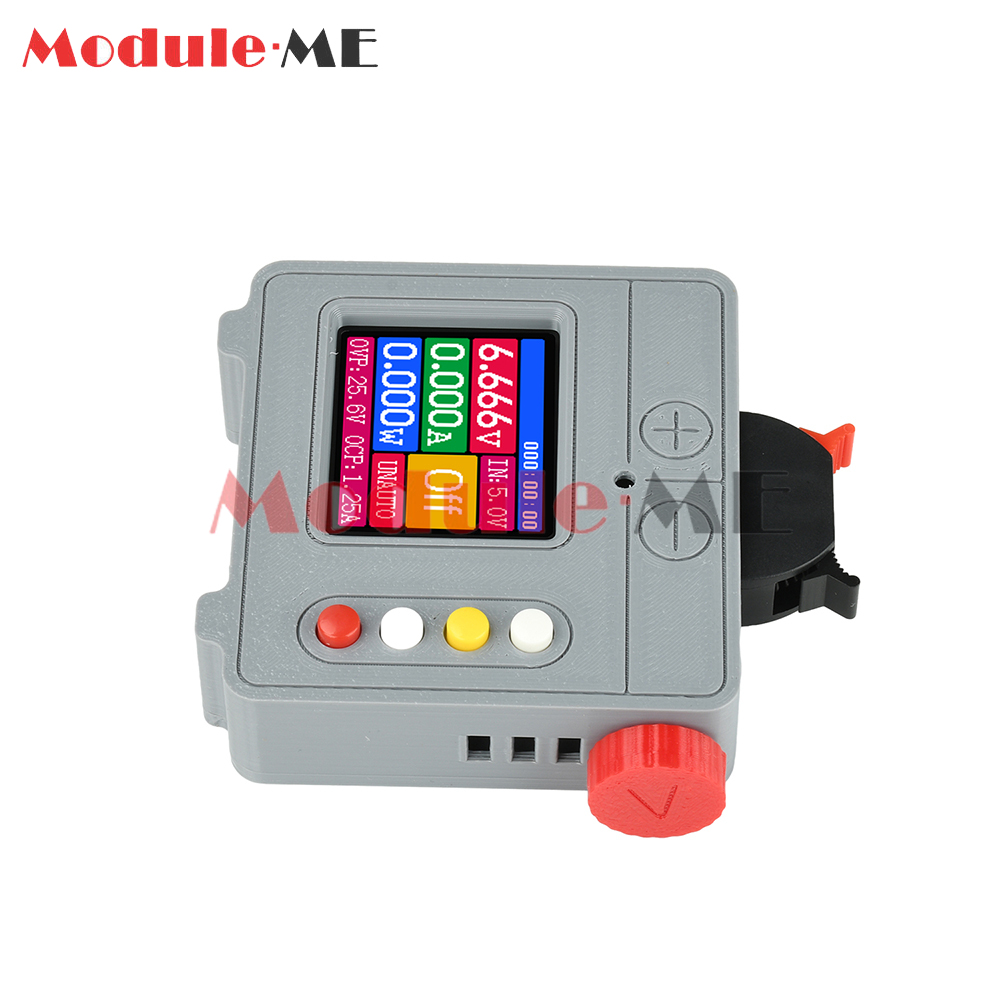

1. High-definition color display shows real-time voltage and current, enabling more precise and efficient debugging
2. Rotary potentiometer adjustment eliminates button drift issues, ensuring stable settings without fluctuations
3. Wide-voltage step-up/step-down design (0.6V–25.6V continuously adjustable), suitable for various scenarios

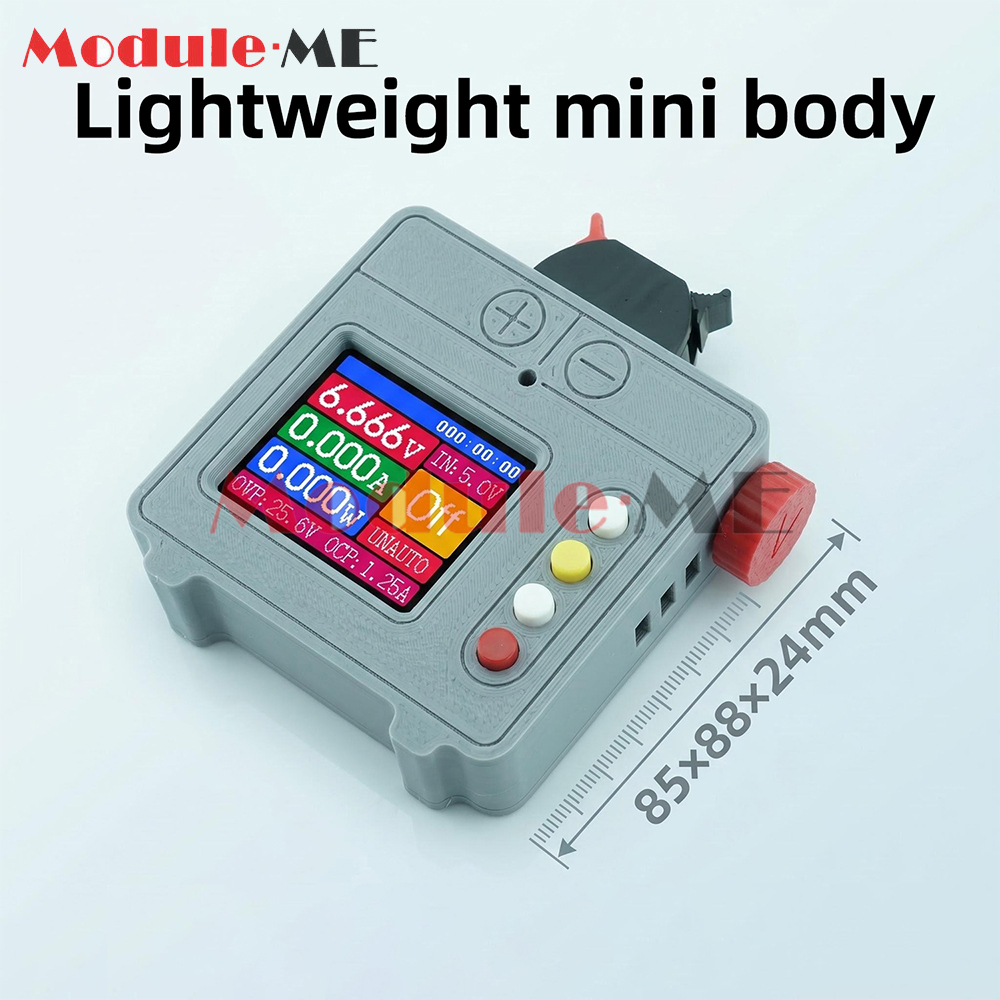

4. Compact and lightweight, a portable desktop power supply
5. 5W output power designed specifically for low-power precision debugging. Safe and worry-free
6. Supports 1–9 levels of backlight brightness adjustment; standby current with screen off is less than 1mA
7. Ideal for electronics enthusiasts, repair engineers, DIY makers, student experiments, and microcontroller developers

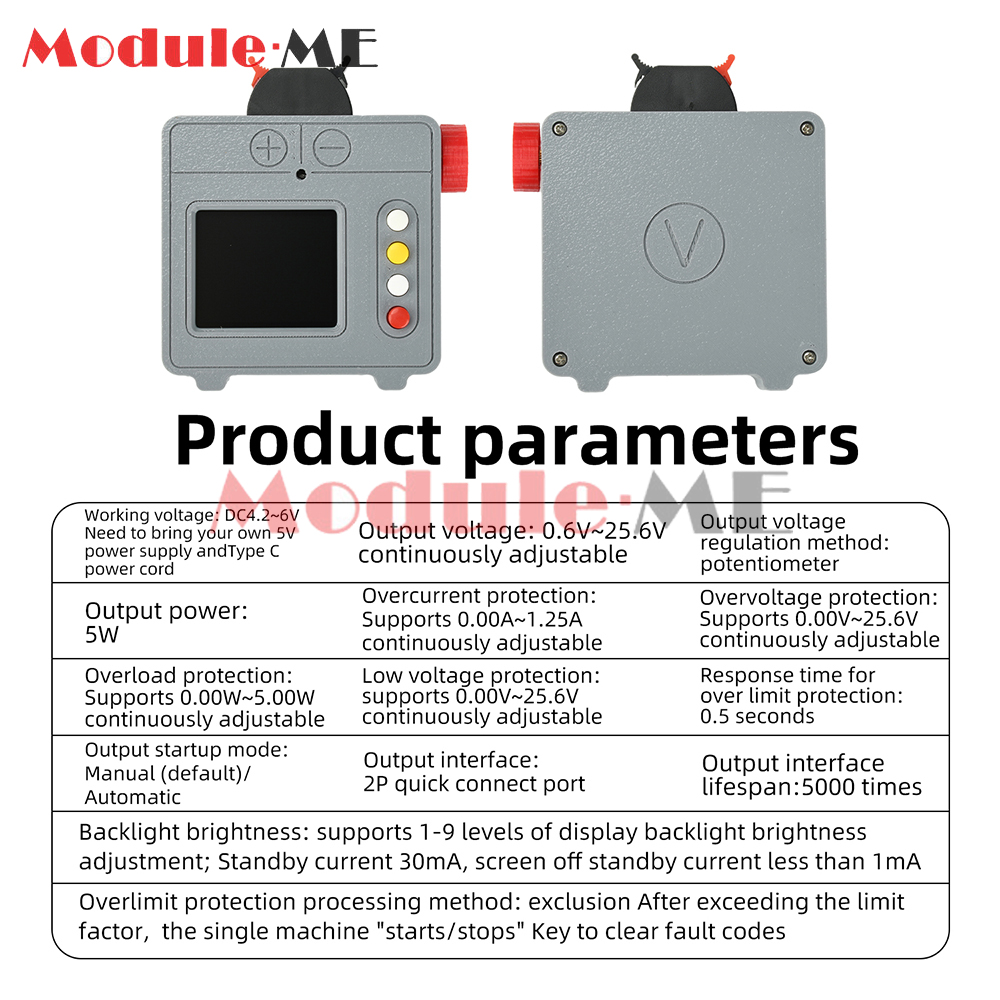

Parameter
Operating Voltage: DC 4.2–6V; requires a 5V power source and Type-C power cable
Output Voltage: 0.6V–25.6V, continuously adjustable
Output Voltage Adjustment Method: Potentiometer
Output Power: 5W
Overcurrent Protection: Supported, 0.00A–1.25A continuously adjustable
Overvoltage Protection: Supported, 0.00V–25.6V continuously adjustable
Overload Protection: Supported, 0.00W–5.00W continuously adjustable
Undervoltage Protection: Supported, 0.00V–25.6V continuously adjustable
Over-limit Protection Response Time: 0.5 seconds
Output Start Mode: Manual (default) / Automatic
Over-limit Protection Handling: After eliminating the cause of the over-limit condition, press the “Start/Stop” button on the unit to clear the fault code
Output Interface: 2-pin quick-connect port
Output Interface Lifespan: 5,000 cycles
Backlight Brightness: Supports 1–9 levels of backlight brightness adjustment; standby current 30 mA, screen-off standby current less than 1 mA
Product Description
The MINI5 has a maximum load of only 5W and is designed for scenarios such as business trips or other short-term, low-power power supply needs. It does not have an active cooling fan; it will generate heat when operating at full load and is only suitable for short-term testing purposes, not for long-term power supply use. If possible, an external fan may be used to assist with cooling the MINI5 during operation.
Package include
Mini Power Supply *1
