EverySource Co

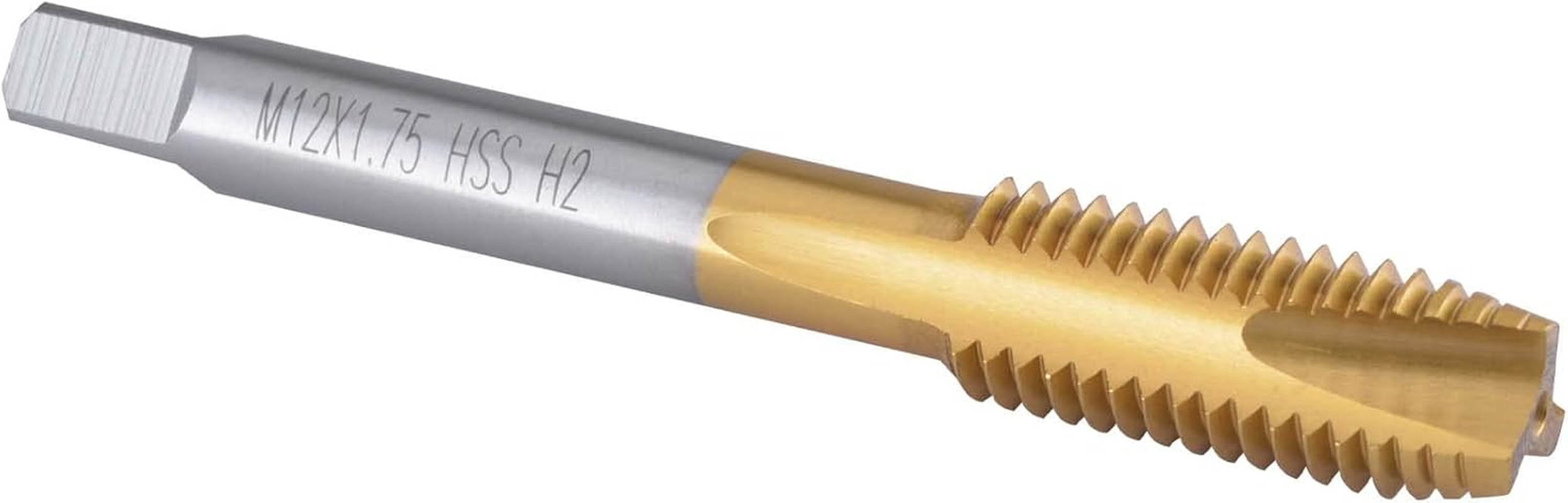

NEW M12 HSS Titanium Coated Spiral Point Tap with 1.75 Pitch
FEATURES
Product description
Applications
Spiral point taps are also called screw-point taps, suitable for tapping through holes and deep threads. Because of its special chip removal method, the spiral point tap avoids the chip's interference with the formed thread surface, so that the quality of the finished threaded hole is better than that of the ordinary straight fluted tap. The shallow groove structure ensures cooling and strengthens the torque resistance in the tap processing so that it can have a higher speed and is suitable for processing deep through-hole threads. Due to the chip removal method of the screw point tap, it is recommended for vertical machining and through-hole threading.
About This Tap:
Type: Spiral Point
Measurement: Metric
Accuracy Class: H2
Material: HSS 6542
Finish Type: Ti-Coated
Spiral Point Tap
Suitable for through holes, the chips are discharged downward. The machined thread surface is of high quality.
Straight Fluted Tap
Suitable for machining materials with powdery chips. Through hole or shallow blind hole can be machined.
Spiral Flute Tap
Used for blind hole machining, chip removal upward, good chip removal effect, no residual cutting.
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart Customer Reviews
4.5 out of 5 stars 159
4.6 out of 5 stars 144
4.6 out of 5 stars 249
4.7 out of 5 stars 77
4.4 out of 5 stars 26
4.5 out of 5 stars 46 Price $12.89$12.89 $9.89$9.89 $13.99$13.99 $16.99$16.99 $20.99$20.99 $32.99$32.99 Cutting Diameter 8mm 10mm 12mm 16mm 18mm 22mm Pitch 1.25mm 1.25mm 1.5mm 1.5mm 1.5mm 1.5mm
Tips
Please be sure to take protective measures when working, you need to wear goggles and protective gloves.
Before tapping confirm whether the diameter of the round hole is appropriate. Be sure to select the appropriate cutting oil for the complex tapping process and apply anti-rust oil for maintenance after use.
When tapping, control the speed according to the hardness of the material, it is necessary to add water or coolant to cool down to prevent excessive temperature and reduce tap loss.
Material: Manufactured by high-temperature quenching of 6542 high-speed steel(M2), higher toughness and wear resistance. With Ti-Coated for improving wear and fusion resistance.
Features: Chips are expelled downwards when machining threads, Ideal for through-hole and deep threading. With high strength, long life, fast cutting speed and clear thread.
Applications: Can be used for tapping stainless steel (below 30HRC), aluminum, die steel, ordinary steel, non-ferrous metals, hard plastics, etc.
Package Include: 1 pc M12X1.75mm Spiral Point Tap.
Part Number
spiral-point-tapM12X1.75_RH
Item Weight
1.59 ounces
Package Dimensions
4.88 x 4.25 x 0.83 inches
Item model number
M12X1.75
Size
M12x1.75
Color
Spiral Point Tap Ti-co
Material
HSS 6542
Blade Edge
3 Straight Flutes
Measurement System
Metric
Measurement Accuracy
H2
Batteries Included?
No
Batteries Required?
No
0.83 inches x 4.88 inches x 4.25 inches. Weight: 1.59 oz
