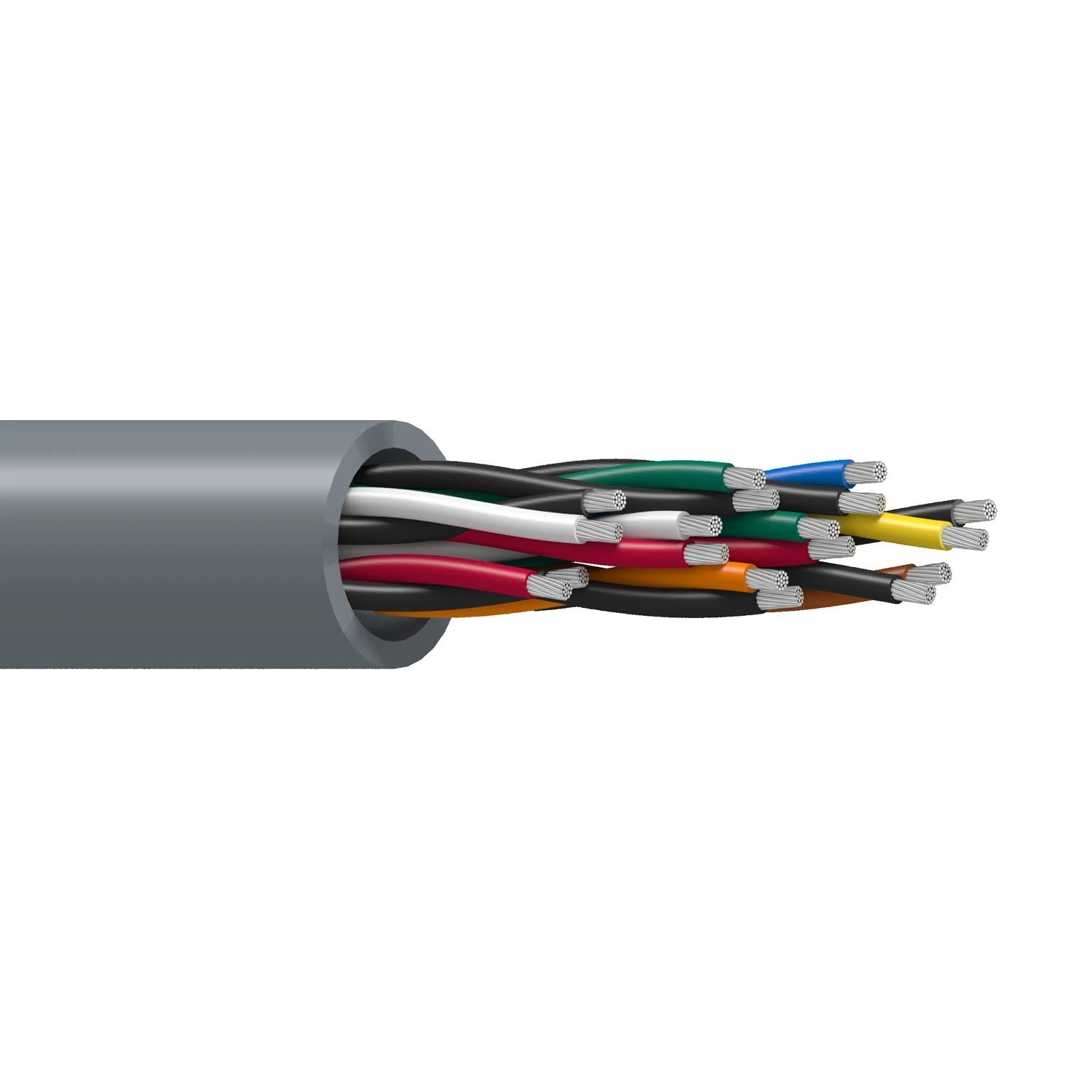

500' Belden 9752 20 AWG 9 Pair Electronic Instrumentation Cable PVC Jacket 300V
Click Thumbnails to Enlarge
DESCRIPTION
• Belden 9752 20 AWG 9 Pair Electronic Instrumentation Cable PVC Jacket 300V
APPLICATION
• Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Computer Communication; Panel Wiring
CONDUCTOR
• Tinned Copper
INSULATION
• Polyvinyl Chloride (PVC)
JACKET
• Polyvinyl Chloride (PVC)
TEMPERATURE
• UL Temperature: 80°C
• Operating Temperature: -20°C to 80°C
STANDARDS & COMPLIANCES
• Environmental Suitability: Indoor
• Flammability / Reaction to Fire: UL1685 FT4 Loading, FT4, IEC 60332-1-2
• NEC / UL Compliance: Article 800, CMG
• AWM Compliance: AWM 2464
• CEC / C(UL) Compliance: CMG
• European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
• APAC Compliance: China RoHS II (GB/T 26572-2011)
PRODUCT SPECIFICATIONS
| Size AWG | 20 |
|---|---|
| Number of Pairs | 9 |
| Number of Strands | 7 |
| Insulation Thickness (inch) | 0.015 |
| Jacket Thickness (inch) | 0.035 |
| Overall Diameter (inch) | 0.429 |
| Weight (lbs/1000ft) | 116 |
