Description:
100% Brand New
Name: Magnetic Body Mount
Material: Plastic + Magnet
Color: Black
Compatible Models: For Hyper Go MJX 7303 1/7 RC Car


Features:
1. Wireless magnetic body mount for modifying the MJX 7303 remote-controlled drift/tug car.

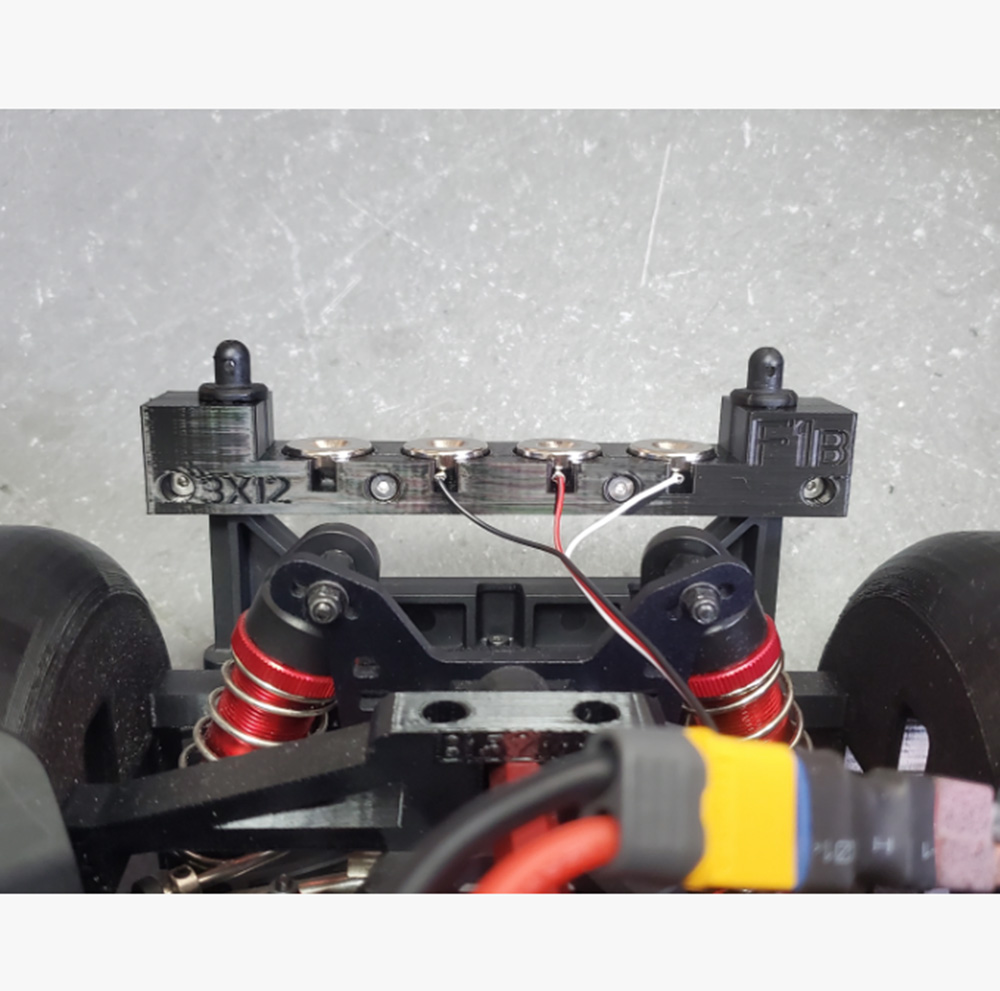

2. Installation Method: Position F1A toward the front bumper and F1B toward the front suspension mount. Secure with the included 3x12 screws, clamping onto the original body mounts.

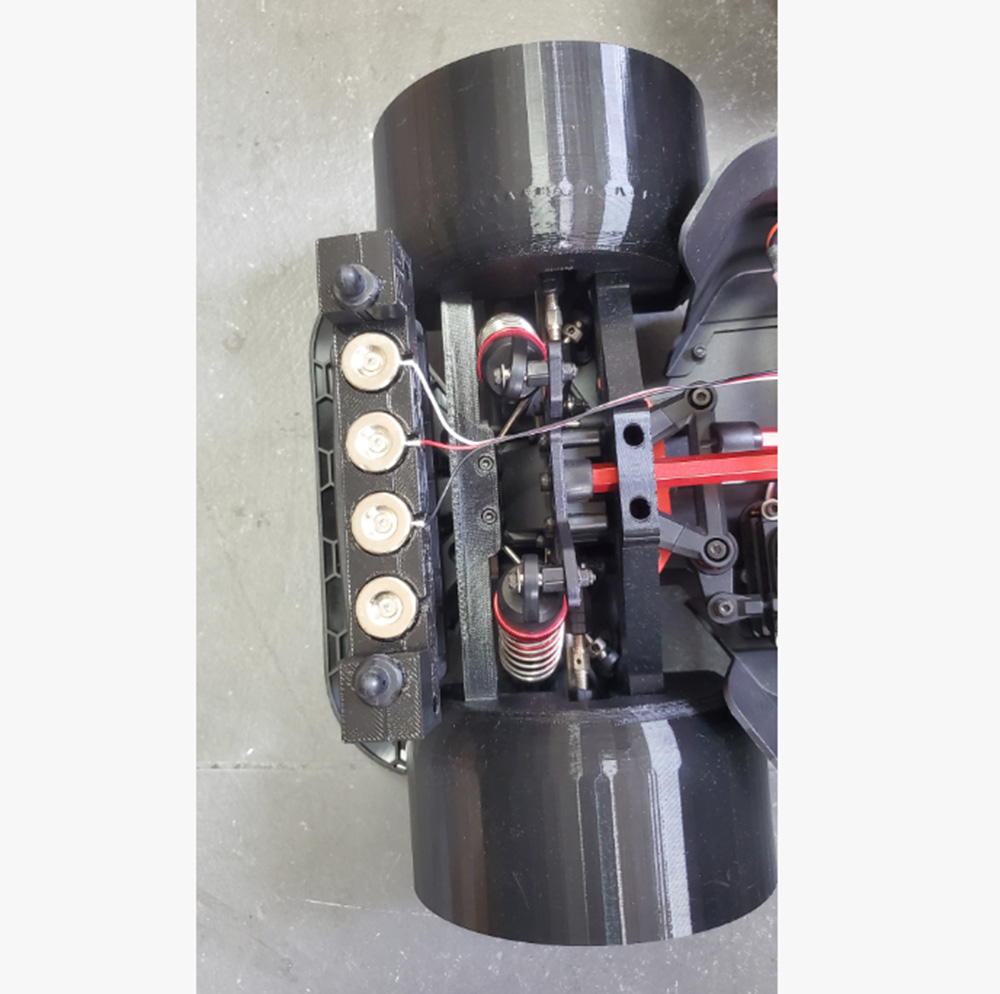

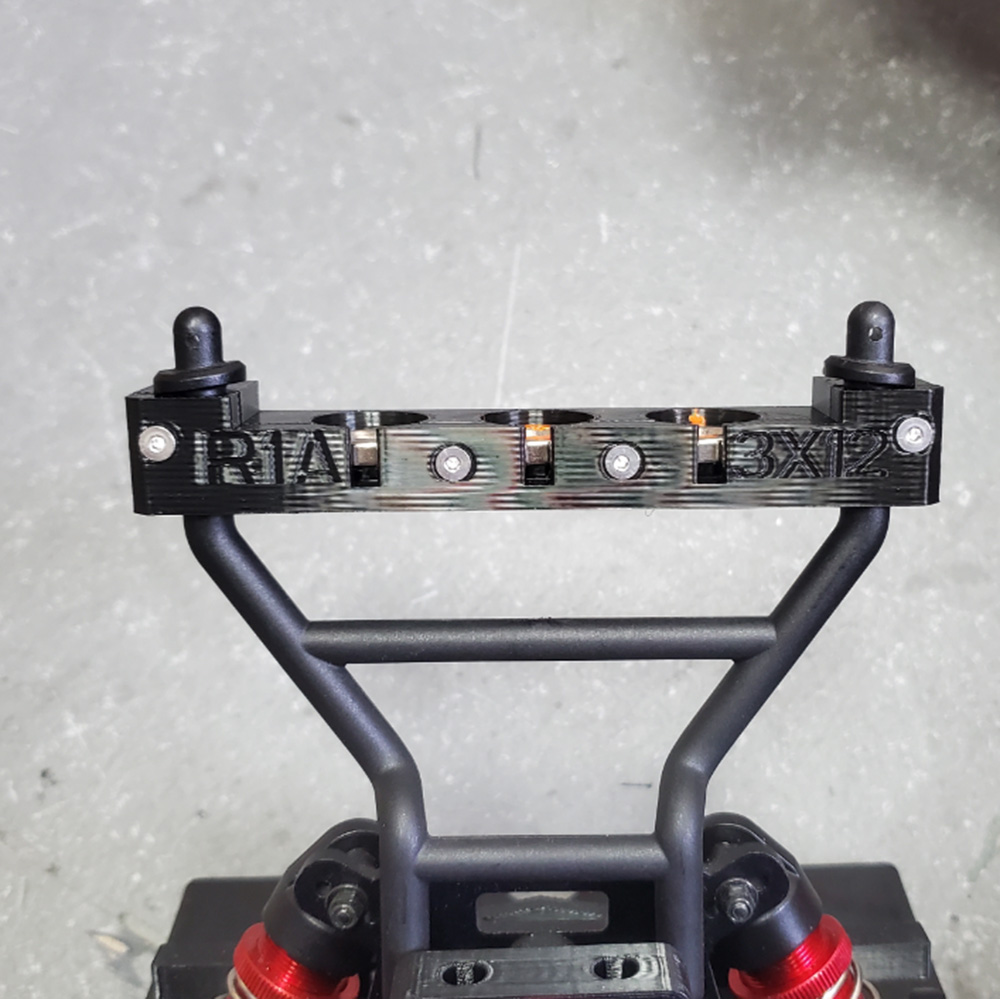

3. Rear Mount Installation: Trim the upper crossbar of the original rear body mount (refer to Image 3). Position R1A toward the center of the car and R1B toward the rear. Secure with 3x12 screws, clamping onto the original rear body mount.

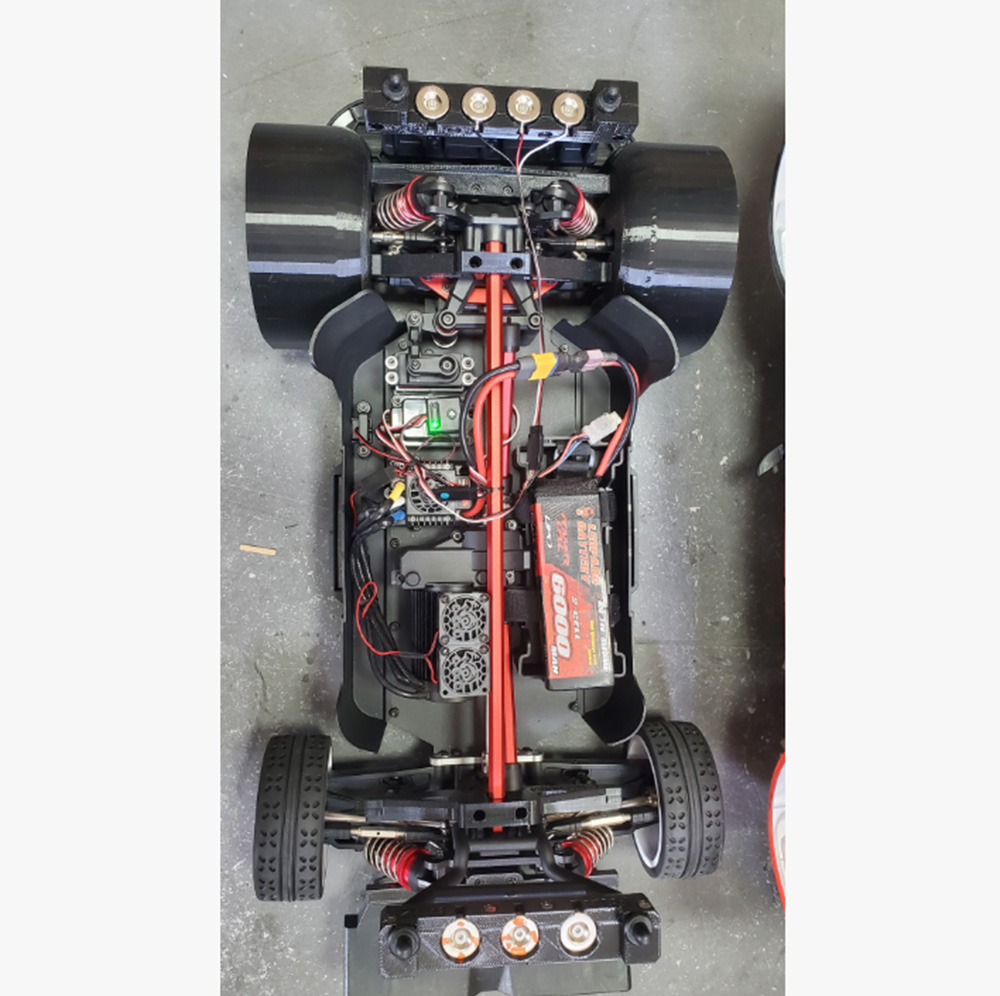

4. The product includes 7 S-magnet and 7 N-magnet pairs. For front magnet installation, select any 3 magnet positions. Press the included male connector's conductive tabs under the magnets and secure them together using 3x8 screws. For rear pillar installation, directly secure the magnets with 3x8 screws. Note: All 7 magnets on the frame must be oriented uniformly (e.g., all S-type for the front shell). This ensures secure magnetic attraction. When installing the magnet on the front upper pillar (F2), secure the female connector's conductive tab to the corresponding male connector on the frame. Ensure the wire colors match exactly between upper and lower connectors. Verify this connection carefully; failure to do so will prevent power supply.

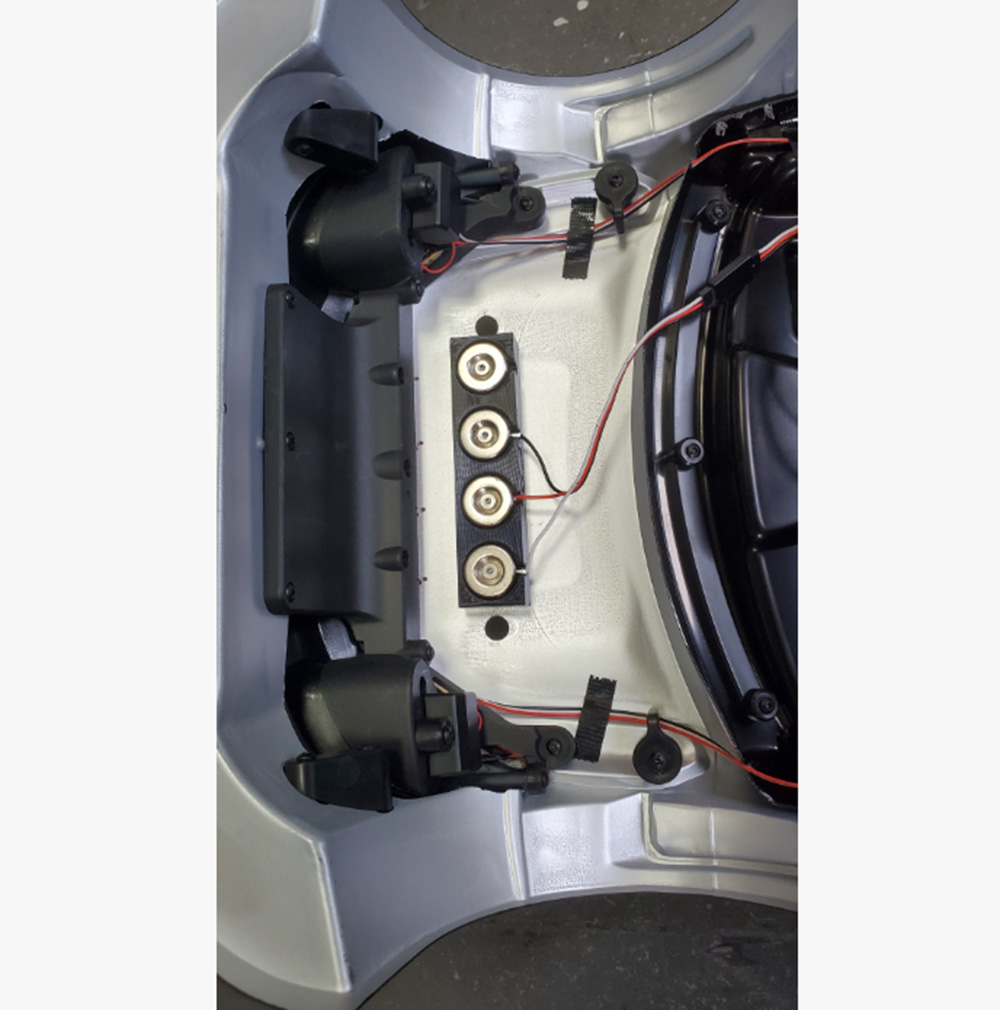

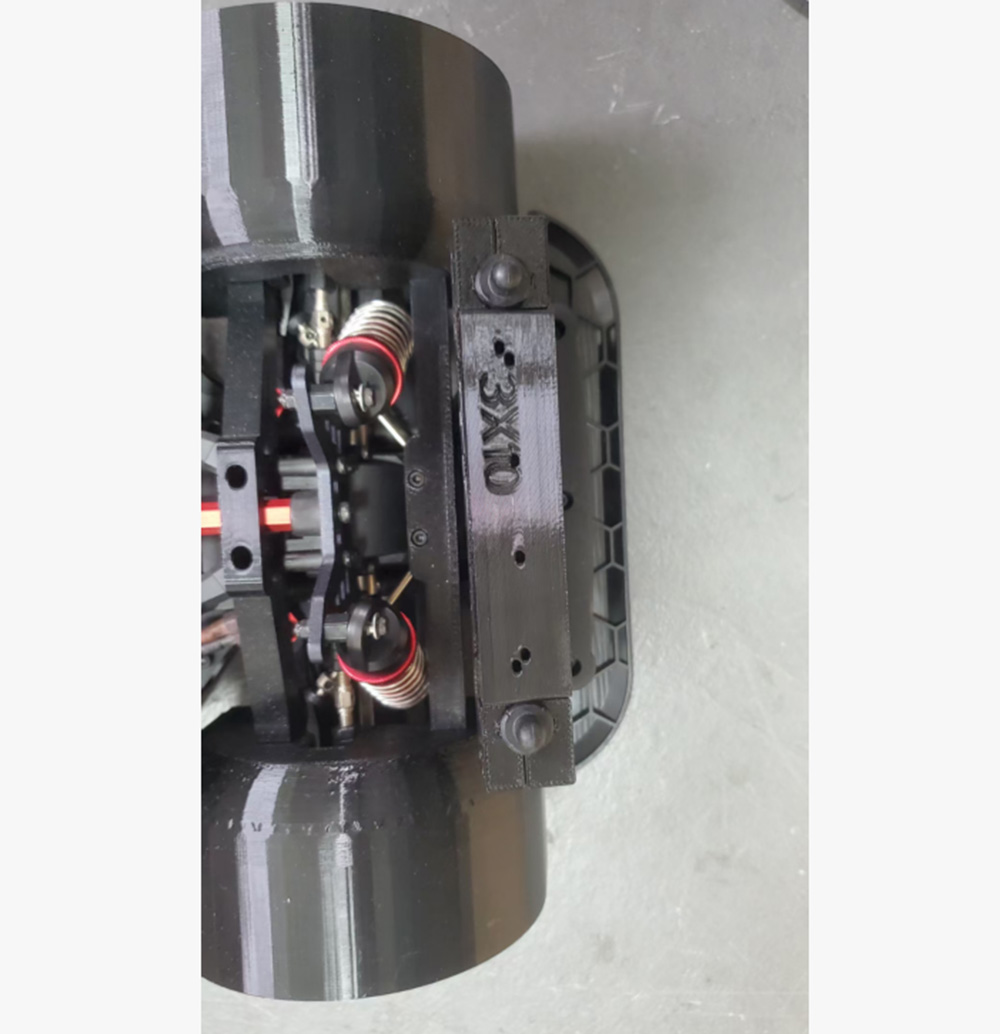

5. Remove the factory anti-theft soft rubber clips from the body shell. Secure F2 directly to the original anti-theft soft rubber mounting location using the included 3x10 screws. Similarly, remove the anti-theft soft rubber clips from the rear body pillar and secure it with 3x10 screws.
6. For wiring:
- Plug the front magnetic shell pillar's male connector directly into the factory receiver's reserved female socket.

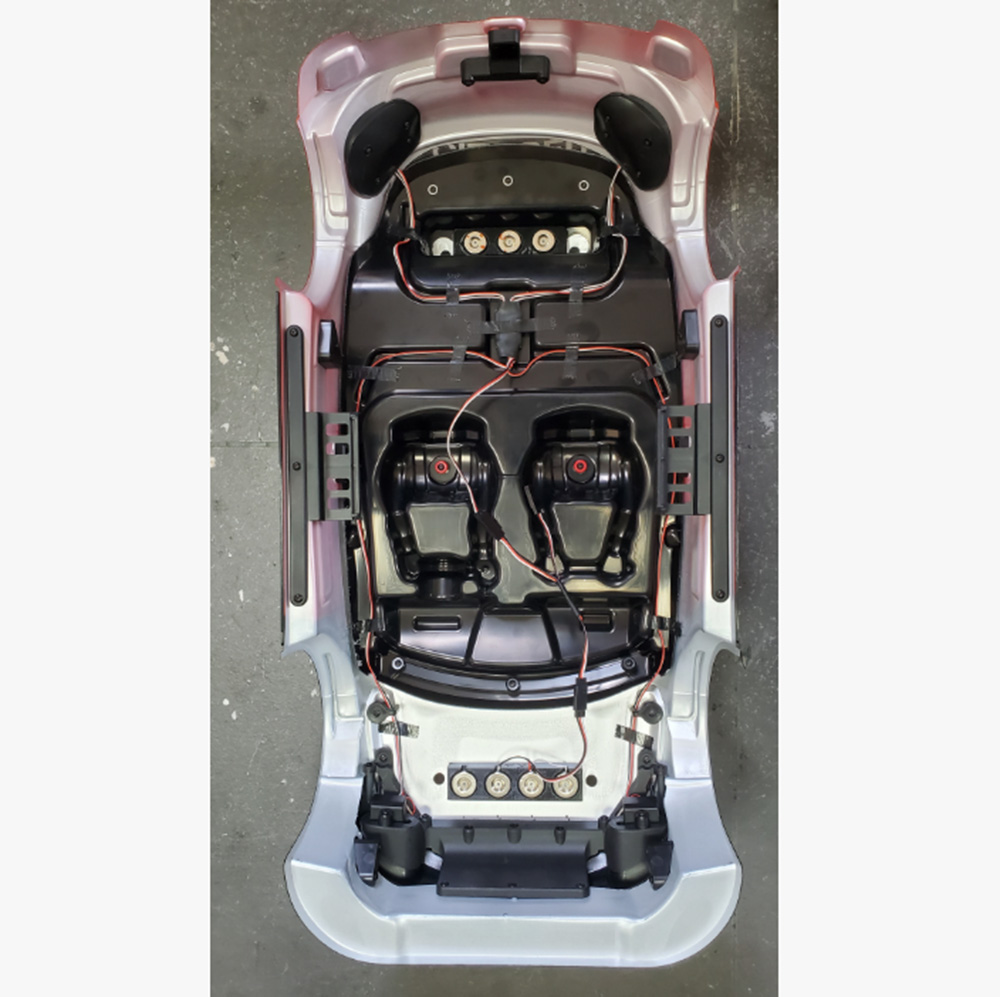

- Connect the shell's lighting wires directly to the magnetic shell pillar's female socket. This can also accommodate hood lights and rear tail lights.

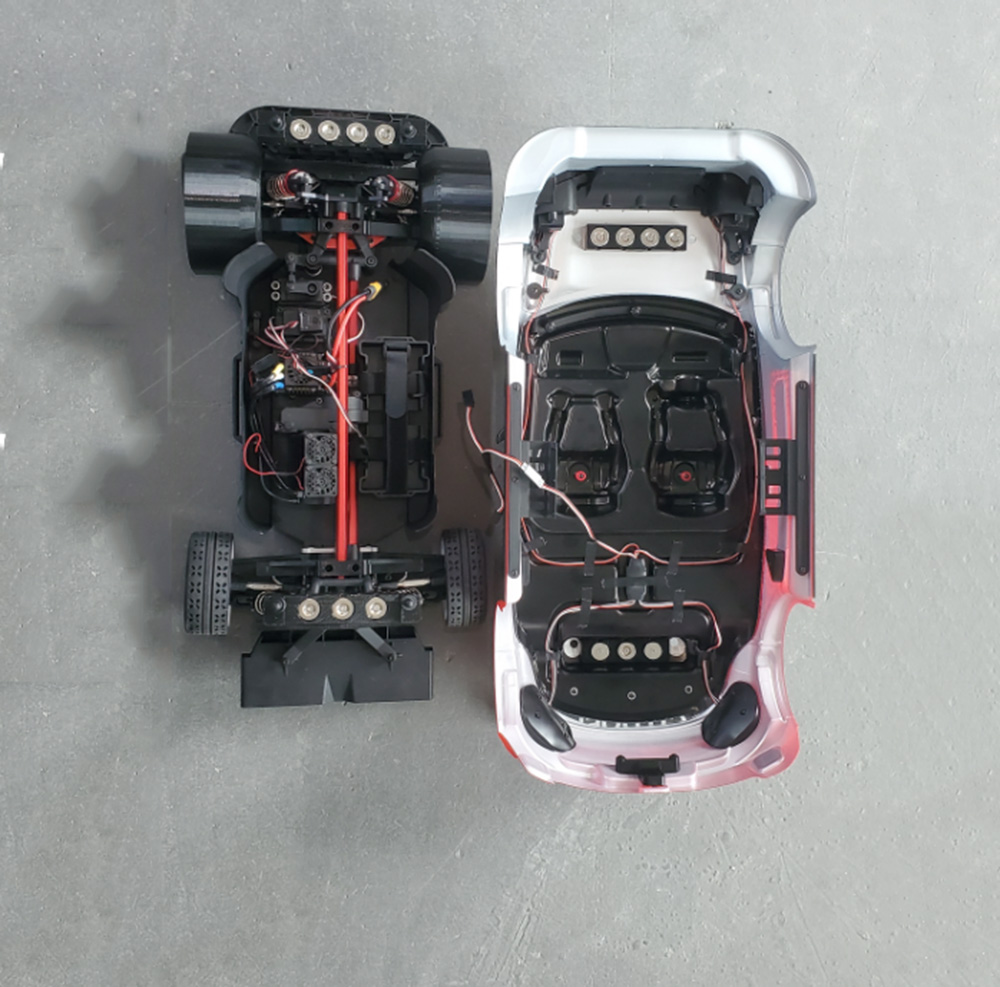

This allows shell replacement during battery swaps without disconnecting wires. Simply place the secured shell onto the frame for automatic alignment and magnetic attachment.

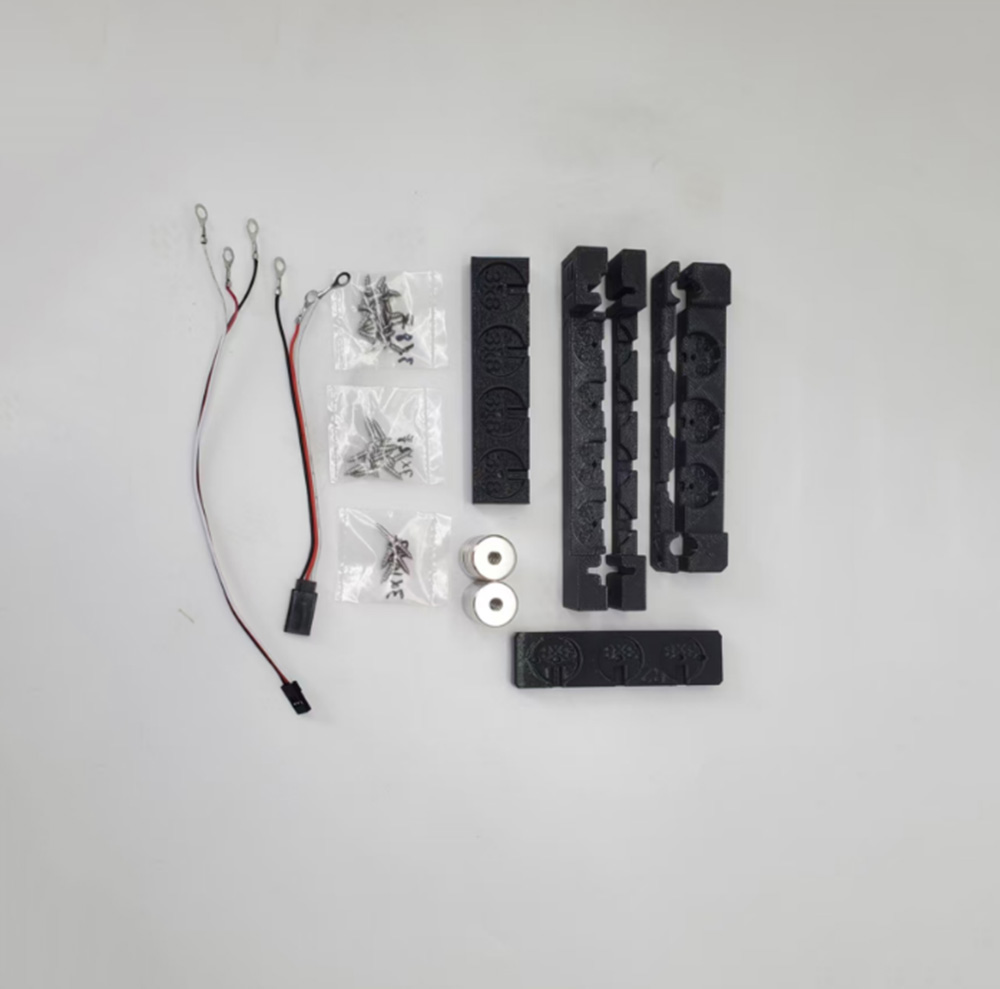

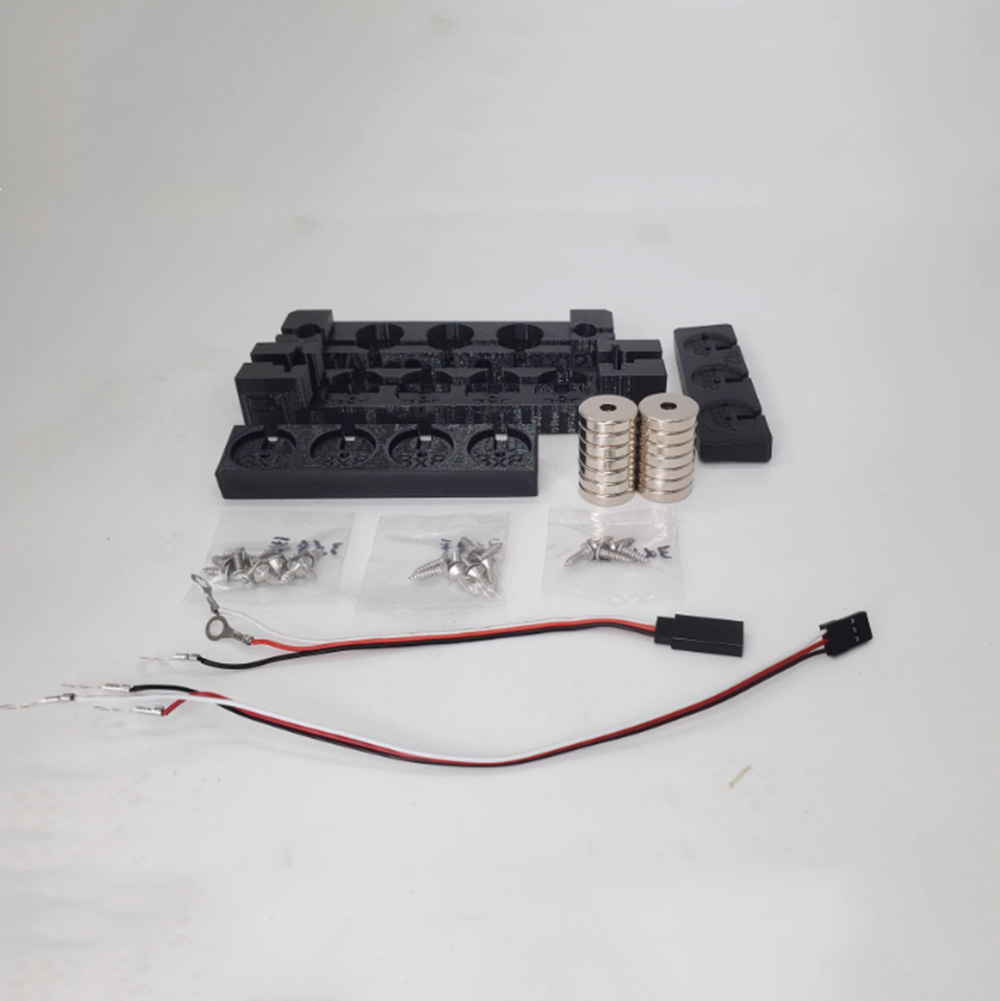

Included:
1 set of magnetic mount post
