5.5V-36V to 5V TPS5450 Switching Power Supply Module DC-DC Step-down Module 5A
Description
Features:

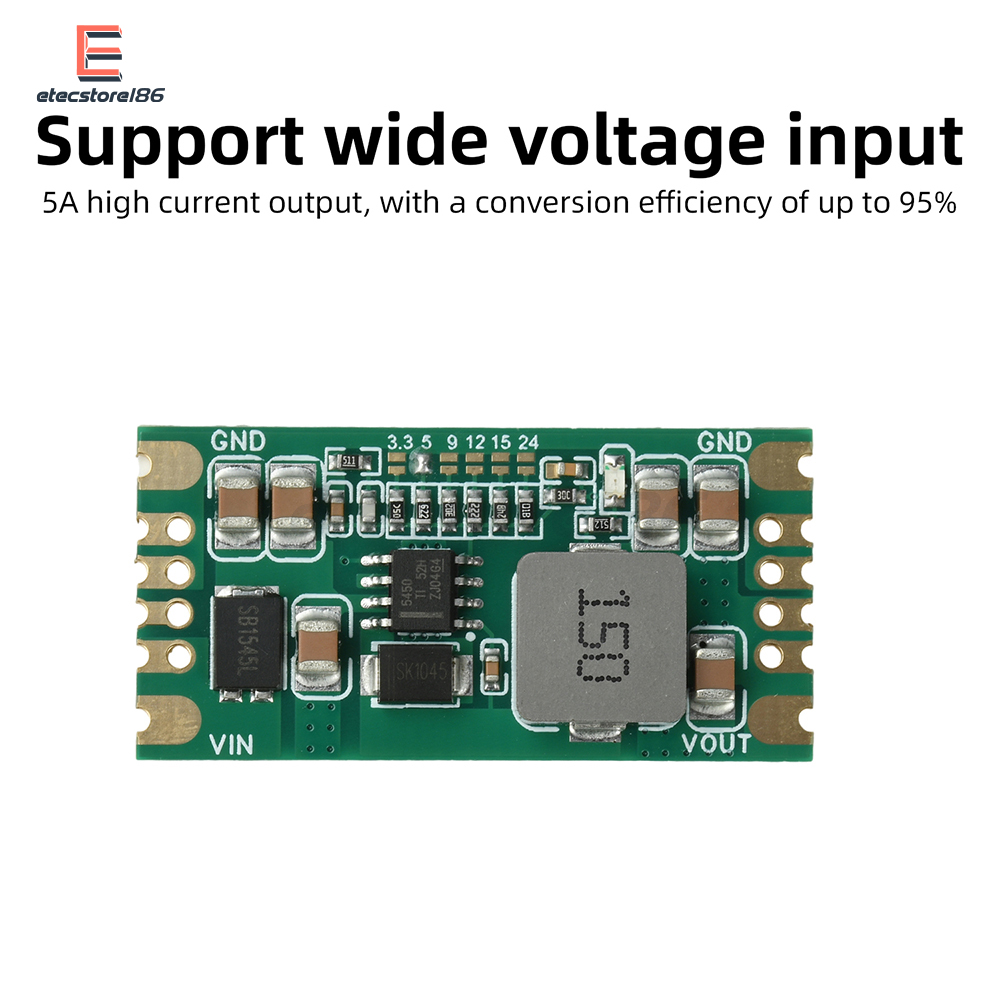

1. Supports wide voltage input, 5A high current output, with a conversion efficiency of up to 95%
2. Generous materials, small ripple, convenient and practical power output, flexible and practical
3. Equipped with enable pins, overcurrent and thermal protection, the power consumption in the off state is only 18 μ A

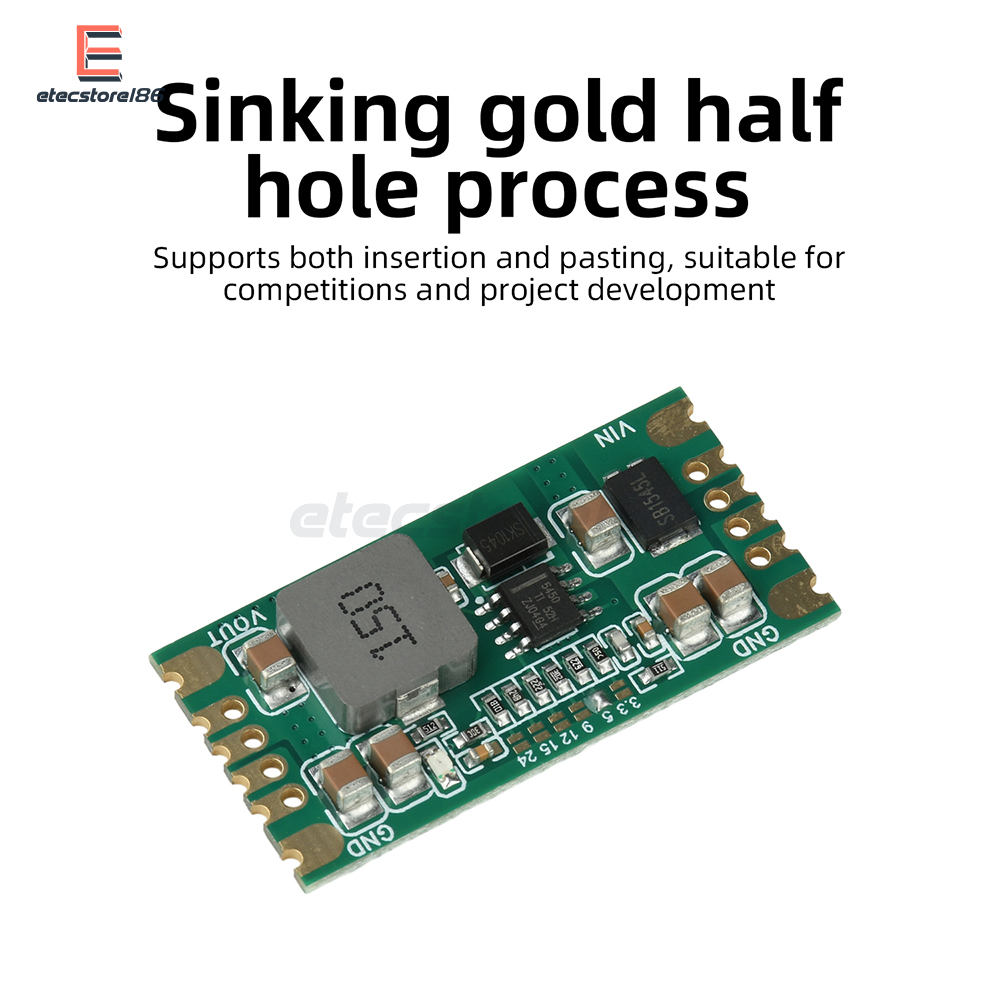

4. Sinking gold half hole process, supporting both insertion and pasting, suitable for competitions and project development

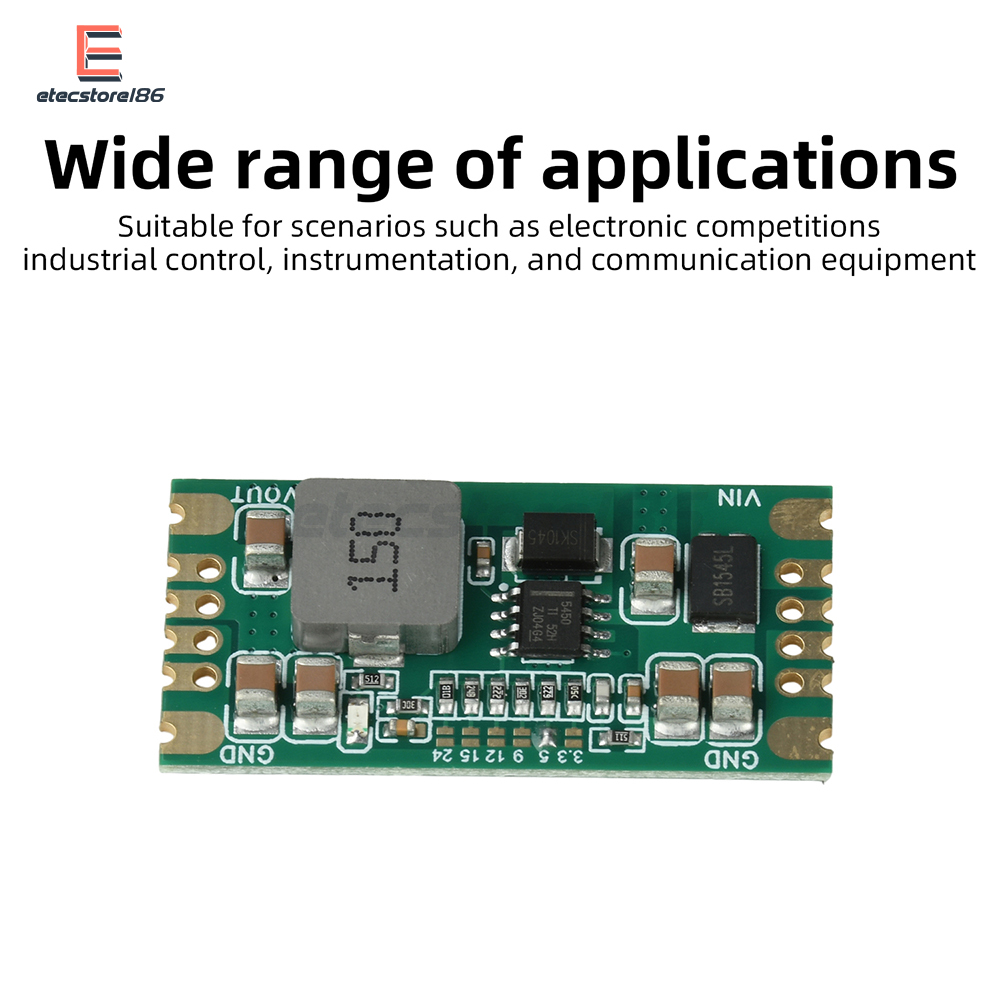

5. Wide application range, suitable for scenarios such as electronic competitions, industrial control, instrumentation, and communication equipment
1. Supports wide voltage input, 5A high current output, with a conversion efficiency of up to 95%
2. Generous materials, small ripple, convenient and practical power output, flexible and practical
3. Equipped with enable pins, overcurrent and thermal protection, the power consumption in the off state is only 18 μ A
4. Sinking gold half hole process, supporting both insertion and pasting, suitable for competitions and project development
5. Wide application range, suitable for scenarios such as electronic competitions, industrial control, instrumentation, and communication equipment
Product Introduction

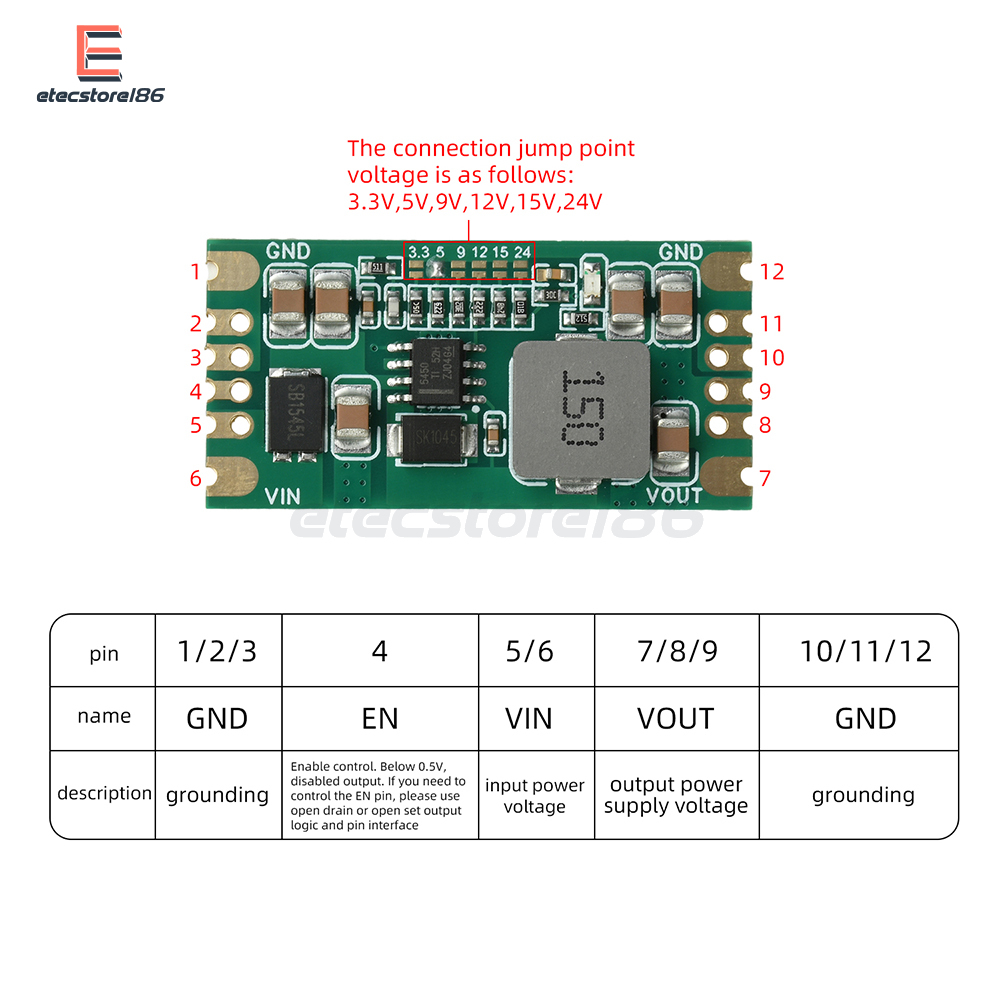

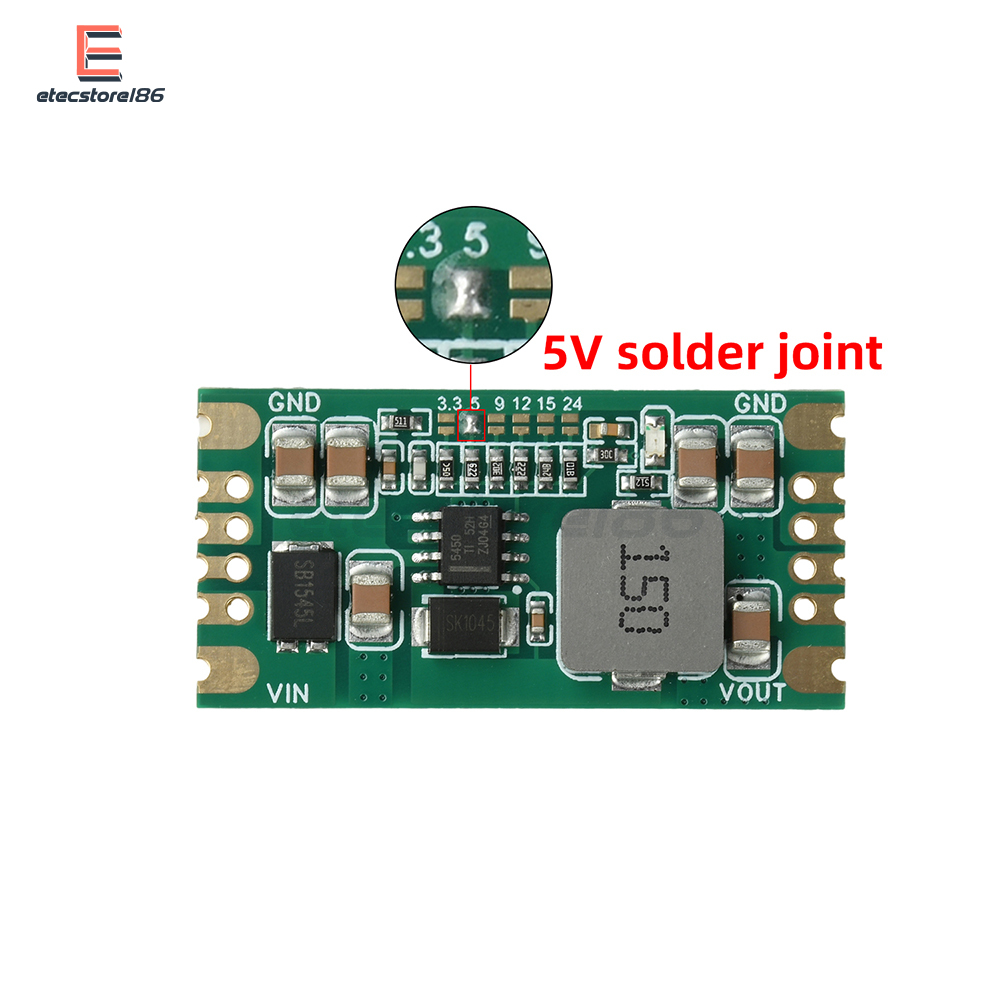

This TPS5450 module is a power module with a high current output of 5A and a wide voltage input range of 5.5-36V. The onboard default voltage output is 5V, and there are also 3.3V9V, 12V, 15V, 24V outputs. It can be converted to the corresponding voltage output by simply soldering the corresponding jump point. The optimal theoretical conversion rate can reach 95%. Wide voltage output range: Fixed 500kHz conversion rate, with overcurrent protection and thermal break function, with switch enable pin, only 18uA in off state. The module layout is neat, strictly following the design specifications of the power circuit for layout and wiring, generous materials, small ripple, and convenient and practical power output. Suitable for student competition modules and personal project development.
This TPS5450 module is a power module with a high current output of 5A and a wide voltage input range of 5.5-36V. The onboard default voltage output is 5V, and there are also 3.3V9V, 12V, 15V, 24V outputs. It can be converted to the corresponding voltage output by simply soldering the corresponding jump point. The optimal theoretical conversion rate can reach 95%. Wide voltage output range: Fixed 500kHz conversion rate, with overcurrent protection and thermal break function, with switch enable pin, only 18uA in off state. The module layout is neat, strictly following the design specifications of the power circuit for layout and wiring, generous materials, small ripple, and convenient and practical power output. Suitable for student competition modules and personal project development.

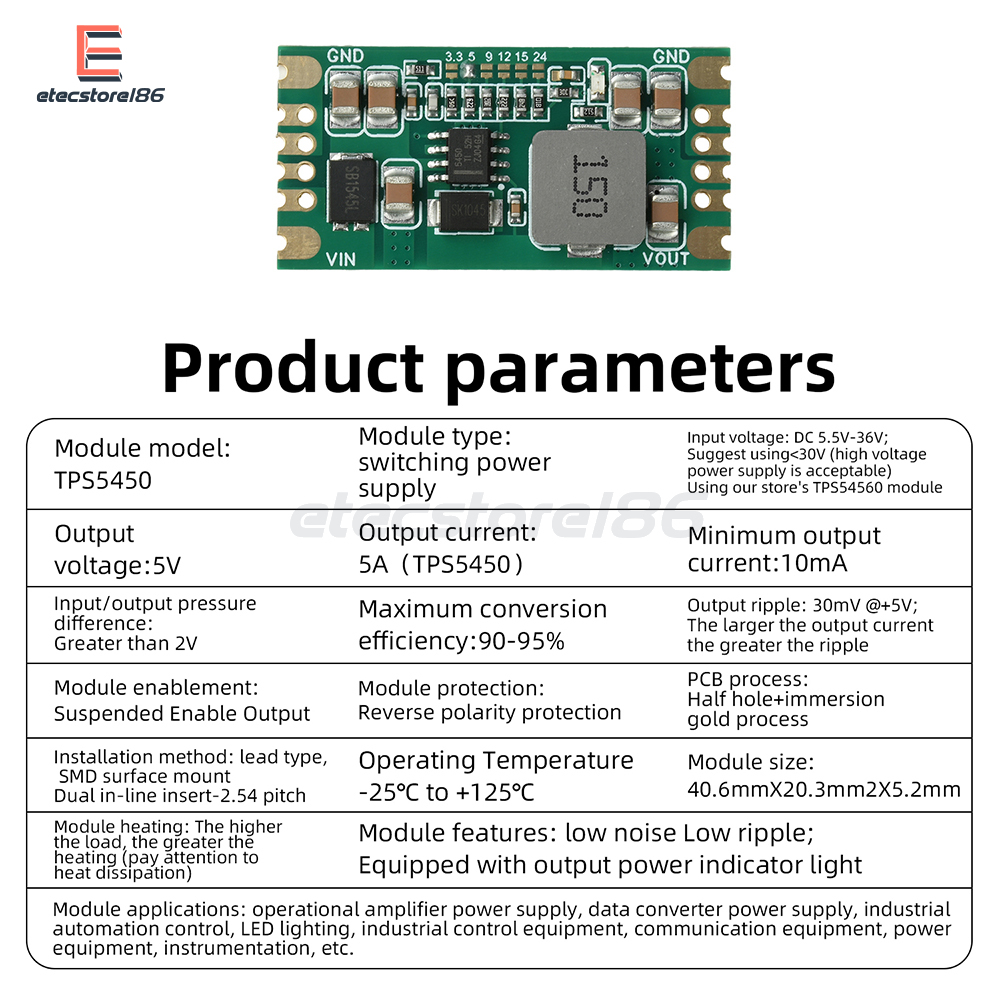

Parameters:
Module model: TPS5450
Module type: Switching power supply
Input voltage: DC 5.5V-36V; Suggest using<30V
Output voltage: 5V
Output current: 5A (TPS5450)
Minimum output current: 10mA
Input/output pressure difference: greater than 2V
Maximum conversion efficiency: 90-95%
Output ripple: 30mV @+5V; The larger the output current, the greater the ripple
Module Enable: Suspended Enable Output
Module protection: Input anti reverse connection
PCB process: half hole+immersion gold process
Installation method: lead type, SMD surface mount, dual in-line insertion with a spacing of 2.54
Module features: low noise, low ripple; Equipped with output power indicator light
Module applications: operational amplifier power supply, data converter power supply, industrial automation control, LED lighting, industrial control equipment, communication equipment, power equipment, instrumentation, etc.
Module size: 40.6mmX20.3mm2X5.2mm
Module heating: The higher the load, the greater the heating (pay attention to heat dissipation)
Working temperature: -25 ℃ to+125 ℃
Module model: TPS5450
Module type: Switching power supply
Input voltage: DC 5.5V-36V; Suggest using<30V
Output voltage: 5V
Output current: 5A (TPS5450)
Minimum output current: 10mA
Input/output pressure difference: greater than 2V
Maximum conversion efficiency: 90-95%
Output ripple: 30mV @+5V; The larger the output current, the greater the ripple
Module Enable: Suspended Enable Output
Module protection: Input anti reverse connection
PCB process: half hole+immersion gold process
Installation method: lead type, SMD surface mount, dual in-line insertion with a spacing of 2.54
Module features: low noise, low ripple; Equipped with output power indicator light
Module applications: operational amplifier power supply, data converter power supply, industrial automation control, LED lighting, industrial control equipment, communication equipment, power equipment, instrumentation, etc.
Module size: 40.6mmX20.3mm2X5.2mm
Module heating: The higher the load, the greater the heating (pay attention to heat dissipation)
Working temperature: -25 ℃ to+125 ℃
Package Included:
1X module
1X module
