Instructions

  • 【MULTIFUNCTIONAL SOLAR INVERTER】ZLPOWER split-phase solar inverter is a new type of solar energy storage inverter integrating solar energy storage & utility charging and energy storage, AC sine wave output. It is capable to deliver single phase and split-phase AC output all by itself. The built-in program allows for easy customization of power supply methods and schedules to maximize energy efficiency.
  • 【DUAL MPPT】Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high-power modules. Equipped with two 500V solar inputs and simultaneous tracking maximum power of both solar panel strings.

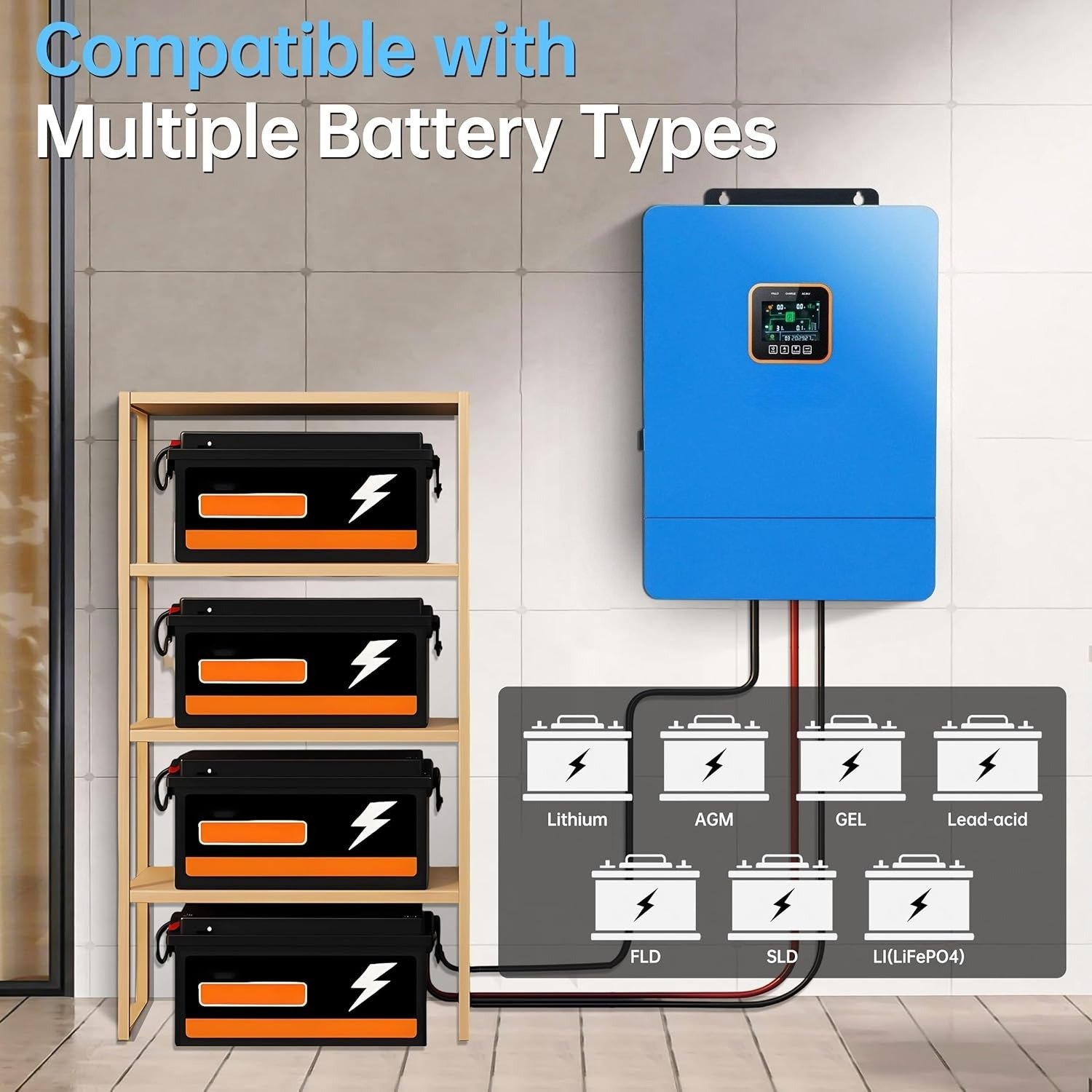

  • 【COMPATIBLE WITH VARIOUS BATTERIES】10000W 48V split phase power inverter is compatible with AGM, Gel, Lead acid, Lithium-ion, and LiFePO4 batteries and it offers a batteryless mode as well. Solar, diesel generator, grid electricity, and battery can all serve as energy sources for this inverter, ensuring the stable power supply of AC loads.With a dual activation function when the li-ion battery is deactivated; either mains /solar power supply access can trigger the activation process of the Li-ion battery.
  • 【CHARGING MODES AND TIME CAN BE SET】Pure Sine Wave Solar Inverter has 4 optional charging modes, solar only, mains priority, solar priority, and mixed mains/PV charging; and with two output modes of utility bypass and inverter output, with uninterrupted power supply function.
  • 【FULL PROTECTION AND APPLICATIONS】PowMr's 12KW Solar Inverter with complete short circuit protection, over-current protection, over-under voltage protection, overload protection, backfill protection, etc, is ideal for off-grid backup and self-use applications. Widely used for home, cabin, camper, RV, trailer, boat, and so on and used as backup supply while utility outages.

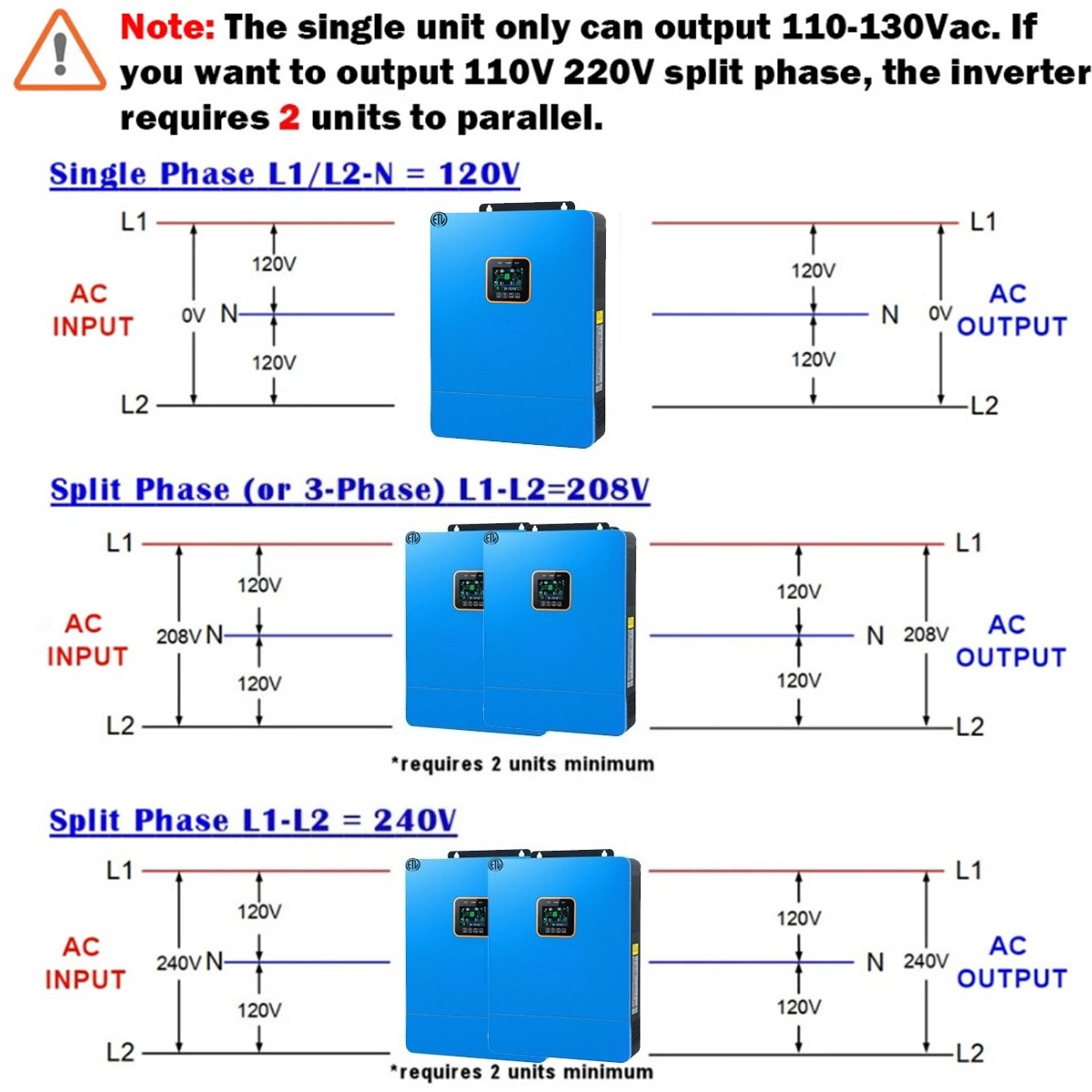

  • 【SPLIT PHASE OUTPUT 110V/220V】it can deliver split-phase and single-phase pure sine wave output. And supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase.






 Support Up to 6 Units in Parallel Connection

The 10KW solar inverter charger allows connection of up to 6 units simultaneously. This configuration grants a total power output of up to 60000W, catering to various applications such as residential, office, commercial, and industrial use. With its dependable and efficient design, as well as its effortless expandability, this solar inverter charger is an ideal choice for extensive solar systems.



Advantages

Supports lead acid battery and li-ion battery connections.
With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power  supply access can trigger the activation of the Li-ion battery.
Support split-phase and single-phase pure sine wave output.
Supports four different voltage levels of 100Vac, 105Vac, 110Vac, and 120Vac per phase.
Supports two solar inputs and simultaneous tracking of two solar maximum power  charging/carrying capacity functions.
Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted  to high-power modules.
4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV  charging.

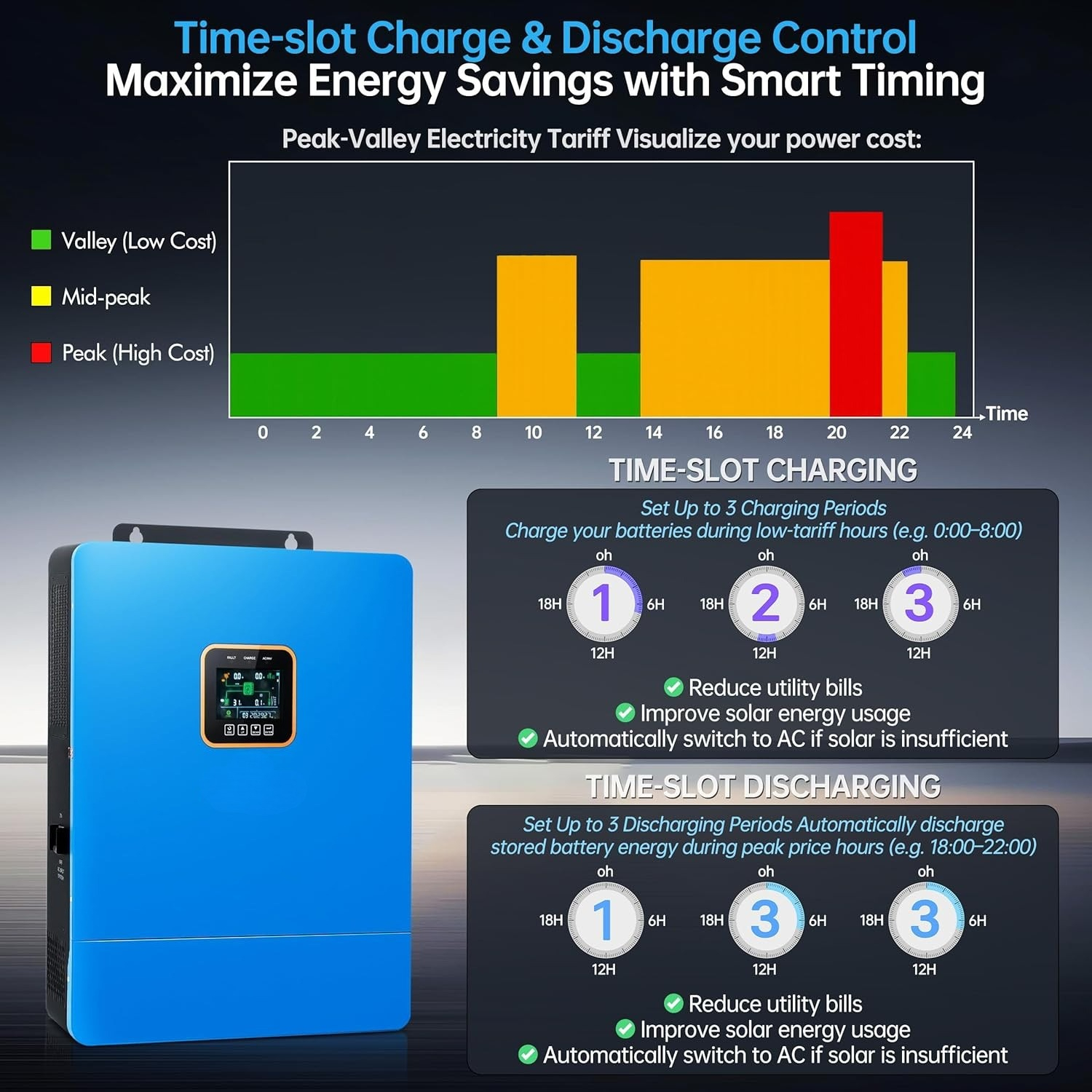

With the time-slot charging and discharging setting function, you can set the time period for  cutting in/out of mains charging and switch the time period between battery discharging and  mains bypass power supply mode.
Energy saving mode function to reduce no-load energy losses.
With two output modes of utility bypass and inverter output, with uninterrupted power supply  function.
LCD large screen dynamic flow diagram design, easy to understand the system data and  operation status.
Full protection with complete short circuit protection, over-current protection, voltage  protection, overload protection, backfill protection, etc.
Support CAN, USB, and RS485 communication.



specification:
MODEL POW-SunSmart12KP CAN  BE SET
INVERTER OUTPUT
RatedOutput Power 10000W
Max.Peak Power 24000W
Rated Output Voltage 120/240Vac (split phase/single phase) Y
Rated AC Frequengy 50/60Hz Y
Waveform Pure Sine Wave
Switch Time 10ms(typical)
Parallel Number 6
Overload Protection After triggering the overload protection theinverter wil
resume output after3 minutes,5 consecutive overloads
willswitch off theoutput untilthe inverter isrestarted
(102%sload<110%)±10%:error and output shutdown
after 5min,
(110%<load<125%)±10%error andoutput shutdowm
after 10s
Load>125%±10%:error reported and output switched
off after 5s
BATTERY
Battery Type L-ion/Lead-Acid/User Defined Y
Rated Battery Voitage 48Vdc
Voltage Range 40-60Vdc Y
Max.MPPT Charging Current 200A Y
Max.Mains/Generator
Charging Current 		120A Y
Max.Hybrid Charging Current 200A Y
PVINPUT
Num.ofMPP Trackers 2
Max.PVarray power 6600W/6600W
Max.Input current 22/22A
Max.Voltage of Open Circuit 500Vdc/500Vdc
MPPTVoltage Range 125-425Vdc
MAINS /GENERATOR IMPUT
Input Voltage Range 90-140Vac
Frequency Range 50/60Hz
Bypass Overload Current 63A
EFFICIENCY
MPPT Tracking Efficiency 99.9%
Max.Battery Inverter
Effciengy 		92%
GENERAL
Dimensions 25.7*18.7*5.6inches
Weight 26kg(57.3lb)
Protection Level IP20,Indoor Only
Operating Temperature Range -10~55℃>45℃ derated
( 14~131F,>113F derated)
Noise <60dB
Cooling Method Ntermal Fan
COMMUNICATION

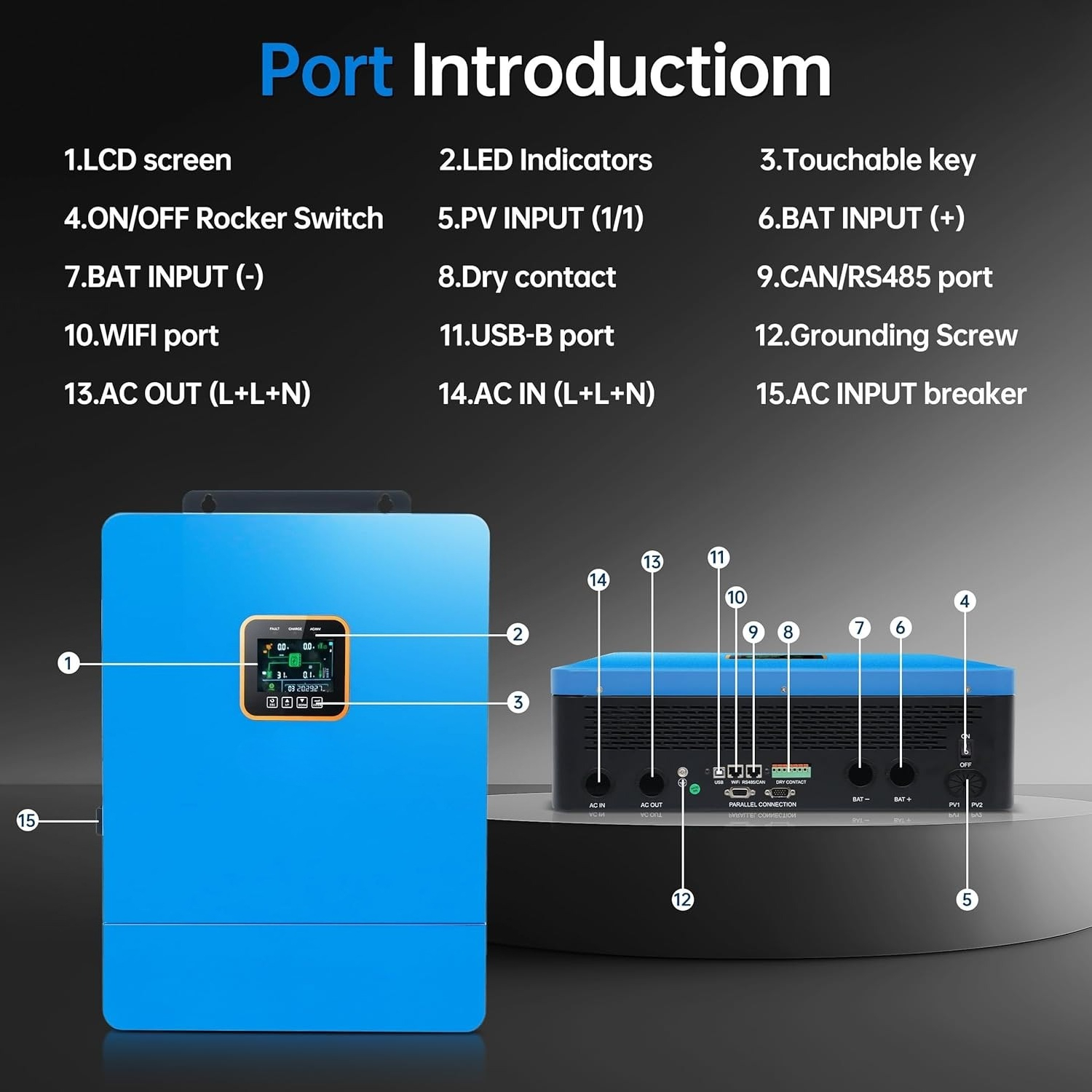

Embedded Interfaces RS485/CAN/USB/Dry contact Y
External Modules (Optional) Wi-Fi/GPRS Y
CERTIFICATION
Safety IEC62109-1, IEC62109-2
EMC EN61000-6-1,EN61000-6-3,FCC 15 class B
RoHS Yes



know more about solar inverters
+ what does a solar inverter do?
A solar inverter is integral to a solar system, converting the DC energy generated by solar panels into AC power, suitable for everyday use. Solar inverters come in various models, each designed to suit different power requirements and configurations. The transformation from DC to AC is vital, as it allows the solar-generated electricity to be compatible with the electrical grid and the AC-powered devices within homes and businesses. Additionally, solar power inverters play a key role in the overall performance and safety of a solar system. They not only convert power but also manage the flow of electricity, ensuring that the energy produced is optimized and safely delivered to where it's needed, thus enhancing the efficiency and reliability of the solar system.
+ How long do solar inverters last?
Solar inverters are crucial for the conversion of direct current (DC) from solar panels into alternating current (AC), making the energy usable in homes and businesses. Typically, the lifespan of a solar inverter ranges between 10 to 15 years. This can vary based on the type of inverter, with hybrid inverters and off-grid inverters having potentially different lifespans due to their specific uses and operational environments. The durability of a solar inverter also greatly depends on environmental factors, usage, and maintenance, making regular upkeep essential for maximizing its life within your solar system.
+ How to install solar system and inverter?
Begin by securely mounting the solar panels on your roof with appropriate hardware, ensuring they're tilted for optimal sun exposure. Then, connect the panels according to your system design and run the wiring to the inverter location. Install the inverter indoors in a well-ventilated area. When purchasing a solar inverter from ZLPOWMR, you'll benefit from our reliable after-sales support. We ensure that any necessary repairs or replacements can be promptly addressed to maintain the efficiency of your system.
+ Can solar inverter power a house?
Yes, a solar inverter can power a house by converting the direct current (DC) electricity generated by solar panels into alternating current (AC) electricity that can be used to power household appliances and devices. The solar inverter plays a crucial role in the functionality of a solar power system by ensuring compatibility with the electrical grid and optimizing energy production for residential usage. Our ZLPOWMR solar inverters can do that perfectly.
