Product Introduction

1. Working principle

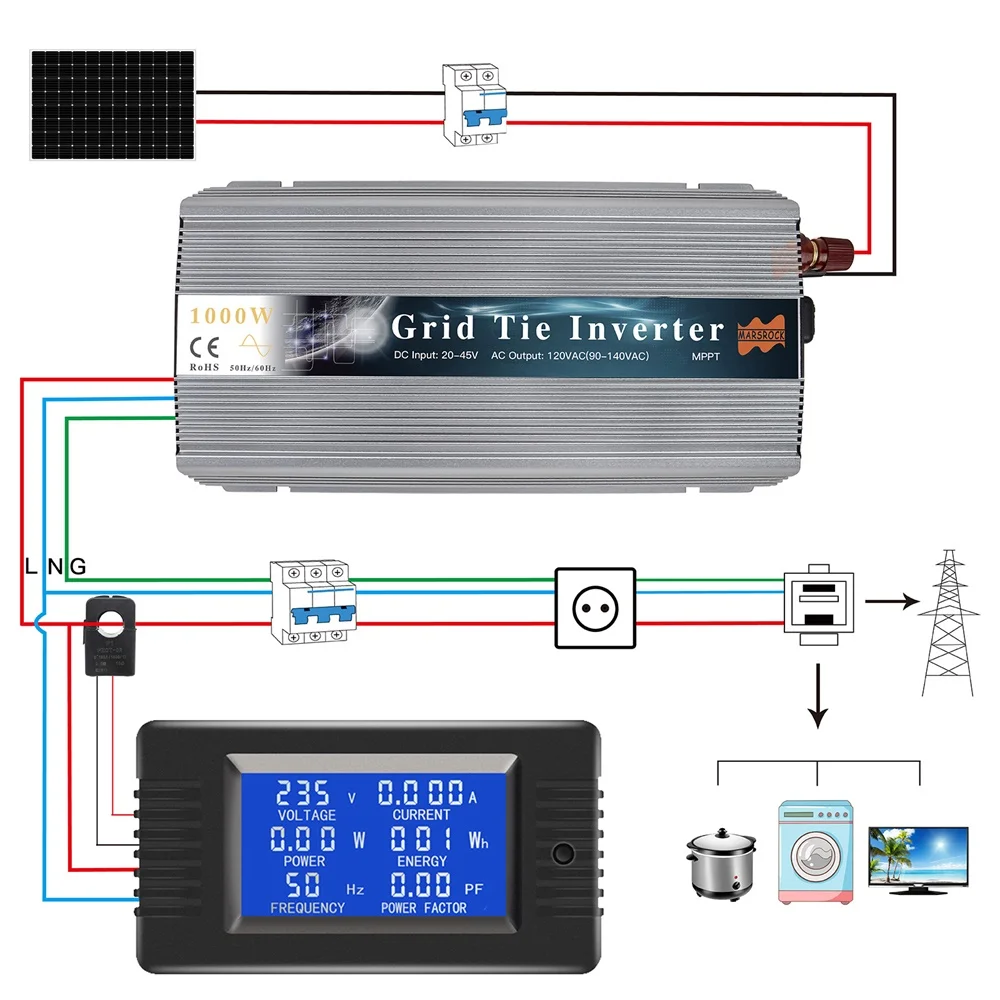

Smart grid tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and office equipment and connecting to utility grid. The AC output from Smart micro inverter is synchronized and in-phase with the utility grid. It is a key device of power generation systems such as PV power generation system, wind turbine power generation system.


2. Matching solar panels
Smart micro inverter specially optimized design to work with DC power supplies Vmp>=36V (72 cells) mono-crystal and/or Poly crystalline solar panels, wind turbines. Smart micro inverters are stabilization, reliable and high conversion efficiency items. It is the best choice for PV power generation systems.


3. Advantages of smart micro inverter
(1)Allowance 1300W to 1600W big DC power input Specially designed for the current mainstream high-power solar panel.
(2)Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.
(3)Creative MPPT technology, efficiency more than 99%, faster and more sensitive reaction, more reliable.
(4)Modular design, flexible combination and strong system expand- ability.
(5)Adopting high-frequency isolation transformer type, high efficiency, and high security.
(6)Perfect electrical protection function.
(7)Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.
(8)Getting electronic circuit design, appearance design and other core technology patents.

Product Parameter

Model

1000W

1300W

1400W

Suggest Solar

>1200W

>1500W

>1700W

Max Output

1000W

1300W

1400W

Input Data

DC input

Vmp@18V(10.5-30VDC)/Solar cells=36PCS per solar panel / MPPT Voltage: 18-21VDC;
Vmp@36V(20-50VDC)/Solar cells=60/72 PCS per solar panel / MPPT Voltage: 24-45VDC

@18V

@36V

@18V

@36V

@18V

@36V

Max Current

62.5A

40A

81.5A

52A

87.5A

56A

Output Data

Rated voltage

@120V(90-140VAC); @230V(190-260VAC)

Auto match frequency: 50/60Hz(48-65Hz)

@120V

@230V

@120V

@230V

@120V

@230V

Rated current

9.1A

4.5A

11.8A

5.9A

12.7A

6.4A

Output Efficiency

Efficiency

@120VAC Verstion

@18V

@36V

@18V

@36V

@18V

@36V

Peak Efficiency

85%

88%

85%

88%

85%

88%

Stable Efficiency

83%

86%

83%

86%

83%

86%

Efficiency

@230VAC Verstion

@18V

@36V

@18V

@36V

@18V

@36V

Peak Efficiency

88%

88%

88%

88%

88%

88%

Stable Efficiency

83%

86%

83%

86%

83%

86%

Stand-by Power

<1W

Feature

Power Transmission

Reverse transfer, load priority

Protection

1. Islanding; 2. Short-circuit; 3. DC & AC low voltge; 4. DC & AC over voltage; 5. High temperature

Grid distrubance

EN 50178/ EN 62109-1 /VDE 0126-1-12

EMC

EN 61000-6-3:2007 / EN 61000-6-1:2007

Grid detection

DIN VDE 1026/UL1741

Certificate

CE, ROHS, FCC

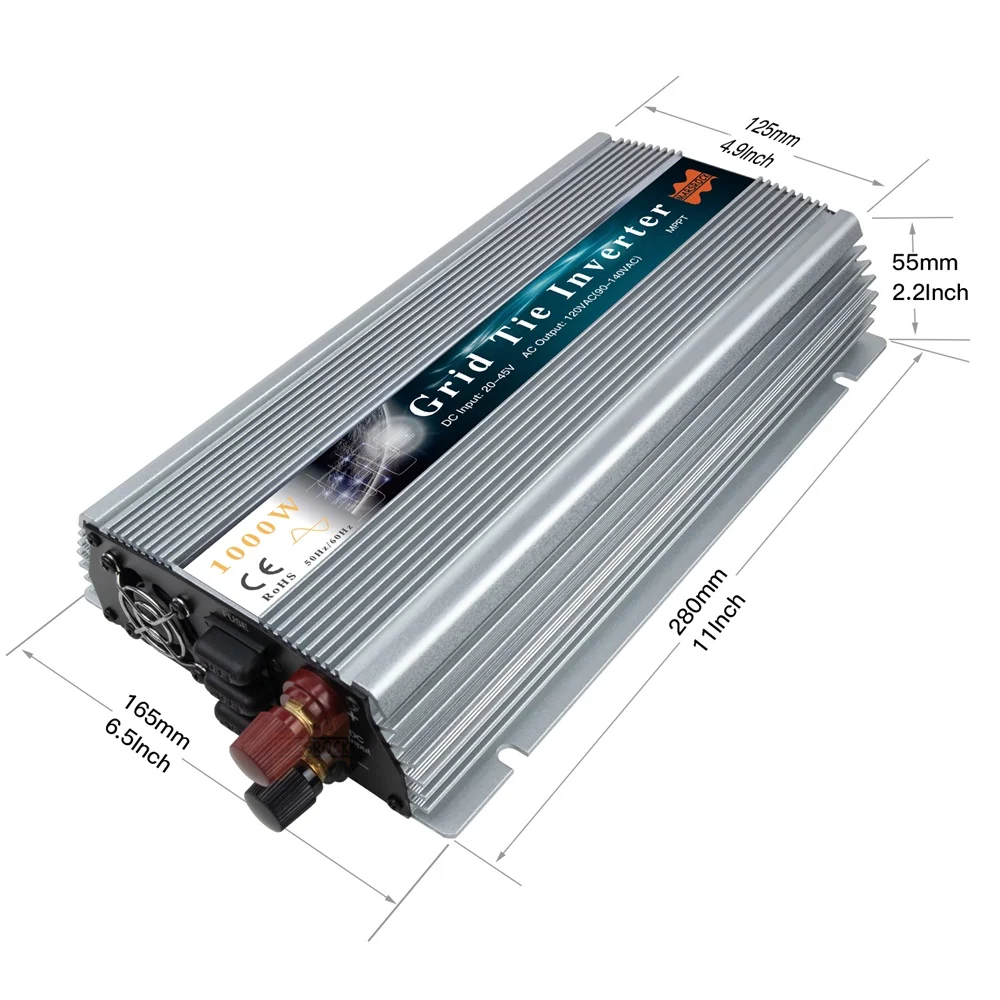

Exterior

Operation

- 20℃ to +65℃

Humidity

0% to 90% Non-condensing

Waterproof

IP23(Indoor design)

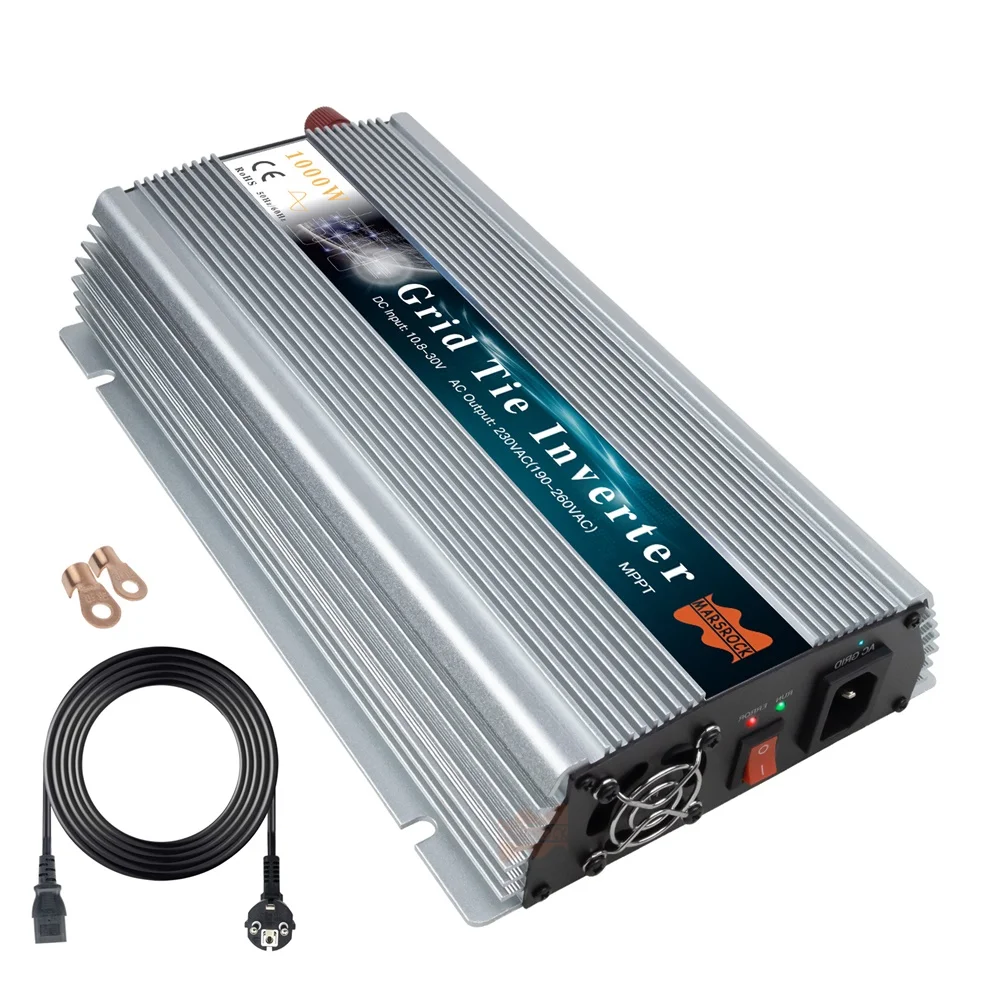

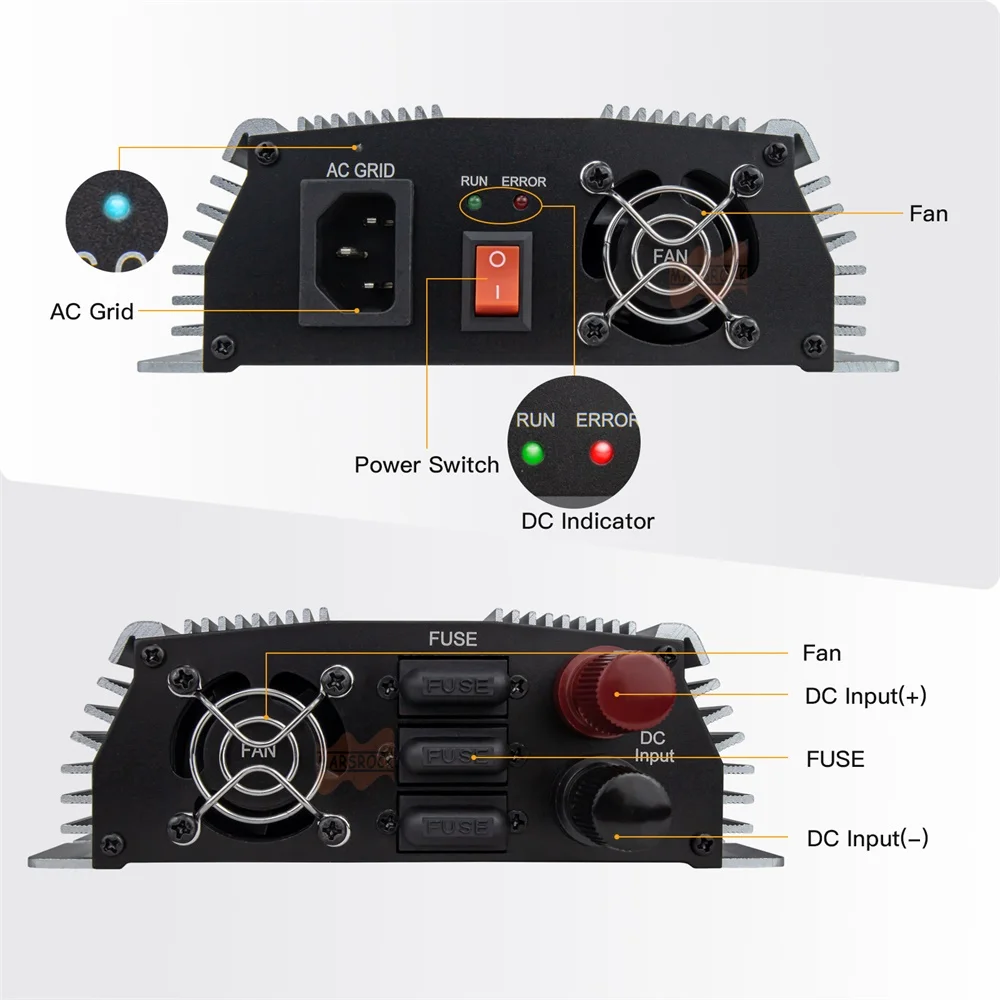

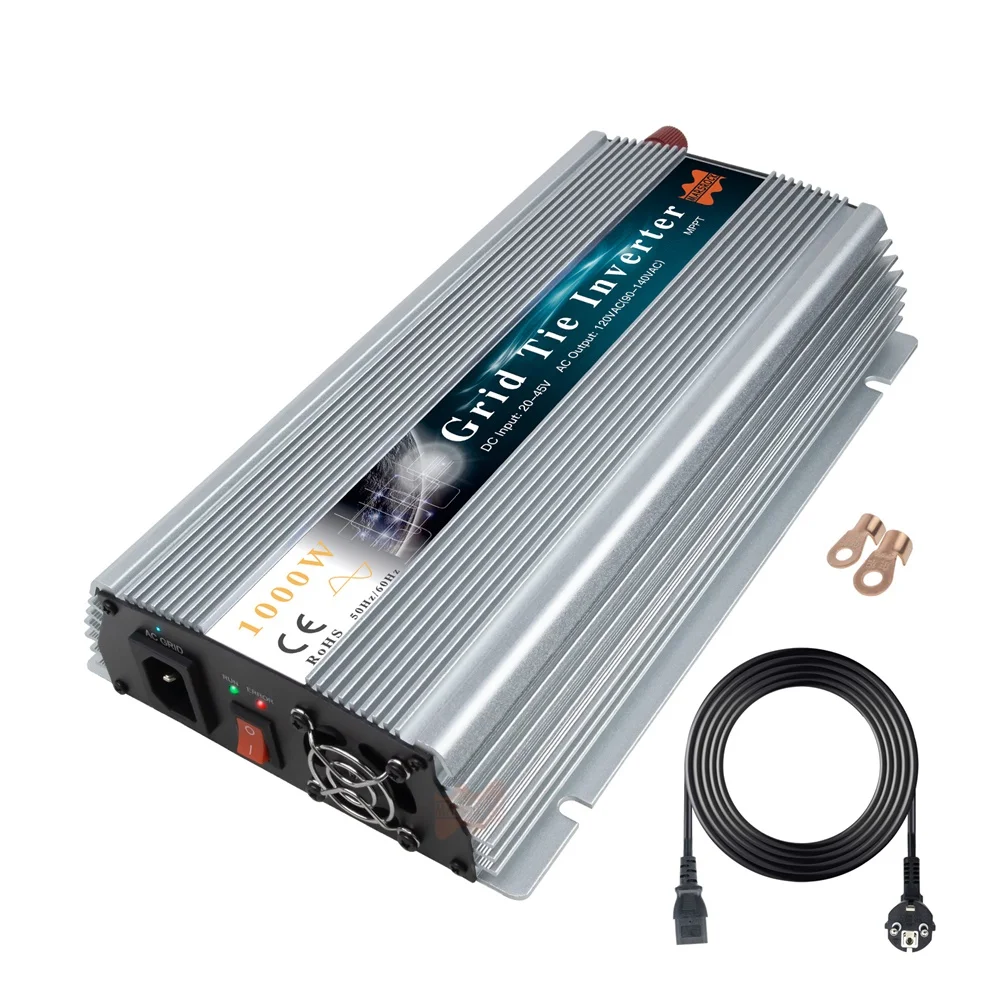

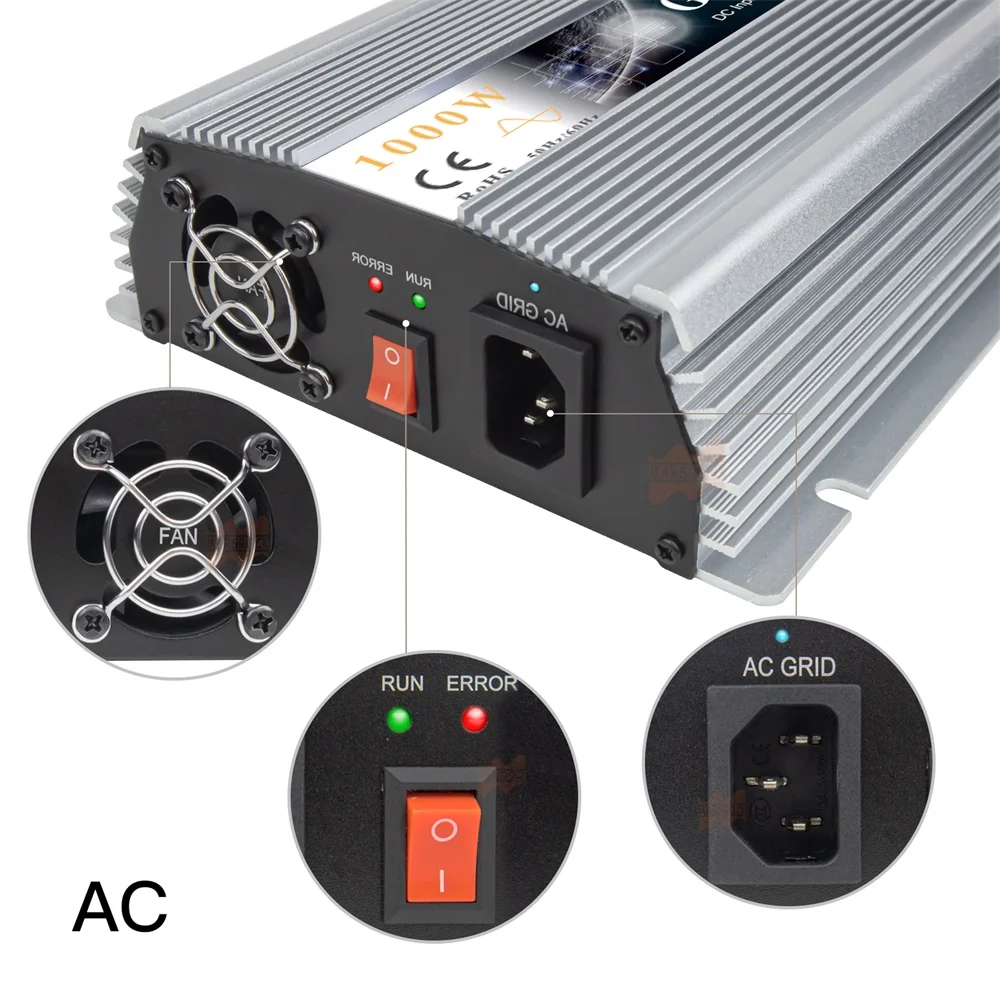

Showing

Luminous diode(LED)

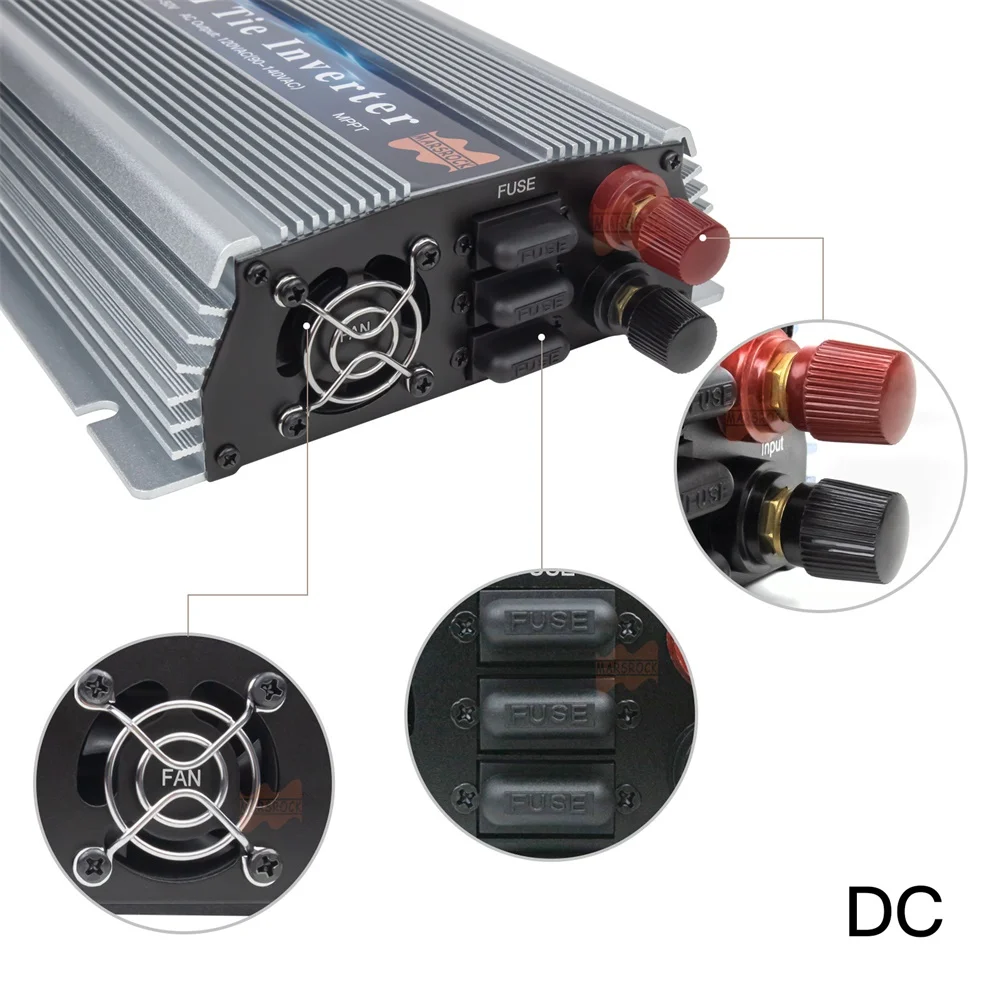

Cooling

Electric fan(>45℃)



Product Features

1. Wide DC input suitable for large power solar panels.72 cells per solar panel, Vmp is 35-39V and Voc is 42-46V.
2. Support for small power wind turbine and solar on grid power.
3.Creative MPPT tech makes efficiency higher than 99%. Reaction more sensitive and MPPT locking faster.
4.Adopting high-frequency isolation transformer, high efficiency, and high security.
5.Creative circuit design and imported industrial electronic components make application efficiency higher and performance more stable.6. Parallel modular components design (stacking use) is convenient for systems setting, flexible combination and system stability.
