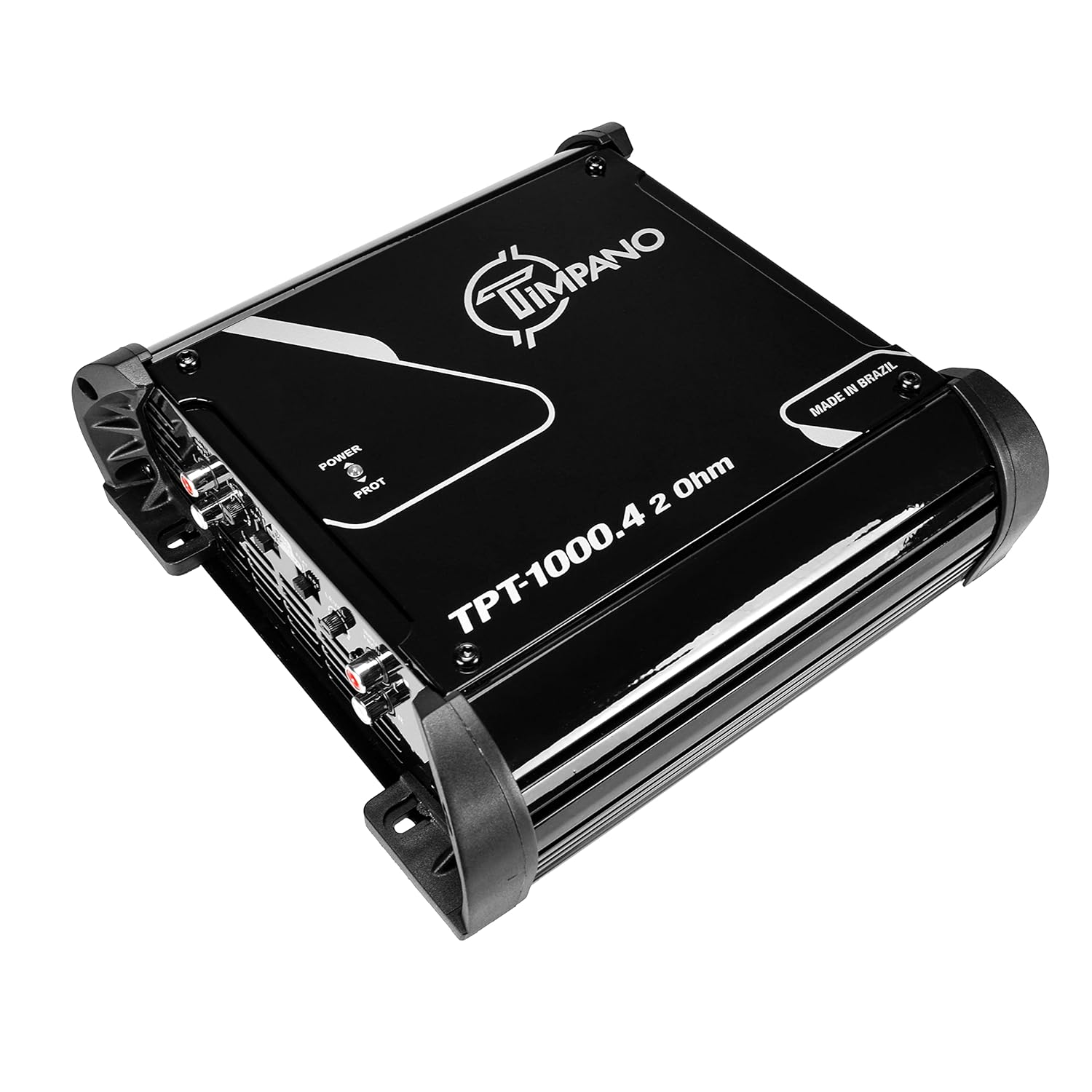

TPT-1000.4 Compact 4 Channel Car Audio Amplifier – 4 X 260 Watts at 2 Ohms – High Power Stereo 12 Volts Full Range Class D Amp Bridgeable
Description
- COMPACT DESIGN: Digital class D Brazilian technology allows this amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 8.11″ depth x 8.11″ width x 2.60″ height
- POWER: This amplifier is designed to run your stereo system with the power it needs to perform! 1200 Watts maximum dynamic RMS power output of 4x 300 Watts at 2 Ohm per channel. Its high efficiency rate of 84% provides more power with less battery consumption.
- BRIDGEABLE: Double the power output to your speakers by bridging two channels. Minimum impedance of 4 Ohm per bridged channel at output power of 2 x 520 Watts RMS
- TECHNOLOGY: A smart electronic 2-way protection circuit protects the amp if it gets too hot or if speakers fail causing a short! Focusing in sound quality, a full range response of 20 to 26,000Hz was used to give the best sound reproduction on this tiny amplifier.
- FEATURES: Fork terminal connector power and speaker wire Inputs. Built-in crossover filters for easy tuning! Choose between a fixed HPF at 90Hz or LPF at 90Hz or just turn it FLAT and use your external crossover or DSP settings. It also includes Variable Gain Control. Level controls are not for adjusting volume. They adjust the amount of signal that is coming into the amplifier from your signal source.
Product description
Fork terminal connector power and speaker wire Inputs. Built-in crossover filters for easy tuning! Choose between a fixed HPF at 90Hz or LPF at 90Hz or just turn it FLAT and use your external crossover or DSP settings. It also includes Variable Gain Control. Level controls are not for adjusting volume. They adjust the amount of signal that is coming into the amplifier from your signal source.
Digital class D Brazilian technology allows this amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 8.11″ depth x 8.11″ width x 2.60″ height
This amplifier is designed to run your stereo system with the power it needs to perform! 1200 Watts maximum dynamic RMS power output of 4x 300 Watts at 2 Ohm per channel. Its high efficiency rate of 84% provides more power with less battery consumption.
Double the power output to your speakers by bridging two channels. Minimum impedance of 4 Ohm per bridged channel at output power of 2 x 520 Watts RMS
Additional Information:
| Number of Channels | 4 |
| Max Dynamic Output | 4 x 300 Watts RMS 2 Ohms |
| RMS Power @ 2 Ohm 12.6 Volts | 4x 225 Watts RMS |
| RMS Power @ 4 Ohm 12.6 Volts | 4x 140 Watts RMS |
| Bridged RMS @ 4 Ohm 12.6 Volts | 2x 450 Watts RMS |
| Supply Voltage | 11 V - 16 V |
| Frequency Response | 20 Hz ~ 26,000 Hz |
| Crossover Low Pass: | Fixed at 90Hz |
| Crossover High Pass | Fixed at 90Hz |
| Signal to Noise | > 90 dB |
| Harmonic Distortion | < 0.9 % THD |
| Input Impedance | 14K Ohm |
| Impedance Output | 2 Ohm |
| Consumption w/ Signal Musical | 4 A ~ 50 A |
| Dimensions (L x W x H) | 8.11” x 8.11” x 2.60” (Inches) |
| Weight | 3.75 Lbs |
| Item model number | TPT-1000.4 2 Ohm |
| Item dimensions L x W x H | 8.11 x 8.11 x 2.6 inches |
| Mounting Type | Freestanding |
| Material | Electronic Components |
| Maximum Supply Voltage | 16 Volts (DC) |
| Item Weight | 3.75 pounds |
| Minimum Supply Voltage | 11 Volts (DC) |
| Number of Channels | 4 |
| Voltage | 16 Volts |
| Department | All Ages, Unisex |
| Output Power | 1200 Watts |
| Specification Met | FCC |
| Product Dimensions | 8.11 x 8.11 x 2.6 inches |
