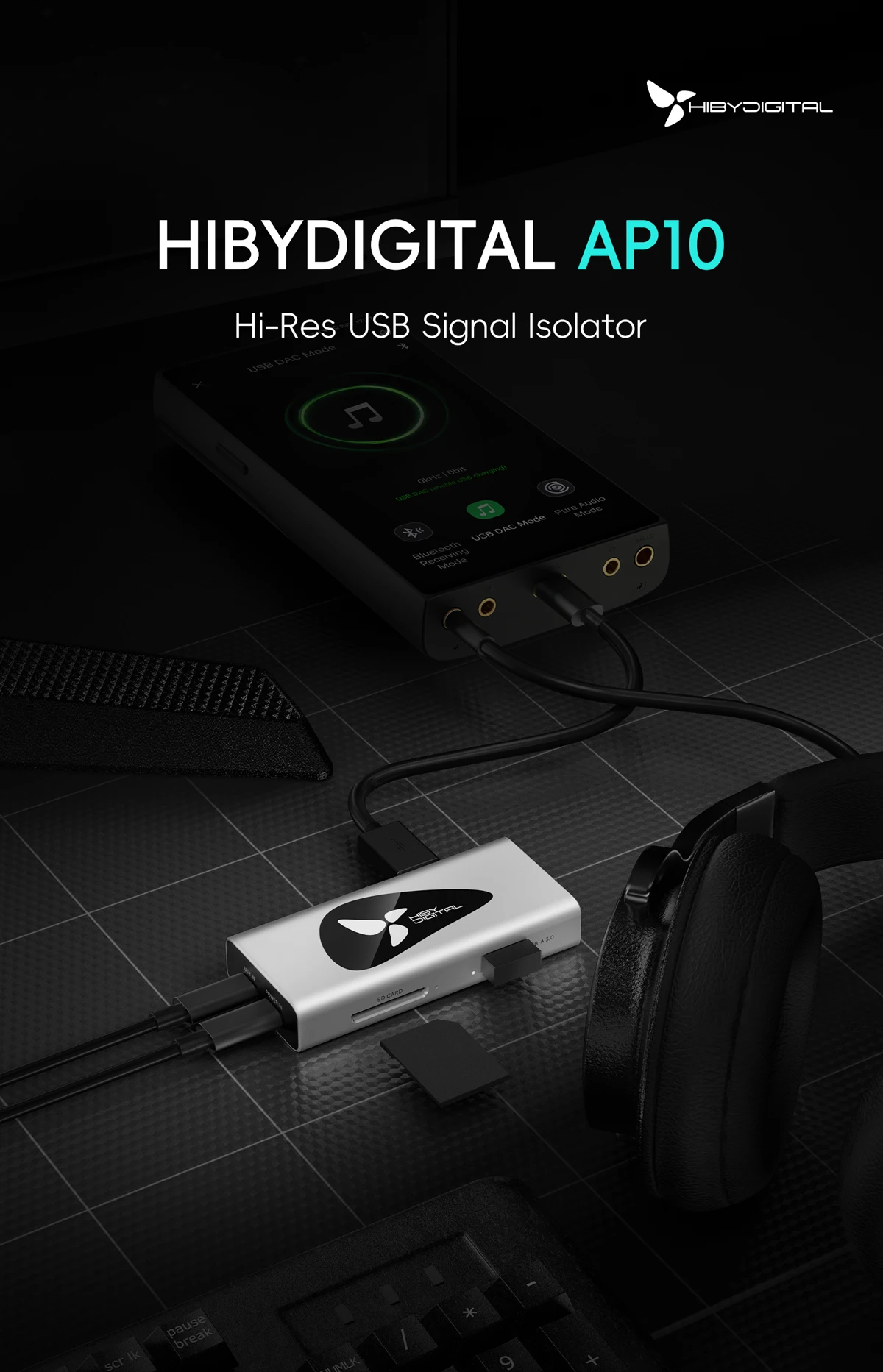

HiBy Digital AP10 Hi-Res USB Digital Audio Signal Isolator Power Supply Isolation
USB 3.2 Gen1 Type C USB A ports SD card slot

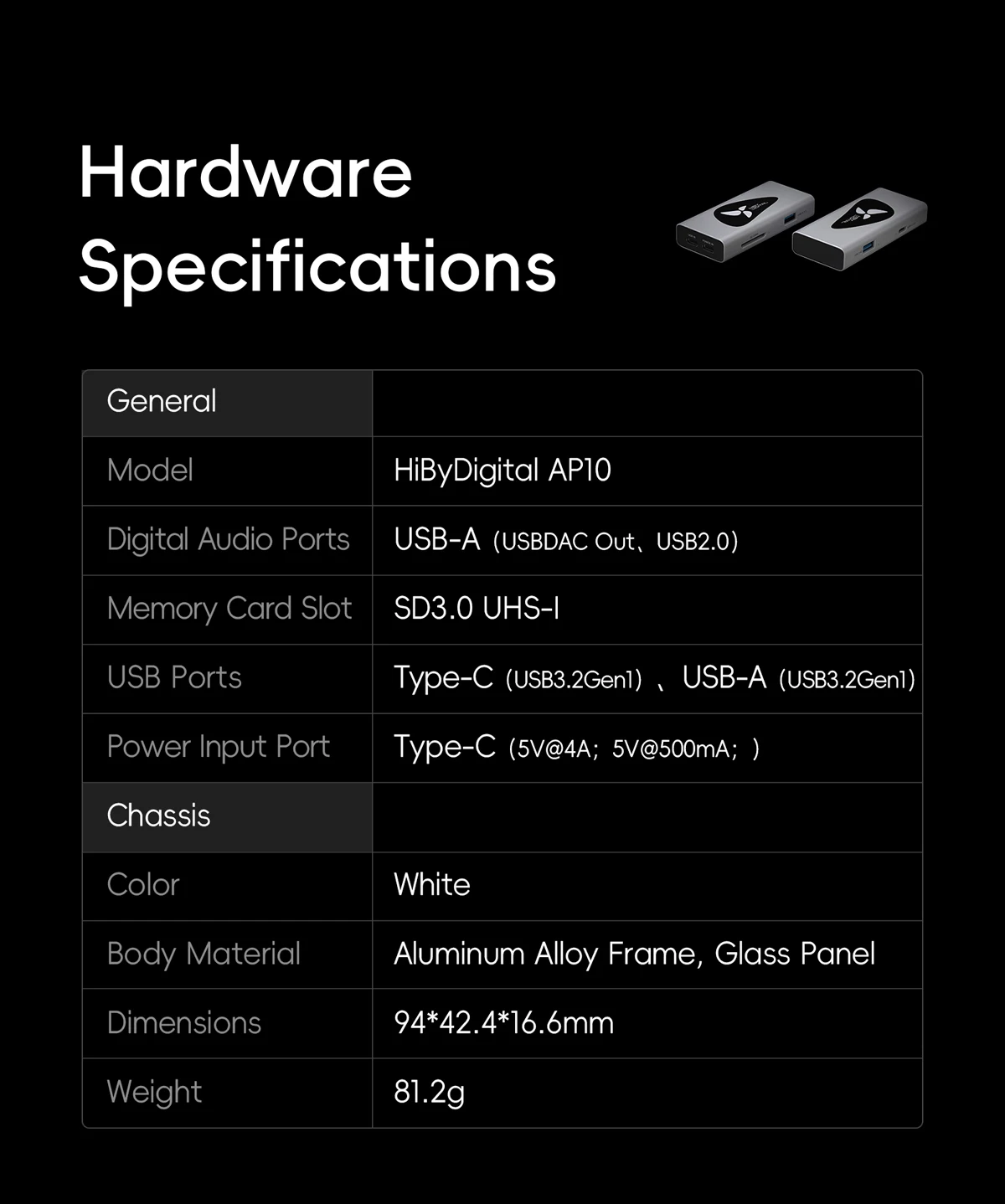

Specifications
Model: HiByDigital AP10
Digital Audio Ports: USB-A (USBDAC Out, USB2.0)
Memory Card Slot: SD3.0 UHS-I
USB Ports: Type-C (USB3.2Gen1)、USB-A (USB3.2Gen1)
Power Input Port: Type-C (5V@4A; 5V@500mA; )
Chassis
Color: White
Body Material: Aluminum Alloy Frame, Glass Panel
Dimensions: 94*42.4*16.6mm
Weight: 81.2g

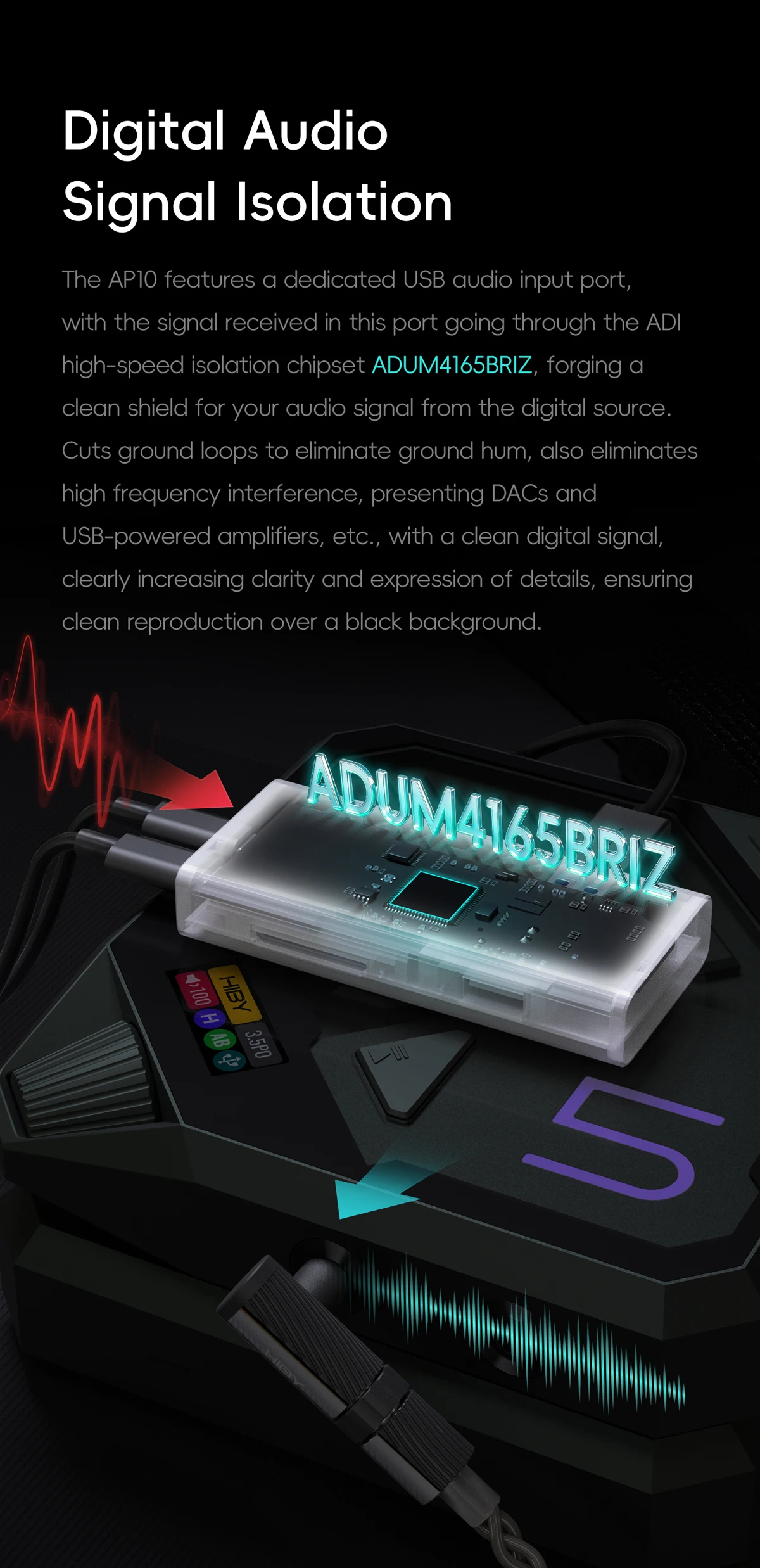

Digital Audio Signal Isolation
with the signal received in this port going through the ADI high-speed isolation chipset
ADUM4165BRIZ, forging a clean shield for your audio signal from the digital source.
Cuts ground loops to eliminate ground hum, also eliminates high frequency interference,
presenting DACs and USB-powered amplifiers, etc., with a clean digital signal, clearly i
ncreasing clarity and expression of details, ensuring clean reproduction over a black
background.

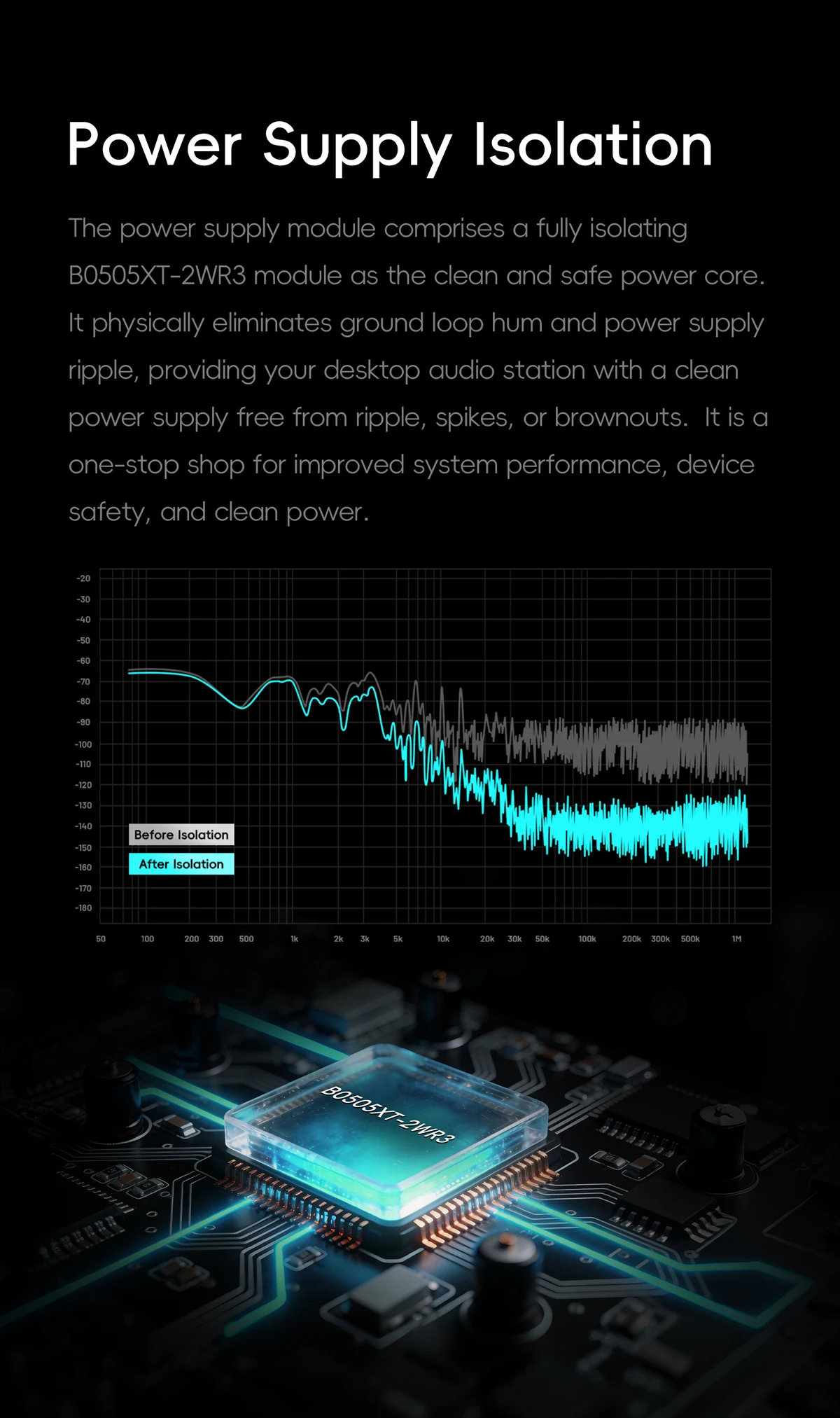

Power Supply Isolation
The power supply module comprises a fully isolating B0505XT-2WR3 module as the clean and safe power core.
It physically eliminates ground loop hum and power supply ripple,
providing your desktop audio station with a clean power supply free from ripple,
spikes, or brownouts. It is a one-stop shop for improved system performance,
device safety, and clean power.

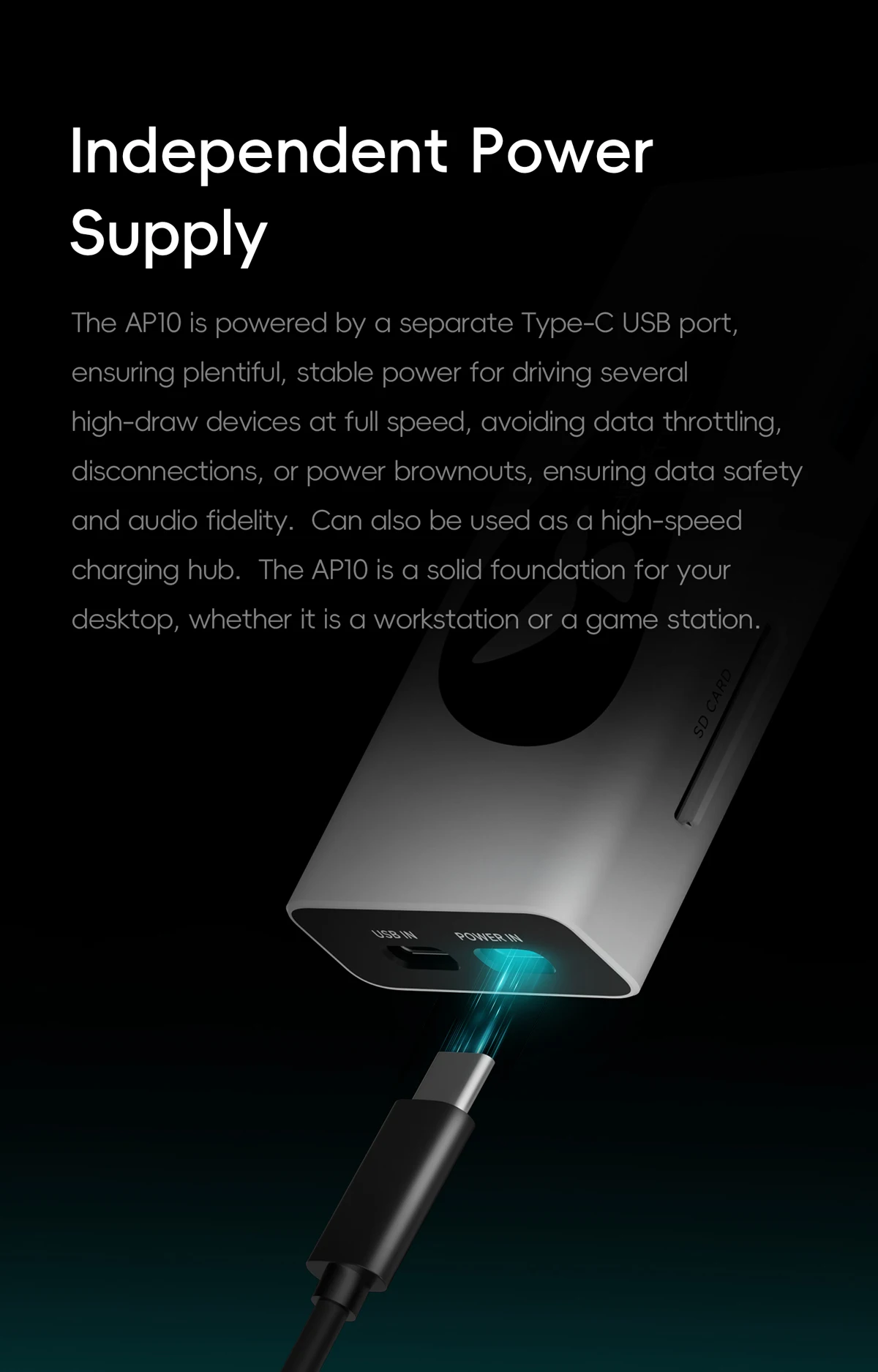

Independent Power Supply
The AP10 features a dedicated USB audio input port,
The AP10 is powered by a separate Type-C USB port, ensuring plentiful,
stable power for driving several high-draw devices at full speed,
avoiding data throttling, disconnections, or power brownouts,
ensuring data safety and audio fidelity.
Can also be used as a high-speed charging hub. T
he AP10 is a solid foundation for your desktop, whether it is a workstation or a game station.

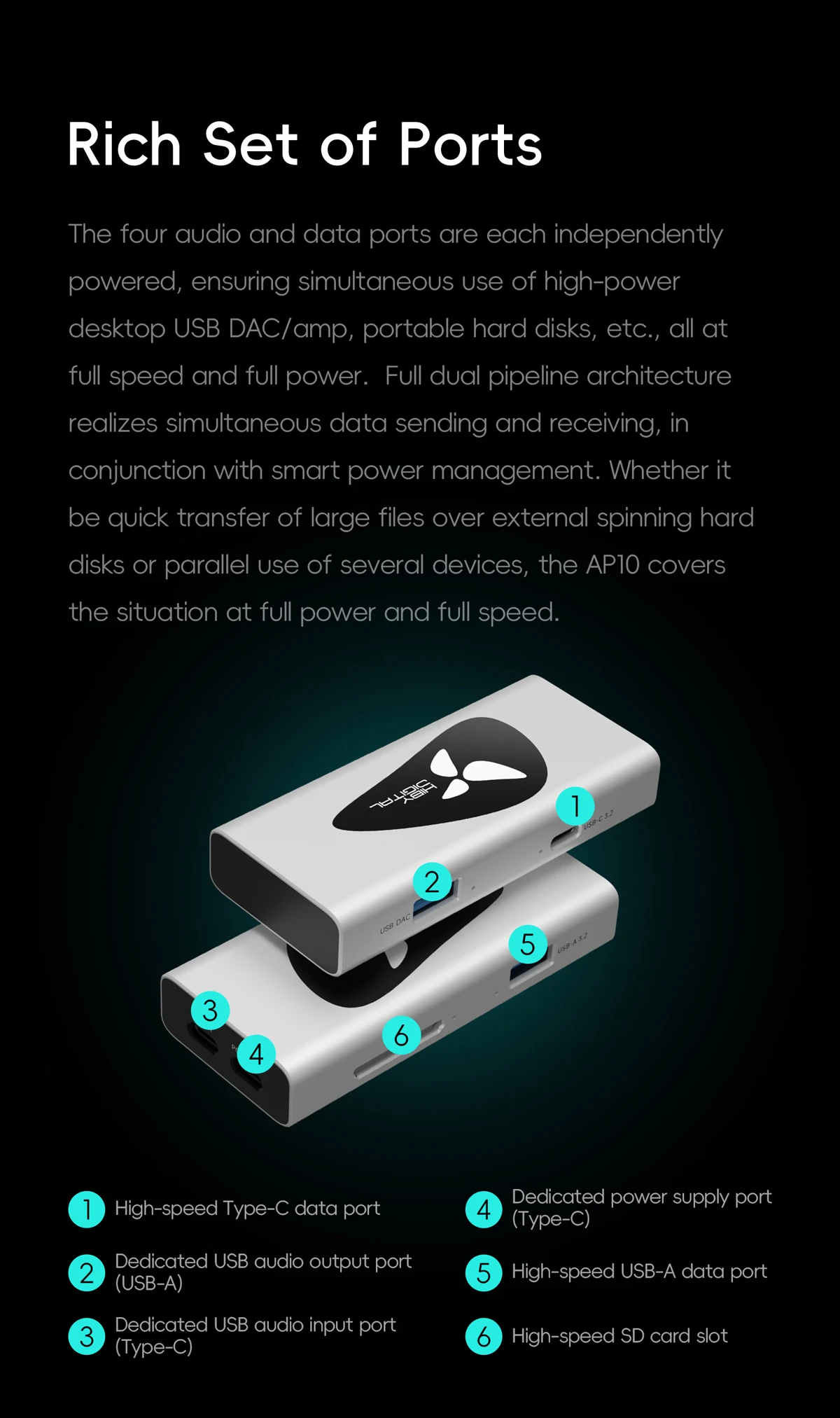

Rich Set of Ports
*Dedicated power supply port (Type-C), dedicated USB audio input port (Type-C),
dedicated USB audio output port (USB-A),
high-speed USB-A data port, high-speed Type-C data port, high-speed SD card slot.
The four audio and data ports are each independently powered,
ensuring simultaneous use of high-power desktop USB DAC/amp,
portable hard disks, etc., all at full speed and full power.
Full dual pipeline architecture realizes simultaneous data sending and receiving,
in conjunction with smart power management.
Whether it be quick transfer of large files over external spinning hard disks or parallel use of several devices,
the AP10 covers the situation at full power and full speed.

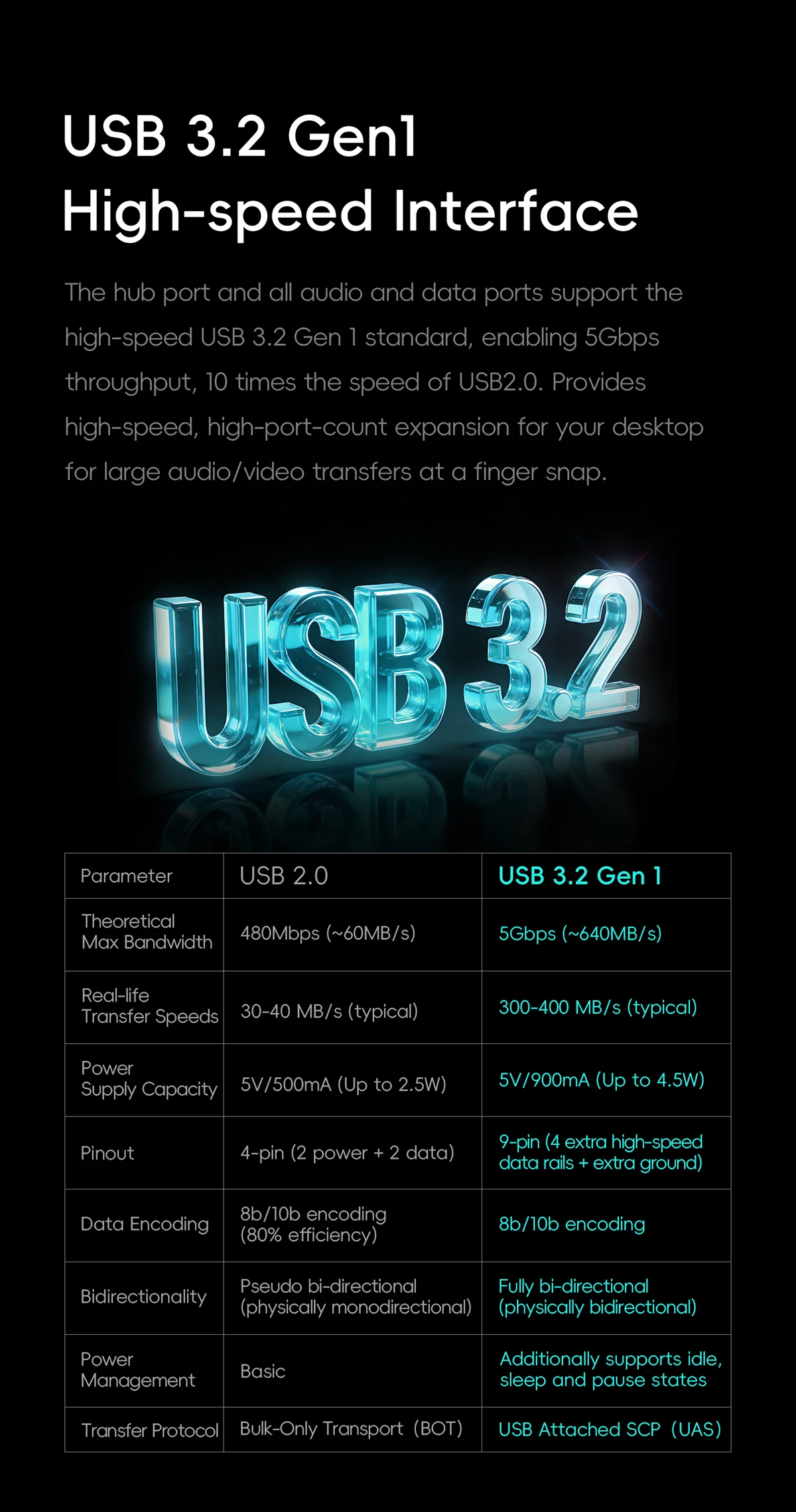

USB 3.2 Gen1 High-speed Interface
The hub port and all audio and data ports support the high-speed USB 3.2 Gen 1 standard, enabling 5Gbps throughput,
10 times the speed of USB2.0. Provides high-speed, high-port-count expansion for your desktop for large audio/video transfers at a finger snap.

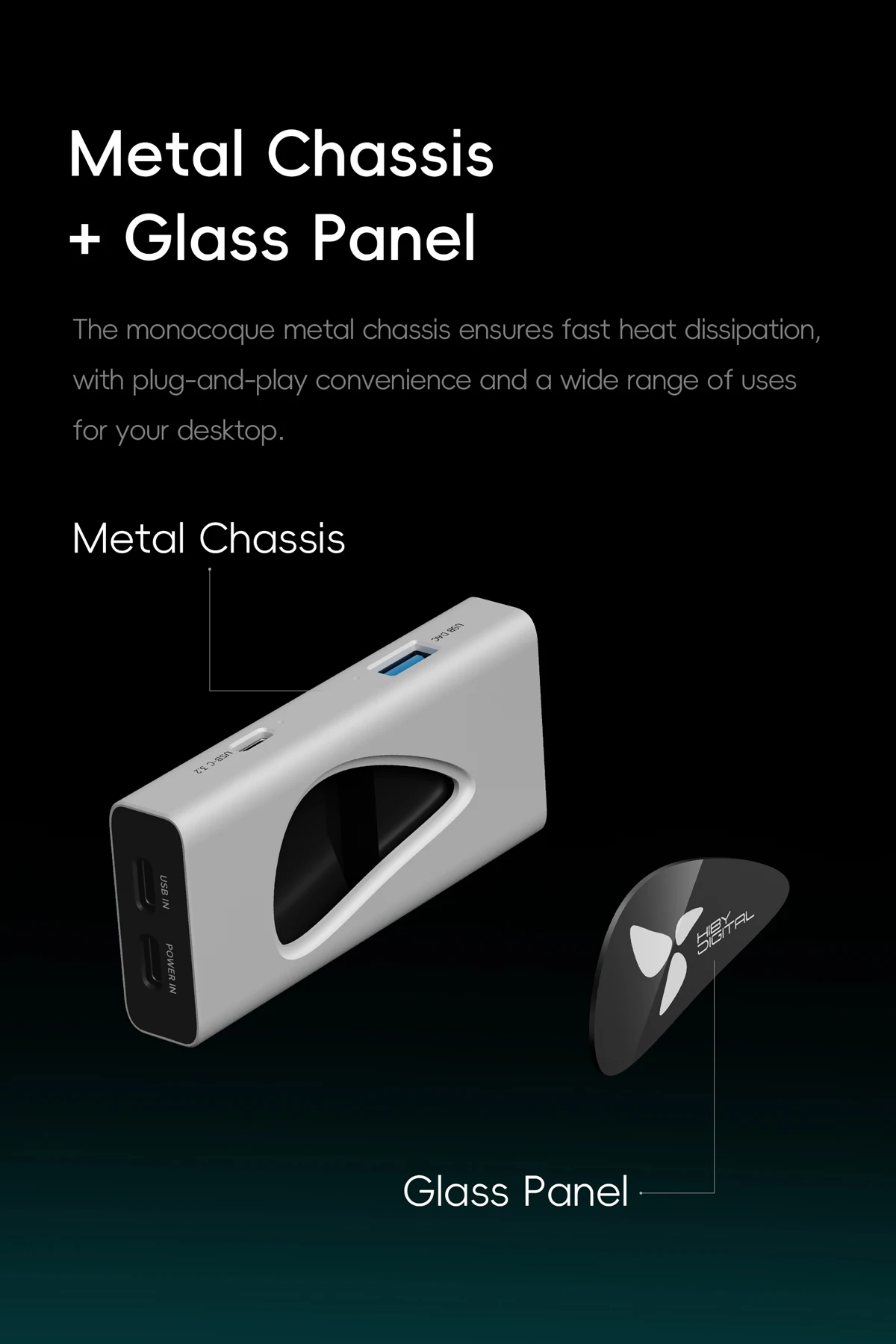

Metal Chassis + Glass Panel
The monocoque metal chassis ensures fast heat dissipation,
with plug-and-play convenience and a wide range of uses for your desktop.

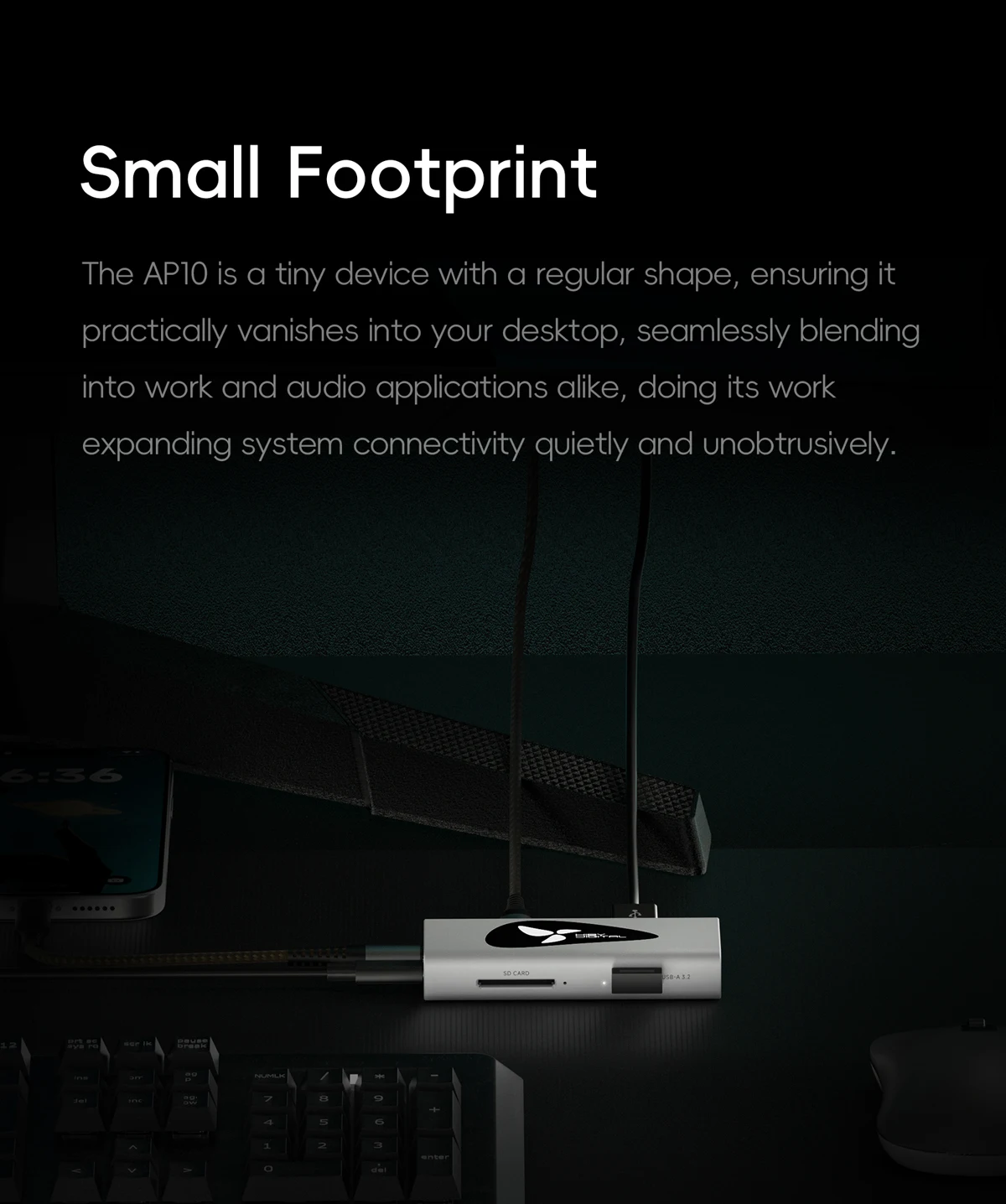

Small Footprint
The AP10 is a tiny device with a regular shape, ensuring it practically vanishes into your desktop,
seamlessly blending into work and audio applications alike, doing its work expanding system connectivity
quietly and unobtrusively.

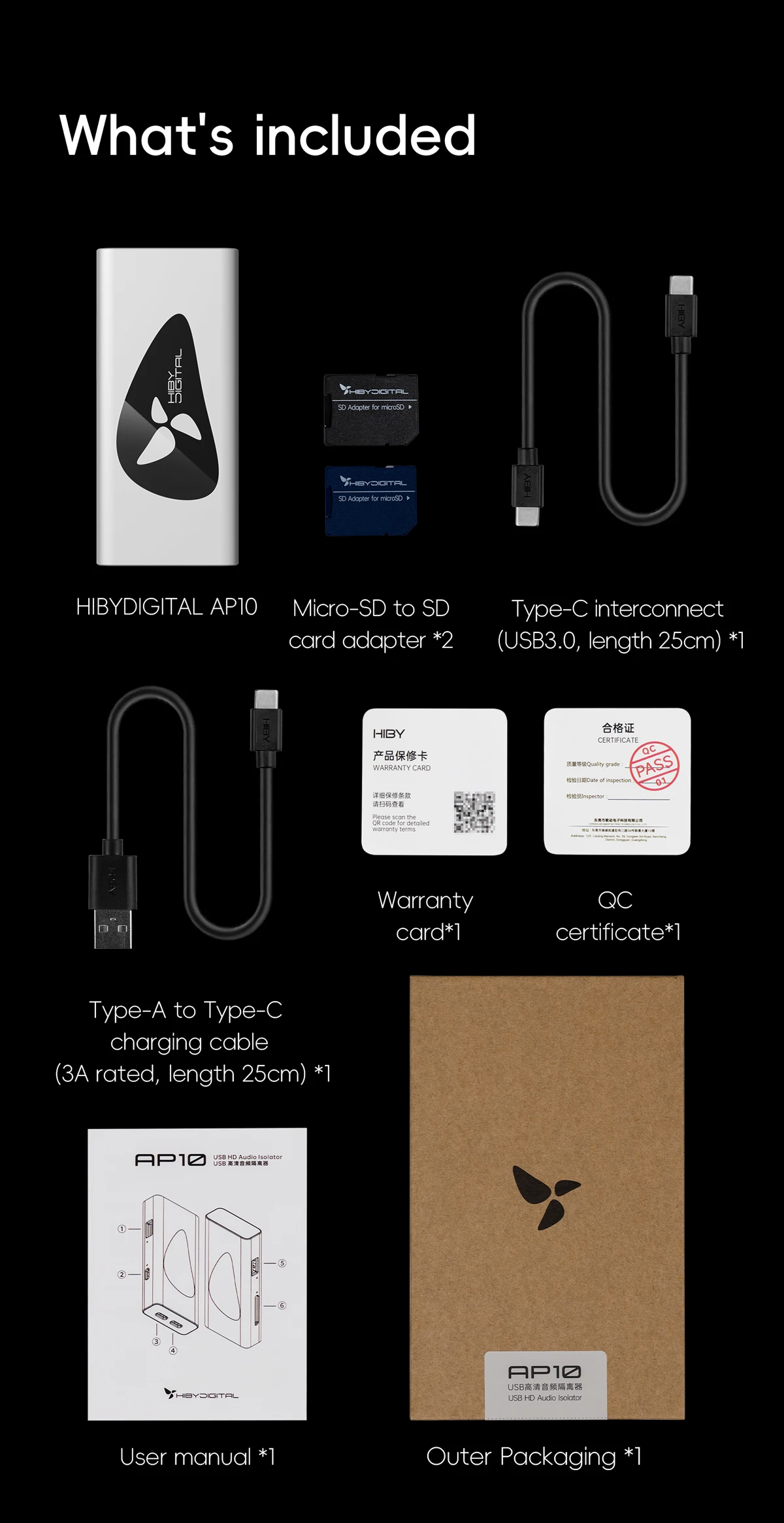

What's included:
Type-C interconnect (USB3.0, length 25cm)
Type-A to Type-C charging cable (3A rated, length 25cm)
Micro-SD to SD card adapter x2
User manual
Warranty card
QC certificate
