Features:
Rust-free with stainless steel material and chroming finish
Looks elegance with satin polished finish
Adjustable for its suitable glass thickness with its rubber layers and the micro-adjusting screw.
Fixed for the glass table, glass doors, glass windows
Brushed surface oxidation, corrosion-resistant, easy to clean

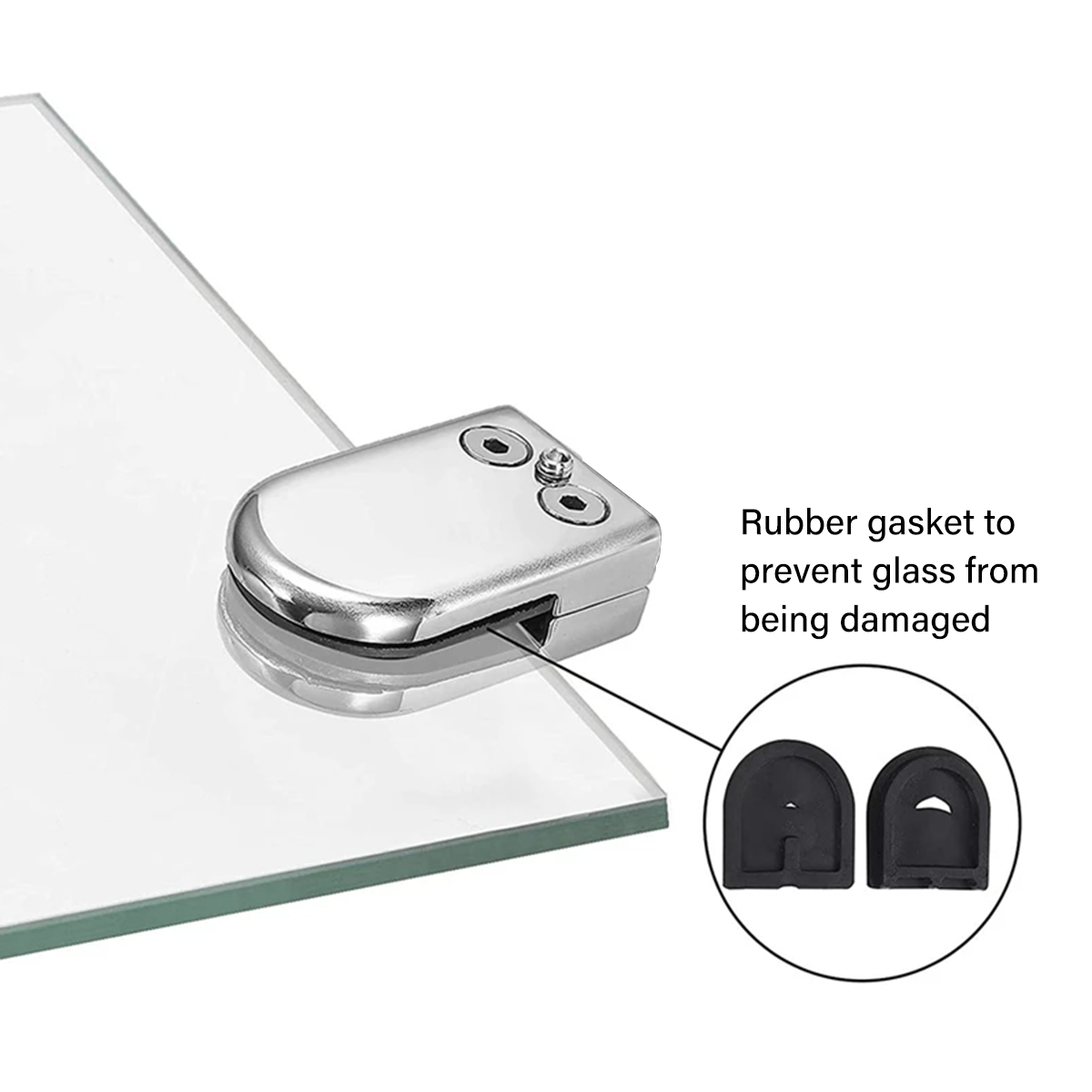

There are double silicone gaskets, can play the role of a buffer to protect the glass
Easy installation, simple operation

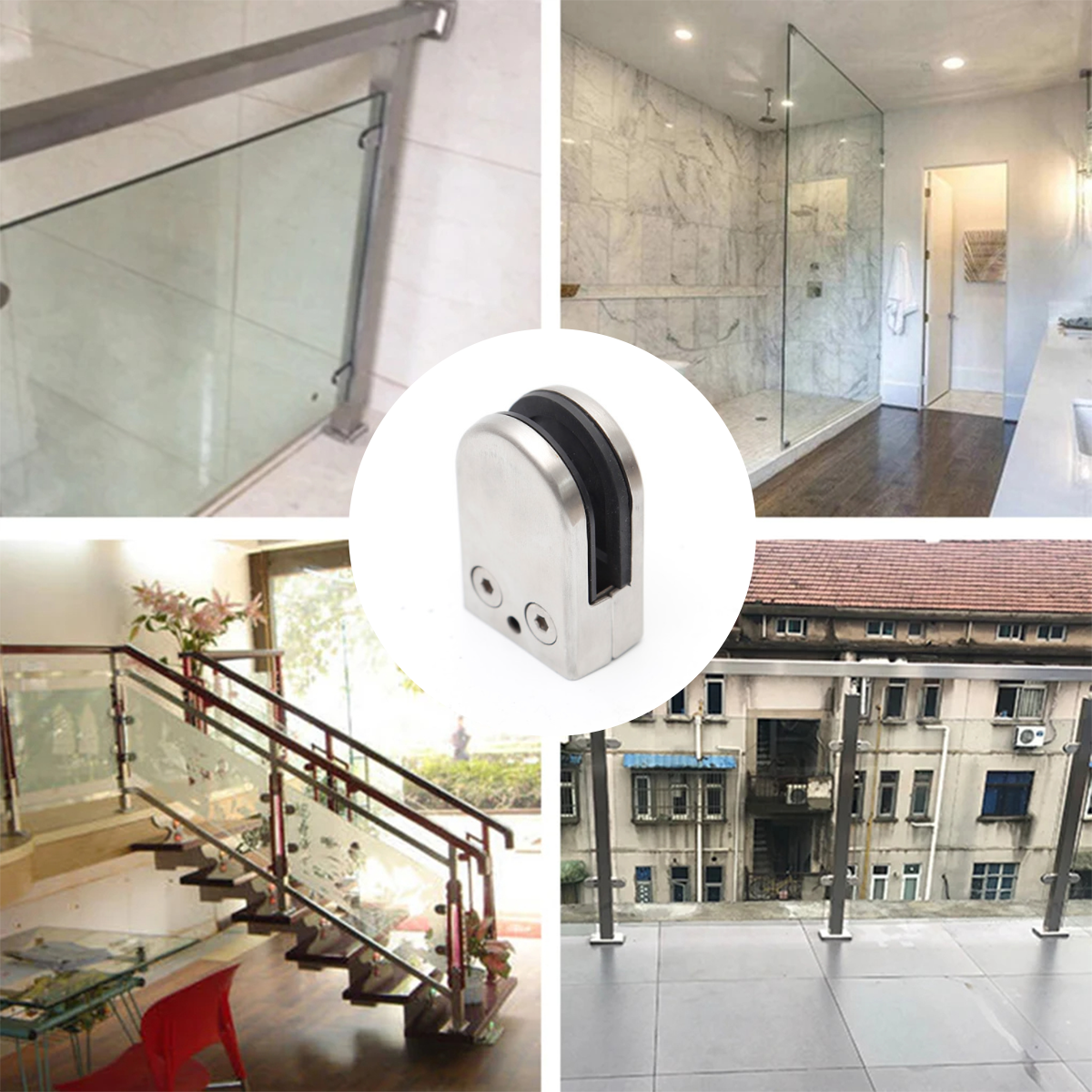

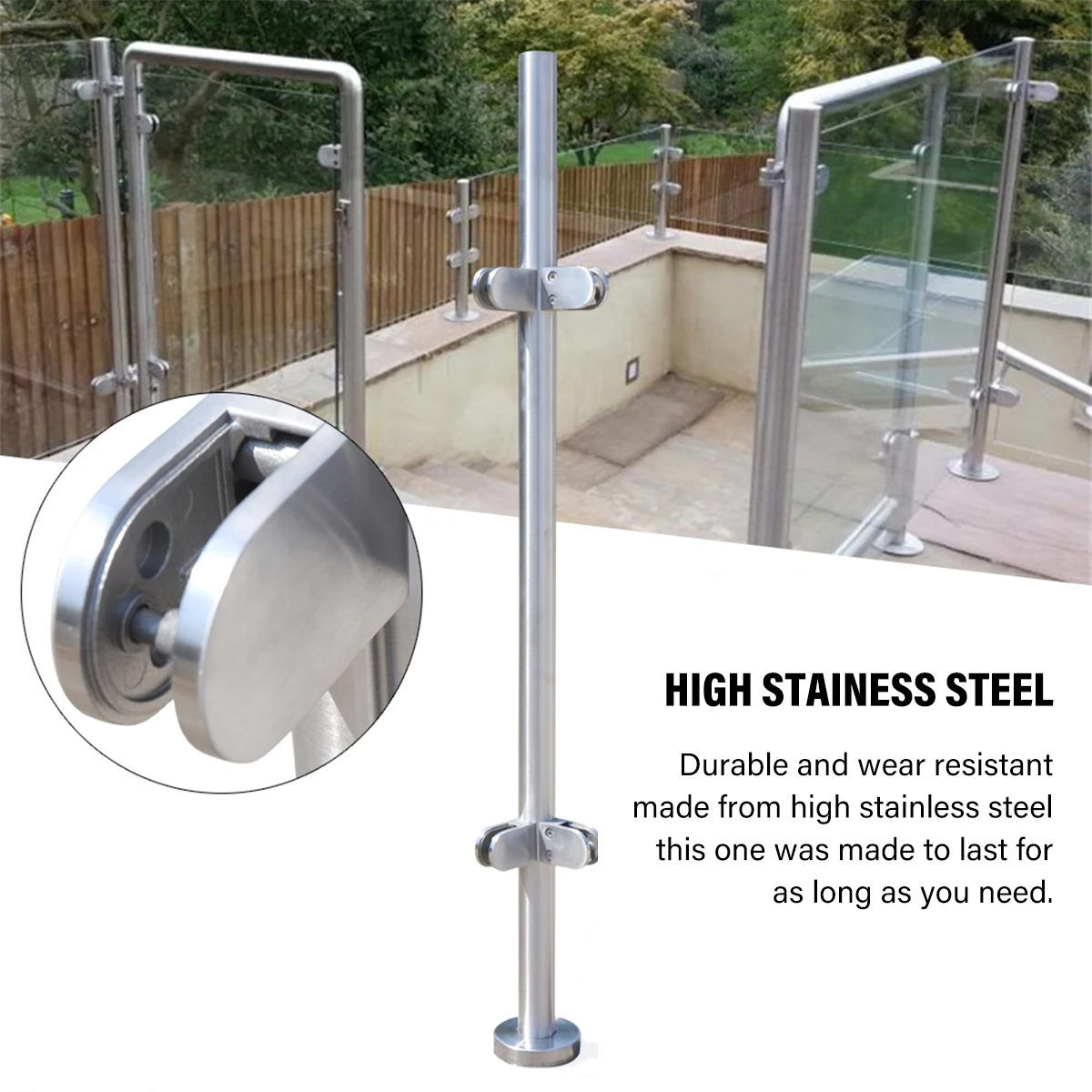

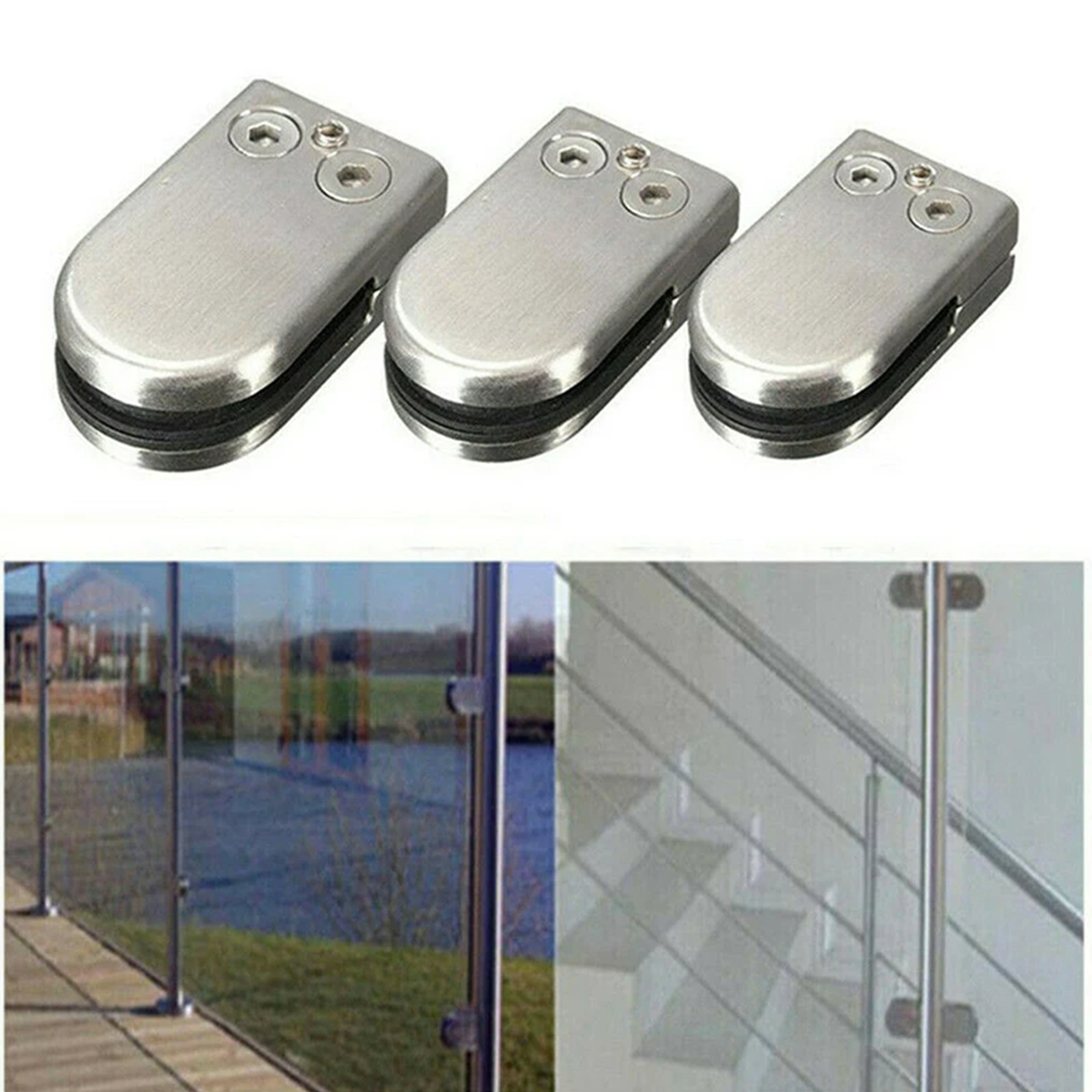

High quality stainless steel 304 glass clamps/ clips/ brackets for your windows/ handrails/ balustrades!
Specifications:
Material: Stainless steel
Finish: Satin polished/ brushed
Backside: Flat
Applied to: Square tubes
Suitable for glass thickness: 6-12 mm (Optional)

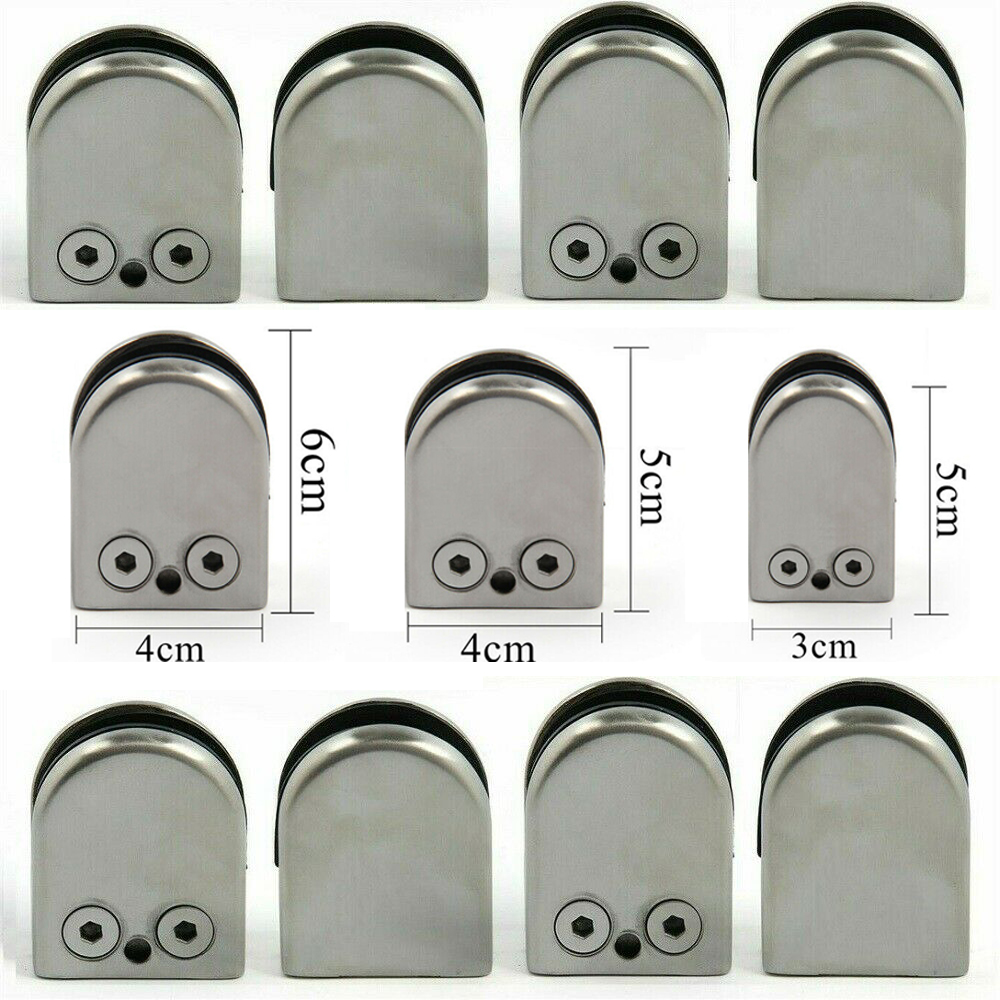

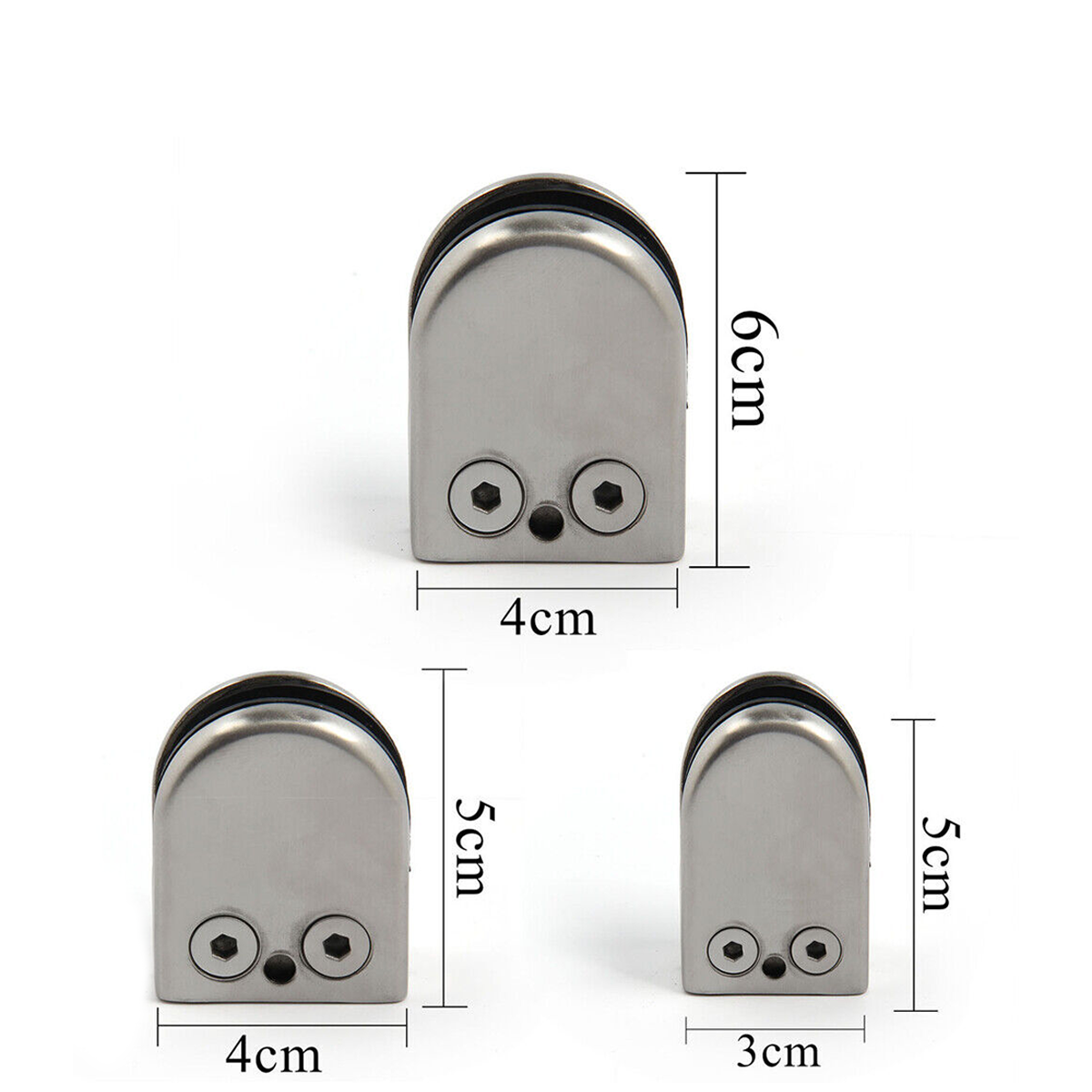

S size: 53*33*20 mm (h x l x t/d) for 6-8 mm glass
M size: 52*43*24 mm (h x l x t/d) for 8-10 mm glass
L size: 65*43*26 mm (h x l x t/d) for 10-12 mm glass
Note(for clamp tighten):
8mm glass thickness,best choose s size.
10mm glass thickness,best choose m size
Very easy to install:
1.Use a hexagon driver to loosen position 1 & 2 ( the screw driver is not included in the package)
2.Insert the glass into the gap (when applied 6 mm thickness glass to s size, 8 mm thickness glass to m size, 10 mm thickness glass to l size, be sure to firstly fix the two rubber layers into the gap before inserting the glass.)
3.Tighten position 1&2 with the screw driver
The micro-adjusting screw is optional for use to make the connection tighter.
Package included:

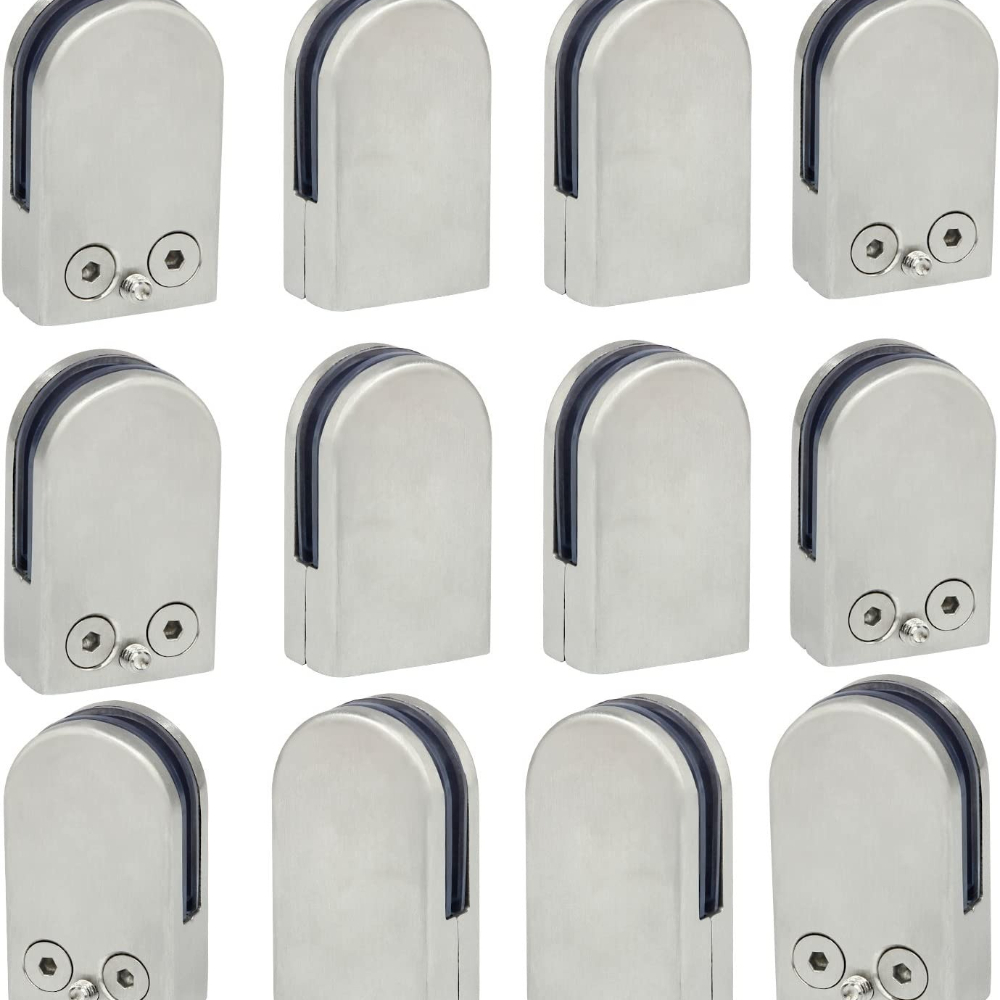

12PCS stainless steel glass clamps (S M L size and the QTY are optional)
Each glass clamp includes:
2x rubber layers
2x hexagon screws
1x micro-adjusting screw
