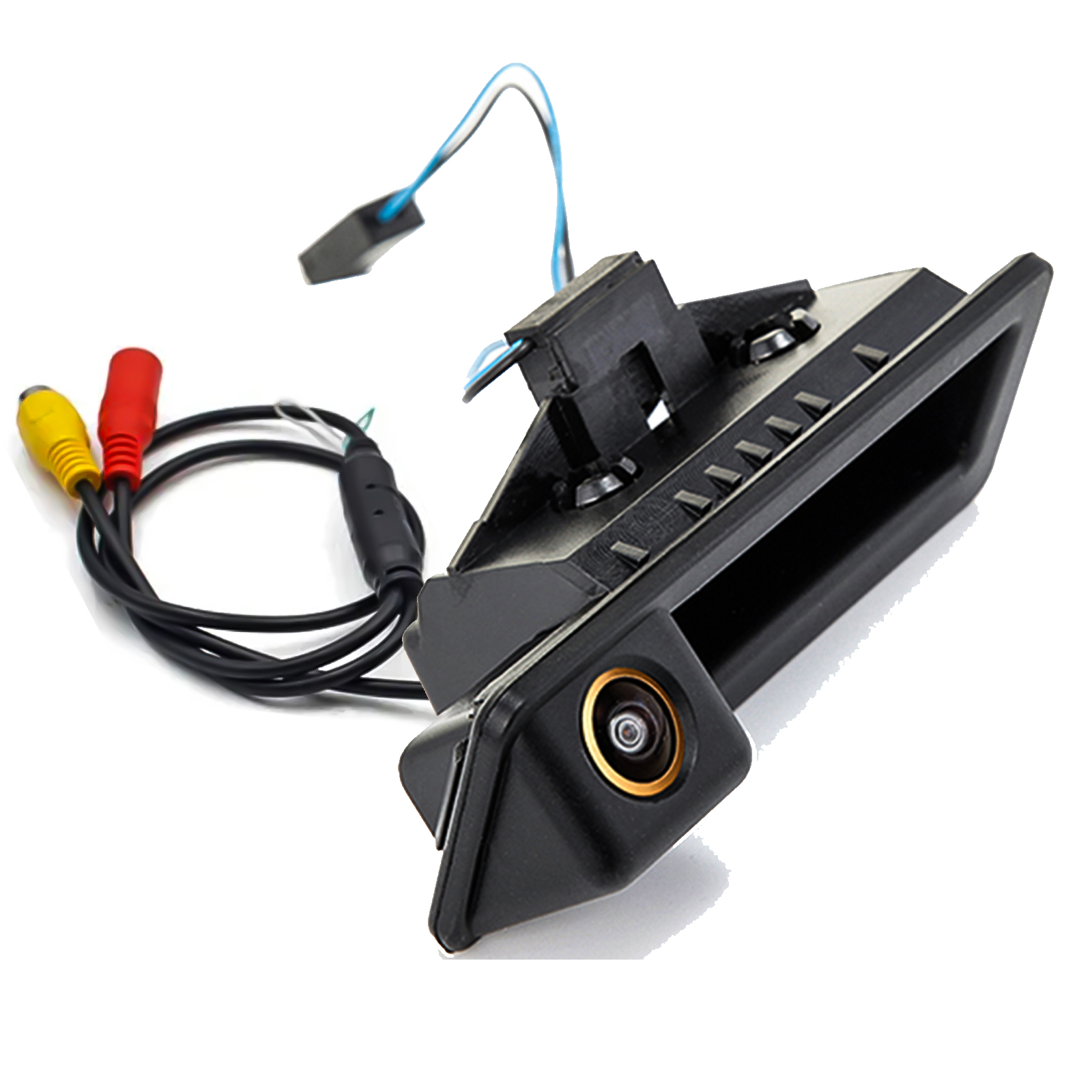

Vehicle HD CVBS AHD 720P Fisheye Lens Car Reverse Backup Trunk Handle Camera For BMW E60 E90 E82 E61 X1 E84 X5 E70 E92 E91 3/5 Series E88 E93
Products Characteristics:
* AHD technology is High-definition video signals, it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
* Highly integrated 2053HD chips, Max HD 720P Pixel. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, Full real-time, High fidelity.
* The Camera support both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.
* Chips components : HD Sony/OV2053HD
* Viewing angle: 155~175 Degrees Visible Range .
* Effective pixels : CVBS:1280x720P (NTSC),
* AHD: 1280x720P (NTSC).
* Signal format: NTSC or PAL
* Image resolution: (1280x720)92W pixels
* Video output: AHD Video Signal or CVBS Signal .
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : 14/16MM Fisheye 6 glass Lens .
* Waterproof : IP68 / IP69
* Working power supply: DC12V~24V, 2A
* Working temperature: -30 °C ~ +70°C
* Maximum power: 3W
Tip:

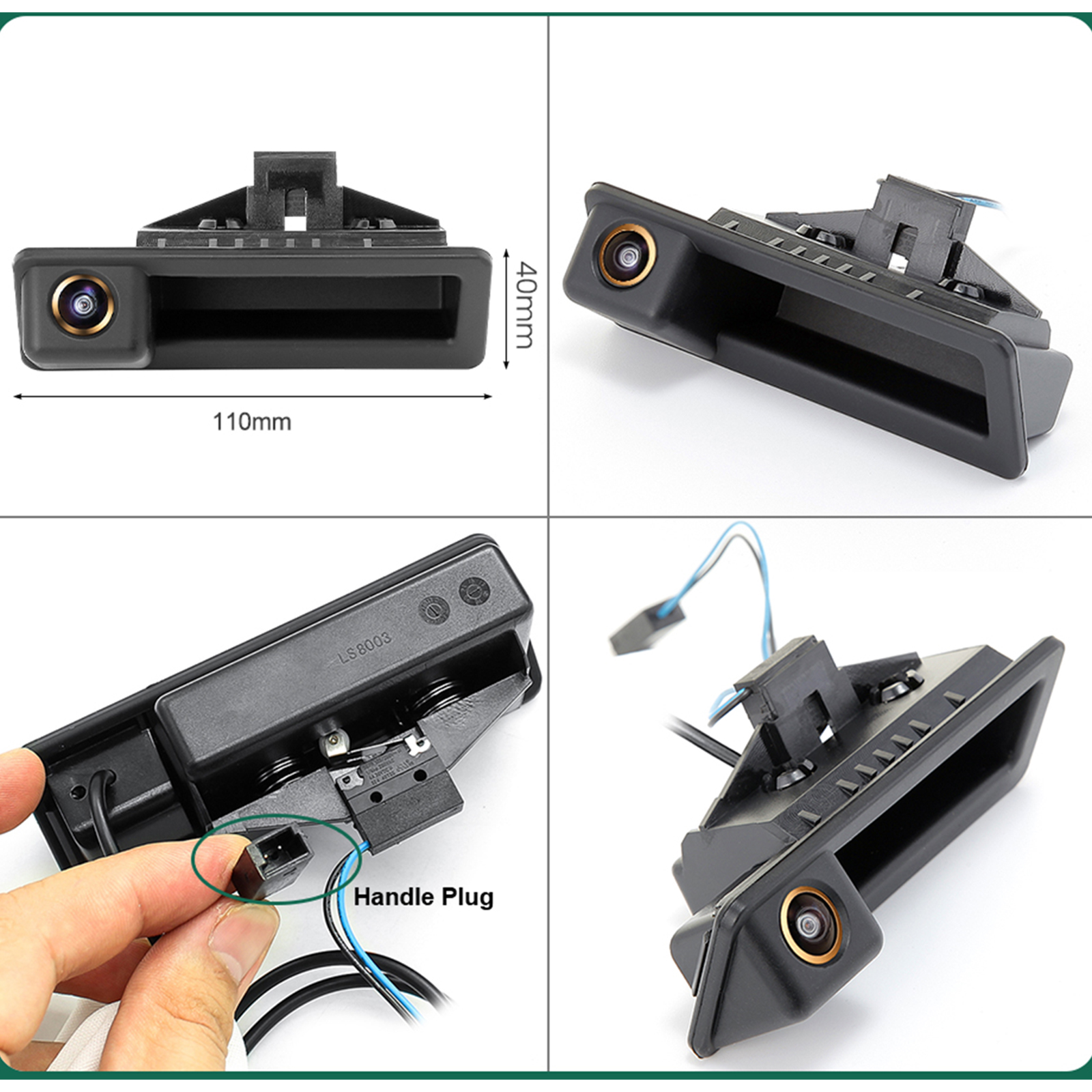

1. Because there may be slight differences between cars produced in different countries, please check the size before buying.

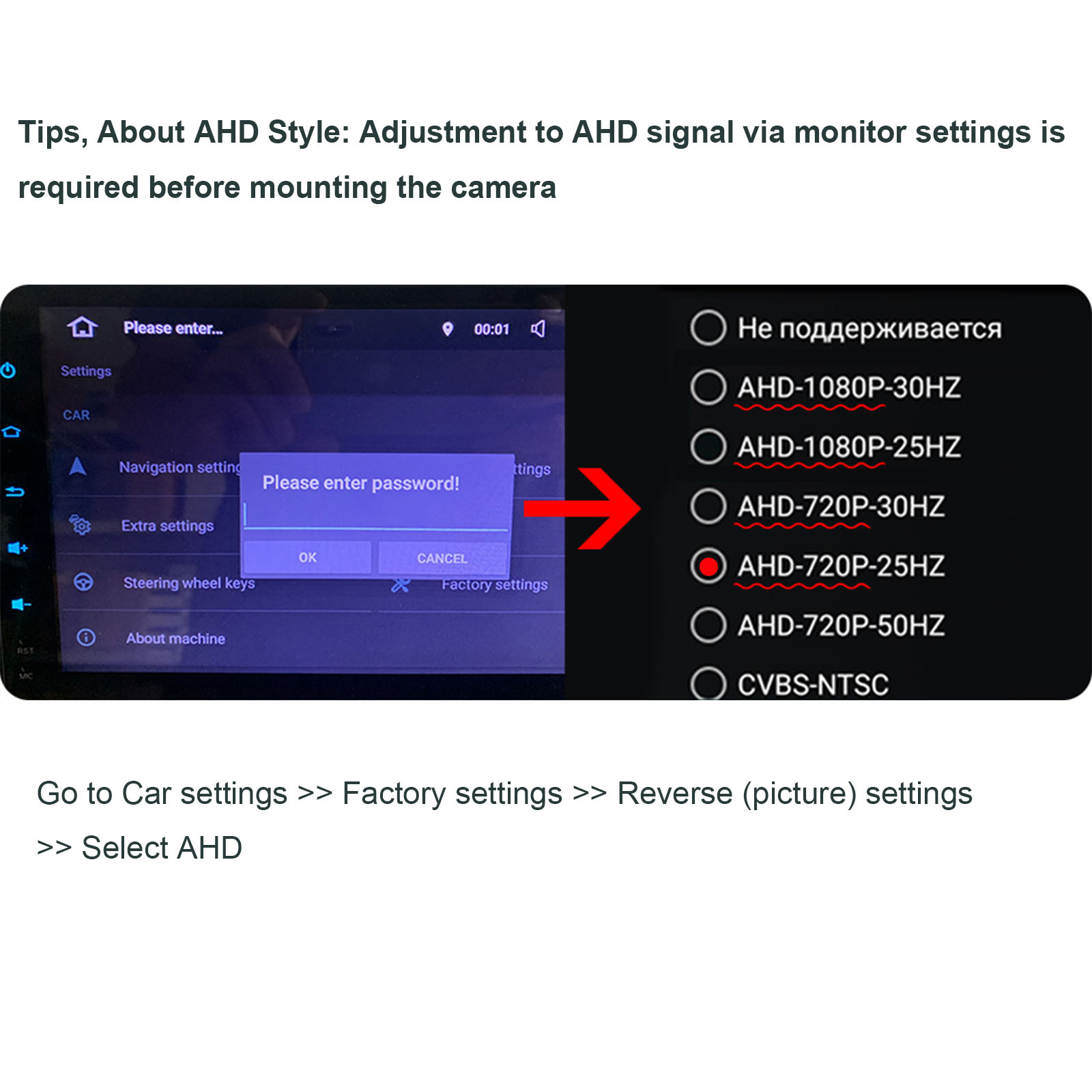

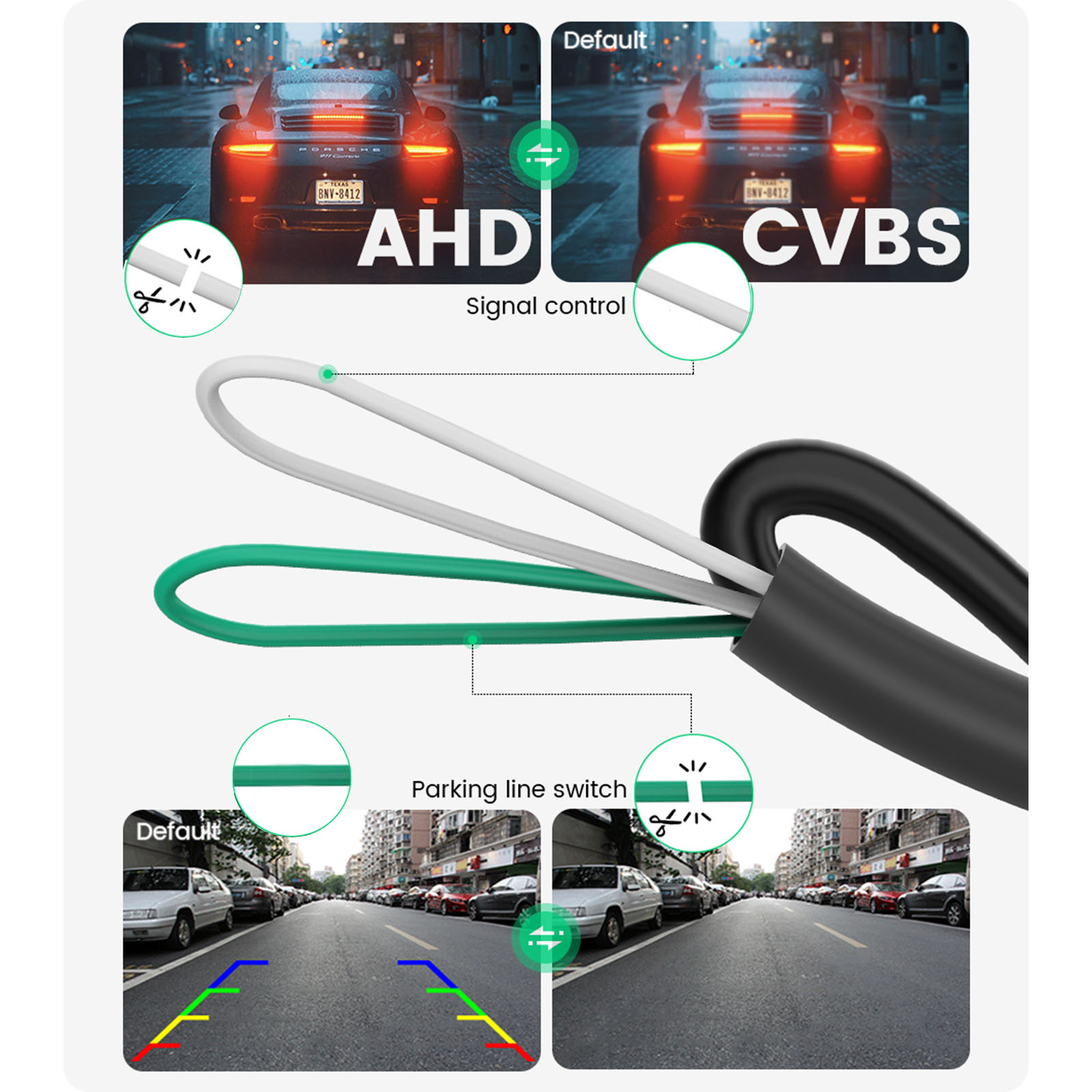

2. If your monitor can not support CVBS video signal, please Cut the white wire for AHD video signal, please re-connect all cables.
3. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is correctly connected.
* AHD technology is High-definition video signals, it adopts advanced Y/C signal separation and filtering technology, bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
* Highly integrated 2053HD chips, Max HD 720P Pixel. 170 degrees 6 Glass Fisheye Lens. Zero-delay front-end data is not encoded and compressed to the back end, Full real-time, High fidelity.
* The Camera support both AHD and CVBS video signal, it can work with both AHD Android monitors and all CVBS TFT monitors.
* Chips components : HD Sony/OV2053HD
* Viewing angle: 155~175 Degrees Visible Range .
* Effective pixels : CVBS:1280x720P (NTSC),
* AHD: 1280x720P (NTSC).
* Signal format: NTSC or PAL
* Image resolution: (1280x720)92W pixels
* Video output: AHD Video Signal or CVBS Signal .
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation
* Lens : 14/16MM Fisheye 6 glass Lens .
* Waterproof : IP68 / IP69
* Working power supply: DC12V~24V, 2A
* Working temperature: -30 °C ~ +70°C
* Maximum power: 3W
Tip:
1. Because there may be slight differences between cars produced in different countries, please check the size before buying.
2. If your monitor can not support CVBS video signal, please Cut the white wire for AHD video signal, please re-connect all cables.
3. When connecting the camera with a DVD player, and it does not work properly, please check if the DVD reverse trigger wire is correctly connected.
Compatible with:
1er 128i E81 E82 | E84 | E87 E88 (2007 - 2012)
116i 118i 120i 135i 640I (2007 - 2012)
2012 135i coupe
3er E90 | E91 | E92 | E93 (2004 - 2011)
3er E36（1992-1999）（1998-2006）
3er 318i 320i 325i 328i 330i 335i (2004 - 2011)
2006 pre lci 325i
5er E60 | E61 (2005 - 2011)
5er E34（1988-1995） E39（1995-2003）
5er 518i 520i 525i 528i 530i 535ix (2004 - 2011)
X1 E84 (2009 - 2011)
X5 E70 (2006 - 2011)
