Main Features:

• 7 Inch Larger Screen Car Truck Rear View Monitor with Built-in IR sensor for Remote control, detachable Sunshade cover, rotated bracket.

• HD digital 800*480 Screen

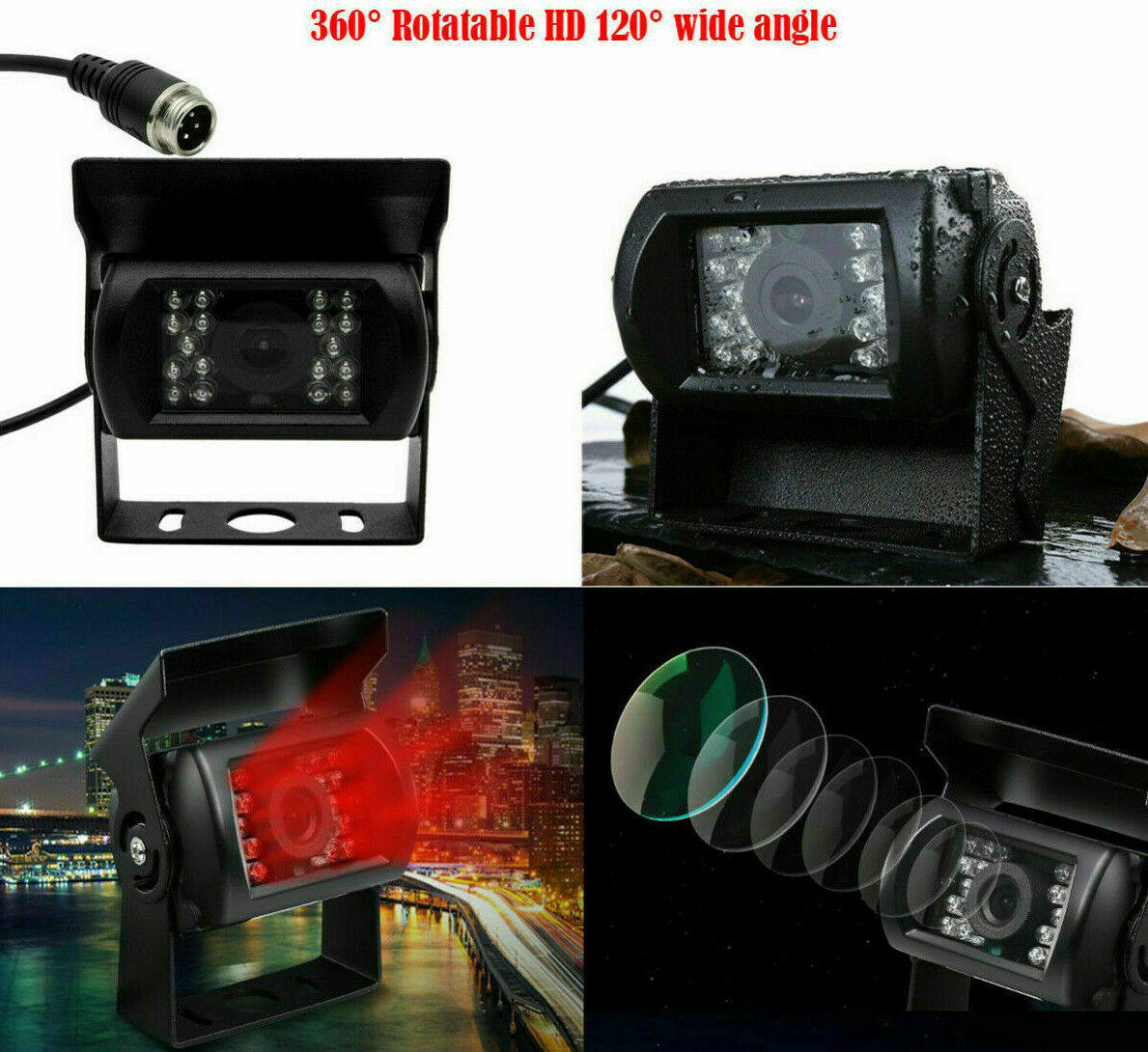

• 120°Wide Viewing Angle Backup Camera: 120 degree visible range designed backup camera is perfect for checking unseen blind spots in your vehicle’s mirrors when reversing your car, and can be adjusted 30 degree by loose screw. In addition, the reverse cameras would be perfect for avoiding car crashes while driving in the dark.

• HD Night Vision Designed: The rear view camera is equipped with 18 high definition IR leds, which can make you see very clear at night or in a dark underground parking garage. 600TVL-840x780 capture resolutions and support NTSC TV system.

• Premium Metal Case Frame: Stylish heavy duty frame, which is suitable for all Heavy Duty vehicles.

• Built-in a 120° Viewing Angle Backup Camera

• 120° visible wide range designed rear view camera is perfect for checking unseen blind spots in your vehicle’s mirrors when reversing your car, also can help drivers avoid car crashes while driving in the dark.

• Something that Customers Need to Be Attention

• Don't open the cover of the camera. It will no longer be waterproof if it's opened. And don't aim the camera at bright or strong light sources, it will make the camera ineffective in capturing video. Also, the red socket is connected to DC 12-24V, the yellow socket is for video output.

Specification:

• Image Sensor: Sharp CCD Color

• Lens Angle: 120 degree.

• Effective Pixels: 848*788 pixels.

• Horizontal Resolutions: 600 TV lines, VS 420 or 480TVL

• Minimum Illumination: 1LUX/F1.2

• Voltage: 12-24V

• Power: 0.6W

• Working Temperature: -20-70℃

• Max humidity: RH95%

• Waterproof: IP68

• View Angle: 120°

• Video Format: NTSC

• Video Output: 1.0VP-P,750HM

• GAMMA: 0.45

• Apply: Car Truck

• Function: with night vision (infrared LEDs-18pcs)

• Power Cable Length: 1M

• Video Cable Length: 10M

• Item Color: Black

• Dimension: as picture shown

Package includes:

• 1x 7 Inch Monitor

• 1x Stand Bracket

• 1x Remote Control-None Battery Inside

• 1x Power Harness

• 1x Sticker

• 1 x 18 IR HD Night Vision Car Rear View Backup Camera

• 1 x Power Cable

• 1 x 10m Video Cable

• 1 x User Manual
