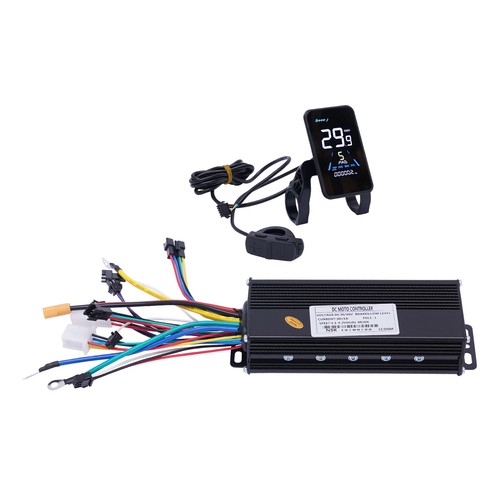

48V 1200W Electric Bicycle Brushless Controller Kit, E-Bicycle Brushless Controller with LCD Display Color Screen Kit for Electric Bicycle Scooter DIY Part

Key Features

• Sensitive Control: The brushless controller can be sensitive to the state of electric bike, providing steady speed and sensitive control of braking and direction changes. Meanwhile, the turner can also provide stable and sensitive speed control.
• Comforatble Riding: The FOC sine wave controller makes the motor produce low noise and rotate smoothly with high efficiency. This can reduce the noise and vibration during riding, bringing you a more comfortable riding experience.
• LCD Display: The LCD meter with color screen can clearly display the real-time speed, maximum speed, average speed, total mileage, single mileage, battery power, assist gear/speed grading, cruise control, allowing you to grasp the usage statues of the product. Meanwhile, backlight enables you to see screen clearly in dim environment.
• High Safety: The wires and interfaces have good contact to ensure low malfunction for long time use. Meanwhile, the over/under voltage protection, over current protection, over load protection, over heating protection, anti-runaway protection, locked-motor protection make this kit safe and reliable.
• Good Heat Dissipation Ability: The aluminum shell with a groove design ensures good heat dissipation and high temperature resistance ability, which provides better protection for inner circuit to avoid thermal overloading.
• Labor-saving: You don't have to pedal your bike laboriously anymore with this product and only need to gently rotate the turner to control the speed flexibly, which is very labor-saving and convenient.
• Premium Material: The controller is made of high-quality aluminium alloy with high hardness and toughness, and premium circuit board with high torque, low heat, reverse polarity protection, and high rated current. So you can use it for a long time.
• Easy to Install: The structure of the product is simple and the accessories are complete. You only need a few simple steps to install it, which is very simple and convenient.

Details

• Pedal Assistant Sensor: It senses the rhythm of the pedal and adjusts the speed of the motor accordingly. This helps on long trips and avoids wrist pain caused by constant pressure.
• Meter Bracket: You can put the LCD meter on the bracket for easy storage and viewing the display on the meter. It is suitable for 31.8mm handlebars, and can be applied to 21mm/22mm/23mm/24mm handlebars with a rubber ring.

Application

It is suitable for electric bicycles, electric tricycles, electric scooters, and a variety of DC motors.

Specification

Model: NC3630

Material: Aluminium Alloy

Voltage: DC 36/48V

Matchable Motor Power: 750-1200W

Current: 30±1A

Meter Type: LCD

Instrument Display:Real-time Speed, Maximum Speed, Average Speed, Total Mileage, Single Mileage, Battery Power Display, Assist Gear/Speed Grading, Cruise Control

Net Weight: 0.9kg/1.9lbs

Controller Size: 212*115*55mm/8.3*4.5*2inch

LCD Meter Size (L*W): 68*96mm/2.6*3.7inch

Suitable Handbar Size: 21mm/0.83in, 22mm/0.87in, 23mm/0.9in, 24mm/0.94in, 31.8mm/1.25in

Different Cable For Different Uses

Red: Power Input

Yellow: Power Output

Blue: Signal Transmission

Green: Signal Reception

Black: Power Negative

Package Included

☑ 1* Color Screen LCD Meter&Bracket

☑ 1* Thumb Turner

☑ 1* Turnbuckle Cover

☑ 1* Controller

☑ 1* Pedal Assistant Sensor

☑ Other Accessories for Assembly

Notes

• The speed is related to wheel size, road condition, battery condition, guest load, wind speed, and other factors.
• Please make sure a solid connection between the motor and the controller.
• Please make sure that the inner core of each plug is not damaged, broken, or bent.
• You need to connect the machine correctly and firmly during installation so that the product can work properly. If there is a mistake during the installation process, the product will not work properly.
