🔥 Eonon FDF1X7 Android 14 Car Stereo Plug & Play for Ford F-150 (2009–2014) 9" IPS HD Touchscreen | Wireless Apple CarPlay & Android Auto | DSP Audio | GPS Navigation | WiFi 6 | Bluetooth 5.4 | OTA Updates | Factory Feature Retention Upgrade your Ford F-150 with a vehicle-specific Android 14 infotainment system designed for modern driving and truck use. The Eonon FDF1X7 is a premium Plug & Play head unit made exclusively for Ford F-150 (2009–2014). It replaces the factory radio with wireless smartphone connectivity, powerful DSP audio, smooth Android performance, and factory feature retention—all without cutting wires or modifying your dashboard. ⭐ Core Selling Points ✅ True Plug & Play – Factory Fit for F-150 -

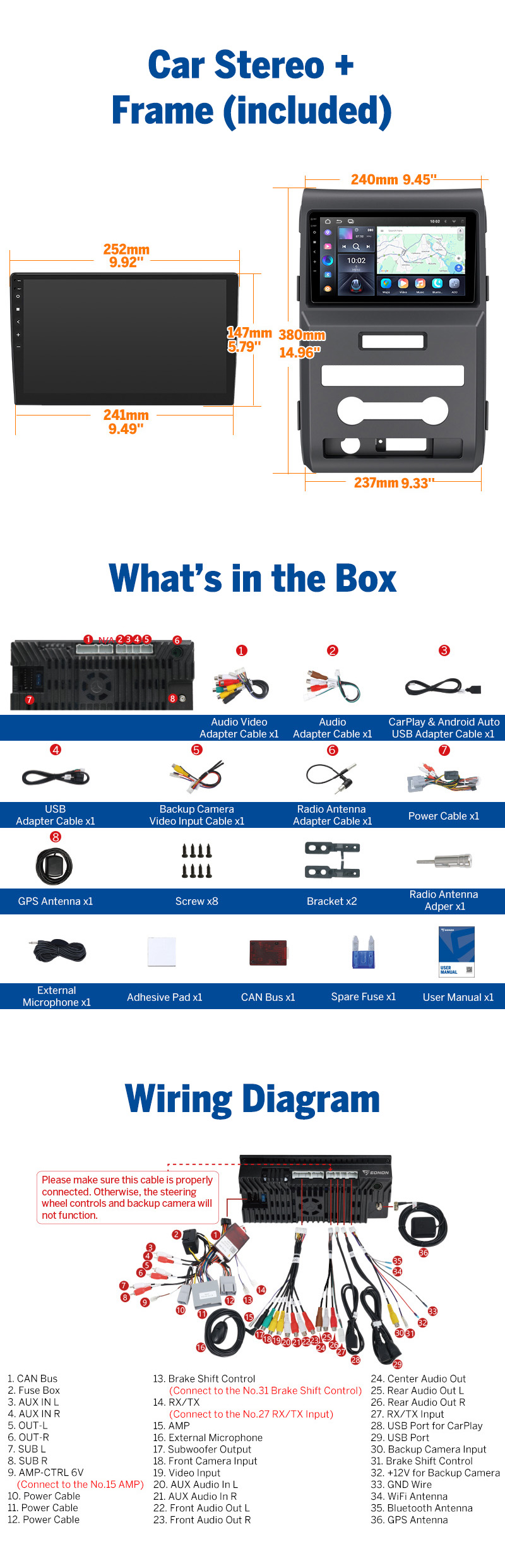

Designed specifically for Ford F-150 (2009–2014) -
Clean factory-style installation, no dashboard modification -
Plug & Play wiring with CANBUS support -
Retains steering wheel controls, factory amplifier, door reminder, AC control & AC information -
Typical installation time: 30–60 minutes 🚀 Android 14 Performance Platform -
Android 14 OS for improved security and app compatibility -
Quad-Core RK3562 processor optimized for in-car stability -
3GB RAM + 32GB internal storage -
Smooth multitasking for navigation, music, and apps -
Supports OTA software updates via WiFi 📱 Wireless Apple CarPlay & Android Auto -
Supports wireless and wired CarPlay / Android Auto -
Automatic connection when entering the vehicle -
Voice control via Siri & Google Assistant -
Works with Maps, Waze, Spotify, calls, messages & more -
Safer, hands-free driving experience 🖥️ 9" IPS HD Touchscreen 🔊 Built-in DSP Audio System -
48-band DSP equalizer -
Time alignment & active crossover -
4 × 45W ST TDA7388 amplifier -
Subwoofer pre-out supported -
Delivers clearer vocals, deeper bass, and better tuning than most units in this price range 🗺️ GPS Navigation – Offline Ready -
External GPS antenna included -
Supports offline maps (no mobile data required) -
Compatible with Google Maps, Waze, and other navigation apps -
Reliable positioning even in low-signal areas 📲 Wireless Screen Mirroring (iOS & Android) -
Wireless phone screen mirroring supported -
No cables required -
Ideal for navigation sharing or passenger use -
Note: DRM-protected apps such as Netflix are not supported 🪟 Split-Screen Multitasking & Custom UI -
True split-screen multitasking -
Run navigation and music simultaneously -
3 selectable home screen layouts -
Fully customizable interface 📡 WiFi 6 & Bluetooth 5.4 (External Antenna) -
Faster, more stable wireless connections -
Improved wireless CarPlay / Android Auto performance -
Clearer hands-free calling -
Faster app downloads and OTA updates -
Reduced signal dropouts 📷 Dual Camera Support & Auto Reverse Display -
Supports front and rear cameras -
Automatic switch to rear view when reversing -
Parking guidelines included -
Enhances parking and reversing safety 📻 AM/FM Radio with RDS + Optional DAB+ -
Stable AM/FM reception with RDS station info -
Traffic and program information displayed -
Optional DAB+ digital radio supported with A503 box 🔄 OTA Updates & Long-Term Reliability -
Free OTA firmware updates via WiFi -
Automotive-grade components -
Premium thermal cooling for truck environments -
Built for long-term daily use 🔧 Optional Upgrades (Sold Separately) -
Rear View Camera: A0125 / A0127 -
Dash Camera: A100 -
DAB+ Digital Radio Box: A503 (UK / EU / AU) -
OBD2 Diagnostic Scanner -
Eonon A303 DSP Amplifier – higher output, stronger bass, improved sound staging ❓ FAQ Will this fit my Ford F-150?
✔ Yes. Designed for 2009–2014 Ford F-150 with full Plug & Play compatibility. Do I lose factory features?
✔ No. Steering wheel controls, factory amp, climate display, and CANBUS data are retained. Is wireless CarPlay / Android Auto stable?
✔ Yes. WiFi 6 and Bluetooth 5.4 ensure fast and reliable auto-connection. Can I use navigation without internet?
✔ Yes. GPS and offline maps work without mobile data. Does it support split screen?
✔ Yes. Run navigation and music at the same time. How is the sound quality?
✔ Excellent. DSP tuning and a high-quality amplifier provide clearer sound and stronger bass than stock systems. Are software updates included?
✔ Yes. Free OTA updates via WiFi. ✅ Buy with Confidence -
✔ Vehicle-specific Plug & Play fit -
✔ Factory features fully retained -
✔ Wireless CarPlay & Android Auto -
✔ DSP audio & large IPS display -
✔ Android 14 with OTA updates Upgrade your Ford F-150 (2009–2014) with Eonon FDF1X7 — modern infotainment, premium sound, and factory-level integration in one smart upgrade. ⭐ Vehicle Compatibility Designed for 2009 Ford F-150, 2010 Ford F-150, 2011 Ford F-150, 2012 Ford F-150, 2013 Ford F-150, 2014 Ford F-150. Plug & play. ⭐ Specification - Operation system: Android 14
- OTA Firmware Update: Yes
- CPU: Quad-core (RK3562)
- RAM: 3GB
- Storage: 32GB
- Display: 9" IPS
- Resolution: 1280*720
- Operating voltage: DC12V
- CarPlay: Wired & Wireless
- Android Auto: Wired & Wireless
- Screen mirroring: Yes
- Steering wheel controls: Yes
- Independent Bluetooth module: Yes
- Extra Bluetooth antenna: Yes
- Custom boot logo: Yes
- changeable button color: Yes
- changeable wallpapers: Yes
- Wi-Fi: Support 2.4G/5G
- 4G Feature: No, 4G dongle needed
- 1s fast boot: Yes
- Built-in UI themes: 3
- Split-screen multitasking: Yes
- Built-in DSP: Yes
- Built-in power amplifier: 4-channel audio output and one subwoofer audio output
- EQ bands: 48
- EQ modes: Custom Standard Popular Rock Classical Jazz
- HPF/LPF adjustment: Yes
- Video input: 1
- Video output: No
- Audio input: 2
- Audio output: 4 RCA
- AUX input: No
- USB input: 3
- RMS power (manufacturer): 25W
- Max amplifier output: 4*45W
- Preamp outputs: 5-channel
- Sub preamp outputs: Yes
- Preamp voltage: 1.0V
- Video Formats: Supports MPG, DAT, TS, AVI, MP4, MOV, 3GP, ASF, VOB, MKV, FLV, RM, RMVB, and more; supports 1080P video decoding
- Audio Formats: Supports MP3, WMA, WAV, OGG, AAC, FLAC, APE, and more; online audio playback supported
- Image Formats: Supports JPEG, BMP, PNG, and more
This Android head unit is ideal for Ford F-150 owners seeking a modern Double DIN upgrade with smooth Android performance, reliable GPS Navi access, and advanced DSP tuning options. Designed for easy Plug & Play installation with CANBUS support, it delivers strong connectivity through WiFi 6, Bluetooth 5.4, and seamless Wireless CarPlay / Android Auto integration. Drivers looking for enhanced multitasking will appreciate the responsive touchscreen, Split-Screen capability, expanded RAM/ROM support, and wide compatibility with popular truck accessories. A great choice for shoppers searching “Android Version car stereo,” “2 DIN touchscreen radio,” or “Android head unit compatible with F-150 2009–2014.”
