Front 2.5" Rear 1.5" Lift Kit w/ Struts & Shocks for Toyota Tacoma 1995-2004








Fitment:



  • For Toyota Tacoma RWD 1997-2004
  • For Toyota Tacoma 4WD 1995-2004

Feature:

  • High-pressure nitrogen charged twin-tube shock absorber with high durability.
  • Rubber bushings for better absorption.
  • Power coated surface：provides superior corrosion resistance.
  • 35KN Tensile Strength.
  • Precision MIG Welding.
  • Improve your on and off-road ride.
  • Note:
  • Does NOT fit models with 5 lug wheels.
  • Minor exhaust modification will be required.
  • 32x11.50 tires will fit with wheels with a greater offset than factory and/or wheel spacers.

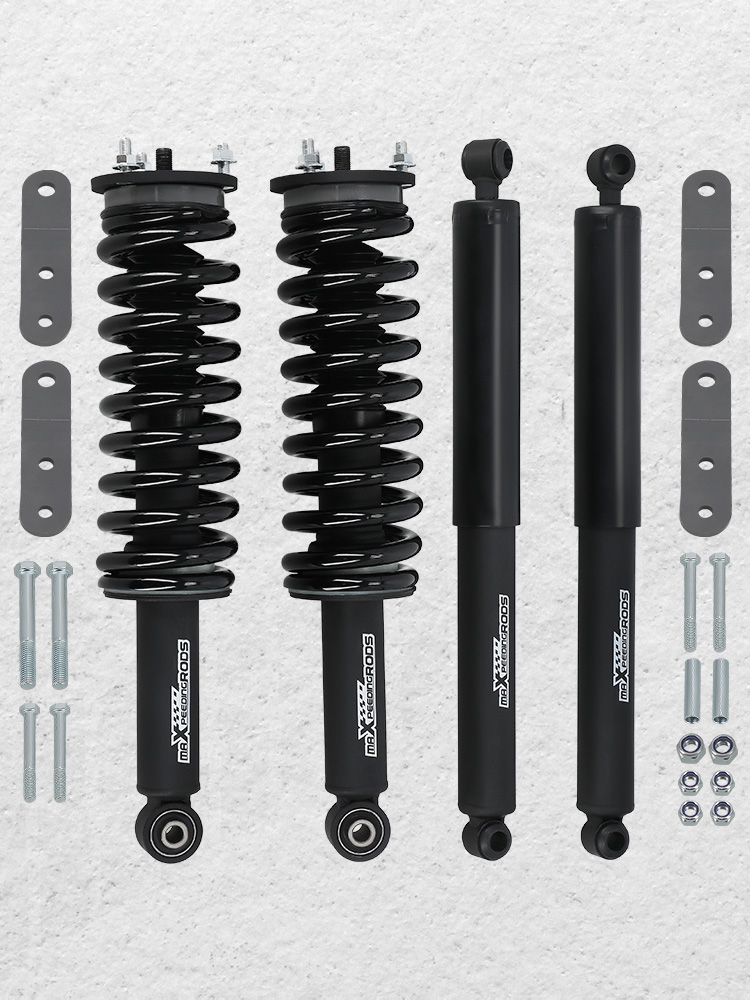

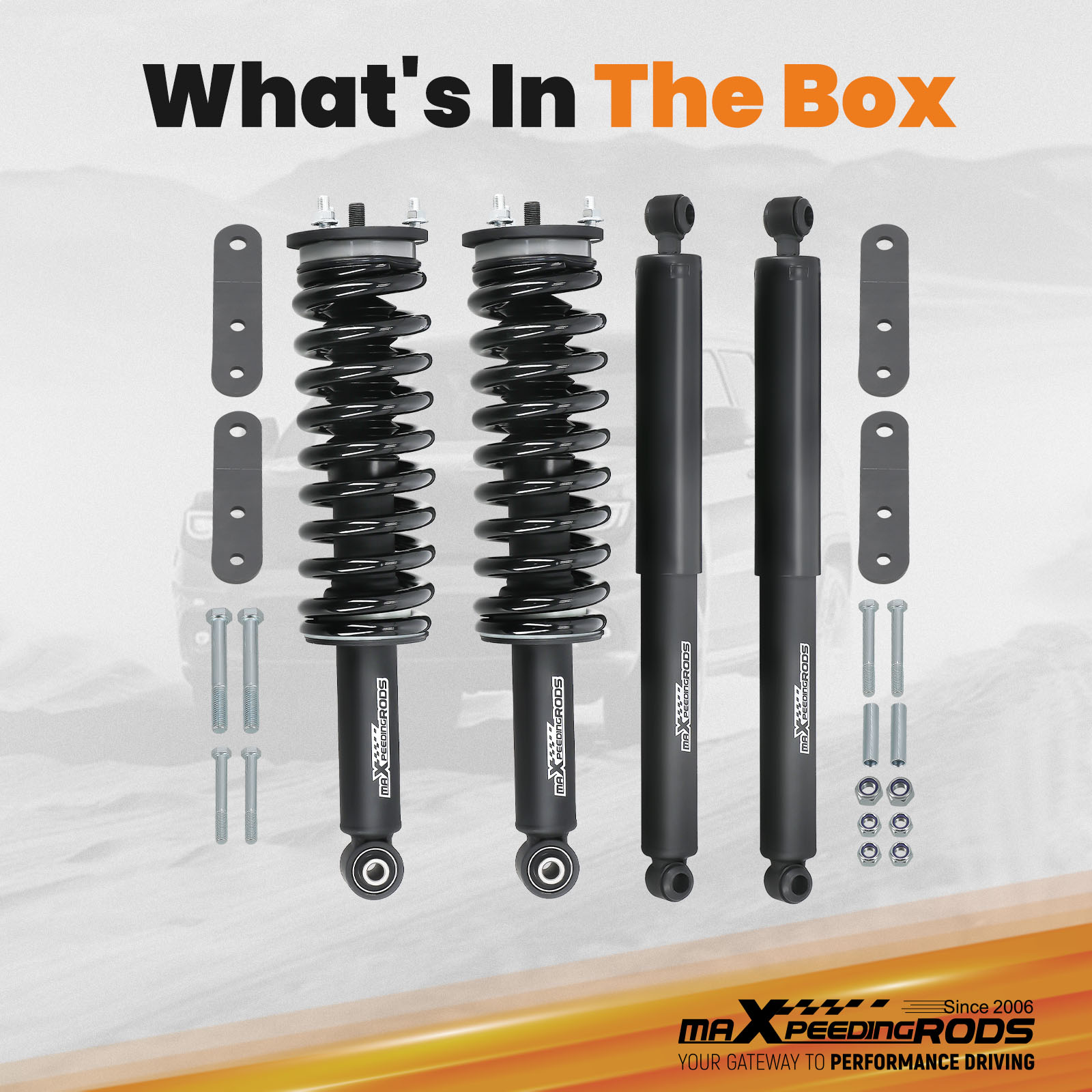

Package Includes:


  • 2x Front Struts
  • 2x Rear shocks
  • 2x Rear lift shackles and hardware
  • Package dimension: 64*50*20 cm
  • Weight: 31.65 kg

Specification


Type Lift Kit
Lift Height Front 2.5" Rear 1.5"
Material High Tensile Strength Carbon Steel
Finish Powder Coated
Diameter of Piston Rod Front 20mm/0.78"; Rear 18mm/0.70"
Piston Diameter Front & Rear 32mm/1.26"
Outer Cylinder Diameter Front & Rear 50mm/1.96"
Travel Range Front 130mm/5.11"; Rear 210mm/8.26"
Extended Length Front 542mm/21.33"; Rear 589mm/23.18"
Collapsed Length Front 412mm/16.22" ; Rear 379mm/14.92"
Front Spring Rate 8kg/mm (447.97lbs/inch)
Nitrogen Charged Yes
Bushing Material Rubber
Dust Cover Equipped Yes
For Toyota Tacoma 2WD 4WD 1997-2004 Does NOT fit models with 5 lug wheels. Minor exhaust modification will be required. See install instructions for details. 32x11.50 tires will fit with wheels with a greater offset than factory and/or wheel spacers. High-pressure nitrogen charged twin-tube shock absorber with high durability. Rubber bushings for better absorption. ower coated surface：provides superior corrosion resistance. 35KN Tensile Strength. Precision MIG Welding. Improve your on and off-road ride.
