Description
Condition (Used): Lightly used tools that have been cleaned, inspected, and verified for cutting performance. Great value for hobby, prototype, and light-duty CNC work.
These are 2-flute solid-carbide end mills designed for clean cutting and reliable chip evacuation. Two flutes provide extra chip space, which is especially helpful in plastics and non-ferrous metals, and also works well for many wood and composite applications.
Best suited for:
- Plastics: acrylic, ABS, HDPE, Delrin (and similar)
- Aluminum and other non-ferrous metals (use proper feeds/speeds and chip clearing)
- Wood / plywood / MDF / laminates (CNC trimming, profiling, pocketing)
Also suitable for light-duty cutting of:
- PCB laminates (FR4, G10) (use proper dust control)
- Phenolic / Garolite
- Fiberglass / carbon fiber composites (use proper dust control)
Key features:
- 2-flute spiral geometry for strong chip clearance and smooth cutting
- Square end for profiling, slotting, and pocketing
- Solid carbide construction for rigidity and wear resistance
- Right-hand cutting (standard CNC rotation)
📦 What’s Included
- (5) × 0.50mm 2-Flute Solid Carbide End Mills

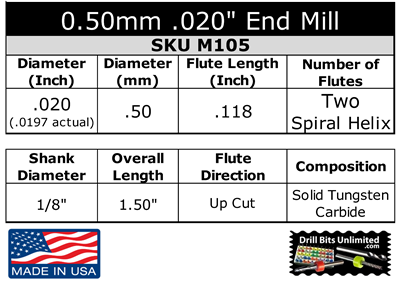

Specifications
| Quantity | 5 pieces |
| Cutting Diameter | 0.50mm |
| Shank Diameter | 1/8" (3.175mm) |
| Flute Length (LOC) | .118" |
| Overall Length (OAL) | 1.50" |
| Material | Solid tungsten carbide |
| Flutes | 2 |
| Tip Geometry | Square End |
| Cut Direction | Right-hand |
| Helix / Flute Direction | Up-cut (spiral helix) |
| Coating | None |
| Manufacturer | Kyocera, US |
Color of plastic ring may vary from picture.
Shipped from the USA by Drill Bits Unlimited.
