Dear buyer, please contact me if you need instructions.

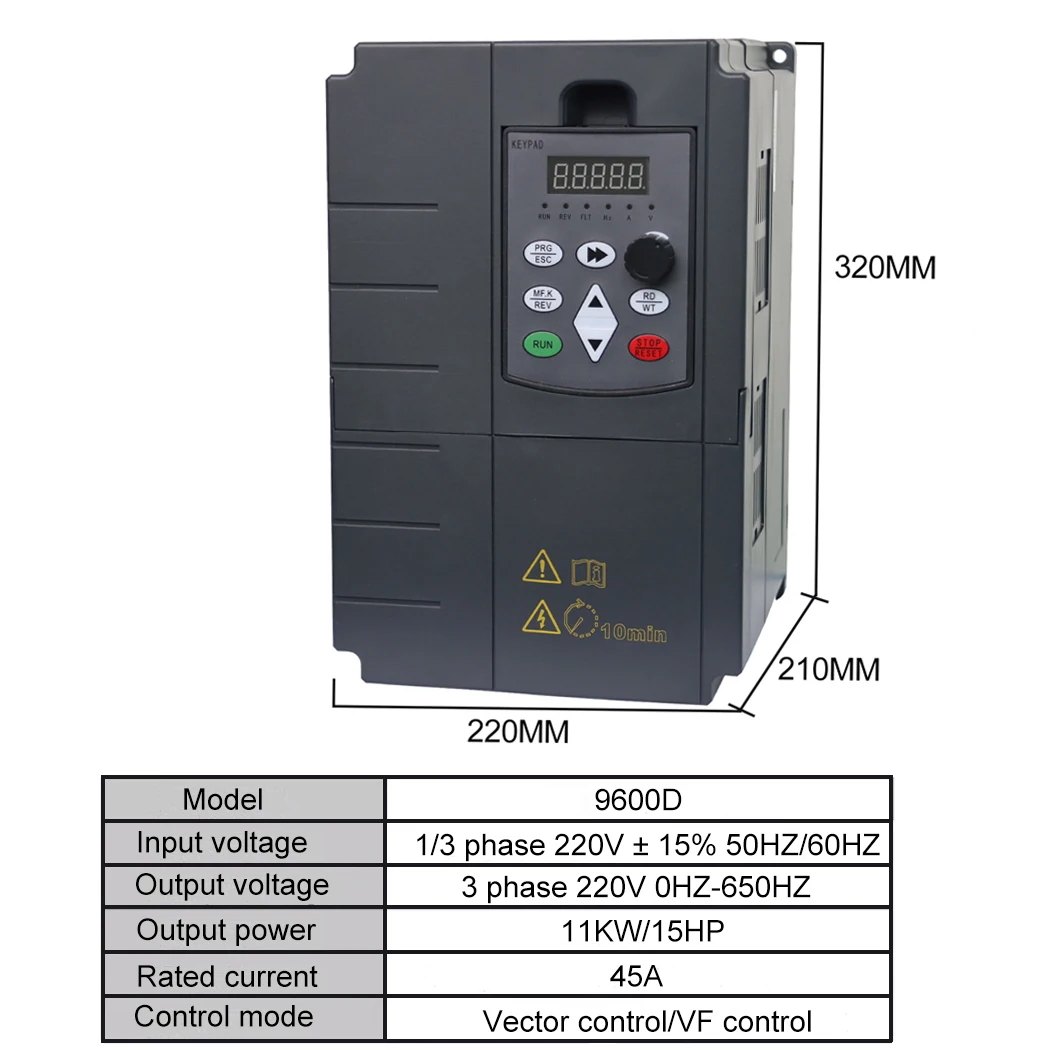

1.Output Power:0.75KW/1.5KW/2.2KW/4KW/5.5KW/7.5KW/11KW


2.Rated Frequency :50hz/60hz


3.Output Frequency Range:0~400Hz


4.Input Voltage Range:1 phase 220V±15%


5.Output Voltage Range:3 phase 220V±15%


6.Control way: Open loop vector control(SVC)      V/F control


7.Main function: Control and adjust the speed of the ac motor

Type

0.75kw 220v VFD

1.5kw 220v VFD

2.2kw 220v VFD

4kw 220v VFD

5.5kw 220v VFD

7.5kw 220v VFD

Input  Voltage

220V(+/-15%)

220V(+/-15%)

220V(+/-15%)

220V(+/-15%)

220V(+/-15%)

220V(+/-15%)

Output Voltage

220VAC

220VAC

220VAC

220VAC

220VAC

220VAC

Input  Frequency

50/60Hz

50/60Hz

50/60Hz

50/60Hz

50/60Hz

50/60Hz

Output Frequency

0~400Hz

0~400Hz

0~400Hz

0~400Hz

0~400Hz

0~400Hz

Rated  current

4A

7A

10A

16A

20A

30A

Input  Phase

1 phase

1 phase

1 phase

1 phase

1 phase

1 phase

Output Phase

3 phase

3 phase

3 phase

3 phase

3phase

3 phase



NFLIXIN Variable Frequency Drive 1 Phase(3 Phase) 220VAC Input 3-Phase 220VAC Output 0.75KW/1.5KW/2.2KW/4KW/5.5KW/7.5KW Frequency Converter Motor Drive VFD

Specification:

IteItem Type: Variable Frequency Drive

Brand: NFLIXIN

Model: 9600D-1T-00075G / 9600D-1T-00150G / 9600D-1T-00220G / 9600-1T-00400G / 9600-1T-00550G / 9600-1T-00750G

Input Voltage: AC 1PH(3PH) 220V ± 15% 50Hz-60Hz

Output Voltage: AC 3PH 0V-220V 0Hz-650Hz

Matching Motor Power: 0.75KW / 1.5KW / 2.2KW / 4KW / 5.5KW / 7.5KW

Rated Current: 4A / 7A / 10A / 16A / 20A / 30A

Voltage Type: AC220V to AC220V

Output Voltage Adjustment Mode: PWM control

Control Method: Current vector

Filter: Built-in filter

Protection Level: IP20

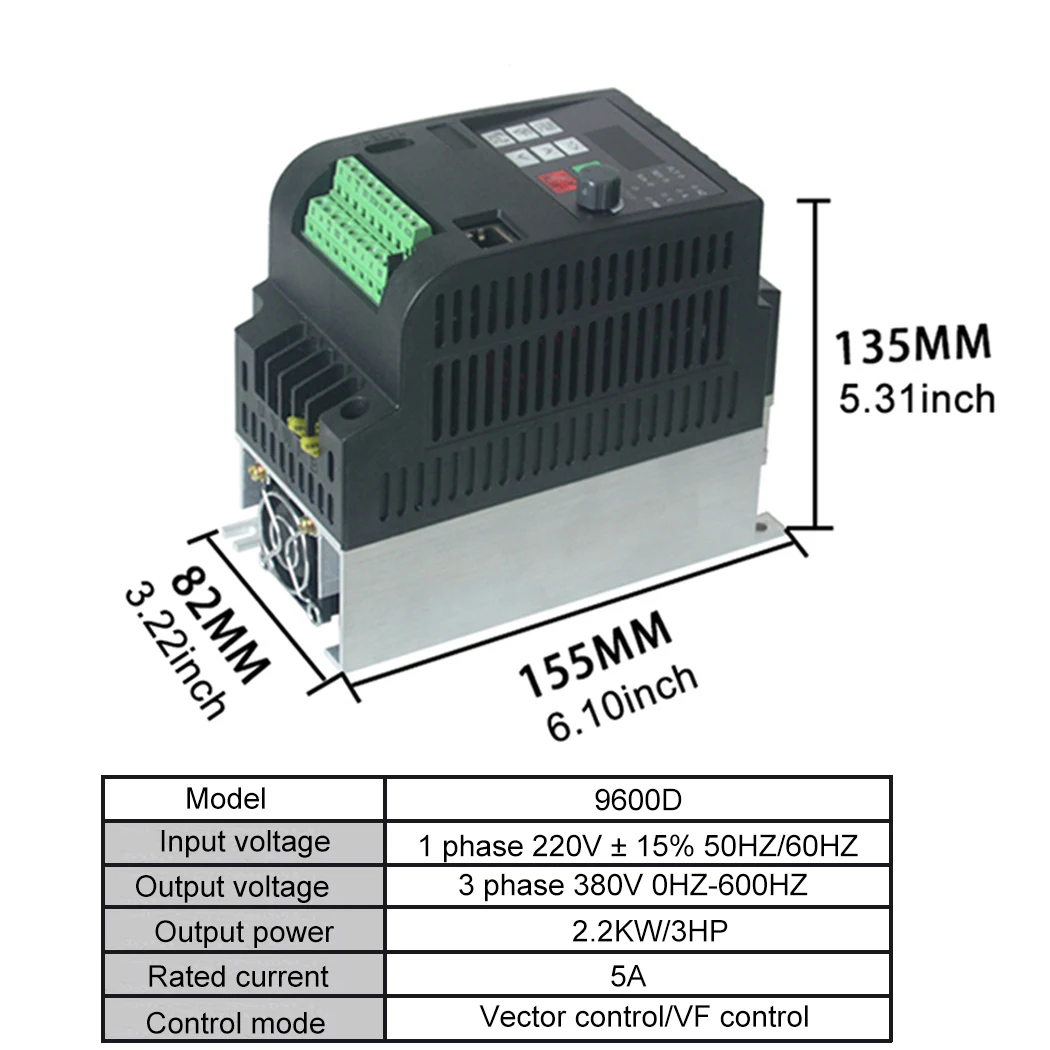

Machine Size: Approx. 155mm*82mm*135mm / 172mm*125mm*165mm / 220mm*152mm*179mm

Product Function:

Low frequency and large torsion

Sensorless vector control

Standard V / F control

Multi-speed adjustable

Built-in RS485 communication

Application: Crusher, grinder, water pump, textile machine, wood cutter, exhaust fan and blower

Feature:

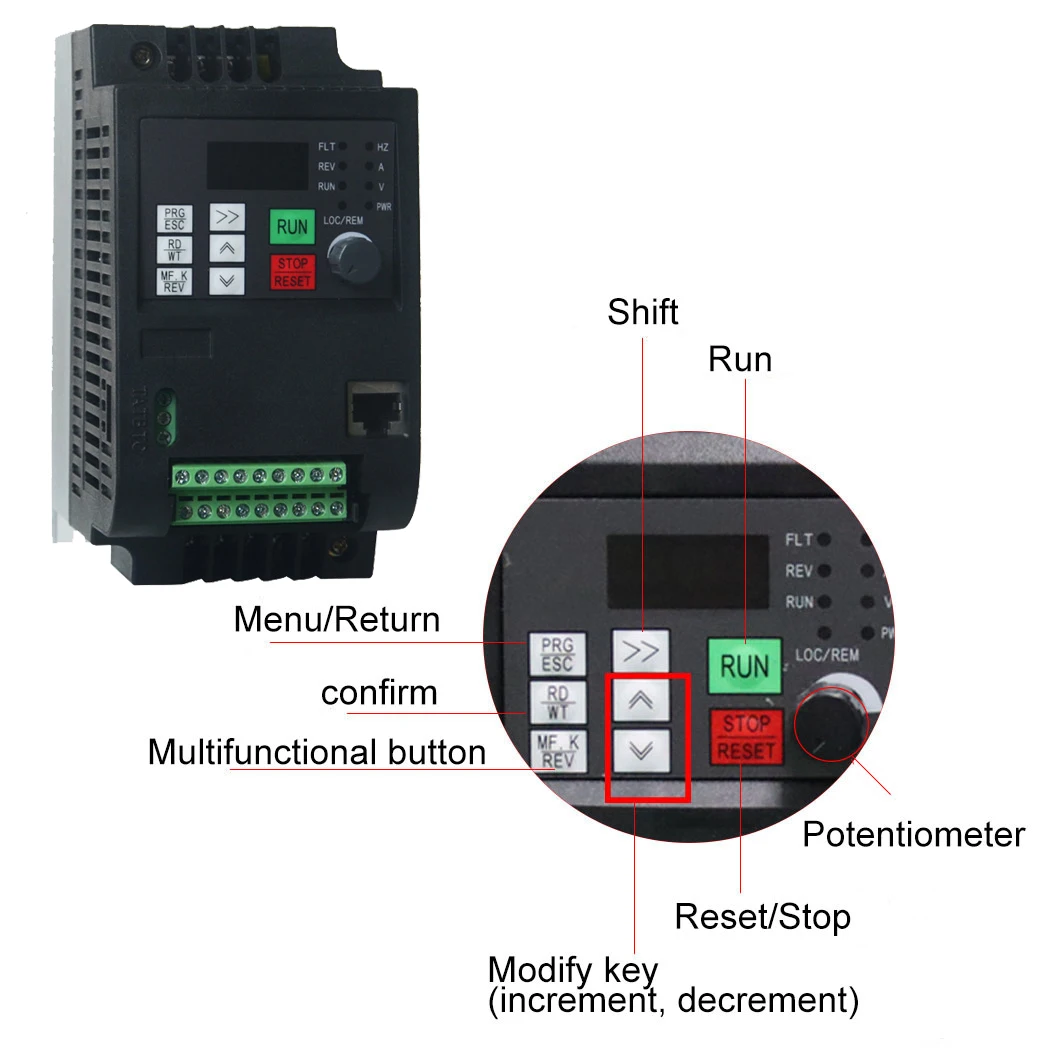

1. Humanized keyboard design, convenient operation and clear display

2. The motherboard is intelligent and efficient, with full-featured three-proof paint treatment, dust-proof, stable and durable

3. Double-layer board design, reasonable structure and safety, greatly reducing the failure rate

4. Adopt high-quality industrial flame-retardant ABS plastic shell, heat-resistant, flame-retardant, impact-resistant and good safety

5. Good heat dissipation, super large all-aluminum base fan hot plate combined with imported powerful fan, super strong wind and super fast heat dissipation

6.Provide up to 25 kinds of fault protection: over-current, over voltage, under voltage, over temperature, phase loss, overload and other protection.

220V 0.75KW / 1.5KW / 2.2KW Frequency inverter

Size: 85mm*125mm*150mm

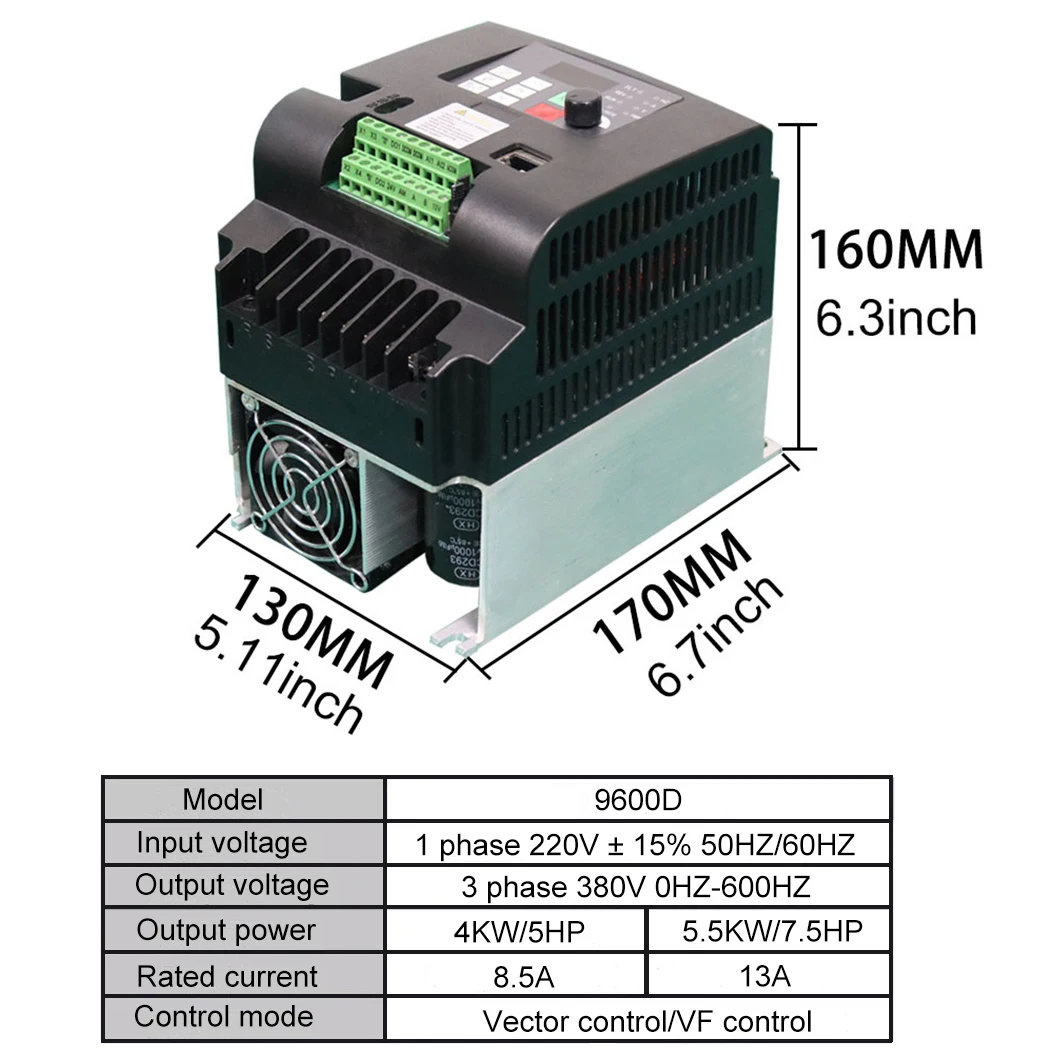

220V 4KW Frequency inverter

Size: 172mm*125mm*165mm

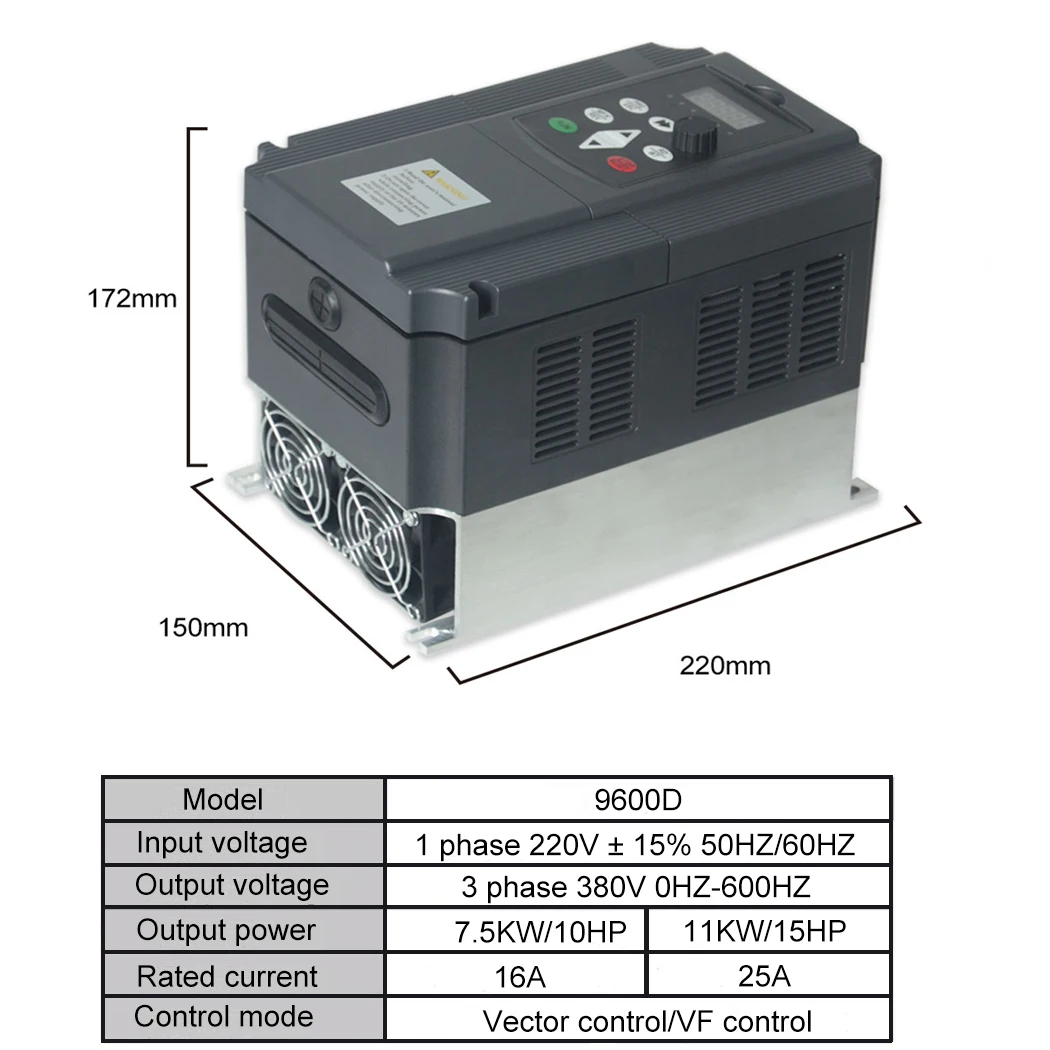

220V 5.5KW / 7.5kw Frequency inverter

Size: 220mm*152mm*179mm



We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:

01 V/F control, vector control  and output torque control;
02 Built-in RS-485 communication interface
03 Compact size, easy to install;
04 With a speed potentiometer and external panel;
05 Built-in synchronous control and proportional synchronization control;
06 16 speed control modest,Can run automatically;
07 Can choice multiple running commands or frequency channel;
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;
10 6 digital opto-isolated inputs, 100 kinds of ways optional;
11 3 analog input, 1 analog output channel;
12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile
      equipment;
13 Built-in user timer / counter;
14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,
      pressure and tension.
15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake
      function,instead foreign inverter application on freight elevator and crane.
