| Size | 12v 5mm Round Top LED |
|---|---|
| Color | Cool / Clear White |
| Luminosity/Brightness | 14,000-15,000 mcd |
| Forward Voltage | 5-15v |
| Current | 20mA |
| Viewing Angle | 15-30 Degrees |
| Mount Style | Through Hole (DIP) |
| Lens Color | Clear Lens |
| LED Brightness Class | Super/Ultra/Extreme |
Lighthouse LEDs has been providing top quality components for over 20 years and have become the go-to supplier for many industries through Ebay and our personal website, where there is more ordering flexibility and products offered. If you need resistors, wire, heatshrink, switches or LED drivers you can find them at those links. We have, perhaps, the best and widest selection of LEDs out there!
These 12V 5mm Cube Frosted LEDs in Cool Clear White are pre-wired with a built-in resistor, making them a true drop-in solution for any 5–15V DC application — no external resistor required, no math, just connect and light up.

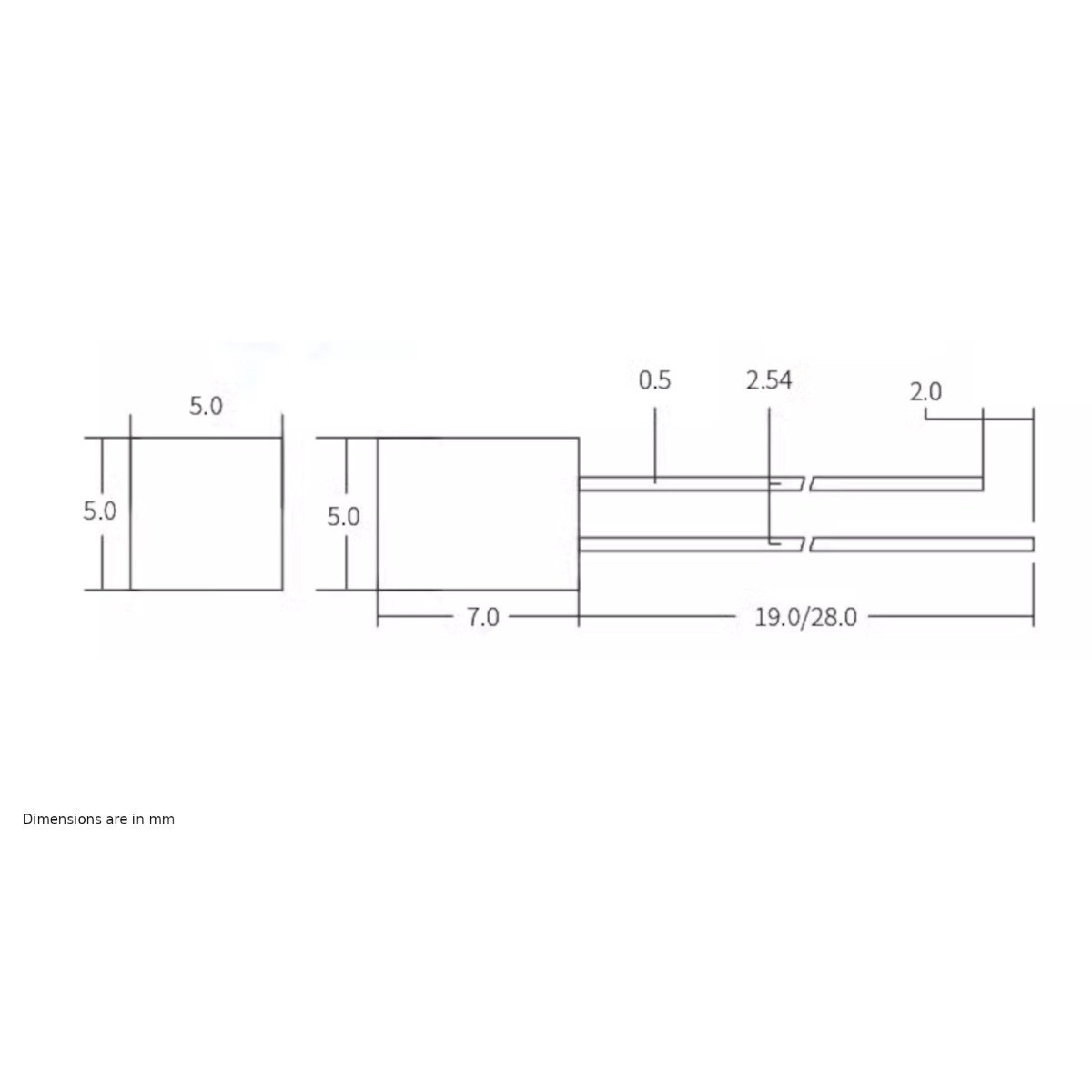

Each LED operates at 5–15V DC drawing 20mA, with a 5mm cube form factor, milky white frosted lens, and a tight 22.5° viewing angle that concentrates output into a focused beam. Luminosity runs 14,000–15,000 mcd — genuinely bright for a 5mm package — with a clear lens body and diffused frosted surface for a clean, even glow rather than a harsh hotspot.
Common applications
The frosted cool white output and pre-wired 12V design make these well-suited for projects where plug-and-play simplicity matters as much as output quality:
- Dashboard warning lights — direct replacement for T1.5 and 194/168 wedge positions in 1999–2007 Ford F-150, GM Silverado/Sierra 2003–2007, Honda Accord 2003–2007, and Toyota Tundra pre-2010 clusters
- Model railroading — HO and N scale building interiors, street lamp fixtures, and passenger car lighting; the 12V resistor built in means compatibility with most DC block power supplies without additional components
- RC crawlers and truck bodies — headlight and reverse light positions on TRX-4, Axial SCX10 II/III, and Traxxas TRX-6 semi body builds
- RV and camper van lighting — reading lights, porch lights, and accent strips running off house battery or shore power
- Marine courtesy and helm panel indicators — bilge pump, blower, and battery switch indicators on pontoon and fishing boat helm panels
- CB and ham radio meter backlights — S-meter and channel display replacement in Cobra 29, Uniden Bearcat 880, and similar rigs where the original incandescent has burned out

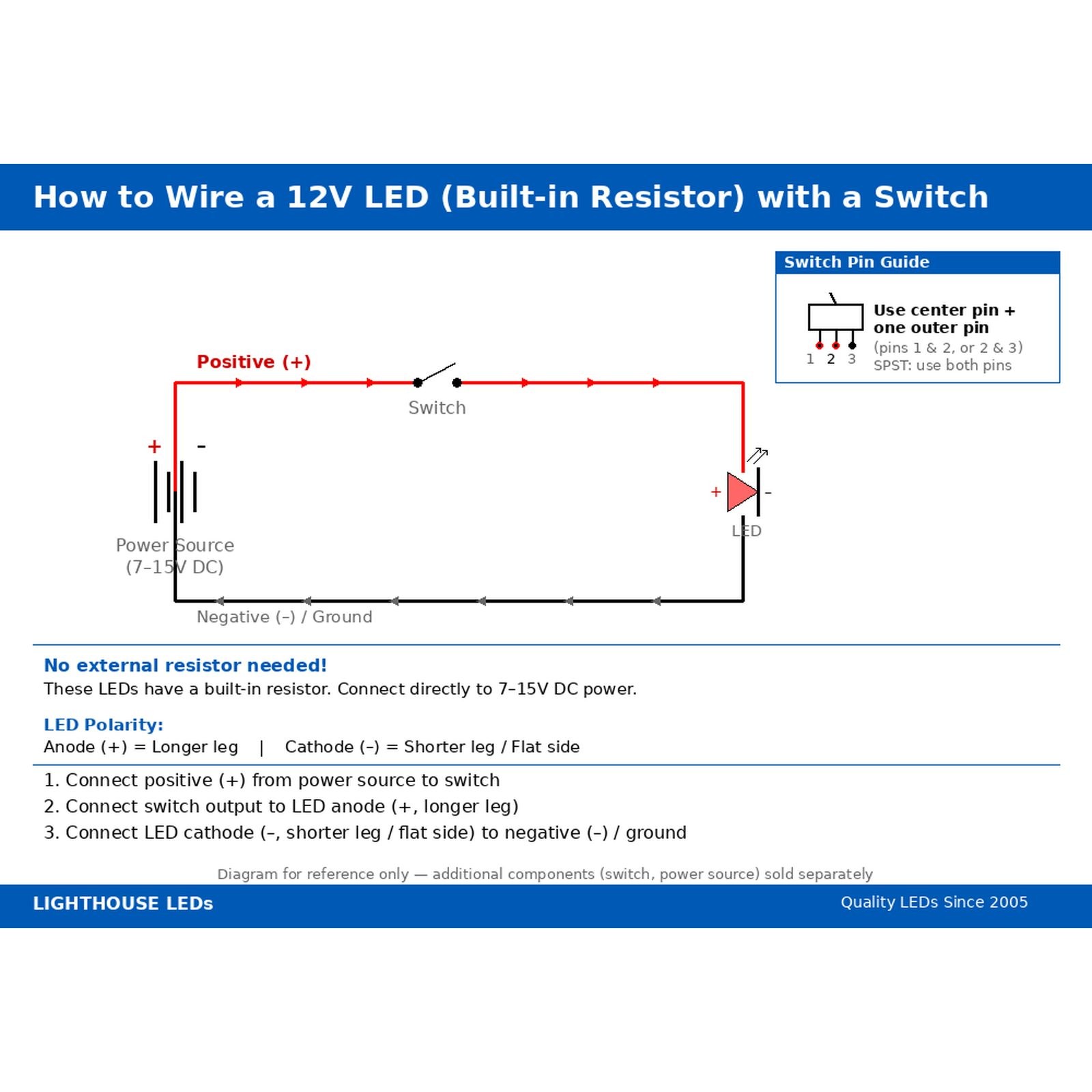

Wiring & power notes
DC power recommended: LEDs are designed for DC. Running on AC will cause flickering and reduce lifespan. If using a low-voltage AC source (model railroad transformer, DCC track voltage), convert it to DC with a MB1S bridge rectifier plus a 100µF 50V electrolytic capacitor for clean, ripple-free output.
Building with this item
Need supporting components? These pair directly with this listing:
- Battery power (12V): 8× AA Battery Holder — portable 12V output for props, costumes, and mobile builds
- Wall power (12V): 12V 1A Wall Power Supply — plug-and-play AC-to-DC adapter for fixed installations
- Panel mount holder: 5mm LED Holder/Bezel (Black) — bezel kit for clean through-panel LED installs
- Chrome bezel option: 5mm LED Holder/Bezel (Chrome) — silver/chrome finish for automotive and premium builds
