DESCRIPTION

Specifications

Please note : ONLY FOR Jeep Wrangler YJ TJ 2.4L 2.5L 4.2L 4.0L 1987-2006 Chevy Mopar V8 Conversion
This radiator Upper Hose locate Driver Side,Bottom Hose locate Passenger Side
Some Jeep Wrangler YJ Upper and lower radiator hoses are on the opposite to.


Package Include:

1 X 4-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
1 X 16" Fan (Includes mounting kits)
1 X Thermostat Relay Kits

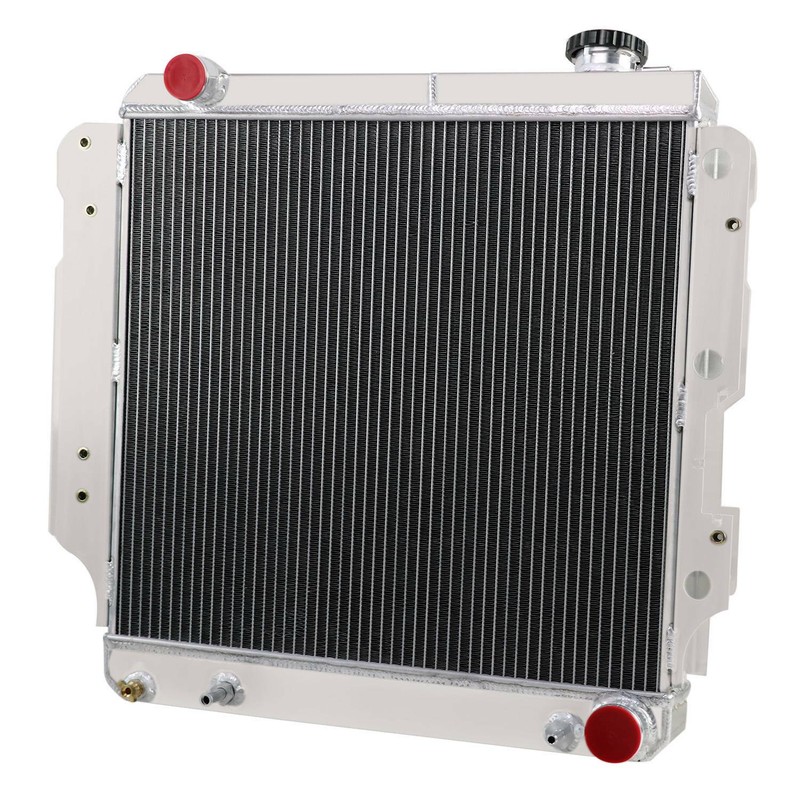

Radiator Configuration:
Tank Material: AA5052 Aircraft Grade Aluminum
High Performance Racing Spec.
4-Row of tubes Core Racing Design
CORE DIMENSIONS: 18 1/2" " WIDE  x 20 1/8 " HIGH
OVERALL DIMENSIONS:23 3/8" HIGH  X  25 3/4" WIDE
Tank Size: 2 3/4 x 20 1/2
Inlet Hose Connection: 1 1/2" Driver Side
Outlet Hose Connection: 1 3/4" Passenger Side
Transmission Oil Cooler: ¢26×305×M16*1.5(Z)
OEM Style Brass Petcock Drain
CNC Machined Filler Neck and Cap

Fan Specification:
Diameter : 16'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM(Cubic Feet per Minute: 3,000 cfm
Maximum Fan RPM(Revolution(s) Per Minute: 2000±10%
Amp Draw: 10amp
Fan Thickness: 2.95"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.

Thermostat Kit:
Work with any 12 volt system.
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe included.
Probe typically threads into radiator, water outlet or manifold.

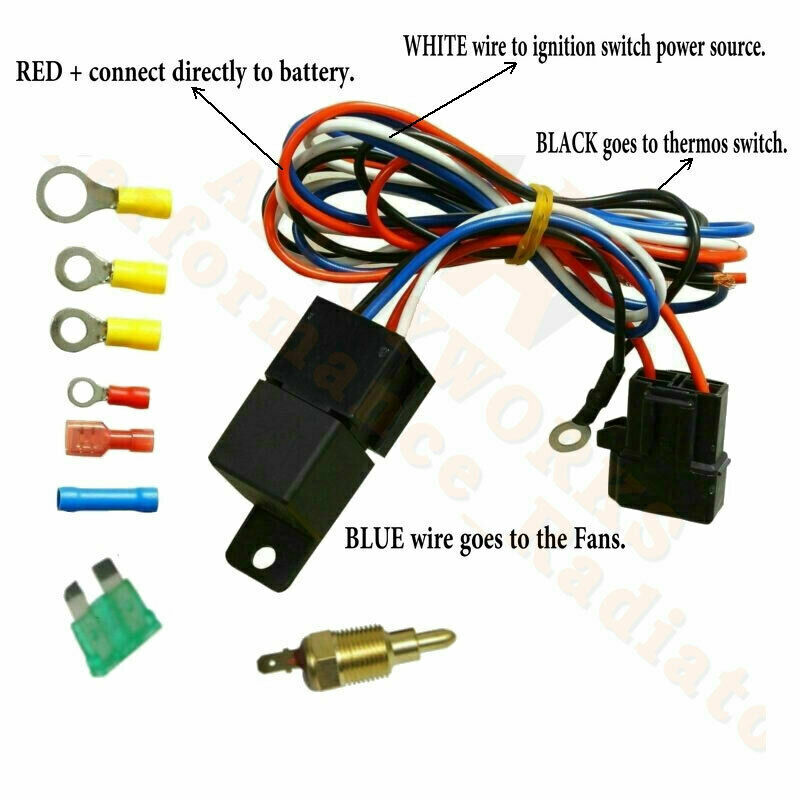

Thermostat Relay Kit Instructions:

RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.


VEHICAL FITMENT:
1987-1990   Jeep Wrangler  4.2L
1987-1995 1997-2002 Jeep Wrangler   2.5L
1991-1995 1997-2006 Jeep Wrangler   4.0L
2003-2006    Jeep Wrangler   2.4L
2006   Jeep TJ    4.0L
2006   Jeep TJ    2.4L
1987-2006 JEEP WRANGLER YJ/ TJ/  LJ
(SE/ Sport/ X Sport/Sahara Sport/Rubicon Sport)
(Fits Models with l4/ l6 2.4L/ 2.5L/ 4.0L/ 4.2L  OHV/ DOHC Engines ONLY)
2006  Jeep  Wrangler  65th Anniversary Edition   6Cyl 4.0L 242CID
2003-2004   Jeep  Wrangler  Rubicon    6Cyl 4.0L 241CID
2005-2006   Jeep  Wrangler  Rubicon    6Cyl 4.0L 241CID
2003-2004   Jeep  Wrangler  Rubicon    6Cyl 4.0L 242CID
2005-2006   Jeep  Wrangler  Rubicon    6Cyl 4.0L 242CID
1997-2004   Jeep  Wrangler  Sahara      6Cyl 4.0L 242CID
2003-2004   Jeep  Wrangler  SE    4Cyl 2.4L 148CID
2005-2006   Jeep  Wrangler  SE    4Cyl 2.4L 148CID
1997-2002   Jeep  Wrangler  SE   4Cyl 2.5L 150CID
2006  Jeep  Wrangler  SE       6Cyl  4.0L 242CID
1997-2004   Jeep  Wrangler  Sport    6Cyl 4.0L 242CID
2005-2006   Jeep  Wrangler  Sport      6Cyl 4.0L 242CID
2004 Jeep   Wrangler  Unlimited     6Cyl 4.0L 242CID
2005-2006   Jeep  Wrangler  Unlimited     6Cyl 4.0L 242CID
2005-2006   Jeep  Wrangler  Unlimited Rubicon  6Cyl 4.0L 242CID
2003-2004   Jeep  Wrangler  X    6Cyl 4.0L 241CID
2005-2006   Jeep  Wrangler  X    6Cyl 4.0L 241CID
2002-2004   Jeep  Wrangler  X    6Cyl 4.0L 242CID
2005-2006   Jeep  Wrangler  X   6Cyl 4.0L 242CID
