Thermal Imaging Camera for Security and Human Body Temperature Detection

DESCRIPTION

Features:

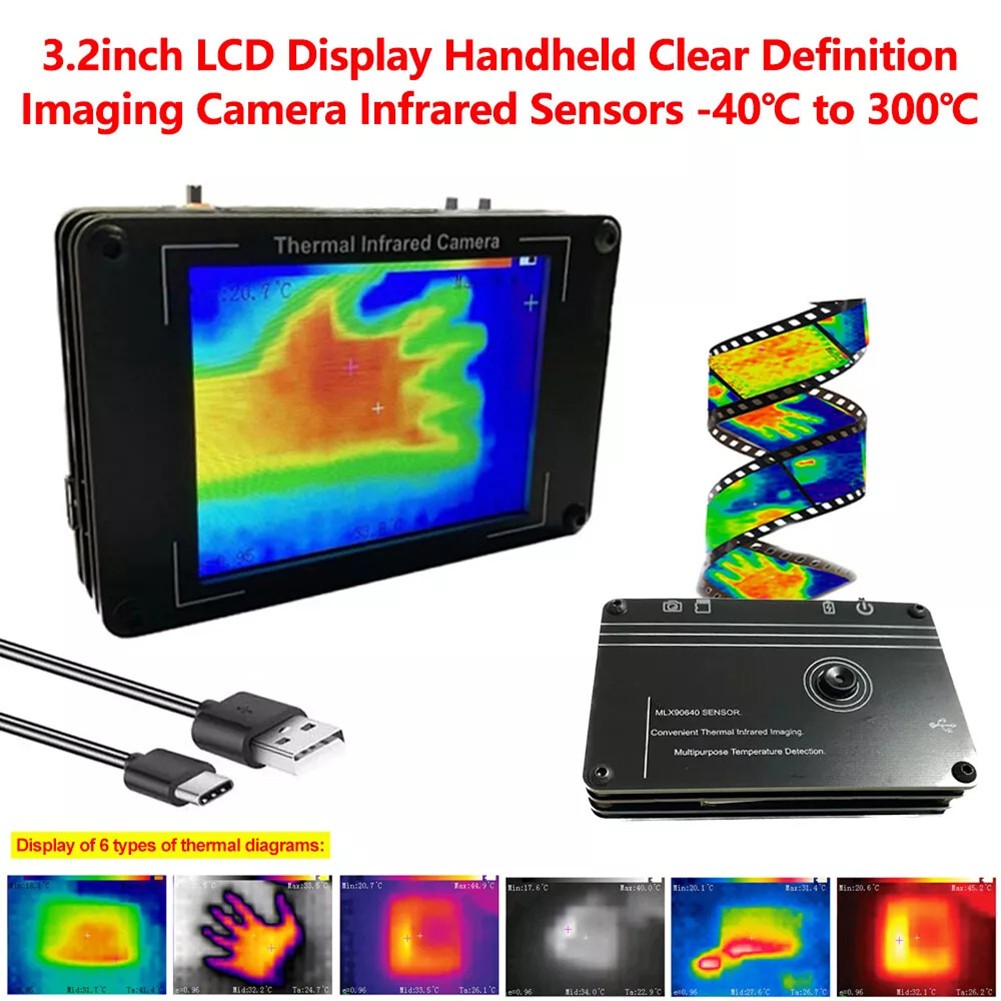

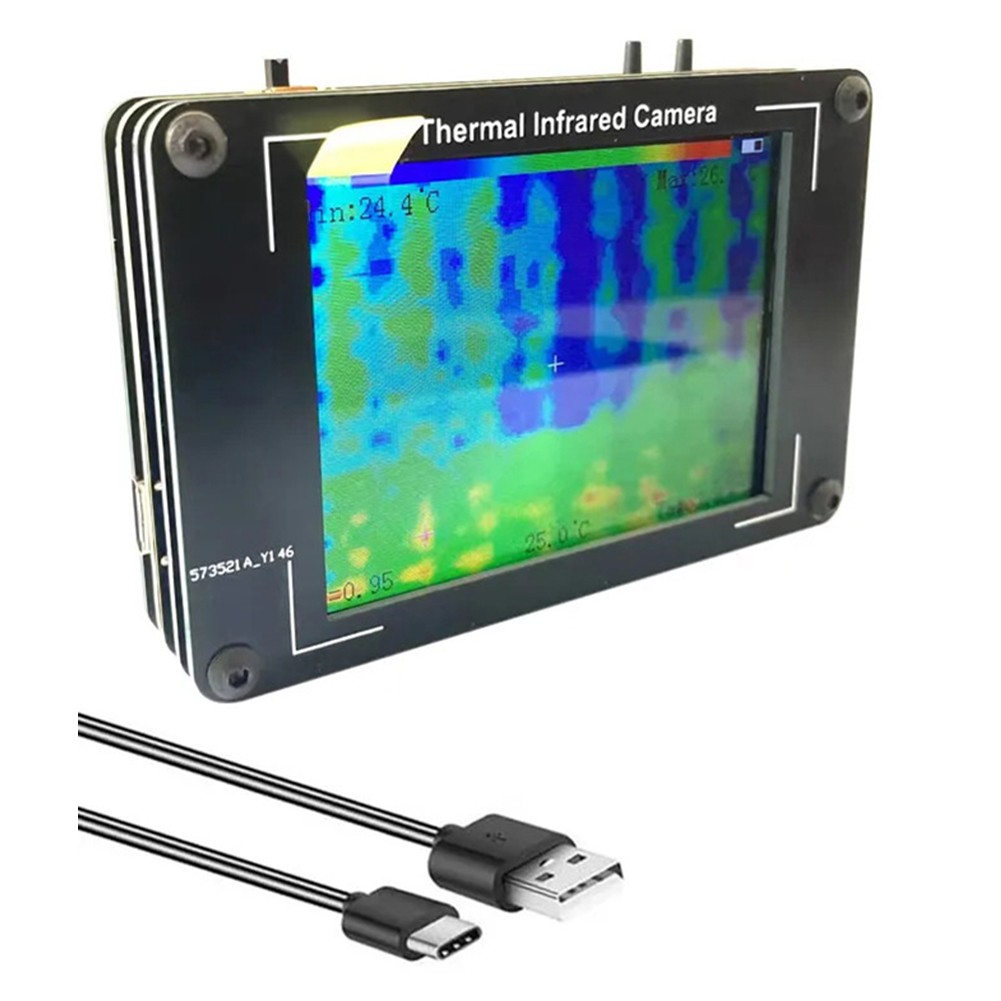

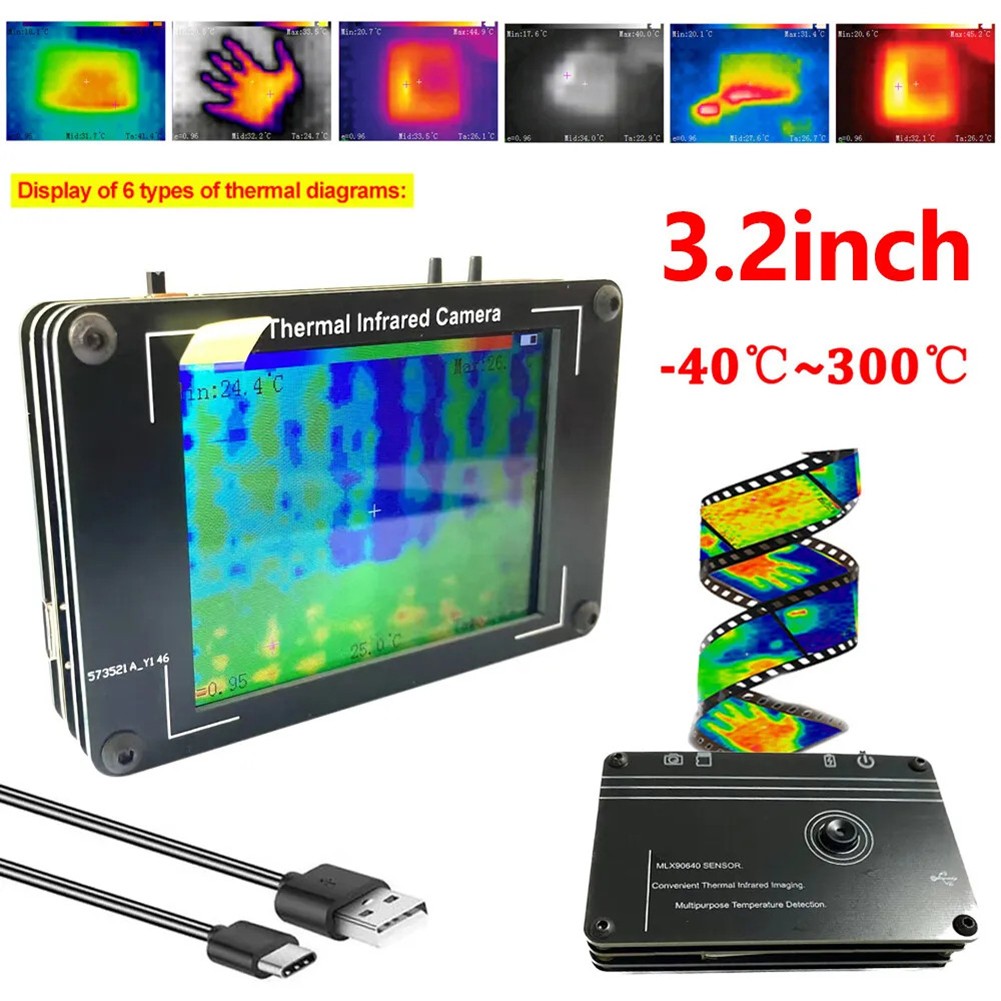

* This is a handheld multi-function thermal imager, compact and lightweight, equipped with a 3.2-inch TFT display, MLX90640 thermal infrared probe, powered by a lithium battery, can be used in various occasions, temperature data is clear at a glance, infrared imaging + temperature value display, it is an essential tool for home and industrial use.

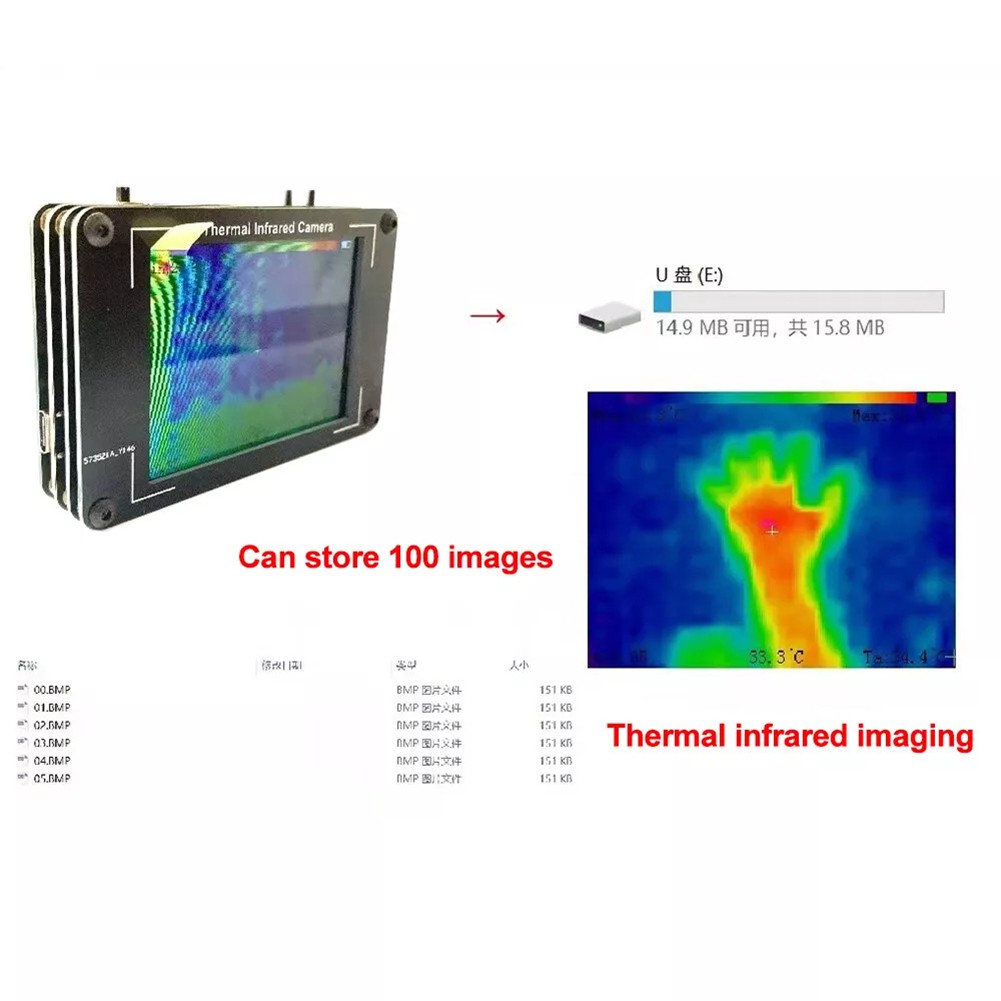

* The target temperature range is 40+300°C, the for dynamic refresh rate is 8Hz, and the 3.2-inch LCD screen resolution is 320-240. The screen can display and track the highest temperature, lowest temperature and center point temperature. The shell is made of FR4 epoxy board, which can better the internal components, is not easy to damage, and has a long service life. It is easy to carry and you can carry it with you to anywhere you want to use it. It is powered by a lithium battery and charged via USB-C. The battery life is up to 10 hours. When the battery is out of power, it can be used while charging, which is very convenient. Built-in SP1 Flash chip, can store 100 images, connect to a computer or mobile phone via a data cable to view and copy image files.
* Its working principle is the blackbody radiation law. The higher the temperature of the object, the stronger the infrared radiation emitted. The temperature data is processed by the chip and displayed on the screen.

Specifications:

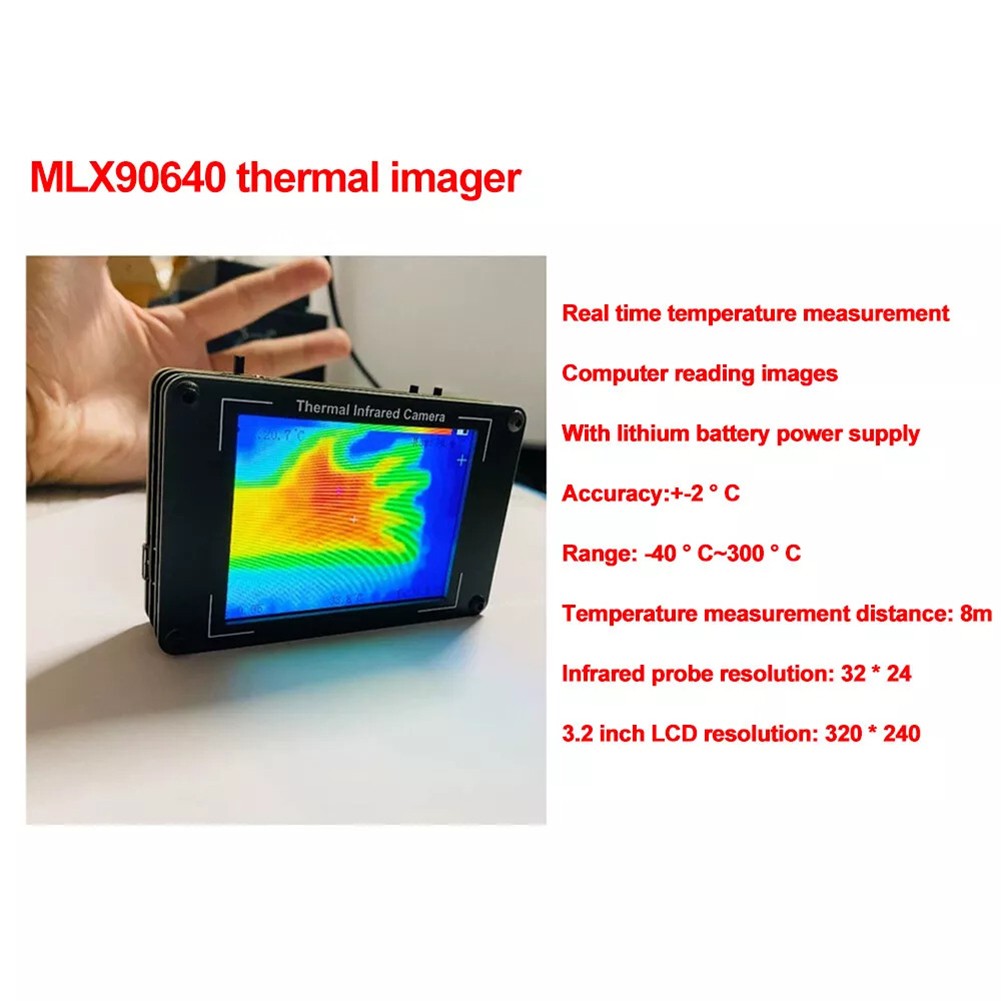

Part name: Thermal imager
Material: Epoxy board + printed circuit board

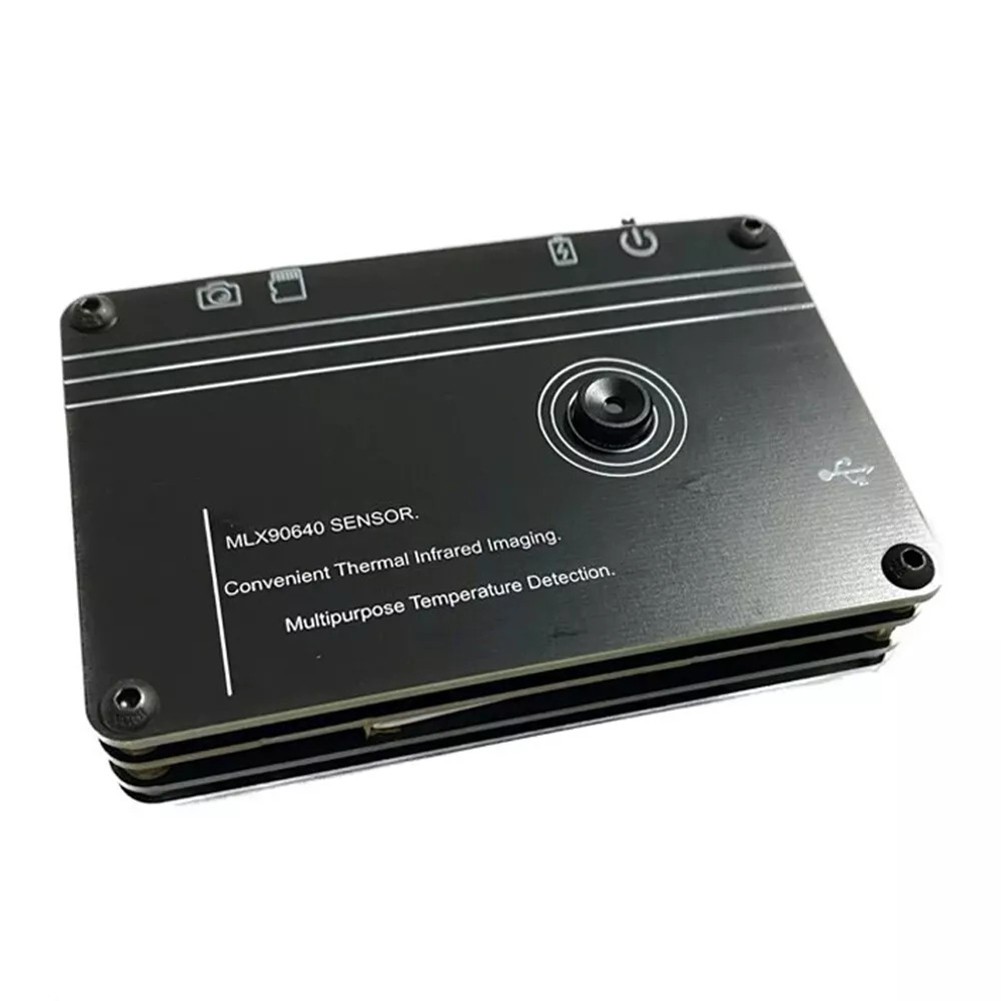

Infrared sensor: MLX90640ESF-BAB
Hardware resolution: 3224 pixel far infrared array
Screen resolution: 320*240 pixels
TFT LCD display: 3.2 inches
Temperature measurement range: 40°C~300°C
Measurement accuracy: ±2°C
Working temperature: 0°C-50°C
Working humidity: RH 70%
Refresh rate: 8Hz
Field of view: FOV=55°*35°
Emissivity: 0.95 adjustable

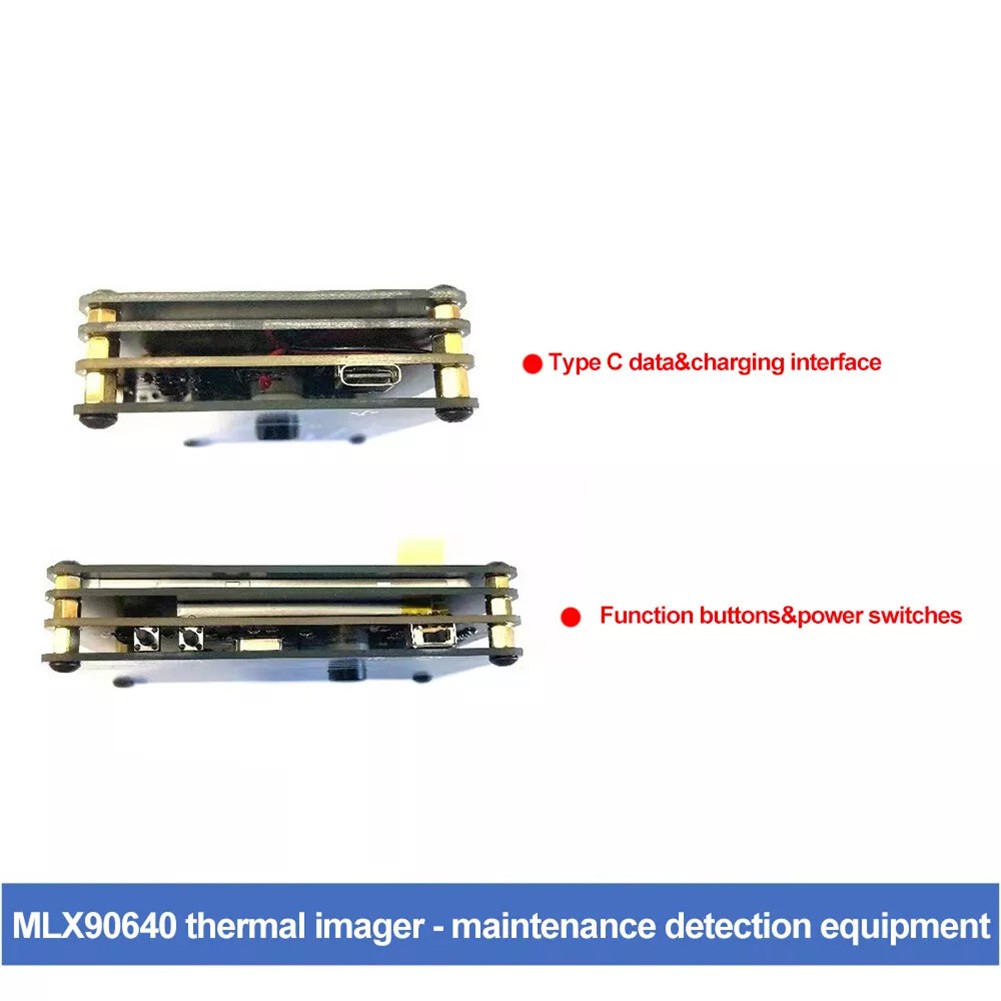

Charging specifications: Type-C USB 5V/1A
Size: approx. 90*60*20mm
Battery specification: 3.7V 1800mAh lithium-ion battery
Working time: ≥10 hours
Application: (as follows)
High- for non- temperature measurement
Security, intrusion detection
Human body temperature detection
Intelligent building environment temperature measurement and control
Automotive air conditioning control
Microwave oven, oven temperature detection and control
Industrial parts temperature monitoring
Visual temperature sensor

Package contents:
1 x thermal imager
1 x TYPE-C data cable

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
