6pcs H-Beam Connecting Rod Conrods for Toyota Supra 2JZ 2JZGE GTE Engine 142mm

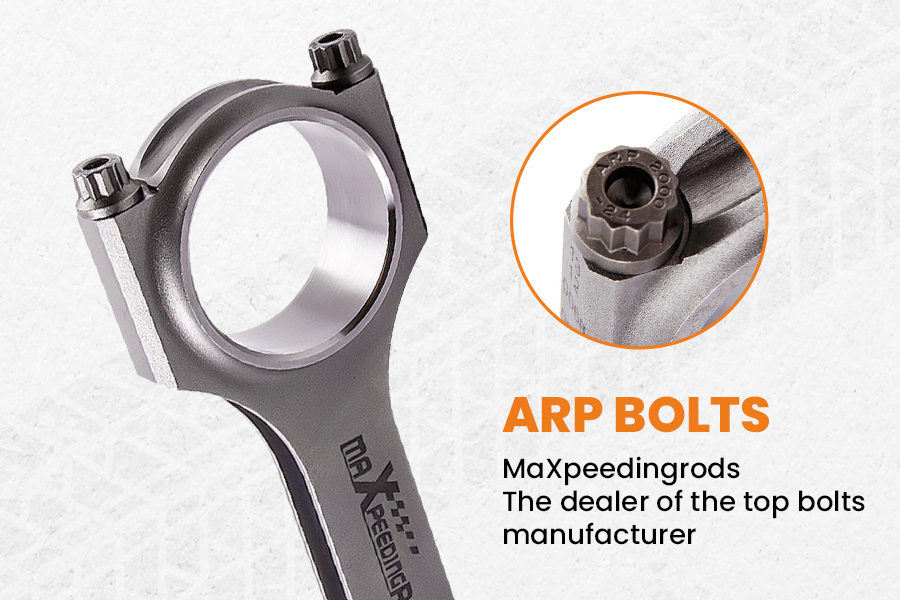

ARP Bolts

The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

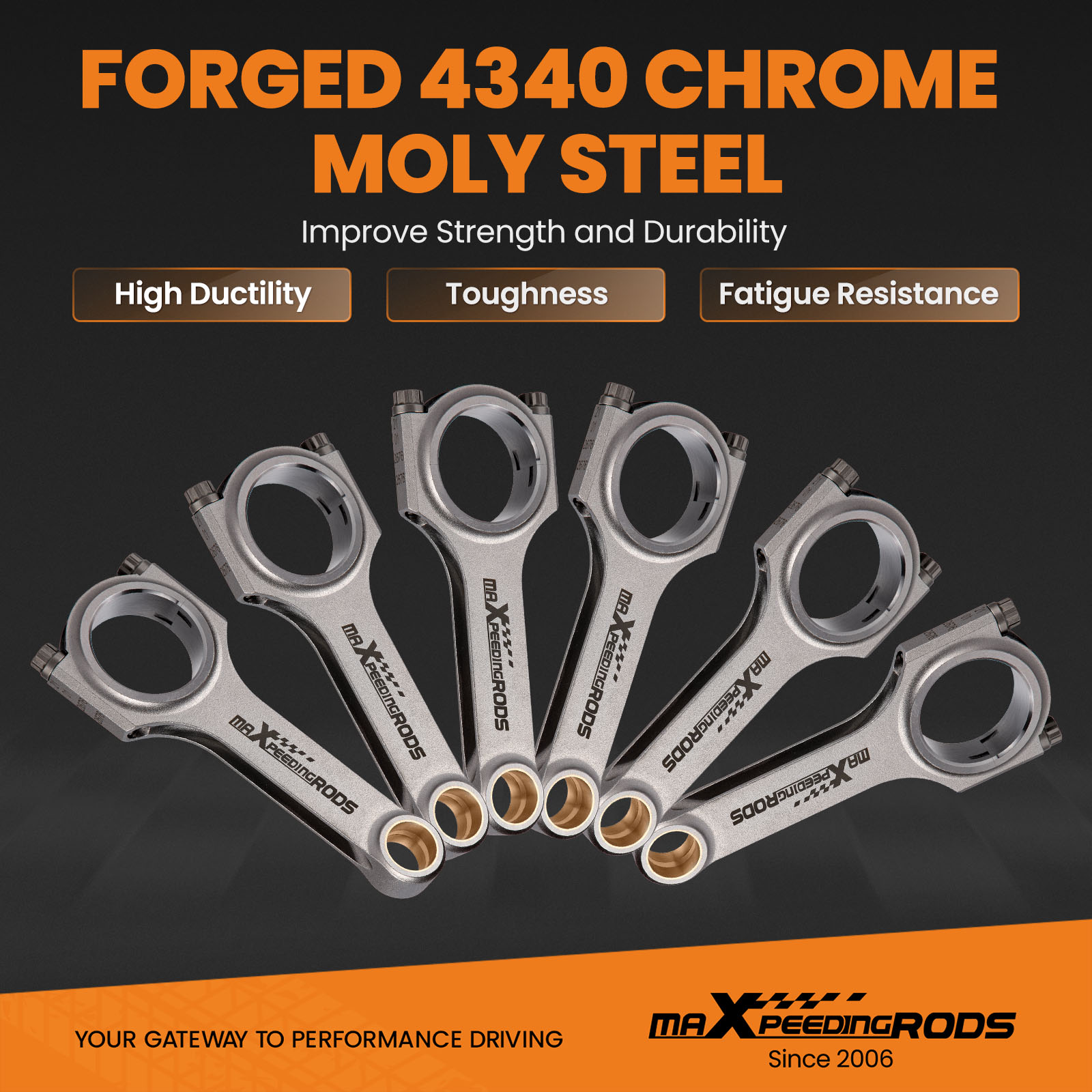

Forged 4340 Steel

Forged 4340 Chrome Moly Steel improves strength and durability, dedicated for Racing.

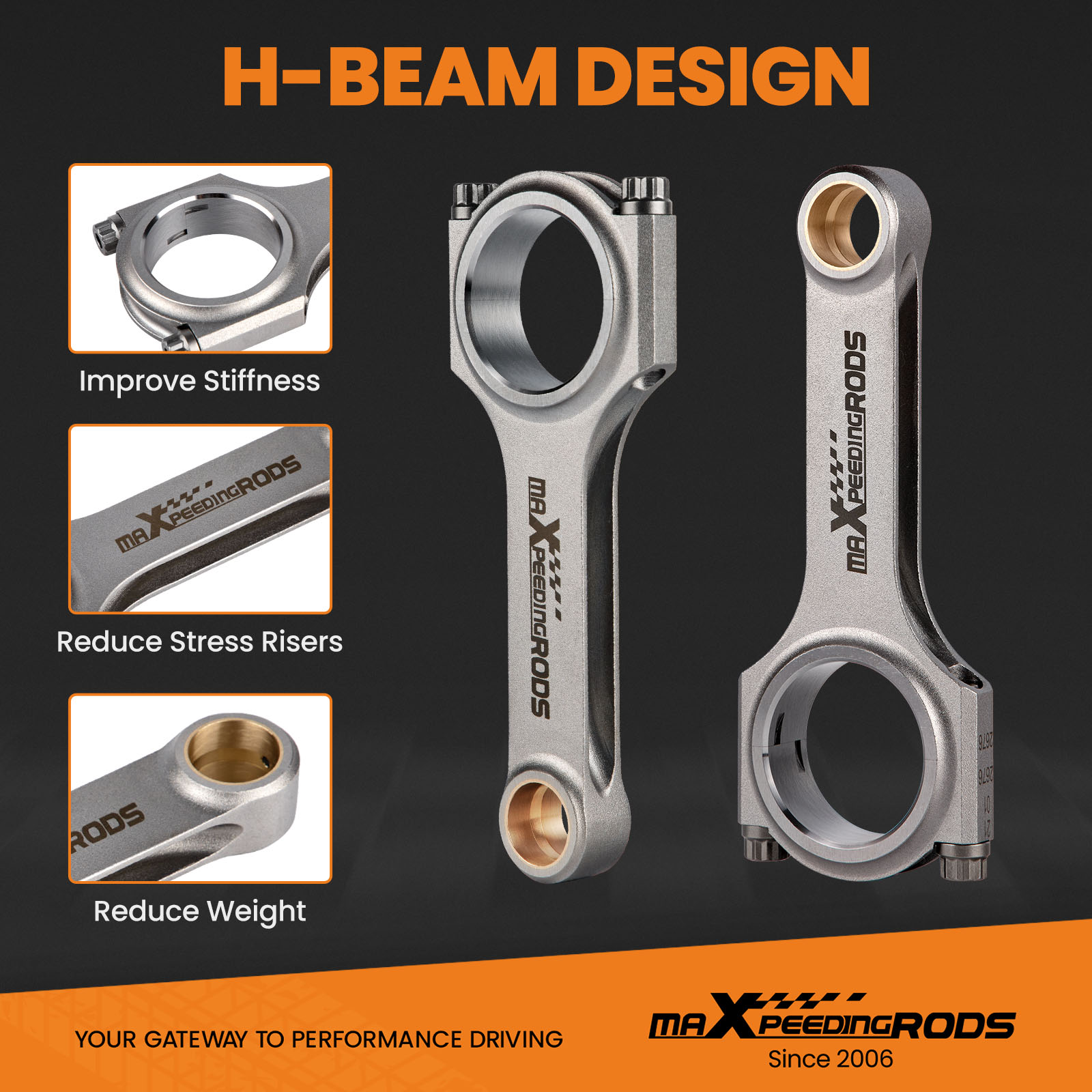

H-Beam Design

H-Beam helps improve stiffness, reduce stress risers and weight.

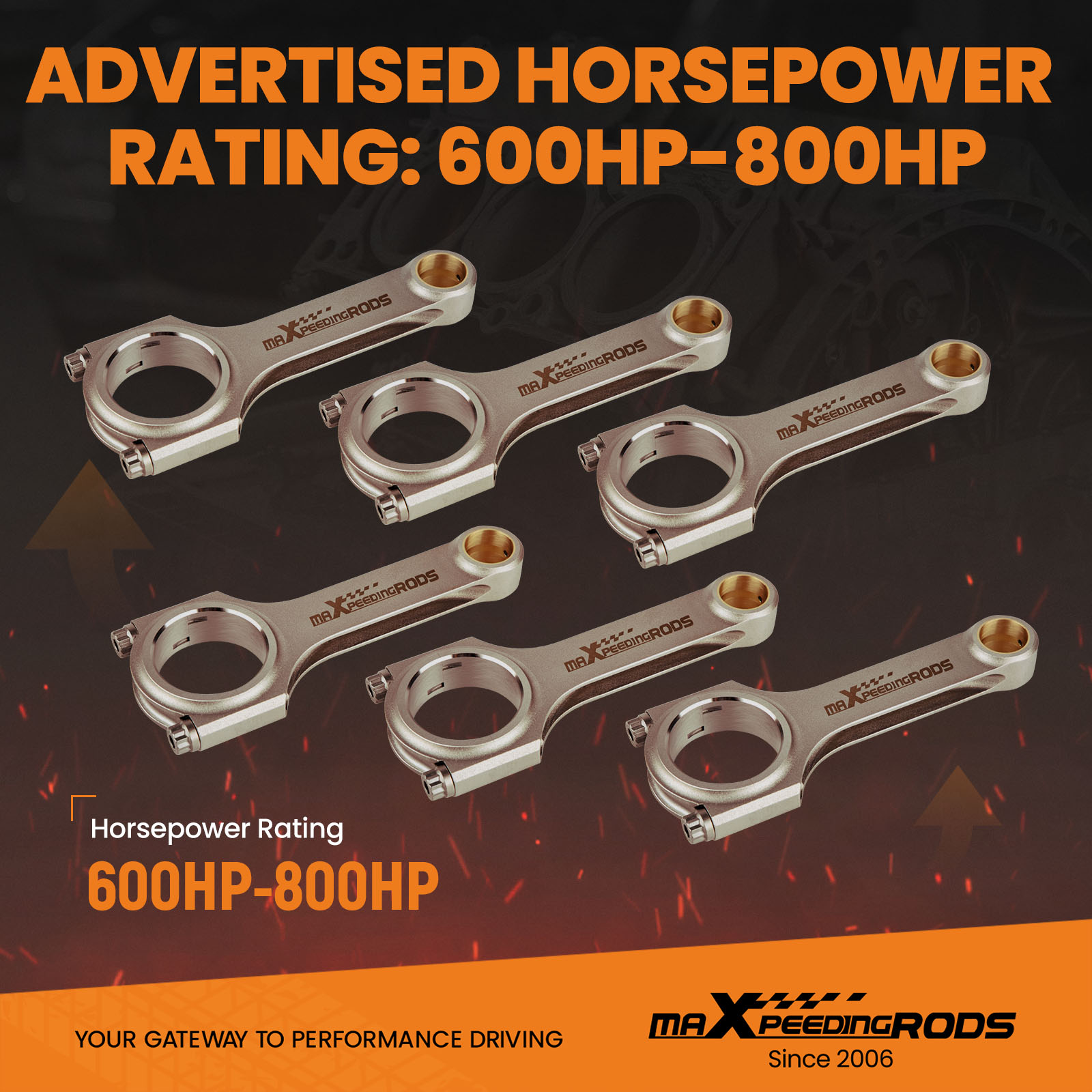

Horsepower Rating

Advertised horsepower rating: 600HP-800HP.

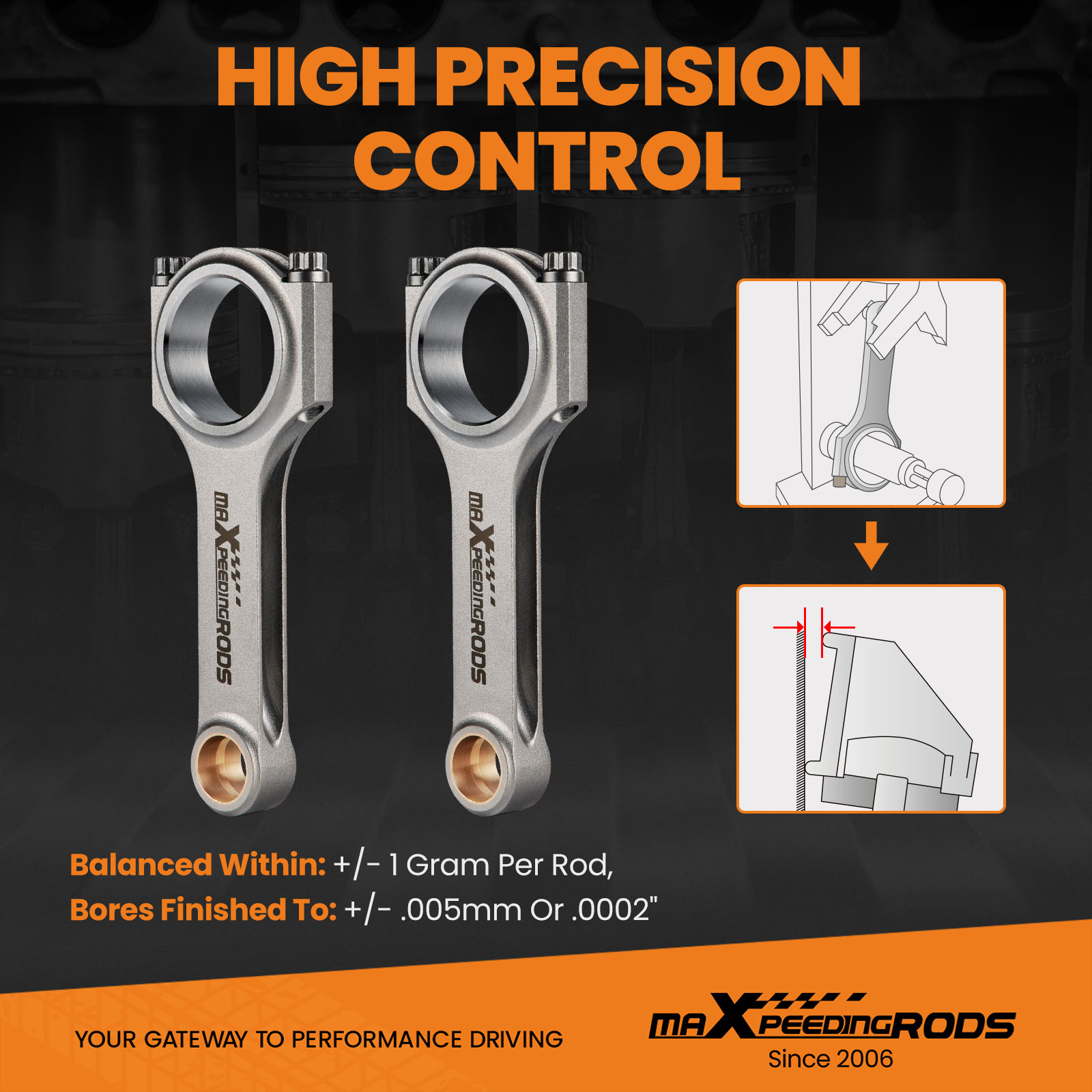

High Precision Control

Balanced within:+/- 1 gram per rod,

Bores finished to:+/- .005mm or .0002".

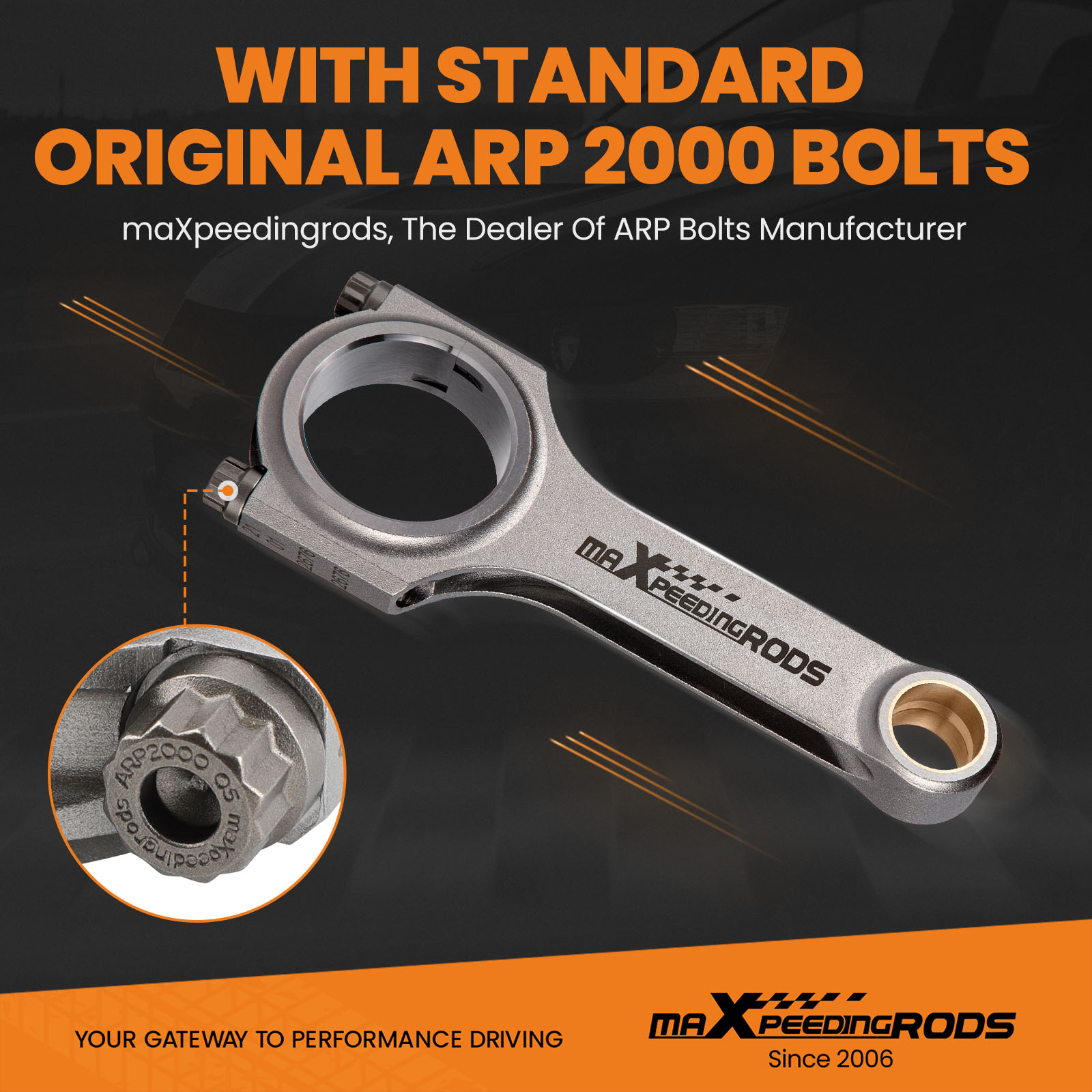

ARP 2000 Bolts

With Standard Original ARP 2000 Bolts.

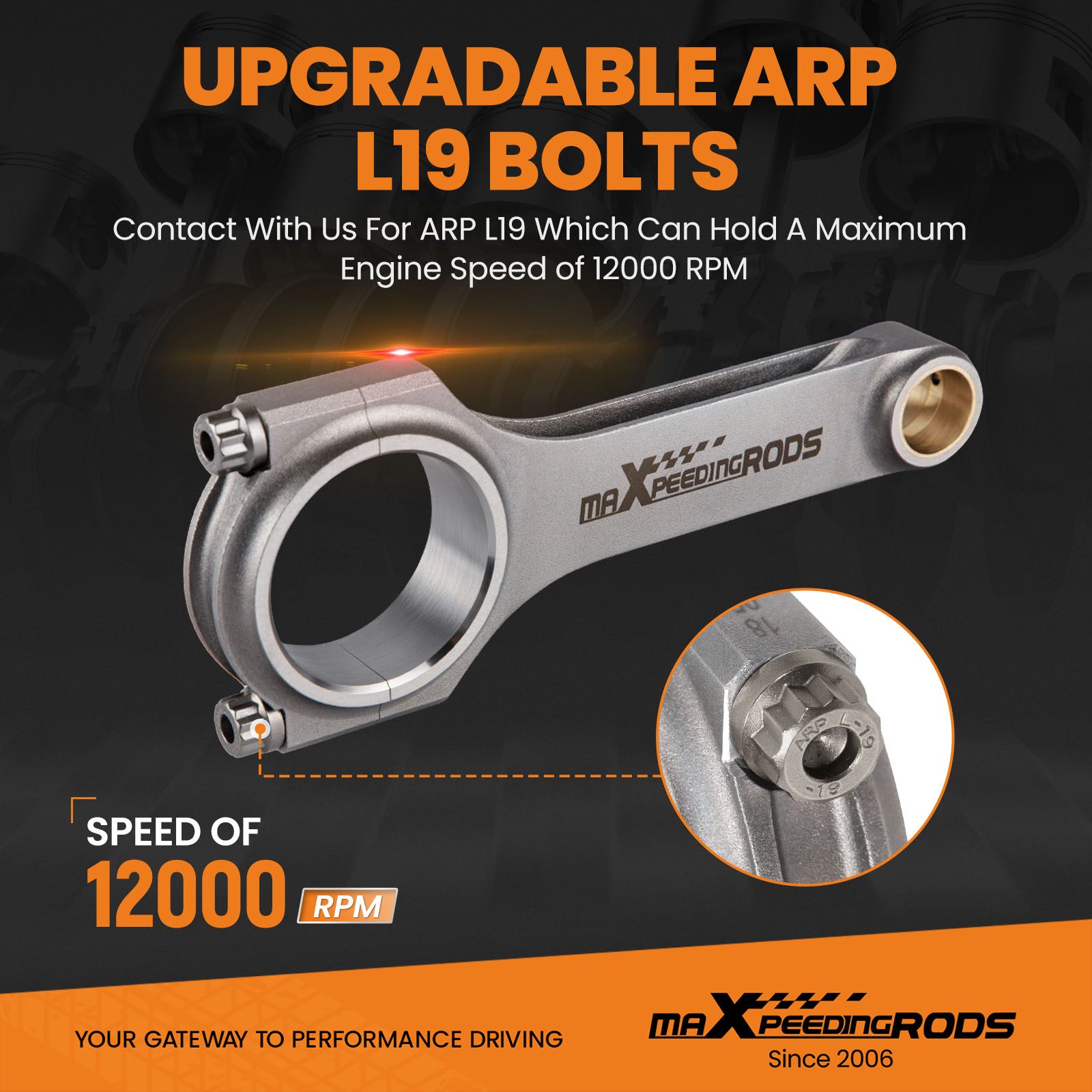

Upgradable ARP L19 Bolts

Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.

Application

Engine: 3.0L 2997CC L6 GAS DOHC Naturally Aspirated (For 2JZ-GE)

Engine: 3.0L 2997CC L6 GAS DOHC Turbocharged (For 2JZ-GTE)

For Toyota Models Fit:

For 1993–2002 Toyota Supra A80 (JZA80) 3.0L (2JZ-GE / 2JZ-GTE)

For 1993–2002 Toyota Supra RZ/Turbo (JZA80) 3.0L (2JZ-GTE)

For 1991–2004 Toyota Crown (S140/S150) 3.0L (2JZ-GE)

For 1991–2004 Toyota Crown Majesta (S140/S150) 3.0L (2JZ-GE)

For 1999–2004 Toyota Crown Majesta (S170) 3.0L (2JZ-GE)

For 1992–1996 Toyota Mark II (X90) 3.0L (2JZ-GE)

For 1996–2000 Toyota Mark II (X100) 3.0L (2JZ-GE)

For 1992–1996 Toyota Chaser (X90) 3.0L (2JZ-GE)

For 1996–2001 Toyota Chaser (X100) 3.0L (2JZ-GE)

For 1992–1996 Toyota Cresta (X90) 3.0L (2JZ-GE)

For 1991–2004 Toyota Aristo (JZS147) 3.0V (2JZ-GE)

For 1997–2005 Toyota Aristo (JZS161) V300 (2JZ-GTE)

For 1991–2000 Toyota Progres (Z30) 3.0L (2JZ-GE)

For 1991–2000 Toyota Soarer (Z30) 3.0L (2JZ-GE)

For 2000–2001 Toyota Origin 3.0L (2JZ-GE)

For 2001–2004 Toyota Verossa (JZX110) 3.0L (2JZ-GE)

For 2001–2007 Toyota Brevis (JCG10) 3.0L (2JZ-GE)

For 1990–1999 Toyota Previa/Estima (XR10/XR20) 3.0L (2JZ-GE)

--------------------------------------------------

For Lexus Models Fit (North America):

For 2001–2005 Lexus IS300 Sedan 3.0L (2JZ-GE)

For 2002–2005 Lexus IS300 SportCross Wagon 3.0L (2JZ-GE)

For 1993–2005 Lexus GS300 3.0L (2JZ-GE)

For 1991–2000 Lexus SC300 3.0L (2JZ-GE)

Pin Type: Floating Pin Piston

Dimension

Center to center length	142mm/5.591"
Big end diameter	55mm/2.165"
Small end diameter	22mm/0.866"
Big end width	26mm/1.024"
Small end width	26mm/1.024"

Specification

Quantity	6 Pieces as showing in picture
Bolts	Including ARP 2000 bolts
Bolts Size	ARP 2000 3/8" bolts
Bores finished to	+/- .005mm or .0002"
Balanced to within	+/- 1 g per rod
Advertised Horsepower Rating	600HP-800HP
Top acceleration	9000rpm
Strength of the fastening PSI	220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Warranty	2 years warranty for any manufacturing defect
Package size	28CM21CM14CM

Note

*Professional installation is highly recommended ；

*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

	See Details	See Details

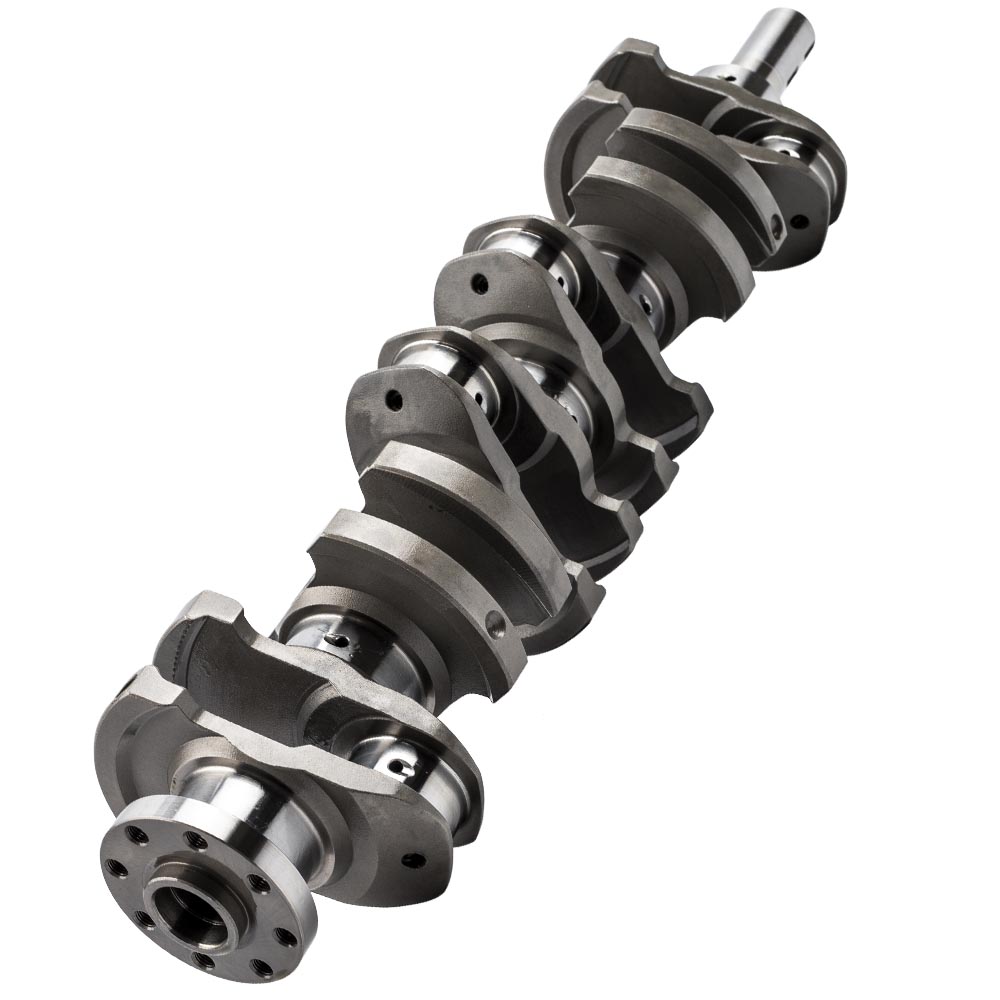

Category	Connecting Rods	Crankshaft
