Feature：
Quality zinc metal license plate frame camera with IP-67 grade waterproof and dustproof, works well in atrocious weather.
170° wide viewing angle, high sensitive color CMOS image sensor.
Lens angle physically 45° adjustable on the camera.
Color CMOS (PC1030, 648*488) imager, with 8 Infrared LED, excellent night vision performance, provides safety reversing both in day & night.
Ideal for most vehicles that use a standard U.S. or Canada license plate.
Specifications:
US/Canada Standard Size Aluminum Alloy License Plate Frame
Image Sensor: CMOS
Effective Pixels: PAL: 704 * 576 pixels, NTSC: 712 * 486 pixels
Interface: Lotus Head
Lens Wide Angle: 170°
Adjustable (up/down): 45 Degree Camera Bracket
Night Vision: 8 IR LED Light
Waterproof Rated: IP68
Current Consumption: ≤150mA
Power Supply: DC 12V
AGC: Auto
BLC: Auto
Resolution: 480 TV Lines
S/N Ratio: >48dB
Operating Temperature: -20℃～70℃ RH95% MAX
Storage Temperature: -30℃～85℃ RH95% MAX
Minimum Illumination: 0.5 Lux/F 1.2 (0 Lux with Led)
Note:
Before to Cut the Green and White Cables, pls check if your Head Unit /Monitor has a mirror function to flip the picture, and parking lines on/off switch. If your Head Unit /Monitor has those two features and you DID NOT NEED CUT the wires as the instructions says.
This camera only supports NTSC video system, so please make sureyour monitor supports NTSC before buy.
Package Contents:

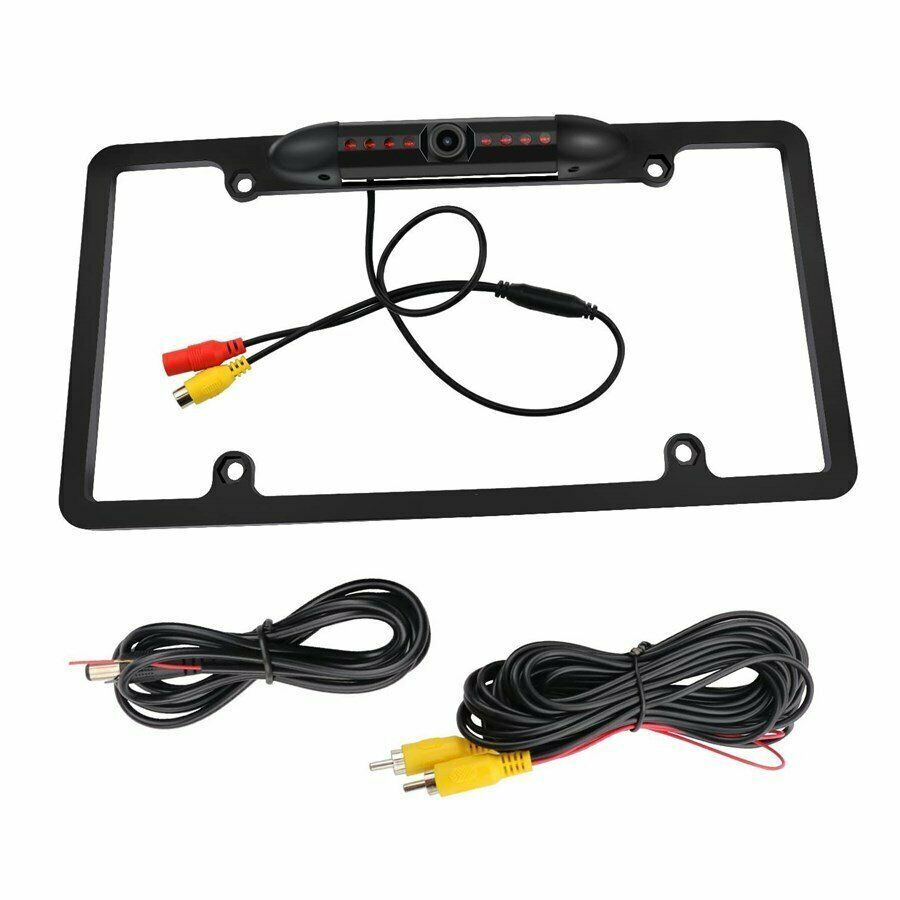

1x License Plate Frame Car Rear View Backup Camera
1x Power Cable
1x AV Cable
1x Manual
