Parameters |
Weldy Roof40 |
|
Voltage |
230V, 50/60Hz |
|
Power |
3450W |
|
Welding Speed |
0.7 - 10.0 M/MIN |
|
Heating temperature |
100 - 600 ºC ADJUSTABLE |
|
Welding Width |
40 MM |
|
Speed |
0.7 - 10 M/MIN |
|
Air Volume |
60 - 100 % |
|
Machine Dimension |
475 x 244 x 260 MM |
|
Machine Weight |
15.5 kg |

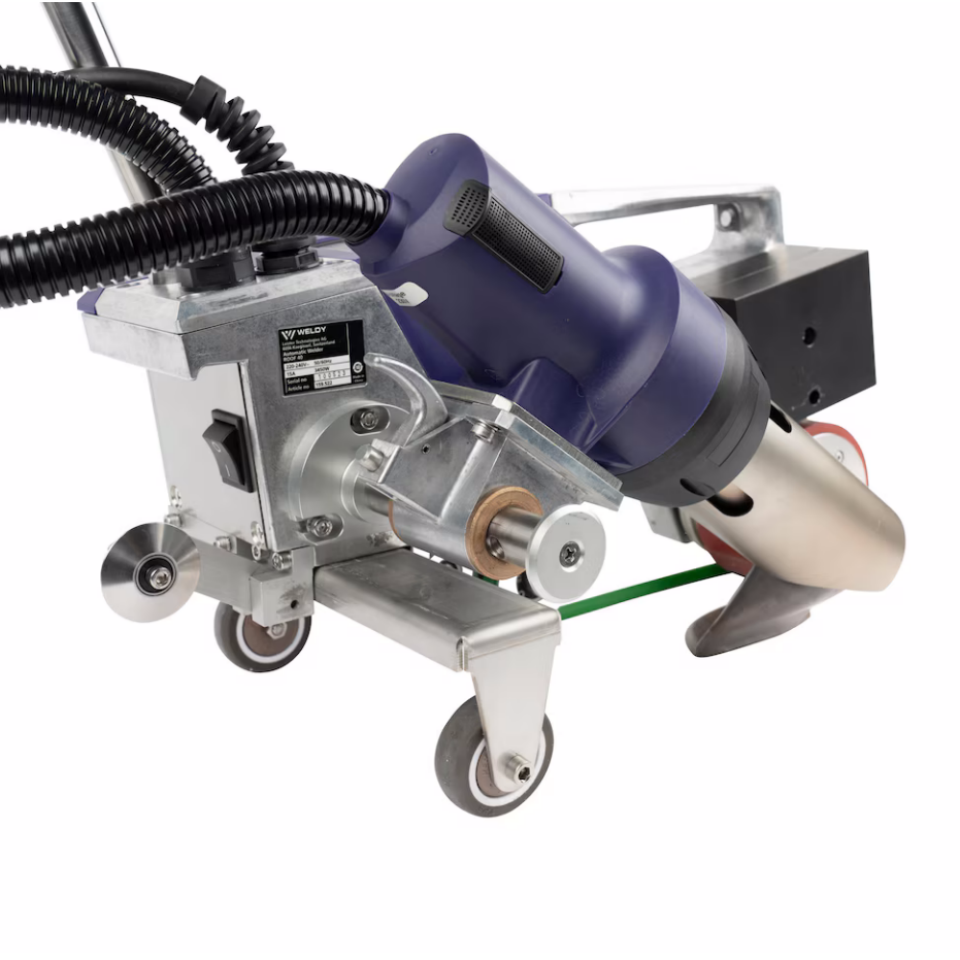

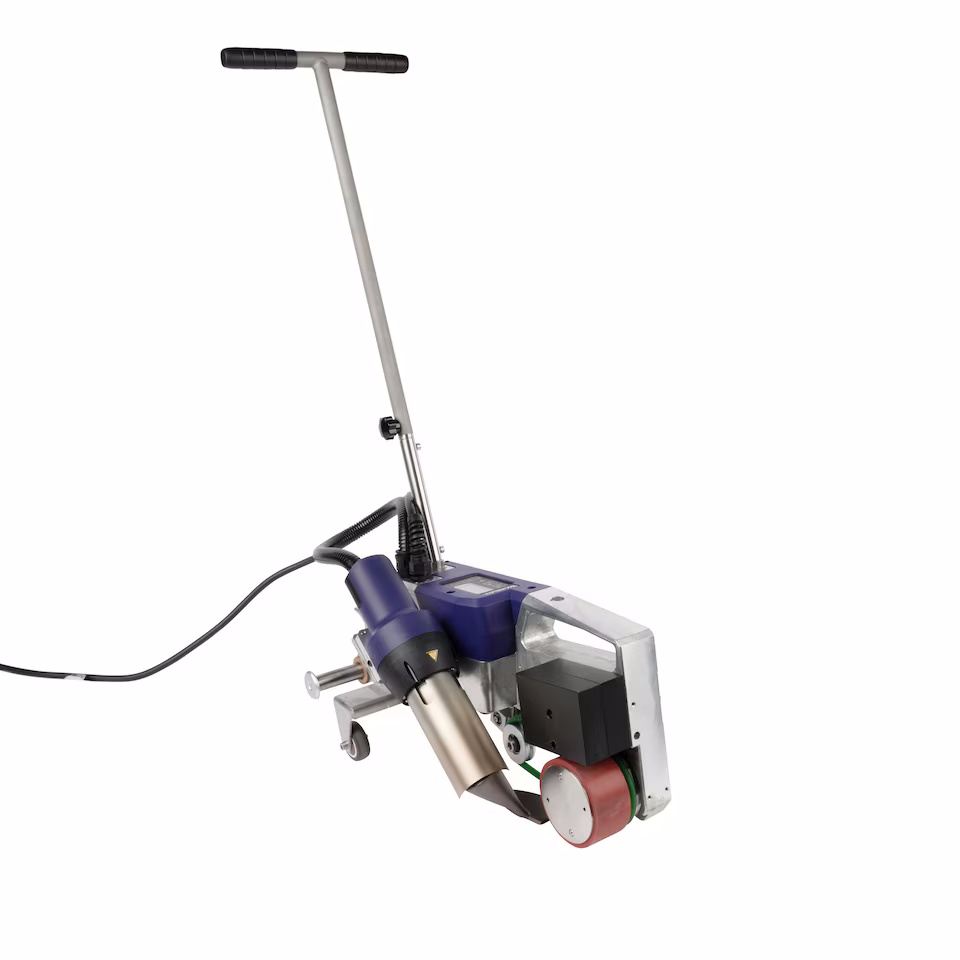

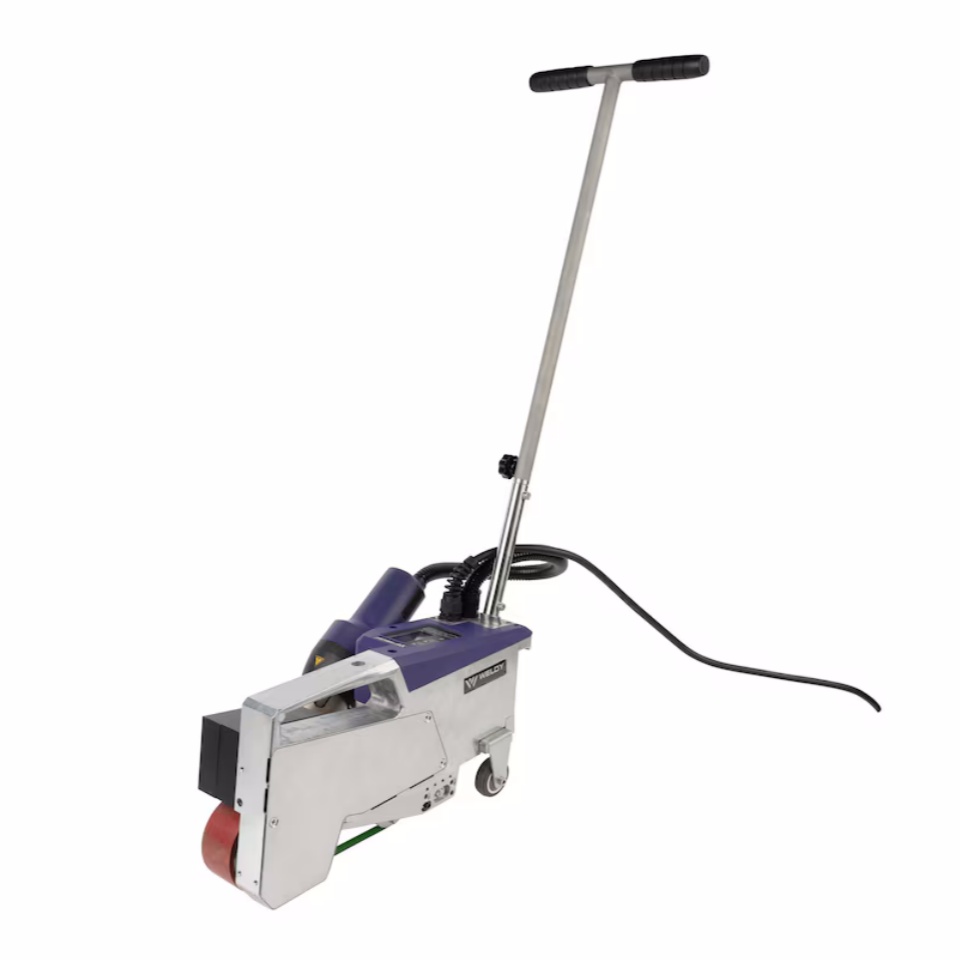

With the roof40, you obtain a high welding performance at an affordable price. The overlap welding machine is ideal for all thermoplastic membranes like PP, PVC, TPO, ECB, modified EPDM, EVA, FPO, PIB, PMI, and PO. The digital display of roof40 ensures easy handling.
· Ideal for overlap welding for base seams
· Edge close welding on up to 100 mm
· 40 mm welding width
· Freely-selectable speed up to 10 meter per minute
· High-performance 3450 W hot-air gun for the desired temperature and air volume
· Automatic start-up system for optimal welding start
· Guide bar and handle for ergonomic use
· Digital display for speed, temperature and air volume
1. Power cord
2. Operating unit
3. Housing
4. Opening for fastening any holding/carrying hand-les and device fastening equipment
5. Carrying handle
6. Holder for power cord (with carabiner for hooking up)
7. Additional weights at the rear/on the side
8. Drive/pressure roller (patent pending)
9. 40mm welding nozzle
10. Hot-air blower
11. Starting switch
12. Swivel-in mechanics
13. Transport roller
14. Movable transport axle (patent pending)
15. Hot-air blower lock
16. Track guide roller
17. Clamping plate for movable transport axle
18. Hexagon socket screws for detaching the movable transport axle
19. Main switch (switching On/Off)
20. Type plate with model designation and the series marking
21.L ocking screw (guide bar)
22. Guide bar,top
23. Downholder belt
24. Deflection roller
-Ceramic heating element
-Robust brush motor
-Simple, intuitive operation
-Stepless temperature control
-Easy to clean air filter
DETAILS Classic heat gun

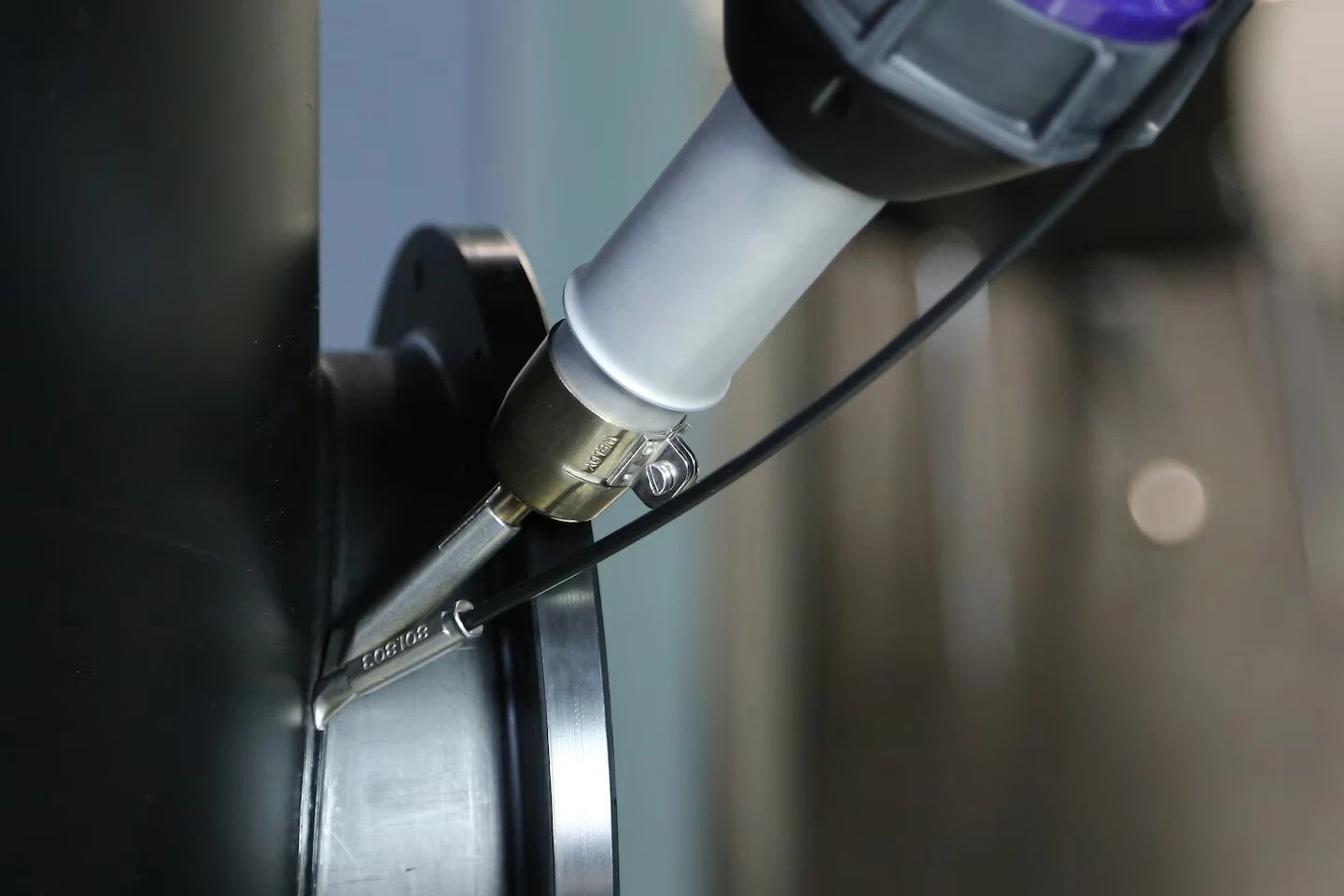

The energy HT1600 heat gun from Weldy is very powerful. It is equipped with a stepless temperature control up to 700 °C / 1292 °F and a robust brush motor with ceramic heating element. The plastic welding device is suitable for a variety of professional and handyman tasks. Weighing only 1 kg / 2.2 lbs, the energy HT1600 heat gun makes work extremely easy. Various accessories available from Leister include nozzles and welding rod to quarter moon knifes, enabling a multitude of applications.
The Weldy HT 1600 heat gun can also be purchased in three other editions as a complete set. The "plastic kit" variant, including a 5 mm / 0.19 inch tube nozzle and a 4 mm / 0.16 inch quick welding nozzle; the variant "overlap kit" has two overlap nozzles, each 40 mm and 20 mm / 0.8 inch, and a silicone pressure roller. Last, but not least, the "shrinkage kit" is equipped with two overlap nozzles, 40 mm / 0.16 inch and 20 mm / 0.8 inch, and a reflector nozzle. The Weldy manual welding kits are supplied with operating instructions in 28 languages and a durable plastic tool case. In the standard design, Weldy HT1600 has cardboard packaging.
TECHNICAL DATA
|
VOLTAGE |
120 V; 220 V; 230 V |
|
FREQUENCY |
50/60 Hz; 60 Hz |
|
POWER |
1600 W |
|
TEMPERATURE |
40 - 700 °C |
|
TEMPERATURE SETTING STEPLESS |
Yes |
|
AIRFLOW (20°C) |
240 l/min |
|
STEPLESS AIR VOLUME ADJUSTMENT |
No |
|
STATIC PRESSURE |
2600 Pa |
|
ECO-MODE |
No |
|
DISPLAY |
No |
|
E-DRIVE |
No |
|
OUTDOOR USE |
Yes |
|
NOZZLE CONNECTION Ø |
31.5 mm / 1.25 in |
|
LENGTH |
346 mm |
|
DEVICE DIAMETER |
101 mm |
|
HANDLE DIAMETER |
59 mm |
|
WEIGHT |
0.99 kg |
|
POWER CABLE LENGTH |
3 m |
|
NOISE EMISSION LEVEL |
67 dB (A) |
|
APPROVALS |
CE; KC |
|
PROTECTION CLASS |
II |
|
APPROVAL NUMBER |
R-R-Le5-energyHT1600 |
|
PRODUCTION MODEL |
HT1600 |
HIGHLIGHTS Proven heat gun
√Ceramic heating element
√Cool-down function
√Durable housing
√Temperature reaches up to 700 °C / 1292 °F
√Dust protection
