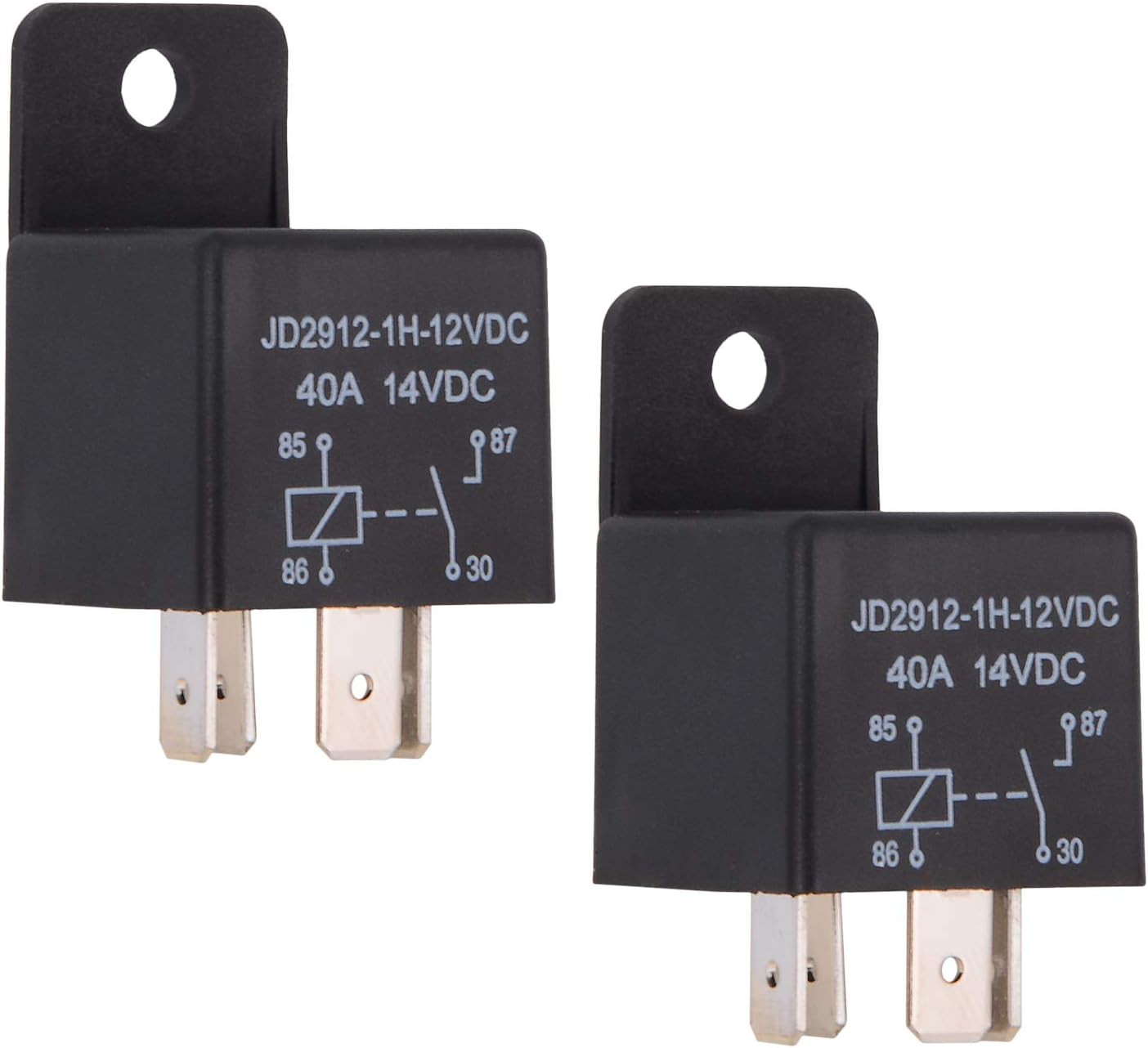

Car Relay 4 Pin 12V 40Amp Spst Model No.: JD2912-1H-12VDC 40A 14VDC, Auto Switches & Starters,Pack of 2
Description
| Maximum Switching Current | 40 Amps |
| Maximum Switching Voltage | 12 Volts |
| Minimum Switching Voltage | 12 Volts (DC) |
| Current Rating | 40 Amps |
| Specification Met | Ccee |
| Contact Current Rating | 40 Amps |
| Upper Temperature Rating | 80 Degrees Celsius |
| Coil Voltage | 12 Volts |
| Connector Type | Crimp |
| Manufacturer Part Number | 2C05-12V |
| Item Weight | 1.41 ounces |
| Operation Mode | Automatic |
| Wattage | 1.8 watts |
| Contact Type | Normally Open |
| Item model number | 2C05-12V |
| Contact Material | Silver Tin Oxide |
| Is Discontinued By Manufacturer | No |
| Product Dimensions | 1.06 x 1.06 x 0.98 inches |
- Heavy duty 4-prongs SPST relays, jd1912 12v 40a relay
- Use optional Relay Harness, or female Crimp Connectors
- High 40A coil capacity- able to handle those high current applications with ease
- Package Include: 2 x 40A 4-Pin 12V Vehicle Relays
- The Automotive relay is suitable for normal automobile use and simple to operate, you just need to connect the relay with the wire, no other tools needed, convenient for your use and replace, allowing your components to work properly
Product description
EHDIS Professional jd1912 12v 40a automotive relay
Contact Data: Contact Material: AgSnO12 Contact Form: 1Z(C) / 1H(A) Contact Ratings: No: 40A 72VDC Contact Resistance: 100mMax at 6VDC 1A Max switching Current: 40A Max Switching Power: 560W Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) Life Expectancy Mechanical: 10,000,000 Operations
Coil Specification: Nominal Voltage(VDC): 12V Coil Resistance (1.8W): 80 Max Operate Voltage (VDC): 6.5~8.0 Mix Release (VDC): 1.2~3.6 Max Applicable Voltage (VDC): 14
Characteristics: Temperature Range: -30°C ~+80°C Vibration Resistance: 10~55Hz, 1.5mm Shock Resistance: Operations Extremes: 10g Damage Limits: 100g Humidity: 40%~85% Insulation Resistance: 100m ohm Min at 500VDC Safety Standard: CCEE Dielectric Strength Between Open Contacts: 500VAC (for one minute/sec) Between Contact and coil: 750VAC (for one minute/sec) Operate Time: 7ms Release Time: 5ms Weigh: Approx. 35g
4 Pin 12v 40 amp relay
The 12 volt relay features a compact size, easy to store in the toolbox at home or in the trunk of your car, convenient to use directly when needed outdoors.
Reliable construction
Improve the efficiency of components by supplying the right amount of current
