ATO
Quality product makes manufacturing and life better
Package
Package includes:
1*Variable frequency drive
1*User Manual
Shipping
Local delivery in the U.S.,
We promise to send out the package within 2 working days after payment, and it will be put into your arms after 3-7 working days.
Contact
Quality service:
If you have any other questions about our products, please do not hesitate to contact us via ebay message. We will reply you within 24 hours.

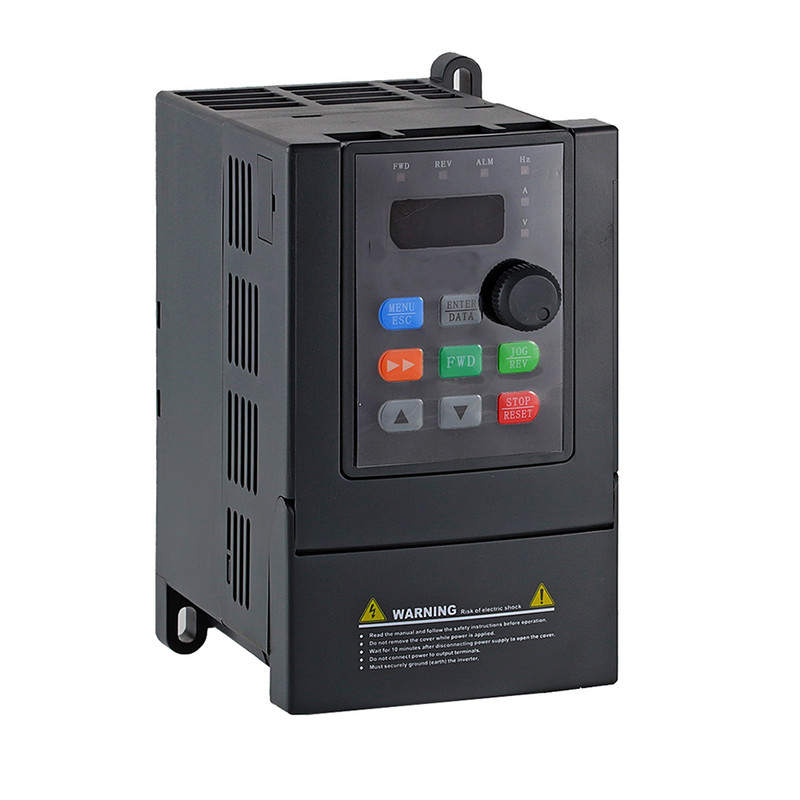

What are the advantages of using the ATO 220V 2HP 1.5KW, 1 Phase to 3 Phase VFD?
- It can solve the problem of power phase mismatch, that is, the power supply is single-phase, and the equipment uses three-phase power.
- It can solve the problem of power frequency mismatch, that is, the power supply is 50Hz/60Hz, and the equipment power consumption is 0.00~400.00Hz (arbitrarily set).
- Reduce energy consumption and energy costs, realize power save running.
- Extend equipment life and reduce maintenance.
Specification:
_____________________________
Capacity: 2 hp (1.5 kW)
Dimension: 142*85*113 mm
Rated current: 7.5 A
Input voltage：1 phase 220~240V AC
Input frequency： 50Hz/ 60Hz
Output voltage： 3 phase AC 0~input voltage
Output frequency： 0.00~400.00Hz
Over load capacity： 150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control mode： V/F control;
Sensorless vector control;
Communication： RS485
Speed regulation： 1:100
Start torque： 150% of rating torque at 1 Hz
Speed control accuracy： ≤±0.5% of rating synchronous speed
Frequency precision： Digital setting: max frequency x± 0.01%;
Analog setting: max frequency x± 0.2%
Frequency resolution： Analog setting: 0.1% of max frequency;
Digital setting: 0.01Hz
Torque boost： Automatic torque boost, manual torque boost 0.1%~30.0%
Interior PID controller： Be convenient to make closed-loop system
Automatic energy save running： Optimize V/F curve automatically based on the load to realize power save running
Automatic voltage regulation (AVR)： Can keep constant output voltage when power source voltage varies.
Automatic current limiting： Limit running current automatically to avoid frequent over-current which will cause trip
Enclosure rating： IP 20
Temperature： –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
Humidity： 5%-95%, without condensation
Altitude： ≤1000m; VFD will be derated if above 1000m
Impingement and oscillation： Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
Shopping Guide:
_____________________________
the rated current of your motor ＜the rated current of the vfd
the rated power of your motor＜the rated power of the vfd
Friendly Reminder:
_____________________________
Please read the manual carefully before operation. If you encounter any problems during the use of our ATO VFD, please do not hesitate to contact us. Our ATO technical team will always provide you with professional technical services.
For more technical questions, you can email an engineer:atotechnology@outlook.com
