Leister UNIPLAN 300 20/30/40mm 120V/230V Industrial Automatic Fabric Welder

Product Description

DETAILS Automatic and safe welding

The UNIPLAN 300 automatic welder is ideal for overlap, hem and pipe welding. The welding tool is easy to use on the table, as well as on the floor. Changing the guides from overlap welding to hem or pipe welding is possible with a single operation. The automatic, single motion nozzle engagement offers additional convenience and safety for the user.

The UNIPLAN 300 automatic welder makes welding simple for experienced users and newcomers alike. Getting stuck on obstacles such as lugs, rivets and tensioning hooks is a thing of the past. The adjustable swivel wheel on the UNIPLAN 300 automatic welder can be easily moved by hand in order to get around anything in the way. The UNIPLAN 300 is also easily operated via the display with straight buttons. The maximum speed of the automatic welder is 16 m/min (52.5 ft/min), which is more than twice as fast as its predecessors UNIPLAN E and S. The brushed blower motor allows up to 12,500 rpm. The UNIPLAN 300 automatic welder is also available in the UNIPLAN 500 version with higher welding power and a brushless motor. A practical transport box and an overlap guide are included in the delivery.

Technical Data
Article
 Voltage
 Power
 Welding Nozzle / Seam Width
 Plug
164.559
 120 V
 1800 W
 20 mm / 0.78 in
 US, 3 poles, 15A
164.558
 120 V
 1800 W
 30 mm / 1.18 in
 US, 3 poles, 15A
164.557
 120 V
 1800 W
 40 mm / 1.57 in
 US, 3 poles, 15A
164.547
 230 V
 3450 W
 20 mm / 0.78 in
 EU, 3 poles, 16A
164.546
 230 V
 3450 W
 30 mm / 1.18 in
 EU, 3 poles, 16A
164.545
 230 V
 3450 W
 40 mm / 1.57 in
 EU, 3 poles, 16A
164.553
 230 V
 3450 W
 20 mm / 0.78 in
 CEE blue, 3 poles, 16A
164.552
 230 V
 3450 W
 30 mm / 1.18 in
 CEE blue, 3 poles, 16A
146.551
 230 V
 3450 W
 40 mm / 1.57 in
 CEE blue, 3 poles, 16A

Frequency: 50/60 Hz

Speed: 1 - 16 m/min / 3.28 - 52.49 ft/min

Temperature: 100 - 620 °C / 212 - 1148 °F

Air Volume Adjustable: Yes

LQS: No

Brushless Blower Motor: No

Length: 500 mm / 19.68 in

Width: 310 mm / 12.2 in

Height: 300 mm / 11.81 in

Weight: 15 Kg / 33.06 lb

Power Cable Length: 3 m / 9.84 ft

Approvals: CB Certification; CE; UKCA

Protection Class: I

Country Of Origin: Switzerland

Features:

- Automatic, single motion nozzle engagement

- Adjustable swivel wheel

- Easy guide replacement

- Controlled temperature and speed

HIGHLIGHTS Welding on tables or floors

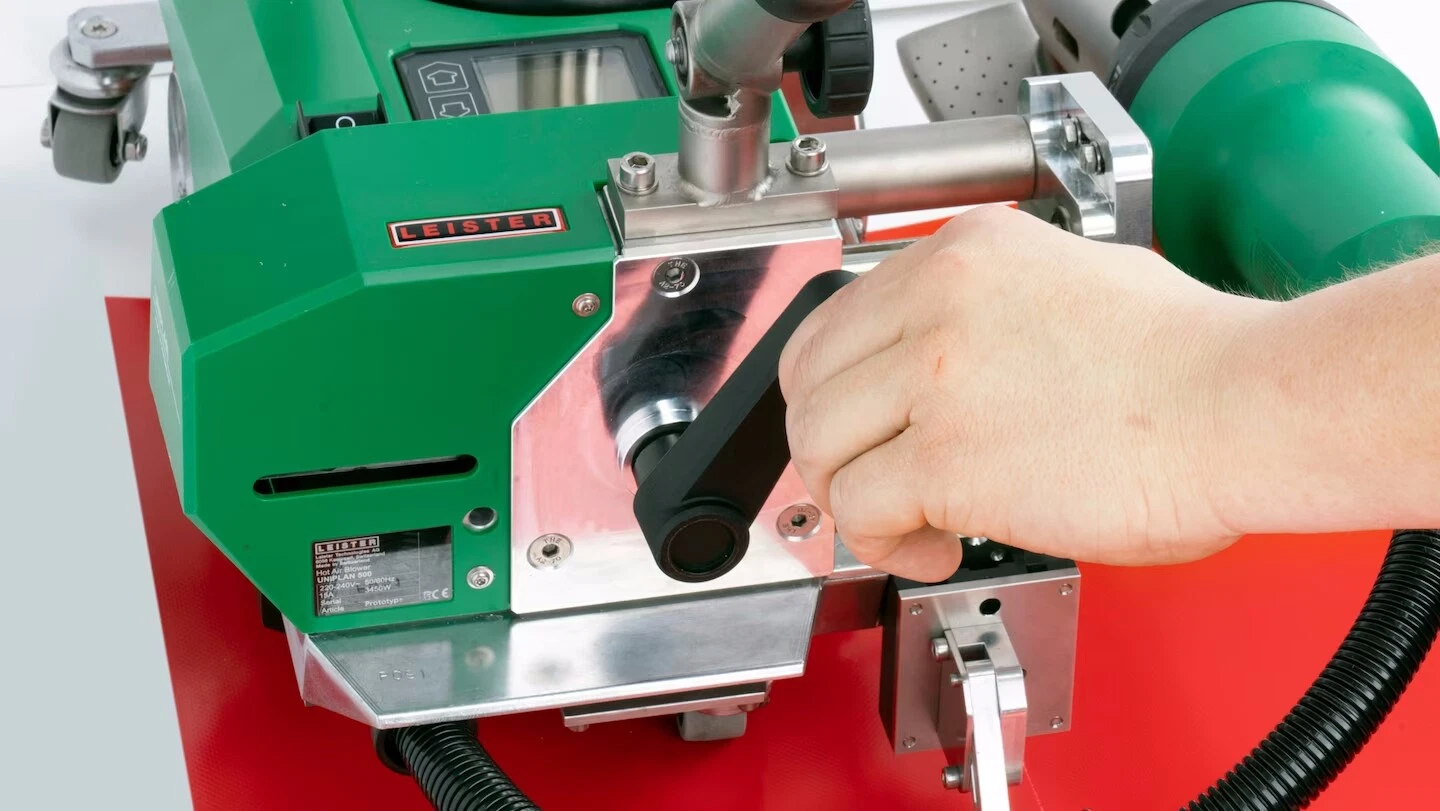

1. INCREASED PROCESS SAFETY Automatic single motion nozzle engagement

Automatic single motion nozzle engagement simplifies work.

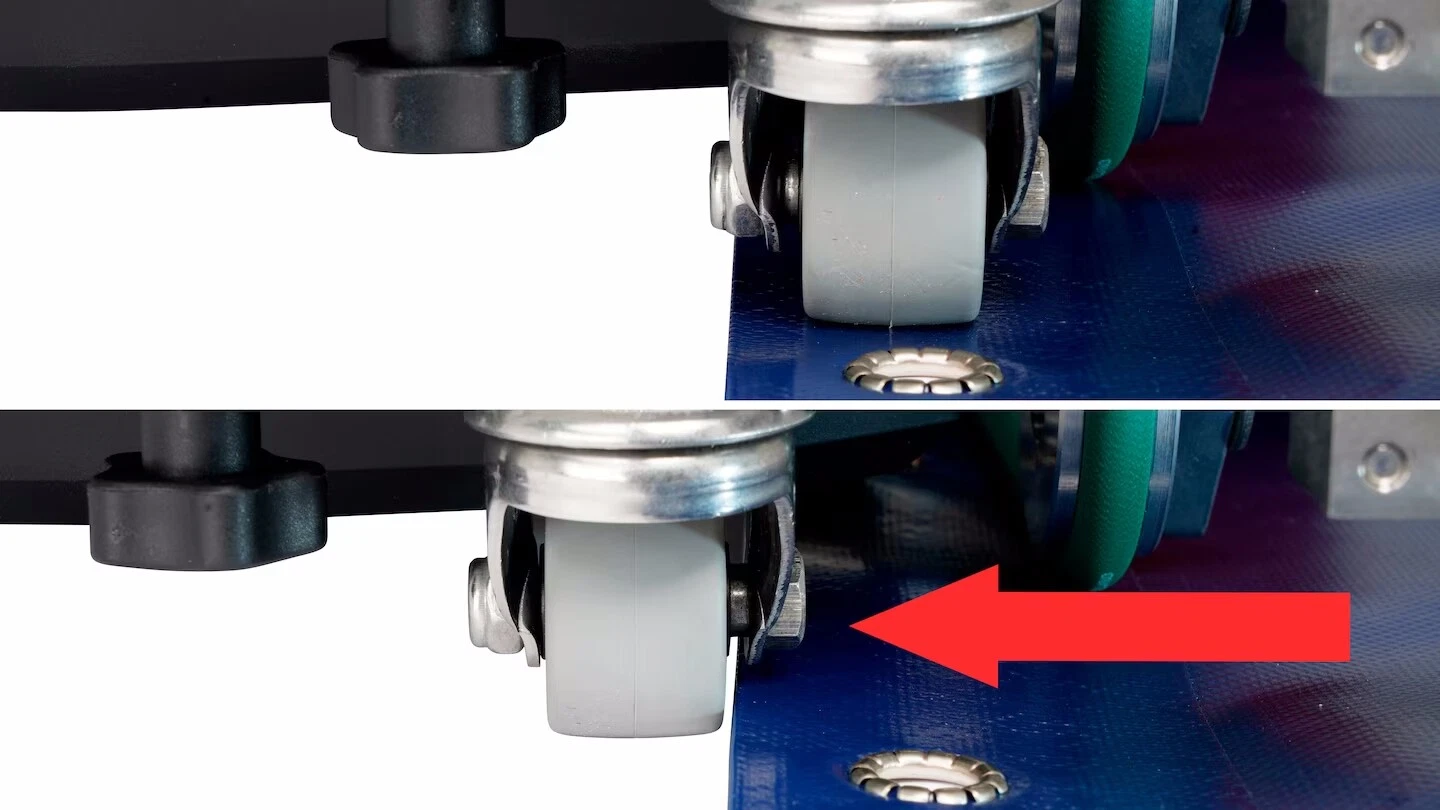

2. AVOID OBSTACLES Adjustable swivel wheel

Thanks to the adjustable swivel wheel, obstacles such as tensioning hooks, lugs and rivets are avoided.

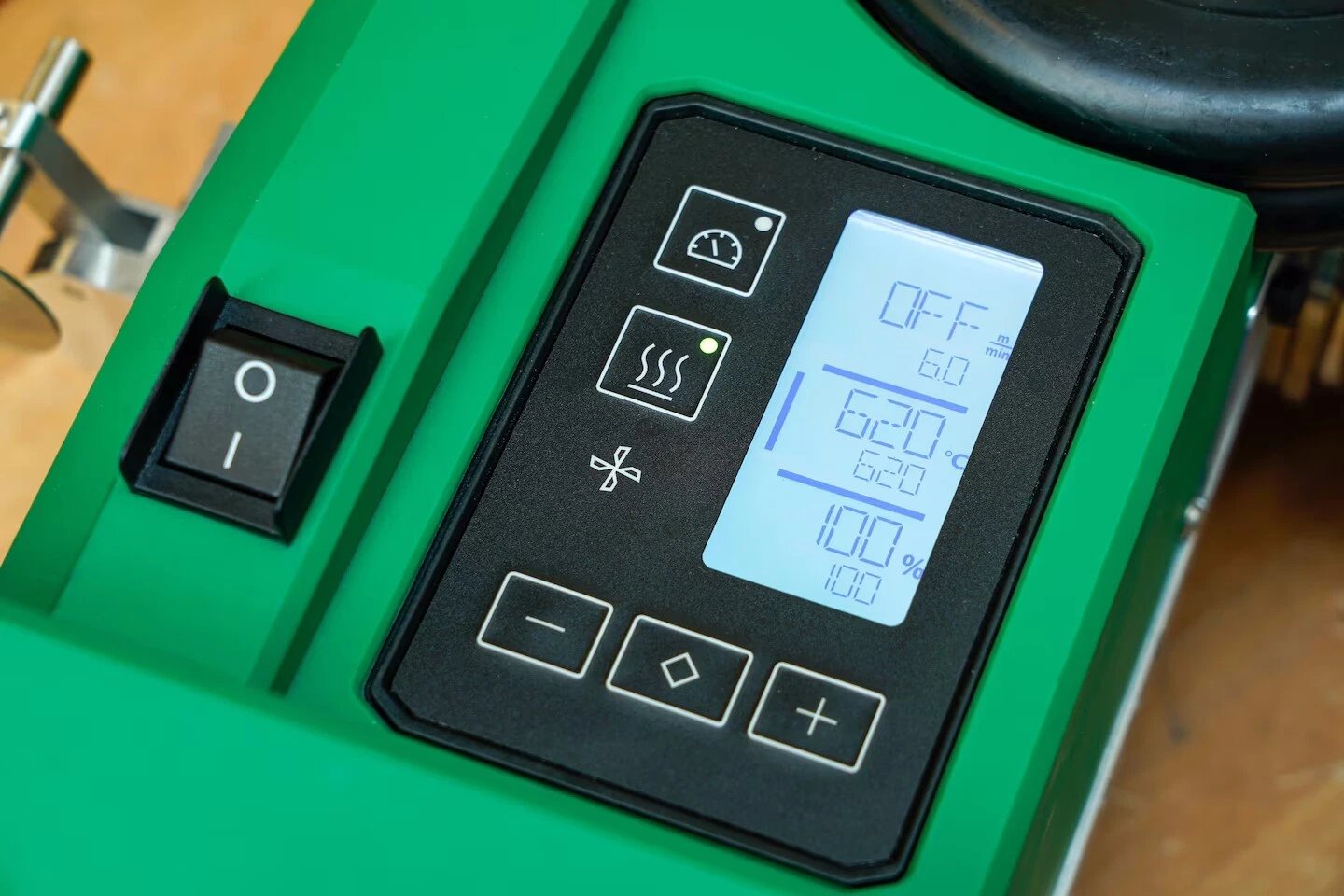

3. DISPLAY Digital display with straight buttons

Thanks to the embedded push buttons and digital display, the automatic welder is very easy to control

APPLICATIONS Virtually unlimited

Advertising banner welding

Awning and wind blocker welding

Inflatable plastic fabrics welding

Plastic fabric hoses welding

Pool waterproofing

Protective cover welding

Tent tarpaulin welding

Textile roofing and facade welding

Truck tarpaulin welding
