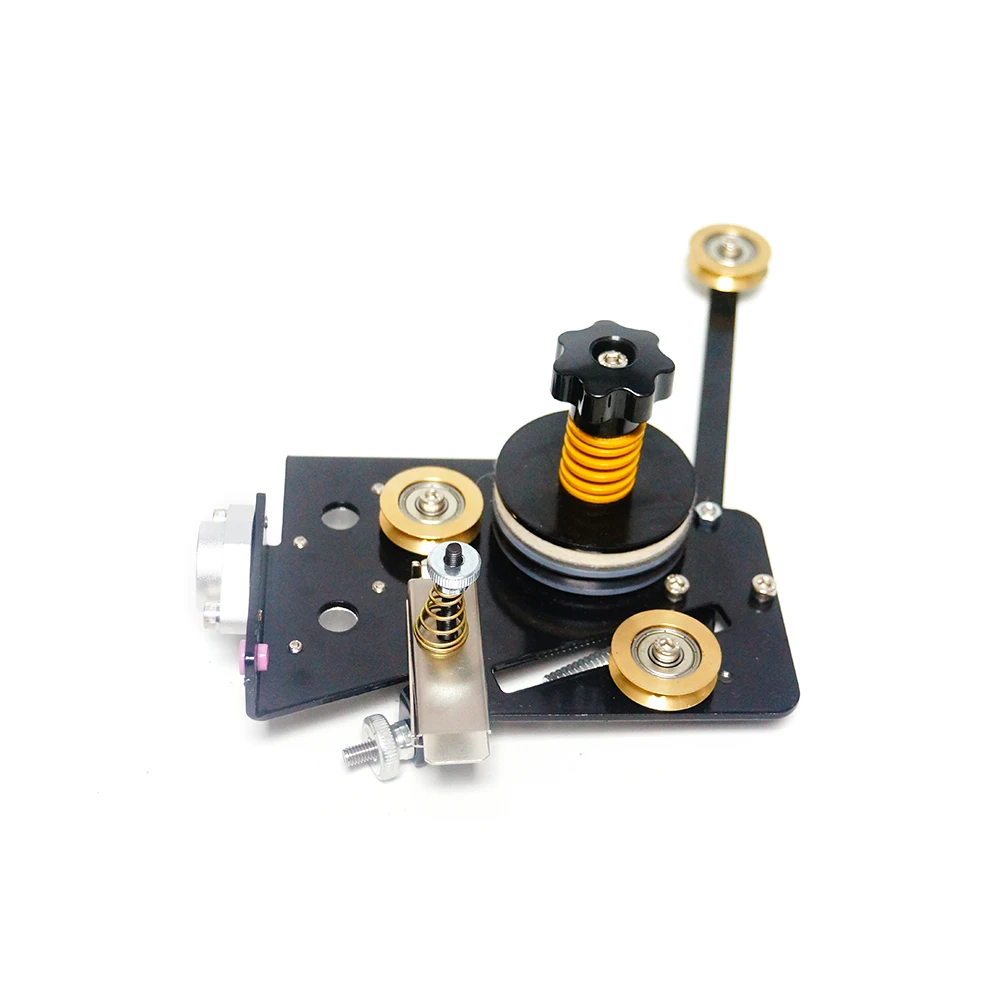

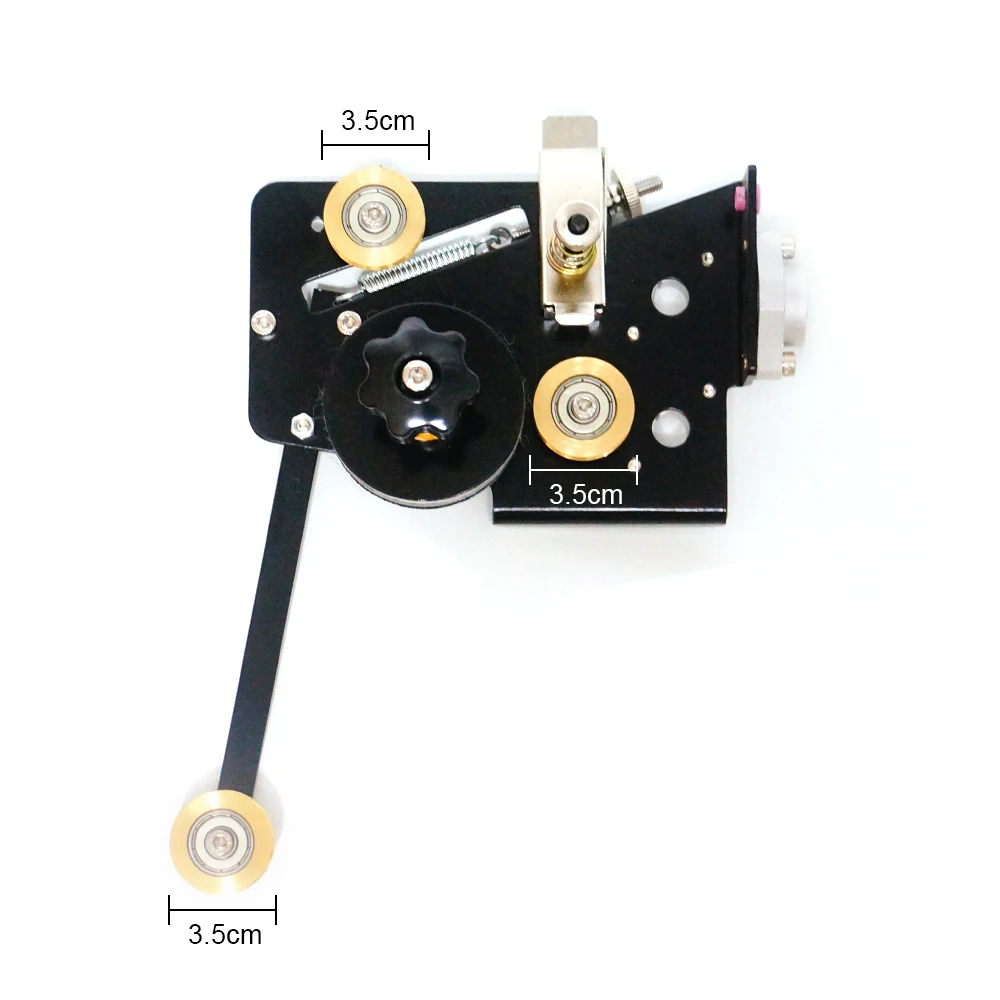

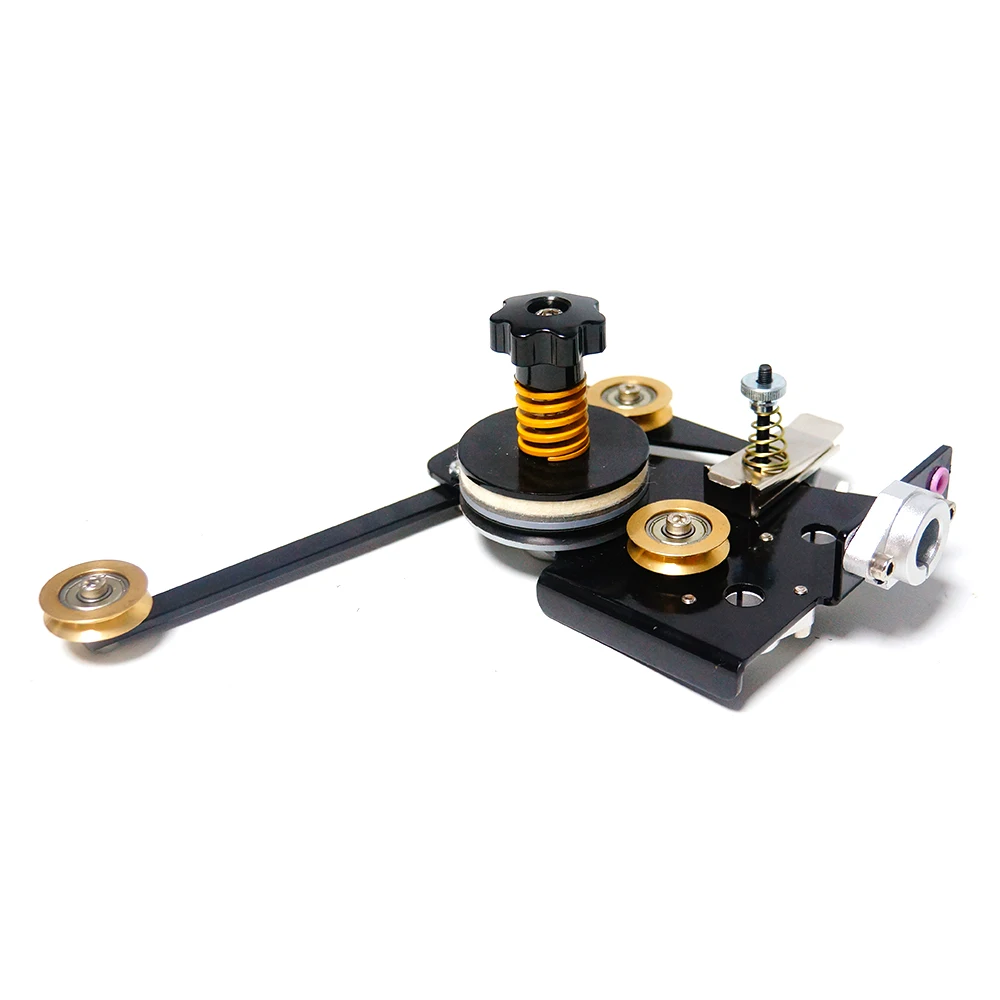

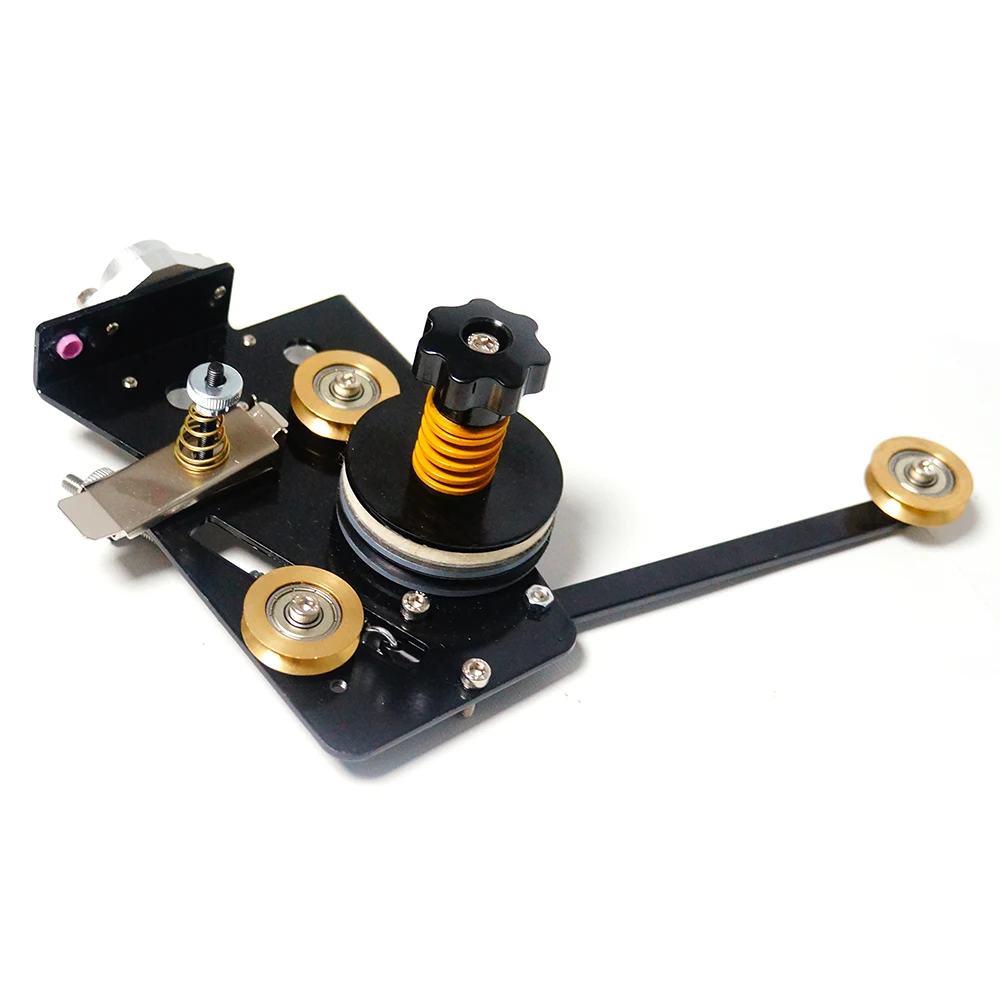

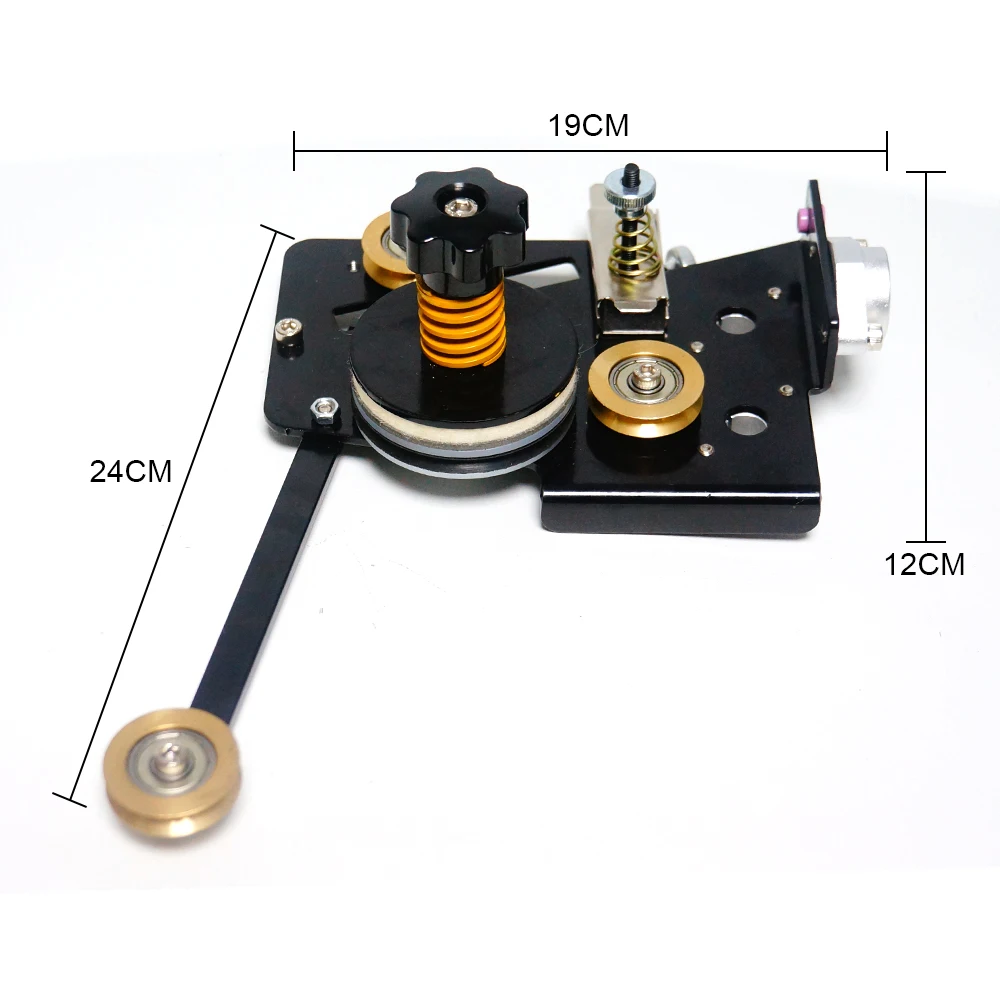

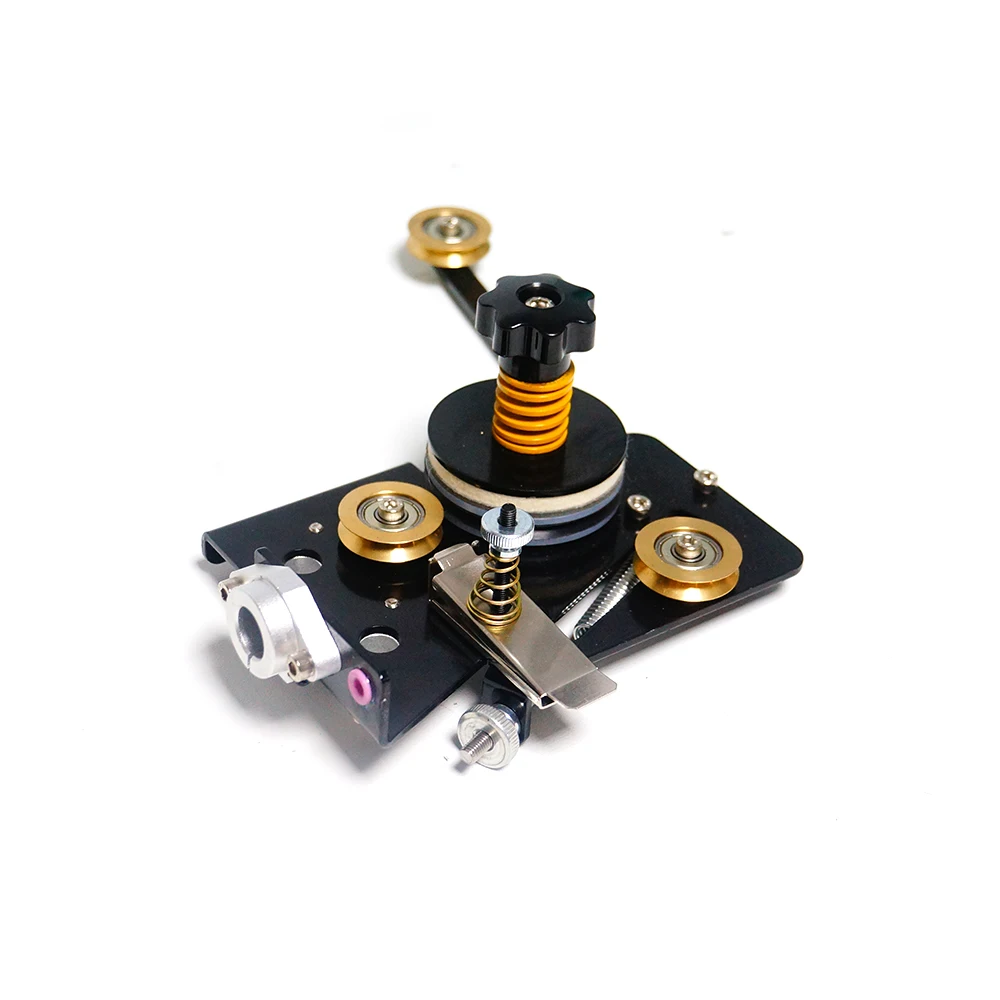

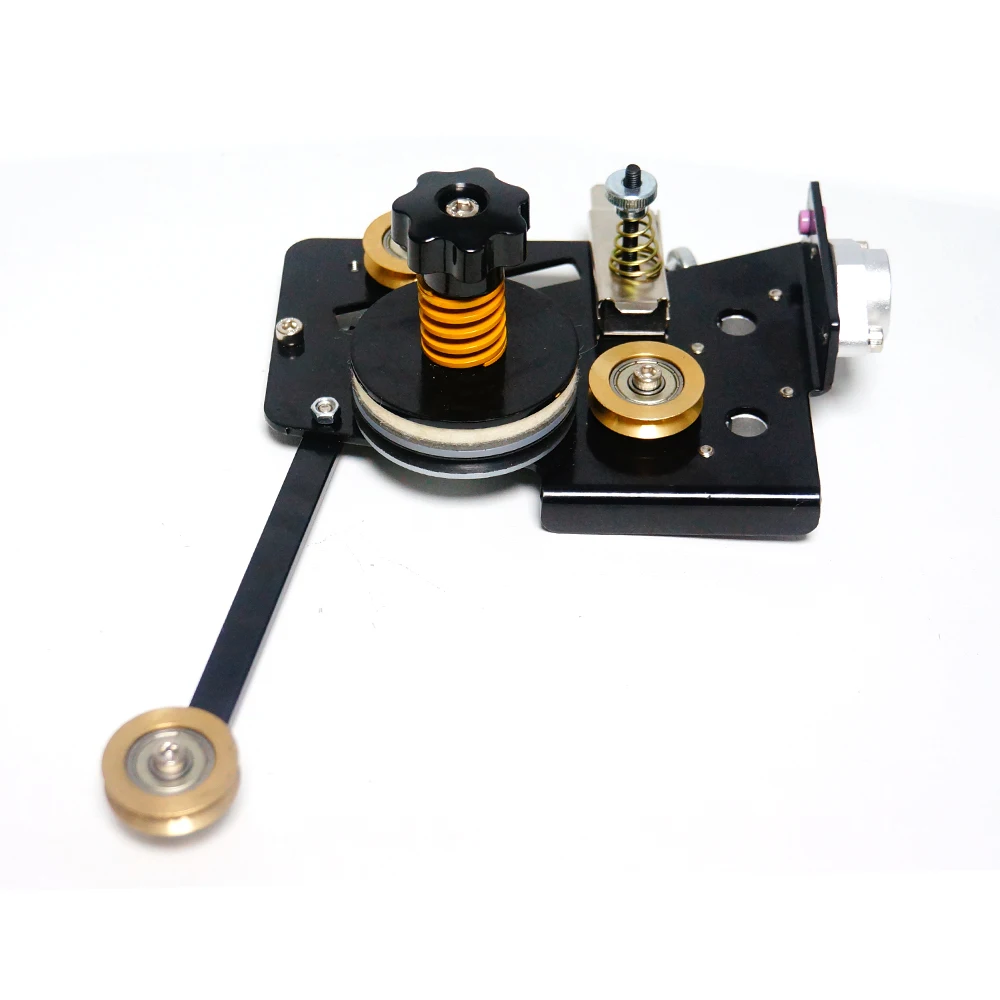

Winding machine accessories: Fully automatic winding machine tensioner, standard mechanical tensioner

Weight: 2.5KG
The standard mechanical tensioner is the key mechanism for generating adjustable tension during the winding process of the winding machine. It can ensure that the enameled wire always maintains the required appropriate tension during winding, thereby making the wound coil neither too tight nor too loose, tight and full, thus guaranteeing

The consistency of technical indicators of the coil.

This standard mechanical tensioner has a wide range of applications and can adapt to enameled wire diameters ranging from 0.14 to 1.2mm

The wire passing wheel is made of copper, which does not damage the wire and is durable. It is incomparable to inferior plastic wheels.

2. The damping compression spring adopts industrial rectangular springs, which are durable and have a wide pressure stroke range

3. The fixed holes are enclosed by dedicated brackets, ensuring a more stable fixation

4. The ceramic ring for incoming lines and the anti-jump device for outgoing lines are made of industrial alumina ceramics

5. The wire-crossing magazine adopts wool felt with a compression spring for convenient wire-crossing
