NOTICE: REMOTE JUST USED FOR "WHITE+RGB" PANEL LIGHT!!!


Features:

  • Ultra slim round concealed dual color LED panel light.

  • 3 mode: Inside light on, Outside light on, Dual light on.

  • Long life span more than 30,000hrs.

  • Easy installation, no need maintenance.

  • 85% Energy-saving and environment-friendly.

  • Applications: landscape lighting / architectural lighting / entertainment lighting / restaurants / hotels/ ambient lighting / art galleries.

  • Super bright white inside light + soft outside light, perfect for meeting room, store, super market, office, store, exhibition, dance halls, bars, kitchen, parlor, bedroom use and other lighting and decoration.


Instructions: Switch power on/off to change light mode for Pure Color. For RGB light, the light mode can be adjusted by remote control or by switching power on/off :)


Whole Series List:

Watt
(Inside+Outside) 		Inside Color Outside Color Install Method Diameter (D*H) Cut-out Size Voltage
3+3W Cool White Blue Concealed 10.5*1cm 7.5cm AC 100-265V
3+3W Cool White RGB Concealed 10.5*1cm 7.5cm AC 100-265V
6+3W Cool White Blue Concealed 14.5*1cm 10.5cm AC 100-265V
6+3W Cool White RGB Concealed 14.5*1cm 10.5cm AC 100-265V
12+6W Cool White Blue Concealed 19.5*1cm 15.5cm AC 100-265V
12+6W Cool White RGB Concealed 19.5*1cm 15.5cm AC 100-265V
18+6W Cool White Blue Concealed 24.5*1cm 21cm AC 100-265V
18+6W Cool White RGB Concealed 24.5*1cm 21cm AC 100-265V


Specification:

Round Shape

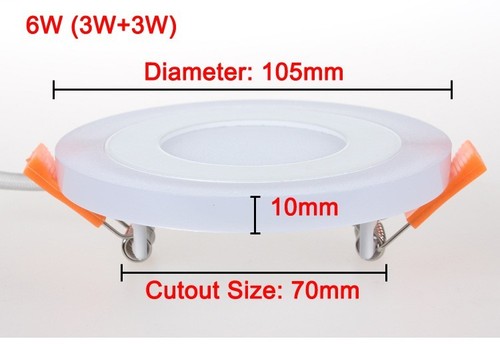

Model: 6W LED Concealed panel light

Material: Acrylic
Quantity: 1pcs
Item Color: As shown
Shape: Round
Power: 3+3W (Inside light + Outside light)
Input: AC 100-265V
Luminous Flux: 90-100LM/W
Light Color: Cool White + Blue; Cool white + RGB (Inside light + Outside light)
Mode: Inside light on, outside light on, dual light on, outsidesingle color change, outside light fade, outside light flash, brightness adjust.
Beam Angle: 120 degrees
Dimmable: No
Driver: Yes
Item Size: 10.5*1cm / 4.1*0.4" (D*H); Cut-out size: 7.5cm / 2.9"
Net Weight: 0.14kg / 4.9oz

Long lifespan: Reaches up to 100,000Hours
Excellent luminous efficiency
Instantly on with no warm up time
Approved: CE/RoHS
3 years manufacturer warranty


Model: 9W LED Concealed LED panel light

Material: Acrylic
Quantity: 1pcs
Item Color: As shown
Shape: Round
Power: 6+3W (Inside light + Outside light)
Input: AC 100-265V
Luminous Flux: 90-100LM/W
Light Color: Cool White + Blue; Cool white + RGB (Inside light + Outside light)
Mode: Inside light on, outside light on, dual light on, outsidesingle color change, outside light fade, outside light flash, brightness adjust.
Beam Angle: 120 degrees
Dimmable: No
Driver: Yes
Item Size: 14.5*1cm / 5.7*0.4" (D*H); Cut-out size: 10.5cm / 4.1"
Net Weight: 0.24kg / 8.5oz

Long lifespan: Reaches up to 100,000Hours
Excellent luminous efficiency
Instantly on with no warm up time
Approved: CE/RoHS
3 years manufacturer warranty

Model: 18W LED Concealed LED panel light

Material: Acrylic
Quantity: 1pcs
Item Color: As shown
Shape: Round
Power: 12+6W (Inside light + Outside light)
Input: AC 100-265V
Luminous Flux: 90-100LM/W
Light Color: Cool White + Blue; Cool white + RGB (Inside light + Outside light)
Mode: Inside light on, outside light on, dual light on, outsidesingle color change, outside light fade, outside light flash, brightness adjust.
Beam Angle: 120 degrees
Dimmable: No
Driver: Yes
Item Size: 19.5*1cm / 7.7*0.4" (D*H); Cut-out size: 15.5cm / 6.1"
Net Weight: 0.375kg / 13.2oz

Long lifespan: Reaches up to 100,000Hours
Excellent luminous efficiency
Instantly on with no warm up time
Approved: CE/RoHS
3 years manufacturer warranty

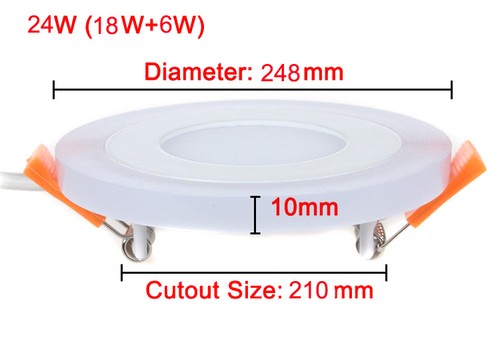

Model: 24W LED Concealed LED panel light

Material: Acrylic
Quantity: 1pcs
Item Color: As shown
Shape: Round
Power: 18+6W (Inside light + Outside light)
Input: AC 100-265V
Luminous Flux: 90-100LM/W
Light Color: Cool White + Blue; Cool white + RGB (Inside light + Outside light)
Mode: Inside light on, outside light on, dual light on, outsidesingle color change, outside light fade, outside light flash, brightness adjust.
Beam Angle: 120 degrees
Dimmable: No
Driver: Yes
Item Size: 24.5*1cm / 9.6*0.4" (D*H); Cut-out size: 21cm / 8.3"
Net Weight: 0.535kg / 18.9oz

Long lifespan: Reaches up to 100,000Hours
Excellent luminous efficiency
Instantly on with no warm up time
Approved: CE/RoHS
3 years manufacturer warranty





Square Shape

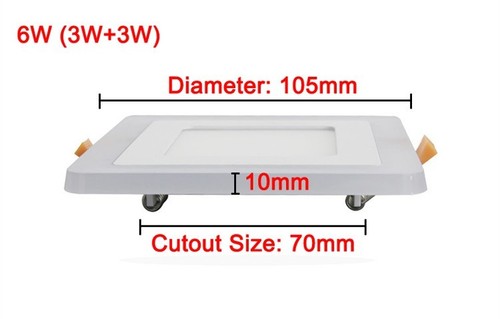

Model: 6W LED Concealed panel light

Material: Acrylic
Quantity: 1pcs
Item Color: As shown
Shape: Square
Power: 3+3W (Inside light + Outside light)
Input: AC 100-265V
Luminous Flux: 90-100LM/W
Light Color: Cool White + Blue; Cool white + RGB (Inside light + Outside light)
Mode: Inside light on, outside light on, dual light on, outside single color change, outside light fade, outside light flash, brightness adjust.
Beam Angle: 120 degrees
Dimmable: No
Driver: Yes
Item Size: 10.5*10.5*1cm / 4.1*4.1*0.4" (L*W*H);

Cut-out size: 7.5cm*7.5cm / 2.9"*2.9
Net Weight: 0.17kg / 6oz

Long lifespan: Reaches up to 100,000Hours
Excellent luminous efficiency
Instantly on with no warm up time
Approved: CE/RoHS
3 years manufacturer warranty

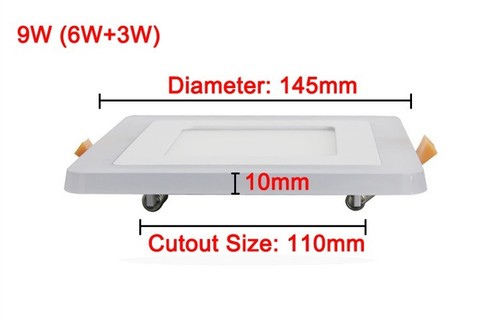

Model: 9W LED Concealed LED panel light

Material: Acrylic
Quantity: 1pcs
Item Color: As shown
Shape: Square
Power: 6+3W (Inside light + Outside light)
Input: AC 100-265V
Luminous Flux: 90-100LM/W
Light Color: Cool White + Blue; Cool white + RGB (Inside light + Outside light)
Mode: Inside light on, outside light on, dual light on, outside single color change, outside light fade, outside light flash, brightness adjust.
Beam Angle: 120 degrees
Dimmable: No
Driver: Yes
Item Size: 14.5*14.5*1cm / 5.7*5.7*0.4" (L*W*H);

Cut-out size: 10.5cm*10.5cm / 4.1"*4.1"
Net Weight: 0.285kg / 10oz

Long lifespan: Reaches up to 100,000Hours
Excellent luminous efficiency
Instantly on with no warm up time
Approved: CE/RoHS
3 years manufacturer warranty

Model: 18W LED Concealed LED panel light

Material: Acrylic
Quantity: 1pcs
Item Color: As shown
Shape: Square
Power: 12+6W (Inside light + Outside light)
Input: AC 100-265V
Luminous Flux: 90-100LM/W
Light Color: Cool White + Blue; Cool white + RGB (Inside light + Outside light)
Mode: Inside light on, outside light on, dual light on, outside single color change, outside light fade, outside light flash, brightness adjust.
Beam Angle: 120 degrees
Dimmable: No
Driver: Yes
Item Size: 19.5*19.5*1cm / 7.7*7.7*0.4" (L*W*H);

Cut-out size: 15.5cm*15.5cm / 6.1"*6.1"
Net Weight: 0.52kg / 18.3oz

Long lifespan: Reaches up to 100,000Hours
Excellent luminous efficiency
Instantly on with no warm up time
Approved: CE/RoHS
3 years manufacturer warranty

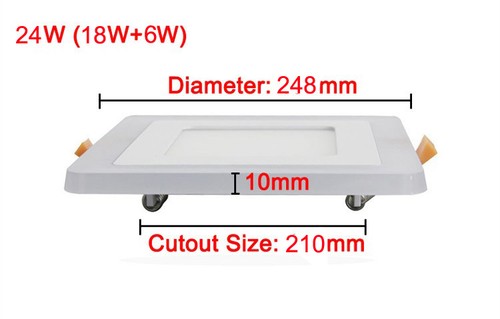

Model: 24W LED Concealed LED panel light

Material: Acrylic
Quantity: 1pcs
Item Color: As shown
Shape: Square
Power: 18+6W (Inside light + Outside light)
Input: AC 100-265V
Luminous Flux: 90-100LM/W
Light Color: Cool White + Blue; Cool white + RGB (Inside light + Outside light)
Mode: Inside light on, outside light on, dual light on, outside single color change, outside light fade, outside light flash, brightness adjust.
Beam Angle: 120 degrees
Dimmable: No
Driver: Yes
Item Size: 24.5*24.5*1cm / 9.6*9.6*0.4" (L*W*H);

Cut-out size: 21cm*21cm / 8.3"*8.3"
Net Weight: 0.74kg / 26.1oz

Long lifespan: Reaches up to 100,000Hours
Excellent luminous efficiency
Instantly on with no warm up time
Approved: CE/RoHS
3 years manufacturer warranty



Applications:

How to install?


photo 53CC5934592982B1706F23_zpsccc1e409.jpg
