Item Description

•  This unit is frequently used as part of a DIY kit for 1-2 ton mini excavators
•  and it is compatible with nearly all brands and models—thanks to the similar design of most mini excavator hydraulic systems.

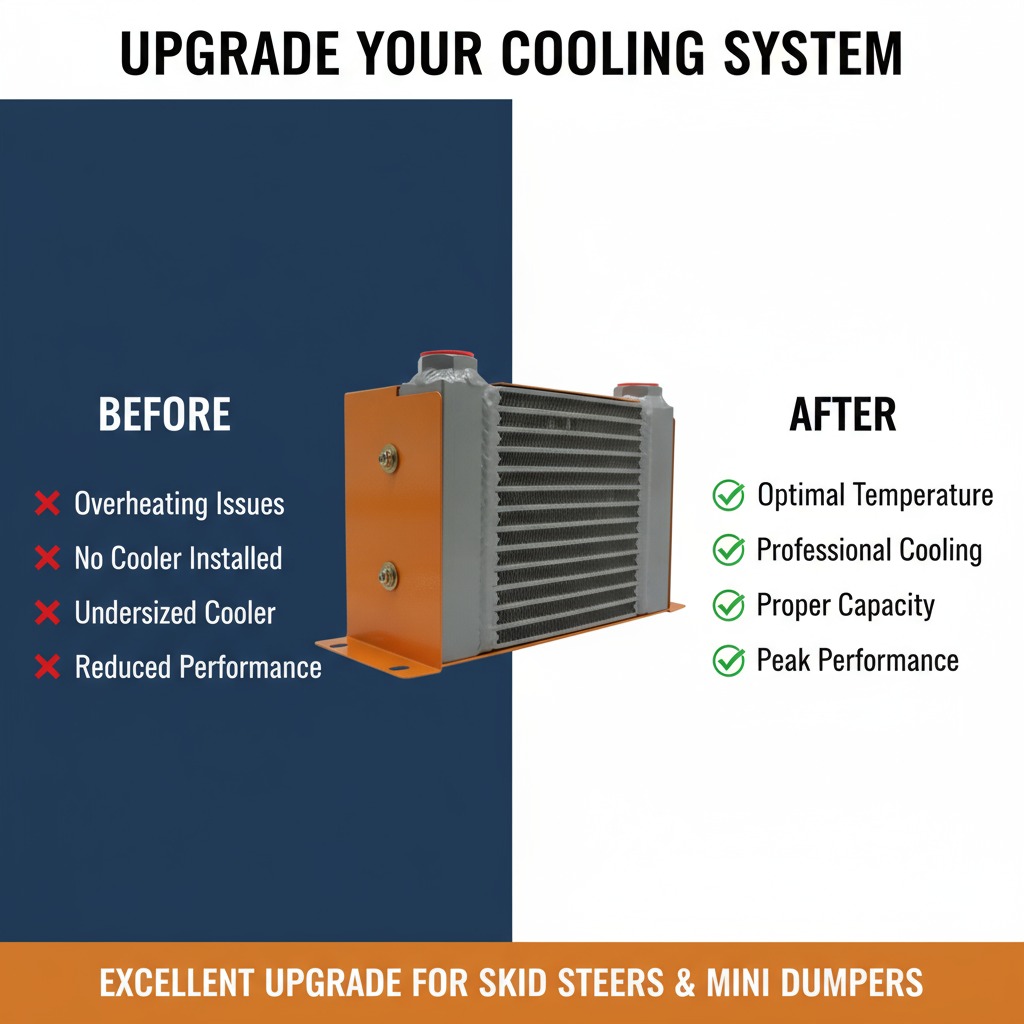

•  It also serves as an excellent upgrade for skid steers and mini dumpers that either came equipped with a smaller cooler or no cooler at all!
• Simply add your own hoses and fittings, then wire up the integrated 2-wire 12V fan to effectively lower your hydraulic fluid temperature and extend the lifespan of your equipment investment.
• Package Includes1 x Hydraulic Oil Coole

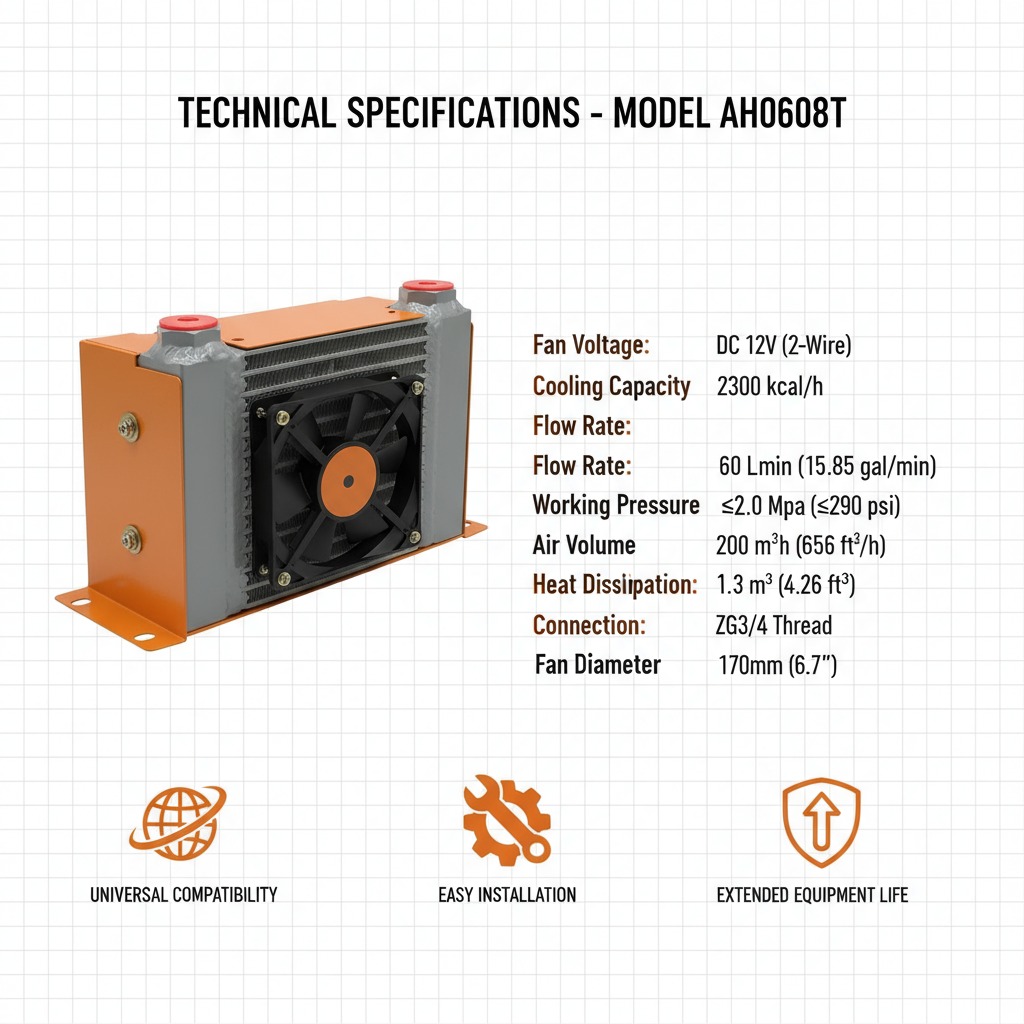

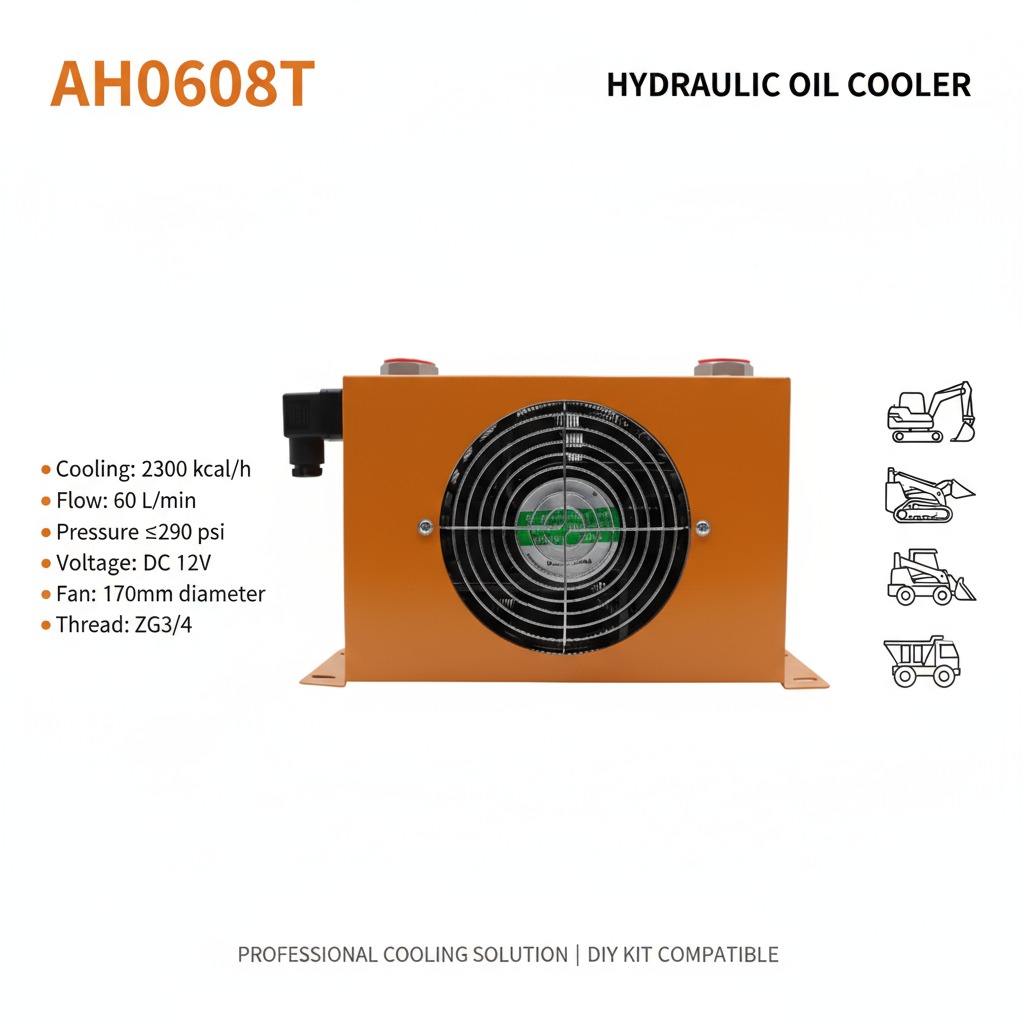

  Model:	AH0608T
  Fan Voltage:	DC 12V (2 Wires Only: Pin 1 = Positive, Pin 2 = Negative)
  Cooling Capacity:	2300 kcal/h
  Flow Rate:	60 L/min (15.85 gal/min)
  Working Pressure:	≤2.0 Mpa (≤290 psi)
  Discharge Air Volume:	200 m³/h (656 ft³/h)
  Outer Fin Heat Dissipation Area:	1.3 m³ (4.26 ft³)
  Connection Thread:	ZG3/4
  Fan Diameter:	170 mm (6.7")
