KINGBOLEN K10 PRO Bidirectional Obd2 Scanner Bluetooth Diagnostic Tool, Good Helper for Solving Car Problems, Same as Thinktool Pros, 2 Years Update.

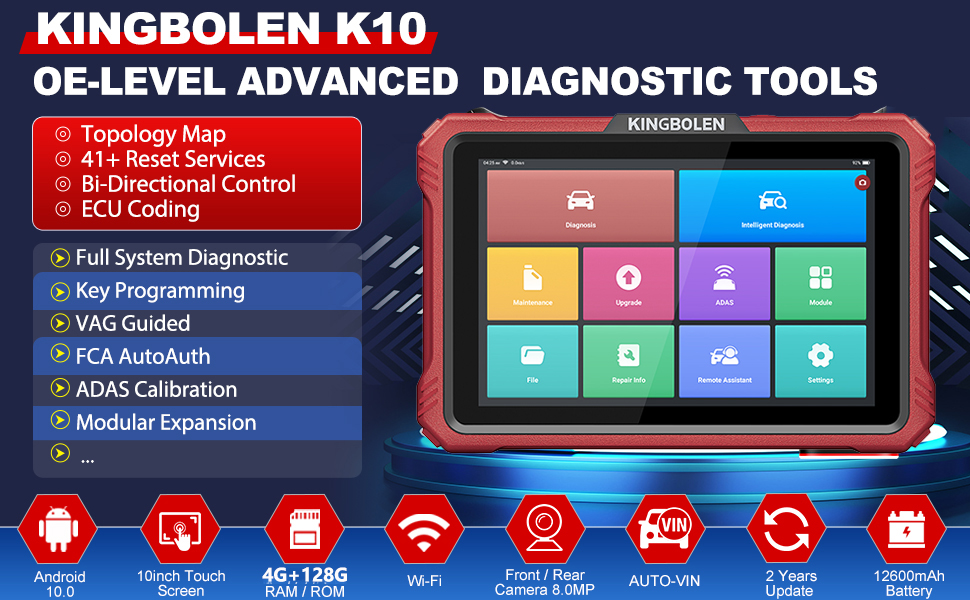

Powerful Hardware：Equipped with 10 inch HD touch screen, Front/Rear Camera 8.0MP, powerful Android 10.0 OS, 4+64GB extended memory, lasting 3.7V/12600mAh(7.6V/6300mAh) battery and WIFI/Bluetooth diagnostics.

Subscription F-ee： Comes with a 2-year up-date, after which you need to renew your subscription to continue using the full featured software. The subscription f-ee is USD399/year.

Built-in Web Browser: The device has a built-in web browser, so you can quickly find information and view repair videos without using other devices, which is very convenient and considerate.

Adjustable Kickstand: Able to keep the device standing on the desk, or hang the device on the steering with 180 degree rotation.

OE-Level Full Systems diagnosis: It can read/clear fault codes, read live data/freeze frame, read control module information, actuation tests and reset functions for TPMS,ECM,BCM,ABS,SRS,TCM,BMS,SAS,A/C & RTM system etc...

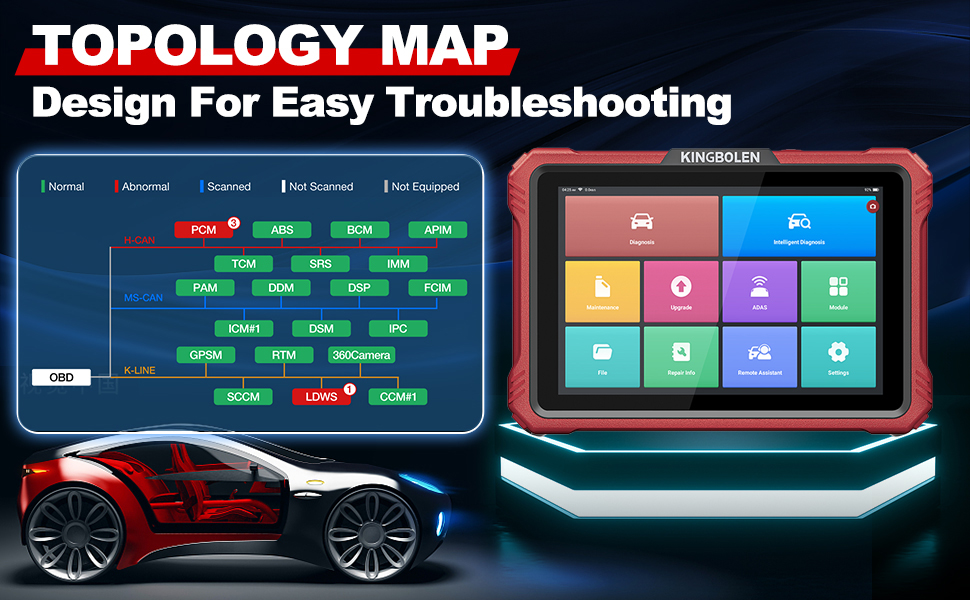

Topology Map Design: You can simply click the module to check the fault and quickly determine the root cause.

41+ Reset Services: The device supports matching, coding, programming of most vehicles' programmable modules, and most commonly used maintenance and reset functions: Oil Reset; Elec. Throttle Adaption; IMMO Service;Injector Coding; Brake-pad Reset; Steering Angle Reset; ABS Bleeding; AFS Reset; Battery Matching and A/T Learning...

Guidance Function: It can provides step-by-step maintenance guide for Volkswagen/for Audi/for Skoda/for seats.

Efficient Bi-Directional Control: Perform real time active test that can send commands to the vehicle’s ECU to drive the actuators to work, such as ABS, windows, doors, valves, wipers.

ECU Coding: Allows you to activate hidden functions, such as Auto Side Mirror Folding, Auto Engine Start-Stop etc. Offline Coding: Compatible for Mercedes-Benz cars. Online Coding: Compatible for Volkswagen, for Audi and for BMW cars.

Intelligent Diagnosis: Supports powerful intelligent VIN recognition technology, which is convenient, fast and efficient. Health Report can be generated after diagnosis.

Modular Expansion: Printer, video scope, scope box, battery test clip, wireless TPMS tool.

Battery Tester: Supports battery health test, start system test and charging health test.

TPMS: With wireless TPMS tool (optional), TPMS activation, programming and learning functions can be supported.

Wide Vehicle Coverage: Supports most car models after 1996 year of 100+ car brands, such as Ford, for GM, for Dodge, for Jeep, for Mazda, for Audi, for BMW, for Mercedes, for Volkswagen, for Honda, for Toyota and for Hyundai, etc and 28 worldwide languages(EN, FR, ES, DE, IT, RU, PT, JP, TU, POL...)

The KINGBOLEN K10 PRO has ECU coding capability to perform Offline/Online Coding to match/Initialize components' adaptive data after repairing/replacing some components, and activate Hidden Functions: Personalized Settings to activate high-end functions or disable any annoying features.

ECU CODING:

· Offline Coding: Compatible for Mercedes-Benz cars;

· Online Coding: Compatible for Volkswagen, for Audi and for BMW cars;

· Unlock the hidden functions: To activate or disable some functions:

1. Deactivating the Start/Stop function;

2. Beeping when unlocking and locking;

3. Locking the doors once a certain speed is reached(e.g. from 15 km/h);

4. Seatbelt warning sounds;

5. Mirrors automatically folding and unfolding;

6. Closing the windows after locking the car door etc.

...

Supports 41+ Maintenance Functions:

1. TPMS Reset -- When replacing TPMS sensors or the signal from the sensor is lost it can quickly look up the tire sensor from the vehicle’s ECU, reset tire pressure and turn off the tire pressure MIL.

2. ABS Bleeding -- When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

3. Oil Reset -- Allows you to perform reset for a new calculation of the Engine Oil Life system once changed the oil.

4. Electronic Throttle Adaption -- Utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

5. Brake Reset -- To deactivating and activate the brake control systems, assist with brake fluid control, open and close brake pads, and set brakes after disc or pad replacement.

6. SAS Reset -- It helps clear the faulty steering angle sensor memories to reset the steering angle and plays an important role in the steering angle sensor calibration.

7. Battery Matching -- Enables you to perform resetting operation on the monitoring unit of battery,in which the original low battery fault information will be cleared.

8. Injector Coding -- After the ECU or injector is replaced, injector code of each cylinder must be confirmed or re-coded so that the cylinder can better identify injectors to accurately control fuel injection.

9. Suspension Matching -- When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, this function can adjust the body height sensor for level calibration.

10. AFS Reset -- It is used to initialize the adaptive headlamp system.

11. Gearbox Matching--This function can complete the gearbox self learning to improve gear shifting quality

12. Sunroof Initialization -- This function can set the sunroof lock off, closed when it rains, sliding/tilting sunroof memory function, temperature threshold outside the car etc...

(Enter from the all-system diagnostic menu to unlock more system special functions, and effectively handle the reset and relearn of most cars. )

Note: Not universal for all vehicles. Available maintenance functions vary depending on the make, year, and model.

Wide Vehicles Coverage:

Supports 100+ vehicle brands and 10000+ car models,such as, Ford, for GM, for Dodge, for Jeep, for Mazda, for Audi, for BMW, for Mercedes, for Volkswagen, for Honda, for Toyota and for Hyundai, etc. Supports 28 worldwide languages(English, French, Spanish, German, Italian, Russian, Portuguese, Japanese, Turkish and Polish...)

All languages are free to use, and you can switch back and forth between multiple languages as needed which can solve the language barrier you may encounter.

(Note: The device only supports 12V vehicle diagnosis)

ADAS Calibration:

The Advanced Driving Assist System (ADAS) is that the user needs to use the activation card to activate this function. This feature needs to match the KINGBOLEN ADAS calibration tool. Mainly used to calibrate various cameras and radars of driving assistance systems.

(Notes: ADAS function requires additional hardware (optional), which needs to be purchased.)

FCA AutoAuth:

AutoAuth for FCA SGW which makes K10 PRO works with Chrysler, for Dodge, for Jeep, for Alfa Romeo and for Fiat after 2017. Register with AutoAuth to enable KINGBOLEN K10 PRO tablet to communicate with the FCA SGW Authentication System and bypass the SGM, so as to perform diagnostics and Bi-Directionals without using a bypass cable. (*Only provide AutoAuth login portal, and need purchase the registration number on the AutoAuth website by yourself.)



Bluetooth AUTO VIN

KINGBOLEN K10 PRO obd2 scanner supports intelligent diagnosis and adopts powerful intelligent VIN recognition technology, enabling technicians to quickly identify vehicle information, such as brand, year, brand, model, etc., which is convenient, fast and efficient. After diagnosis, a Health Report can be generated to intuitively grasp the vehicle status.

12-in-1 Live Data Stream

Display real-time data and parameters from vehicle ECU. Select the necessary items (up to 12 items can be selected at the same time), the screen will immediately display the waveform corresponding to these items, and different items will be marked with different colors. And has the Screen Recorded Function, which can record during the use of the KINGBOLEN K10 PRO to record the diagnosis results at any time.
