Feature：

1)Over charge protection

2)Over discharge protection

3)Over current protection

4)Over heat protection

5)Short circuit protection

6)Waterproof

Specification：

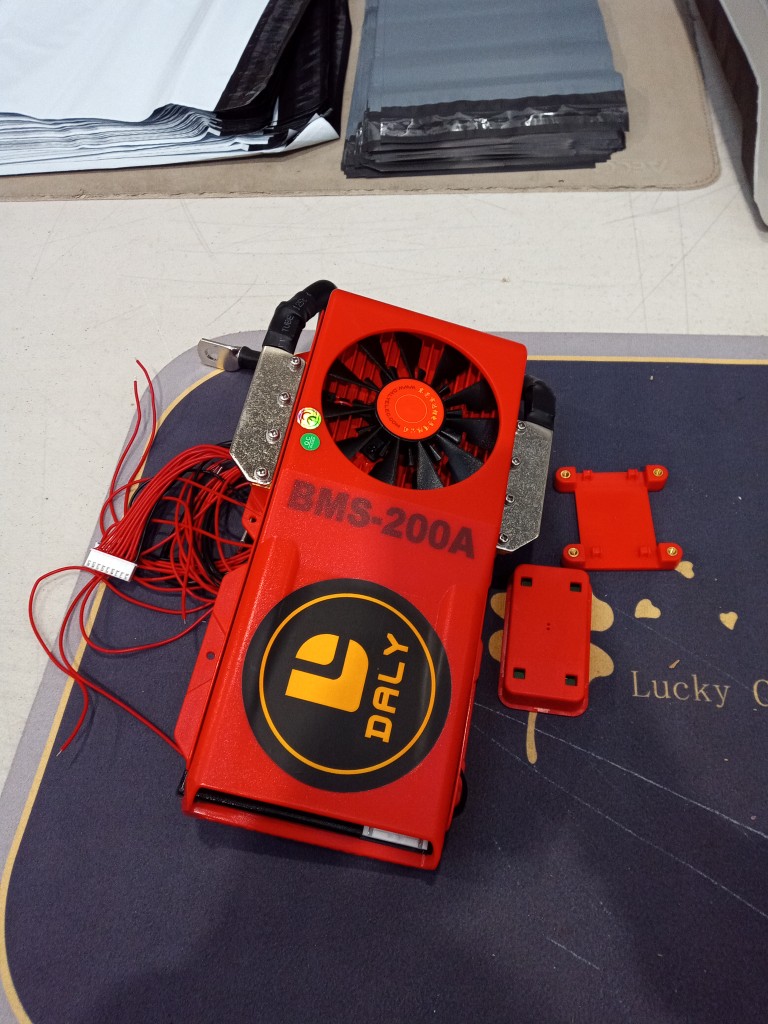

Name：lifepo4 8S 24V 200A BT BMS（Fan） common port with balance

Battery Type：Lifepo4

Norminal Voltage：3.2V

Constant discharge current：200A

Constant charge current：100A

Colour:Red

Material:metal

Battery display board:

roduct name: Battery display board

Color: as shown

Material: Plastic + Metal

Bluetooth   module : The battery capacity and battery discharge information are   displayed at all times, which is convenient for charging and powering   off the product in time.

Product activation introduction：

For   our smart bms,when first use,need to activate first,then B- P- can be   conductive,voltage from P- can be same from B-, then BMS can work well.

Method ①: there is an activation switch on the board and click the button.

Method ②: Press thebuttonon the bluetooth module to activate the bms directly.

Method ③: Charge activation, B-line must be connected to the total negative pole of the battery pack when

The package includes:

1*8S 24V BT BMS（Fan）

1*Cable

1*Battery display board
