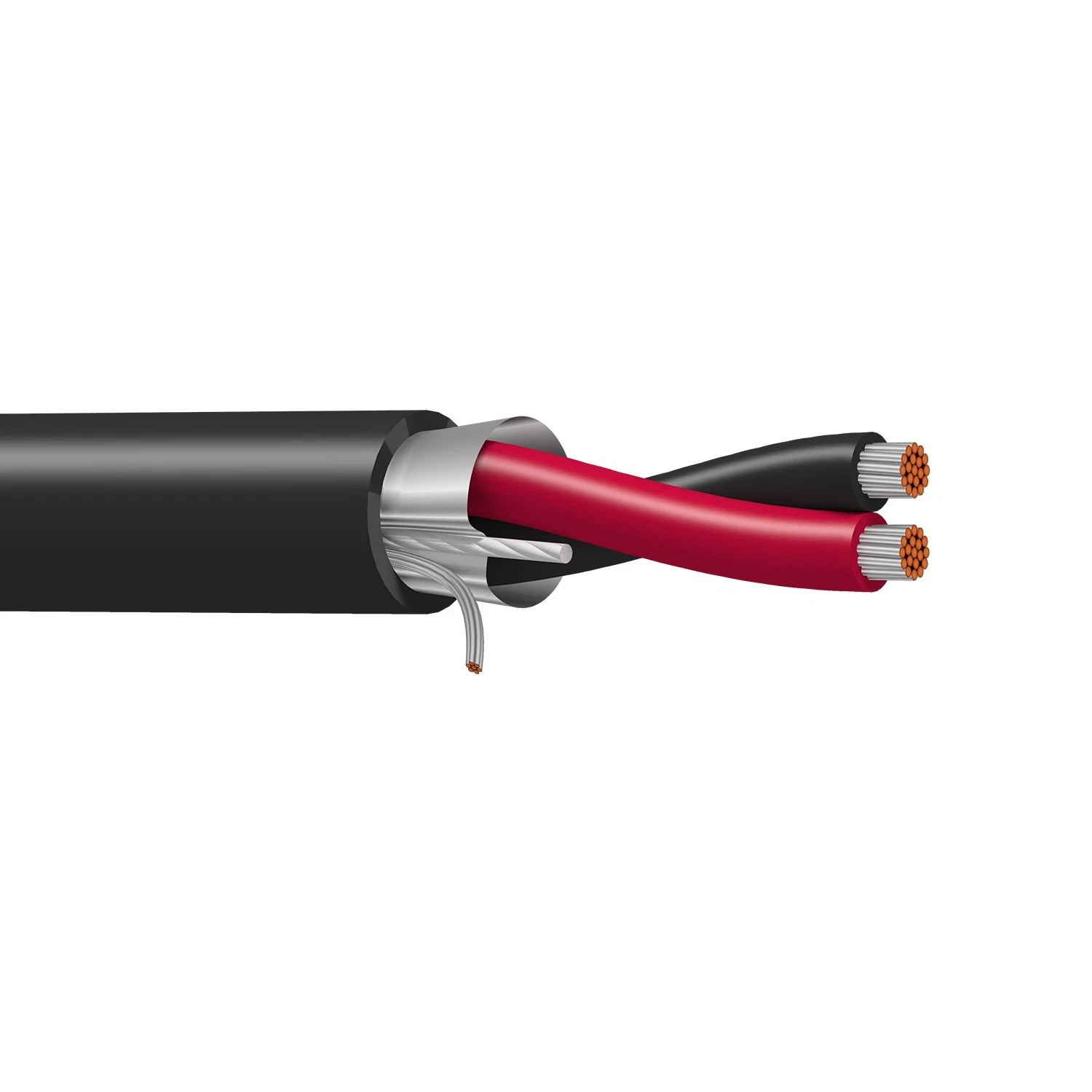

Belden 9320 20 AWG 1 Pair Overall Shielded PLTC Instrumentation Cable 300V
Click Thumbnails to Enlarge
DESCRIPTION
• Belden 9320 20 AWG 1 Pair Overall Shielded PLTC Instrumentation Cable PVC Jacket 300V
APPLICATION
• Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V
CONDUCTOR
• Tinned Copper
INSULATION
• Polyvinyl Chloride (PVC)
OUTER SHIELD
• Shield Type: Tape, Material: Bi-Laminate (Alum+Poly), Coverage: 100%, Drain Wire: 22 AWG
JACKET
• Polyvinyl Chloride (PVC)
TEMPERATURE RATING
• Operating Temperature: -30°C to +105°C
STANDARDS
• Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
• Flammability / Reaction to Fire: UL 1685 UL Loading, FT4, T-29-520, IEEE 1202
• CPR Compliance: CPR Euroclass: Eca
• NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
• AWM Compliance: AWM 2464
• CEC / C(UL) Compliance: CMG
• European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
• UK Regulation Compliance: UKCA Mark
• APAC Compliance: China RoHS II (GB/T 26572-2011)
PRODUCT SPECIFICATIONS
| Size AWG | 20 |
|---|---|
| Number of Pairs | 1 |
| Number of Strands | 19 |
| Insulation Thickness (inch) | 0.018 |
| Jacket Thickness (inch) | 0.037 |
| Overall Diameter (inch) | 0.221 |
| Weight (lbs/1000ft) | 29 |
