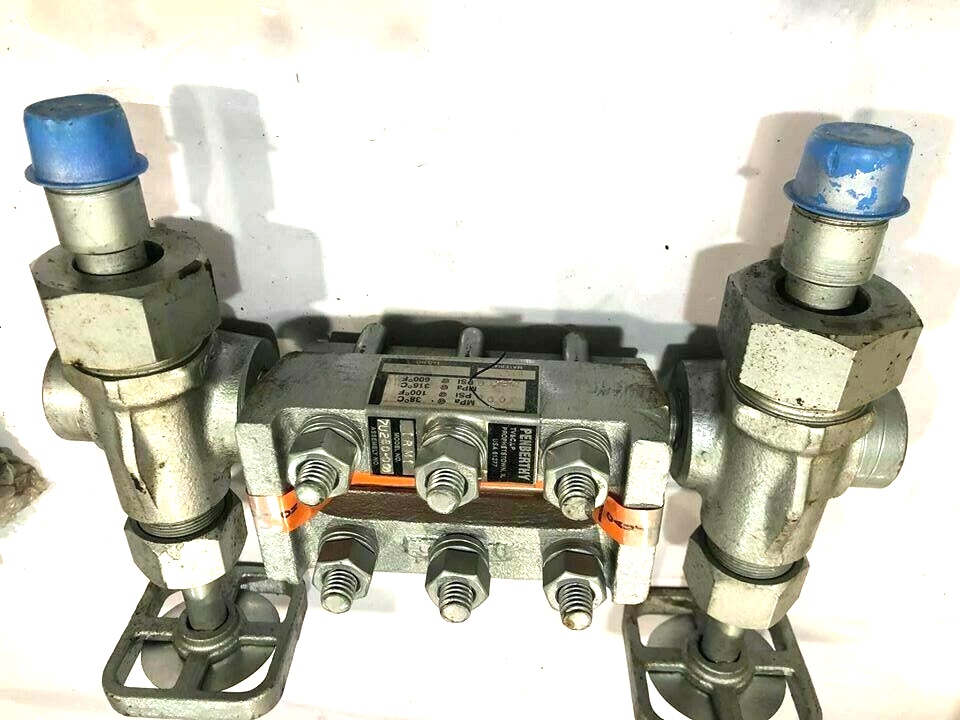

Penberthy 1RL5 Liquid Level Gage with TWO 330J Gagecock 4000 PSI
NEVER USED NO ORIGINAL BOX
Manufacturer Published Data
General Application
Low pressure direct reading liquid level measurement applications
in the petroleum, chemical and general process industries.
They are not recommended for steam/water applications.
Technical Data
Materials: Ductile iron cover; carbon steel or stainless steel chamber;
Grafoil/Mylar gaskets and cushions; Tempered Borosilicate glass rated to 600°F
Glass size: 1 through 9 Visible length: 3¾” to 139¾” (95 to 3550 mm)
Connections: End or side; threaded, socketweld or flanged
Pressure ratings (max): RL: Glass size 1: 2400 psig (165 barg) Glass size 9: 1800 psig (124 barg)
Temperature range*: -20° to 600°F (-29° to 316°C)
- ORDERS WILL SHIP VIA USPS OR FEDEX
-ORDERS WILL SHIP WITHIN 1 BUSINESS DAY
-BUSINESS HOURS M-F 9-5PM CST MESSAGES WILL BE ANSWERED FOLLOWING BUSINESS DAY
---
- COMBINED SHIPPING AVAILABLE ON SOME ITEMS
