Decription

<ADAPTABLE MODELS>

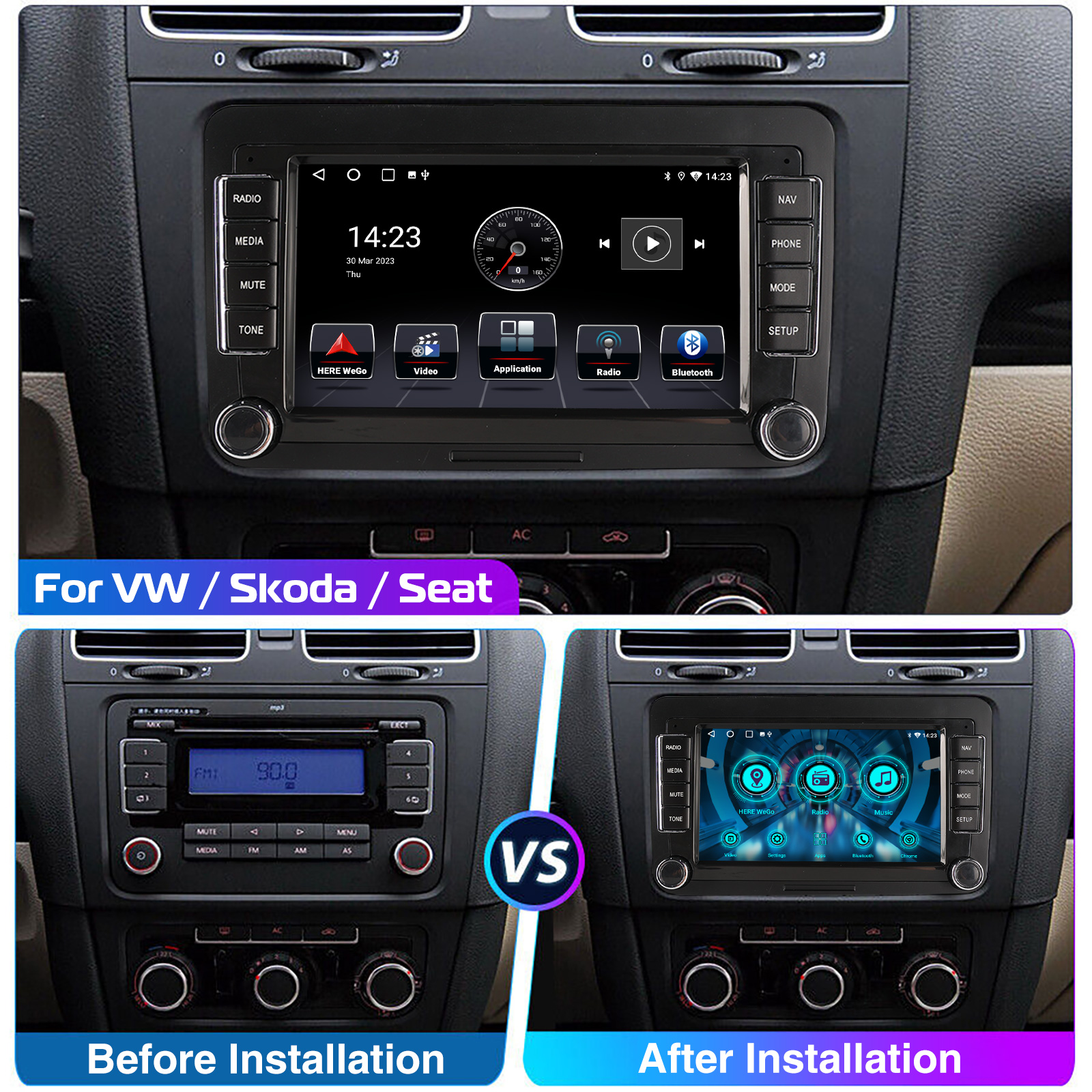

--->Volkswagen

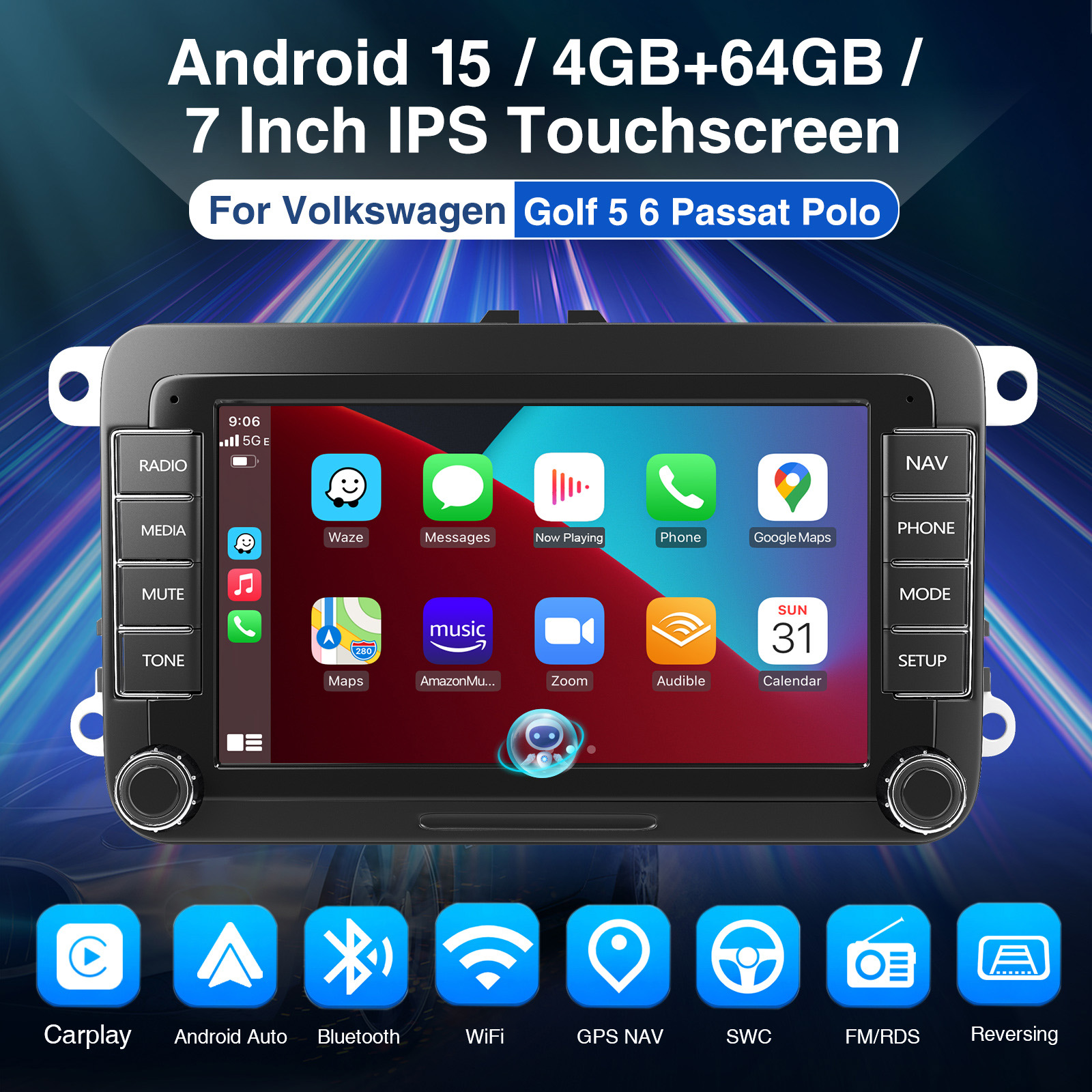

【SPECIFICATIONS】 Based on the Android 15 operating system, with (4GB RAM / 64GB ROM). Thanks to the powerful quad-core processor, you can work faster and more stably, install more APPs and save files than other standard car radios on the market. GIFT: Canbus, Rearview camera，external microphone

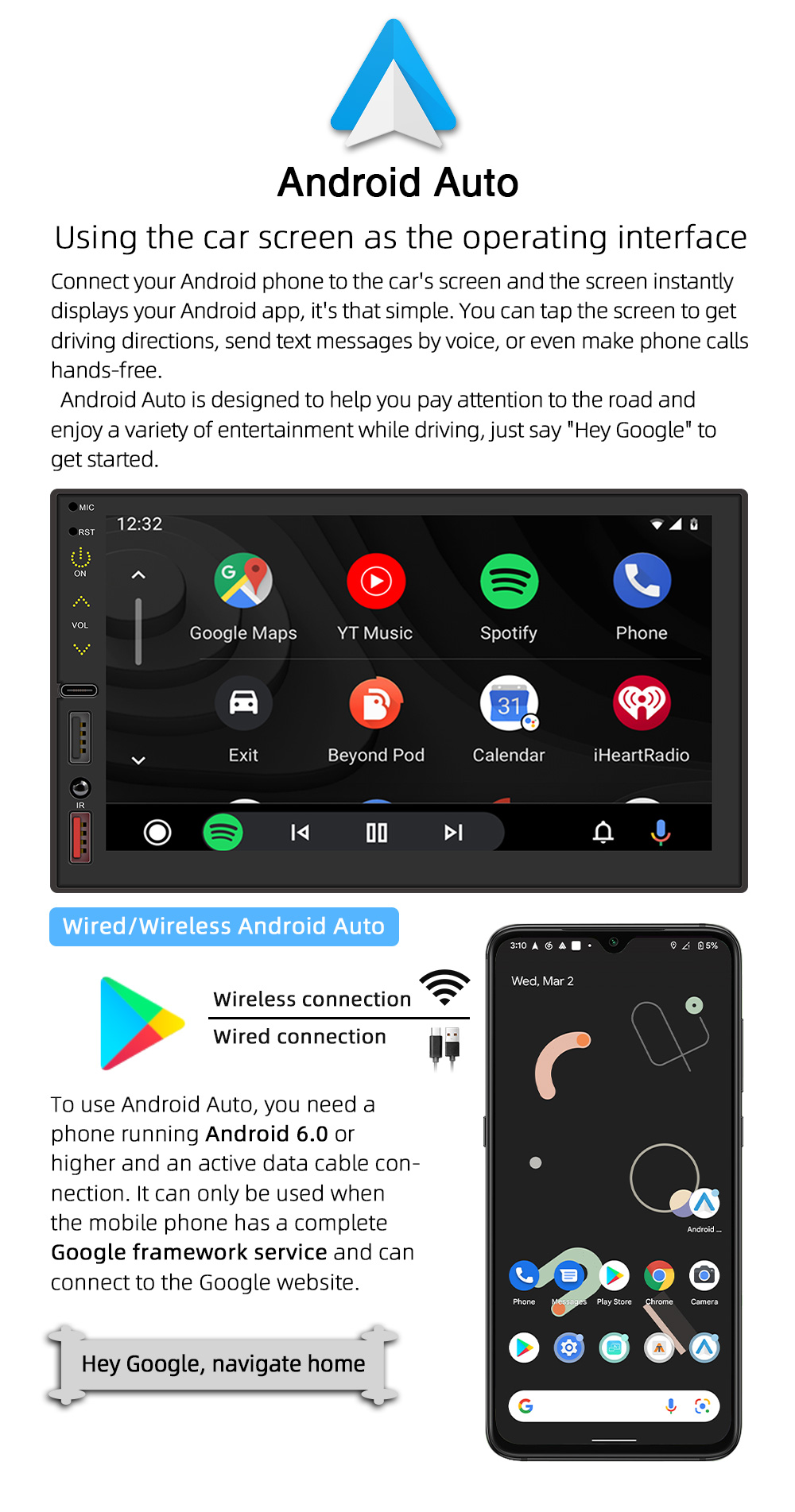

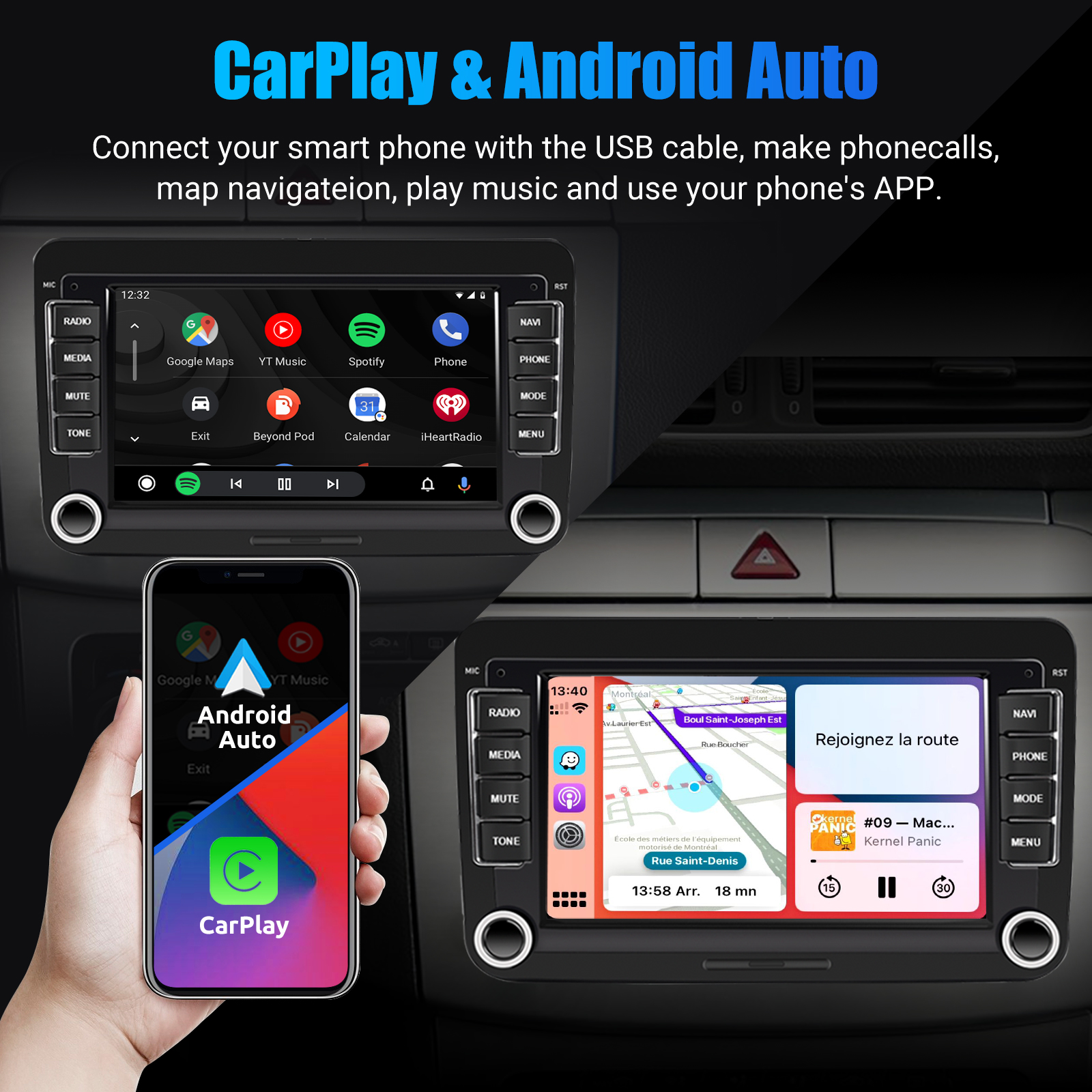

🚗【Built-in Carplay & Android Auto】Wireless Carplay and Android Auto function, no need to connect USB cable, you can use the following function in your car: Maps / Music / Calls. You can also synchronize data from your mobile apps: GPS Maps, Spotify, iTunes, etc. and use them online! Supports split screen, so you can listen to music and use the browser at the same time!

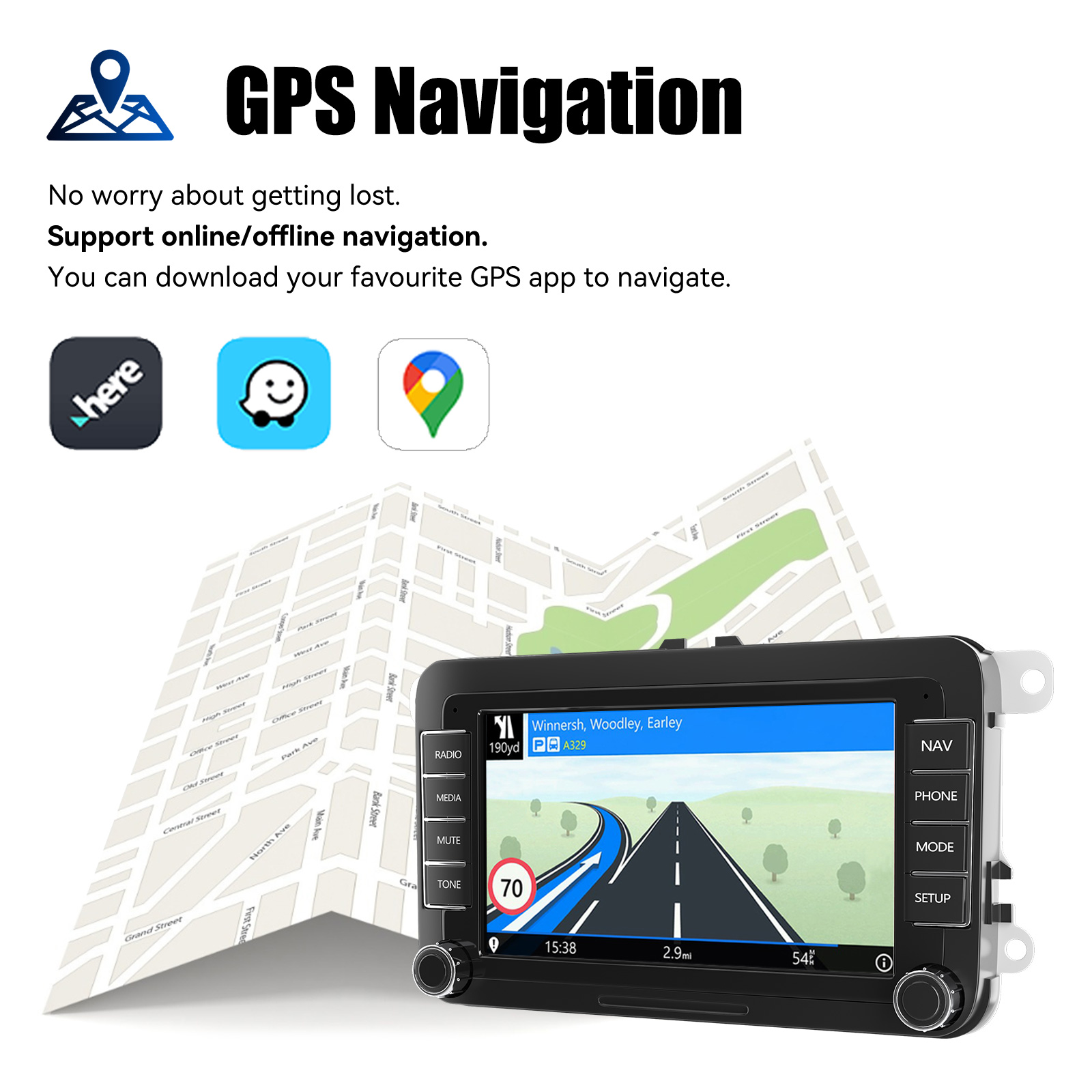

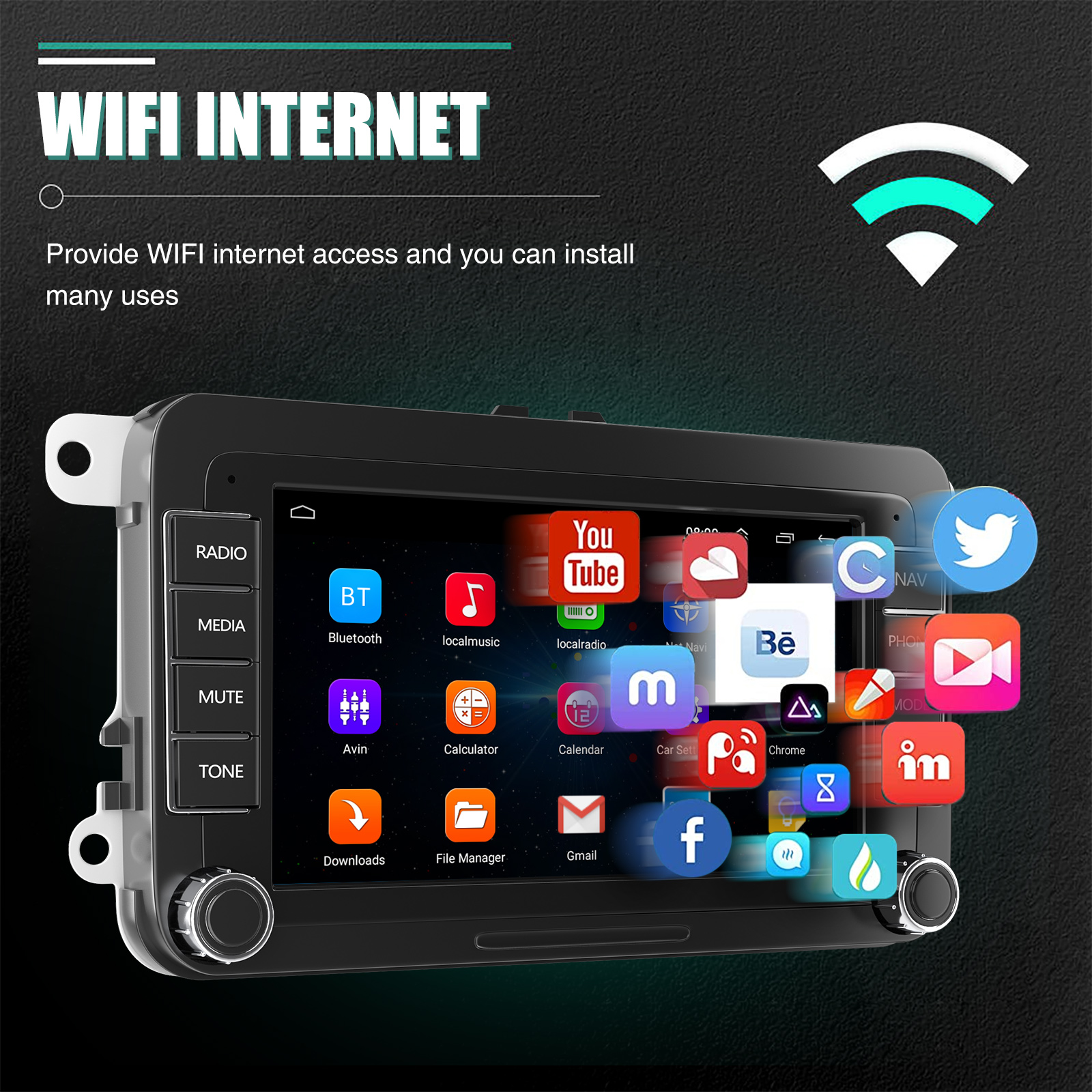

🚗【STANDARD FEATURES】 Online and offline GPS navigation, Wi-Fi connection, Bluetooth hands-free calling, FM RDS radio reception, OBD2, steering wheel controls, 1080P playback (1024*600 pixels), multimedia music streaming, quality adjustment, DAB+ support (adapter: B0B3D7P1GY), USB drive, reverse function (with free CVBS rearview camera (CVBS: B098DF8FNS OR AHD: B09SNYJ1DG))

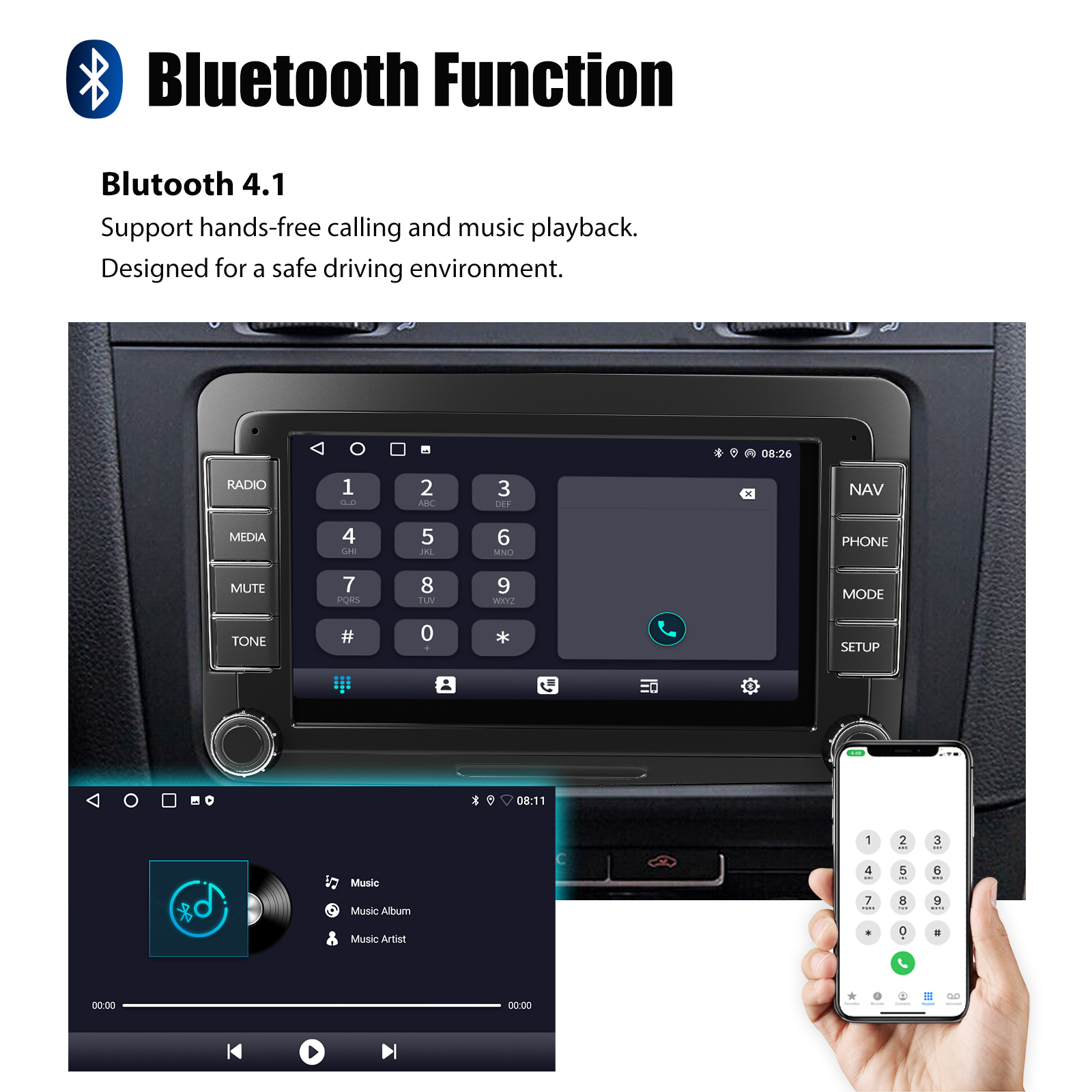

🚗【Multiple Media Playback Methods】Built-in microphone, iOS and Android mobile Bluetooth hands-free. High quality digital stereo FM tuner (RDS), can search for radio stations automatically/semi-automatically and accurately. You can control the volume of each speaker beforehand. Also, if you think the called voice is low, you can connect the external microphone in the package. It will provide a safer experience for your ride.

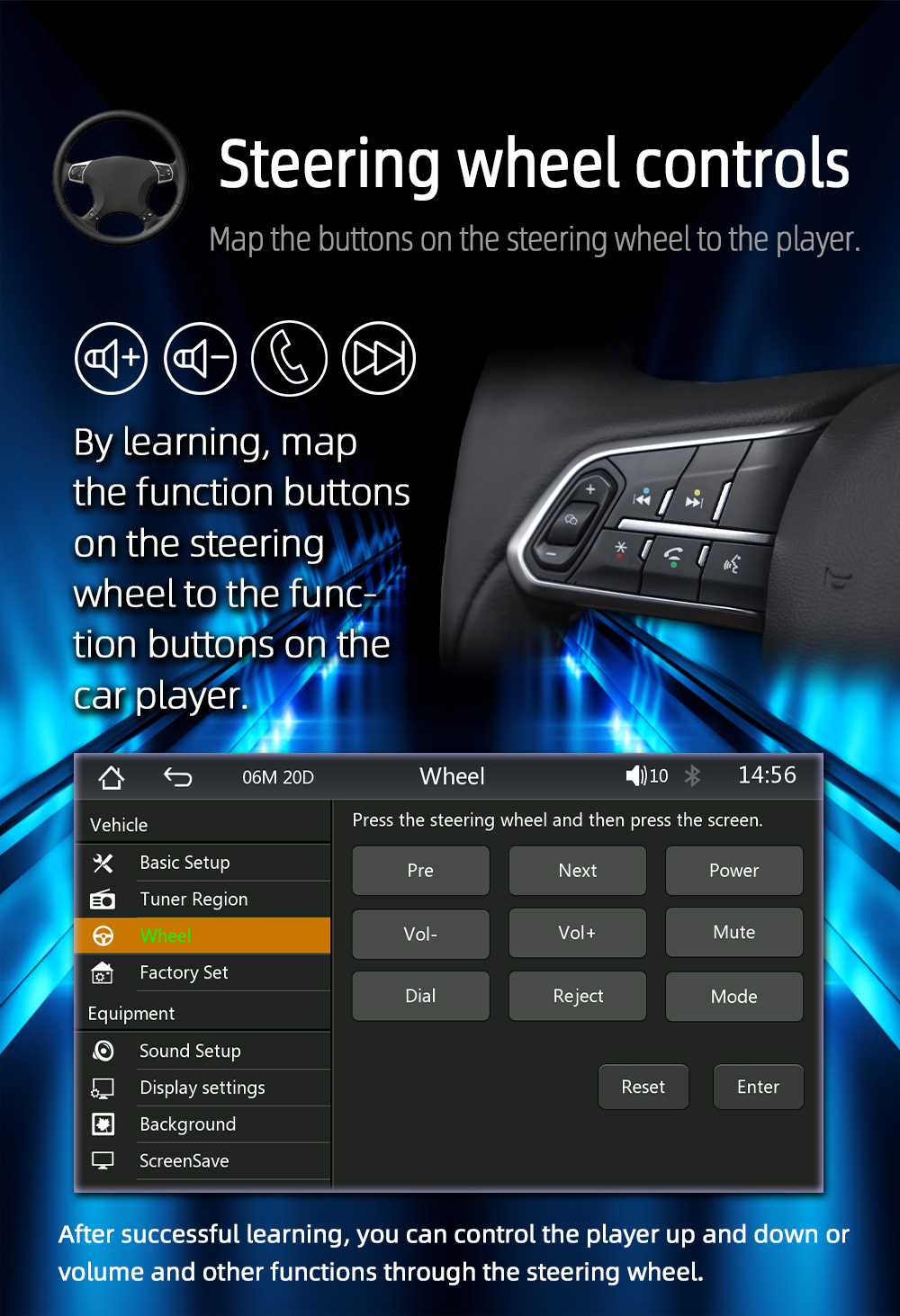

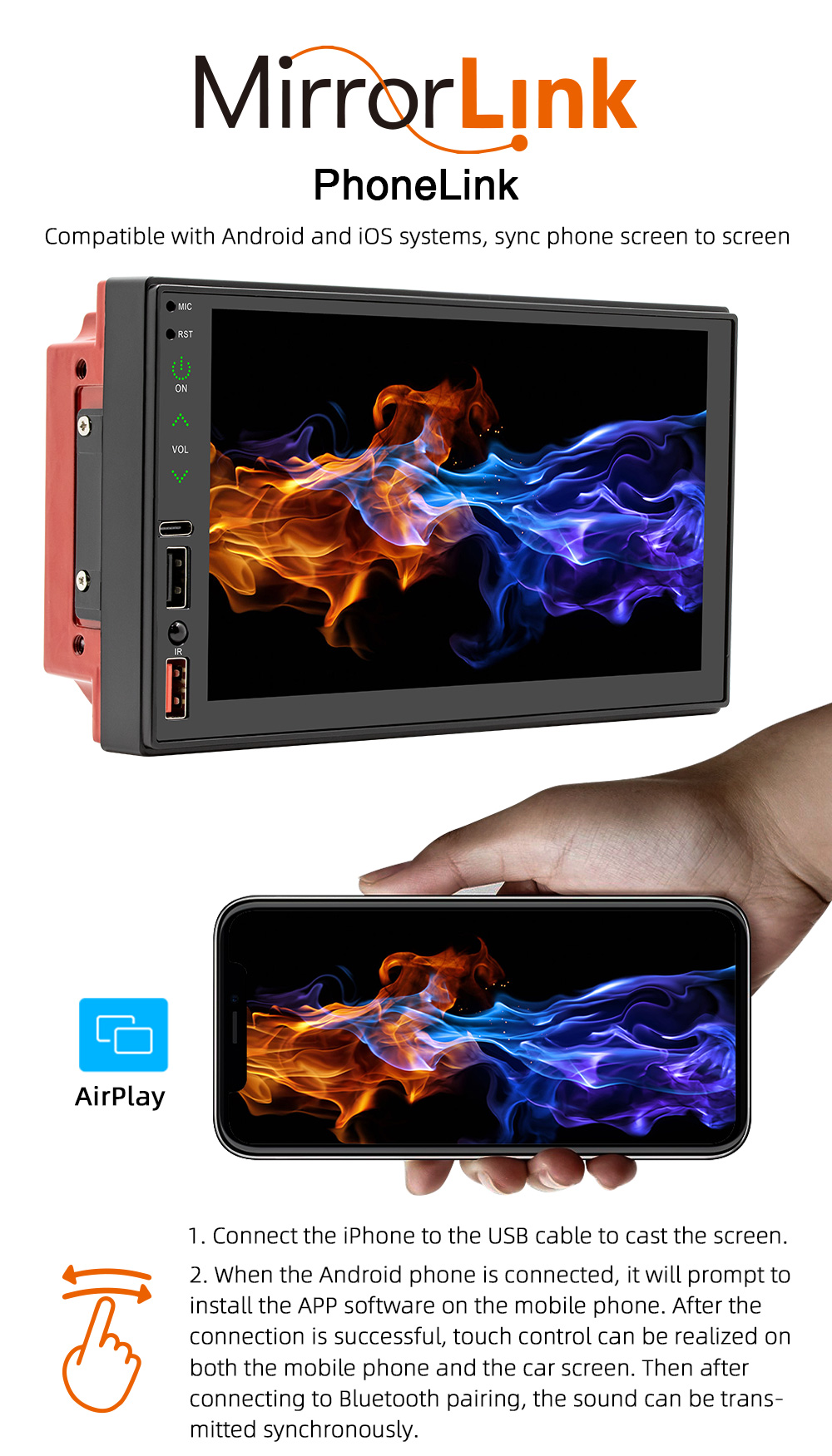

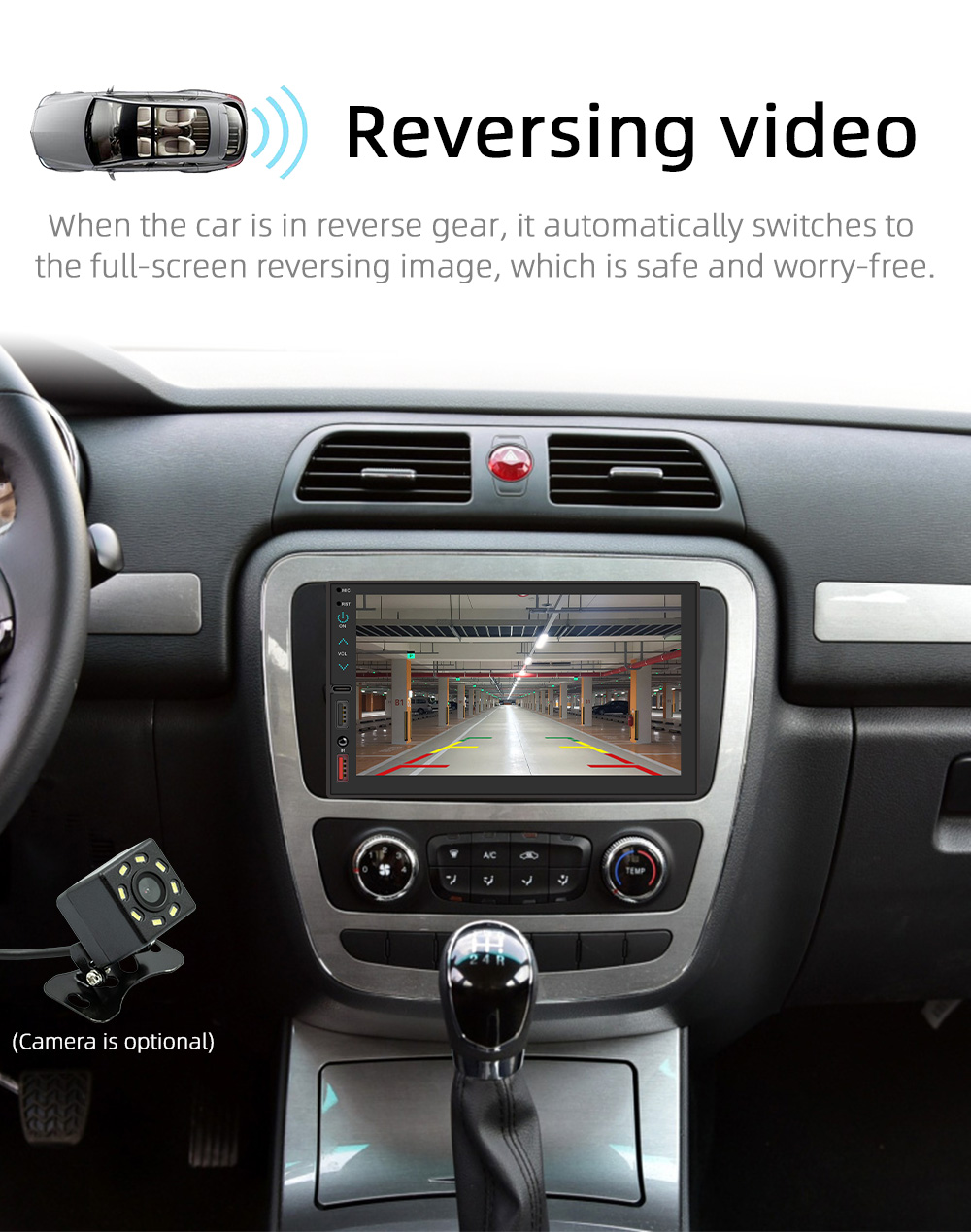

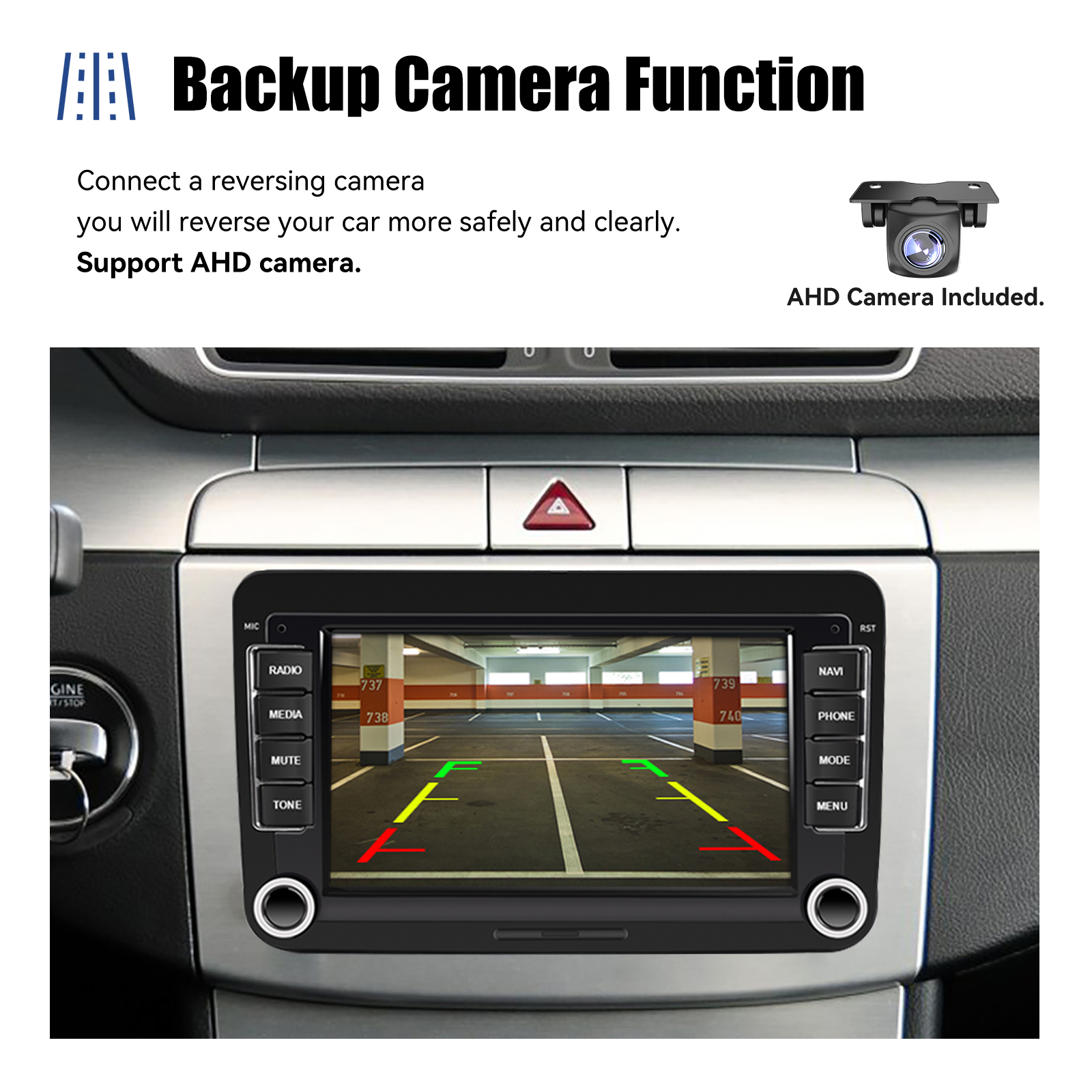

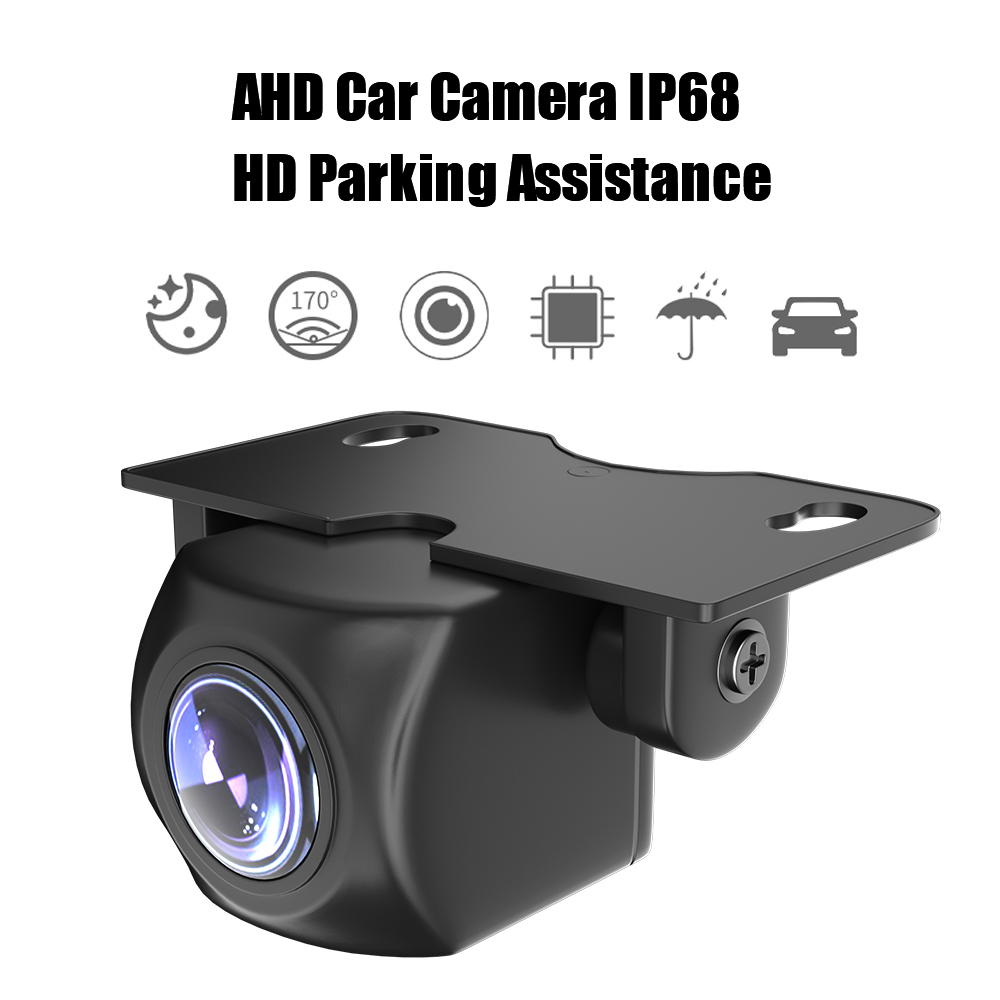

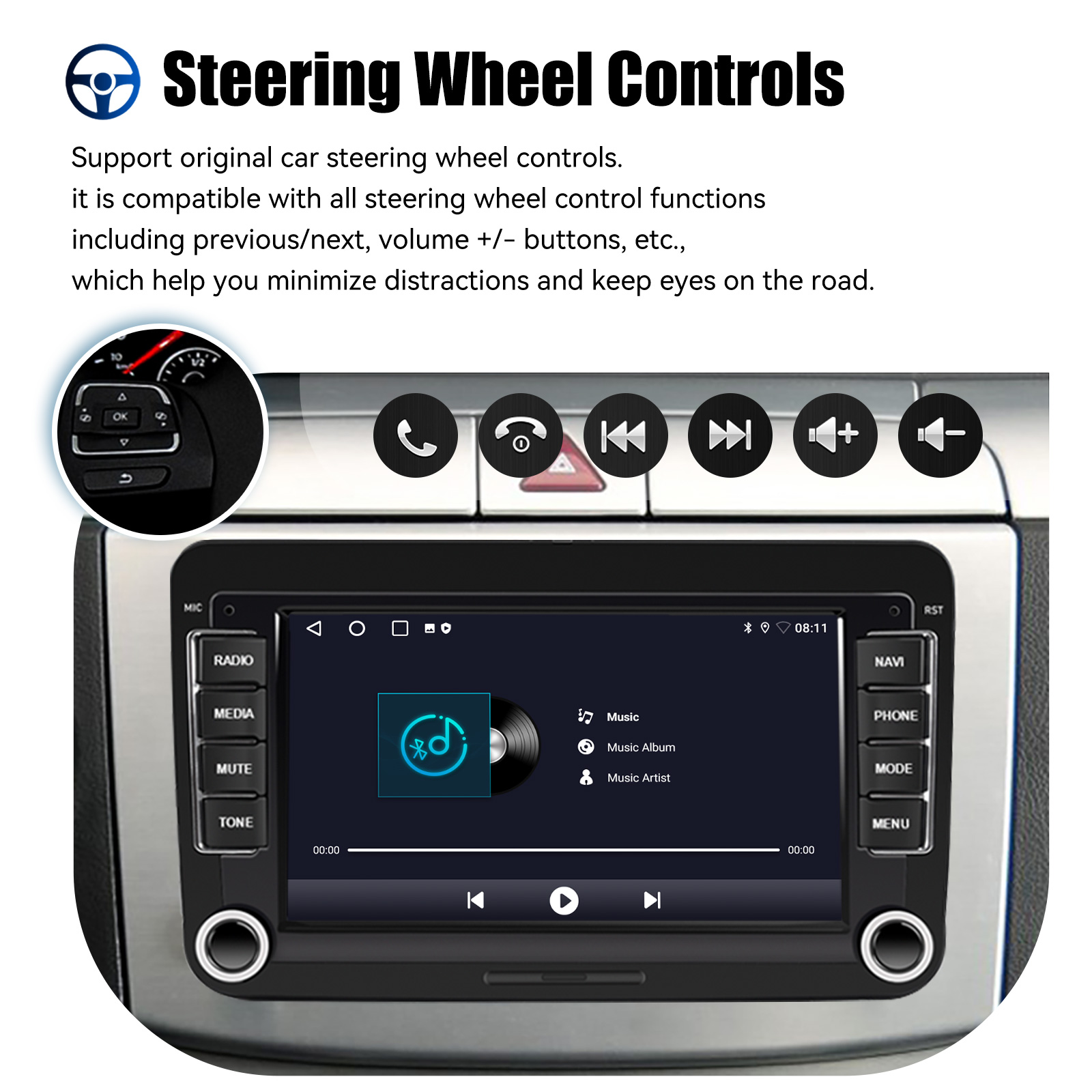

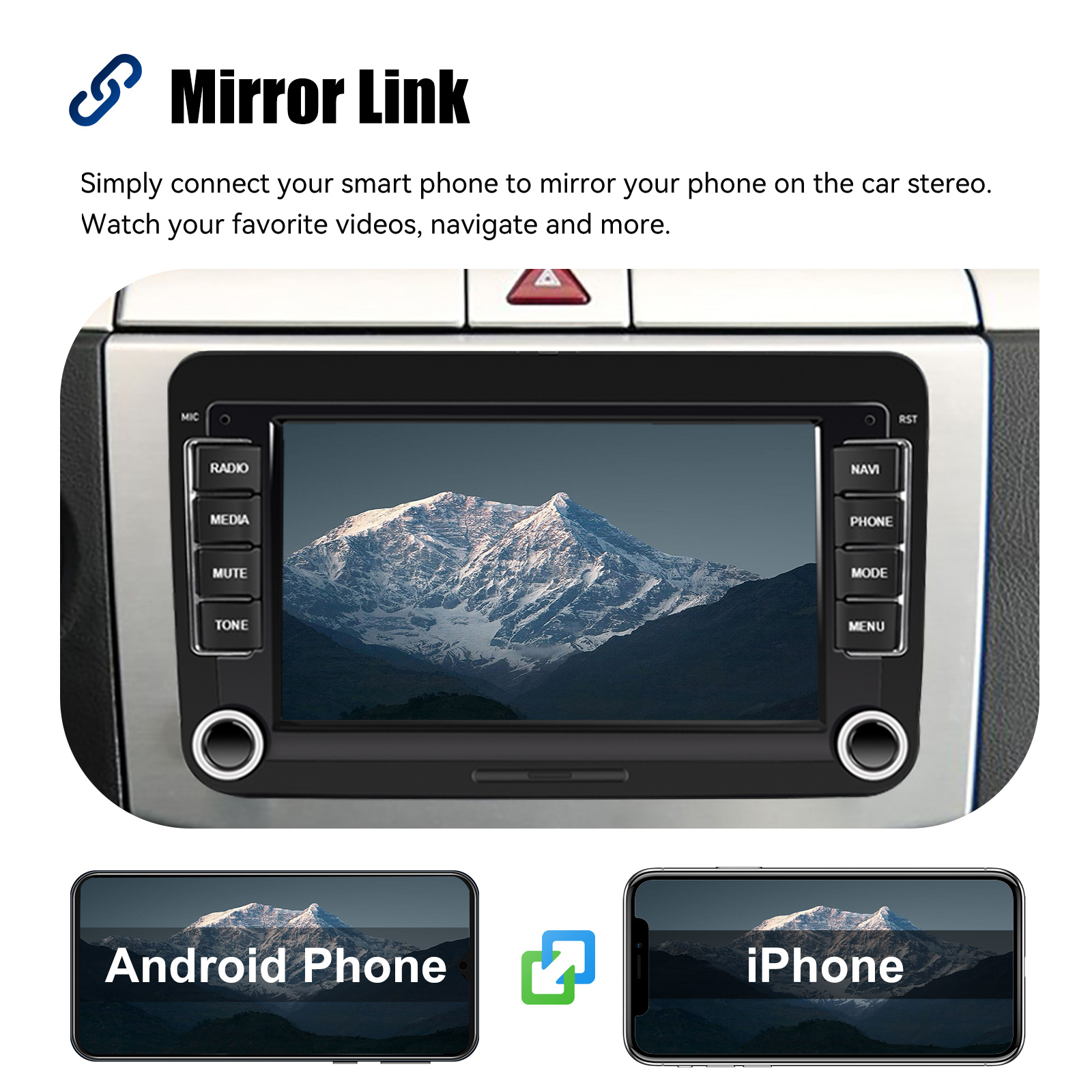

🚗【Super convenient functions】①Reversing assistance: you can connect the reversing camera (included), the reversing camera can provide you the assistance. ②Mirror Link: It is suitable for Android 4.0-10.0 and iOS 15.0 and below version cell phones. ③Steering wheel controls: You can make calls, adjust the volume or change songs more safely.

🚙【 Subwoofer Output&EQ Settings】Support subwoofer output, Support the EQ Settings with the 15-band graphic equalizer. Build in pop, rock, jazz, classical, flat, user, voice, sound delay. Multiple customization options let you adjust the audio experience to your liking.

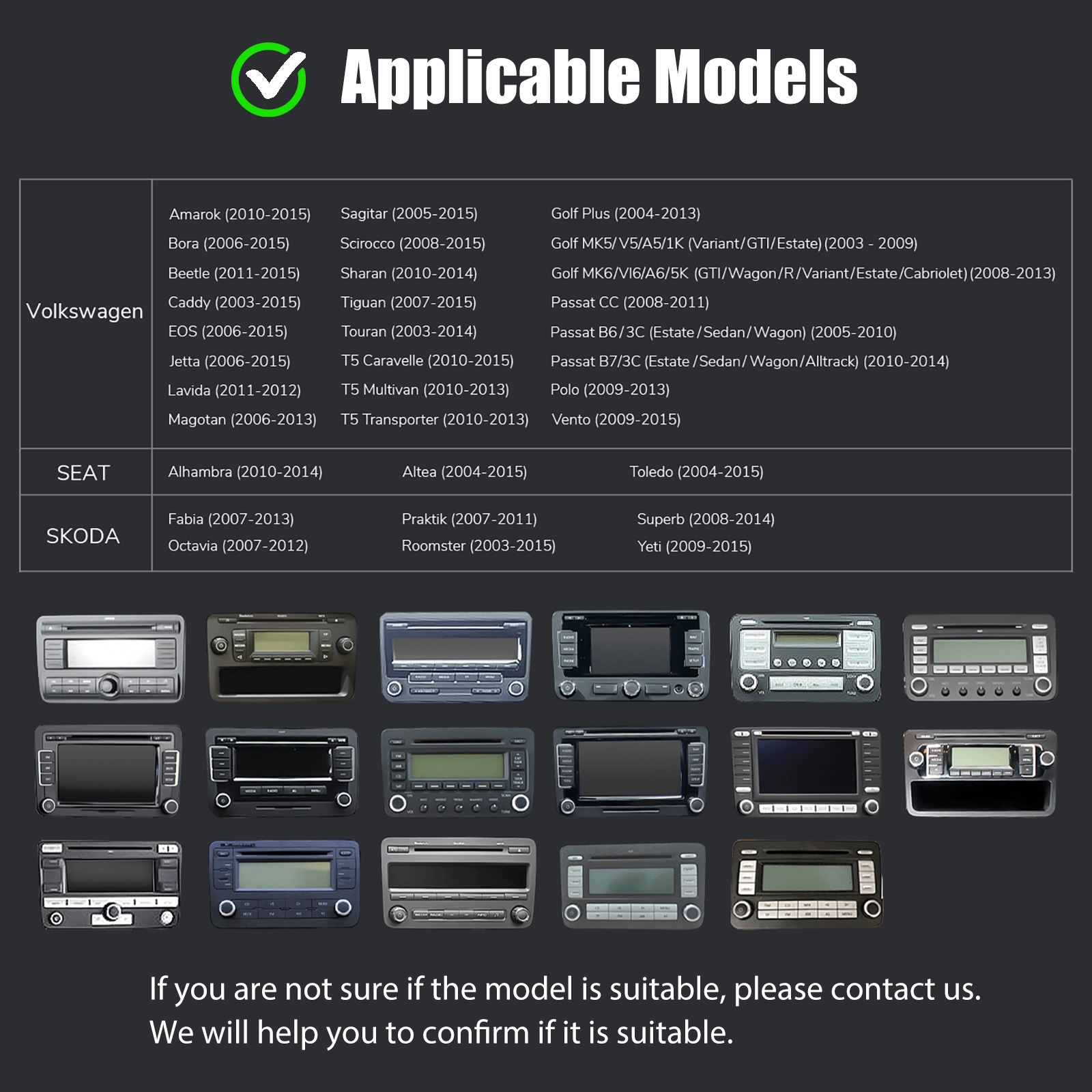

OE reference number(s) & OEM reference number(s):

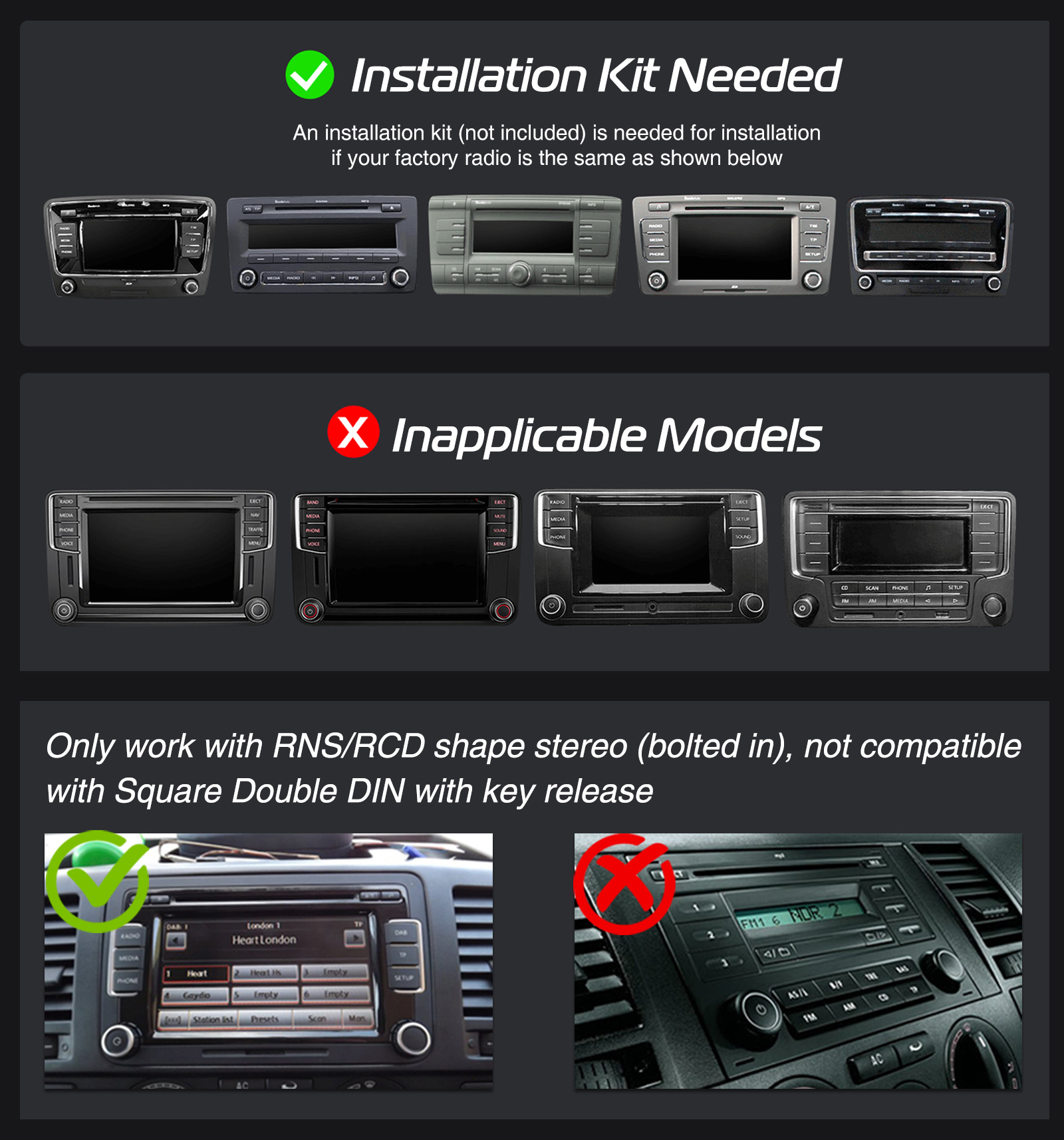

RCD200, RCD300, RCD310, RCD330, RCD500, RCD510 RCD315

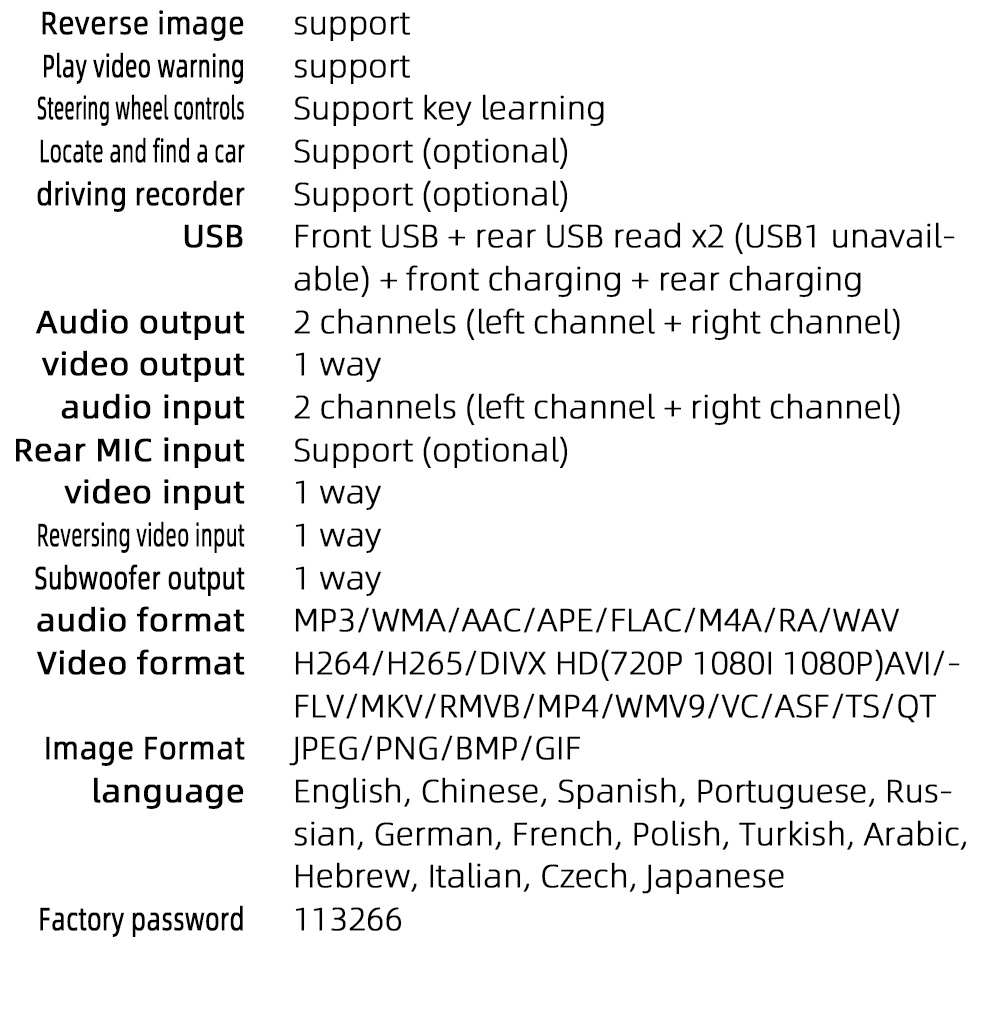

Technical specifications:

System: Android 15

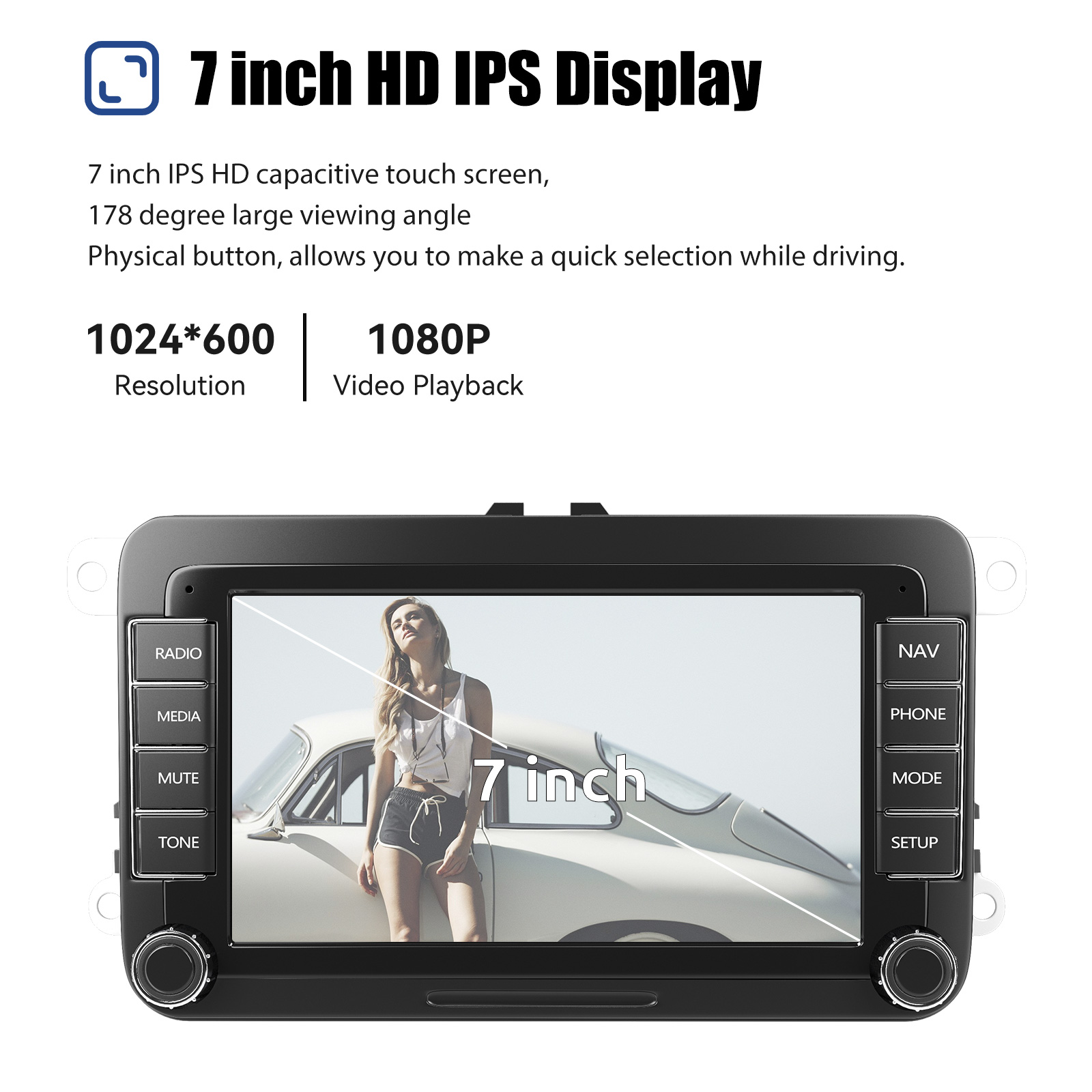

Screen: 1024x600 IPS capacitive touch screen, 178° large viewing angle
CPU: Cortex A7 1.3GHZx4
Memory: 4 GB (RAM) + 64 GB (ROM)
Radio band: FM

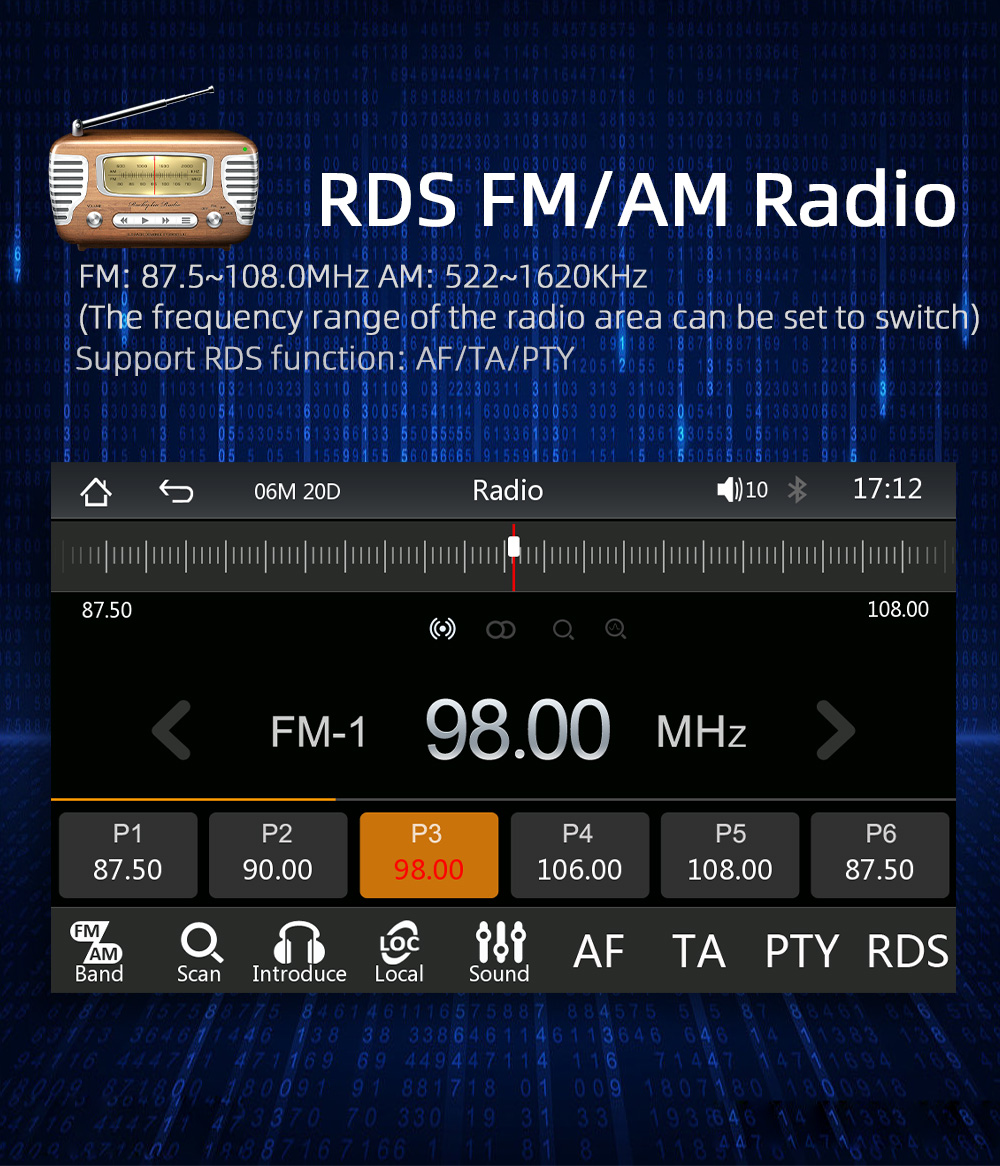

Radio frequency: FM 87.5M-108M

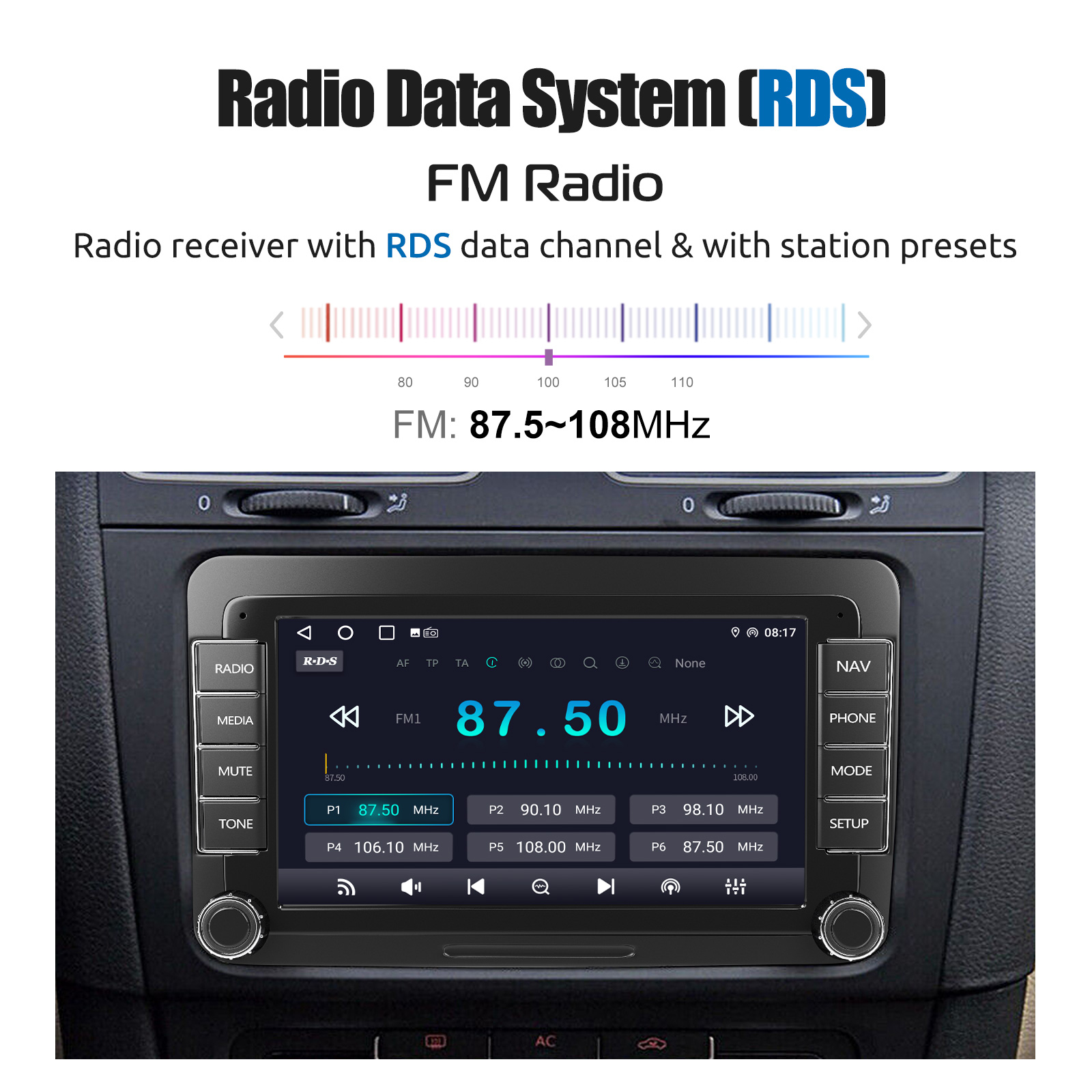

Radio Data System (RDS): RT, AF, TA provides all the information you need on the FM channel.
Mosfet output stage: 4 x 45 watts for maximum power
Bluetooth: 4.0

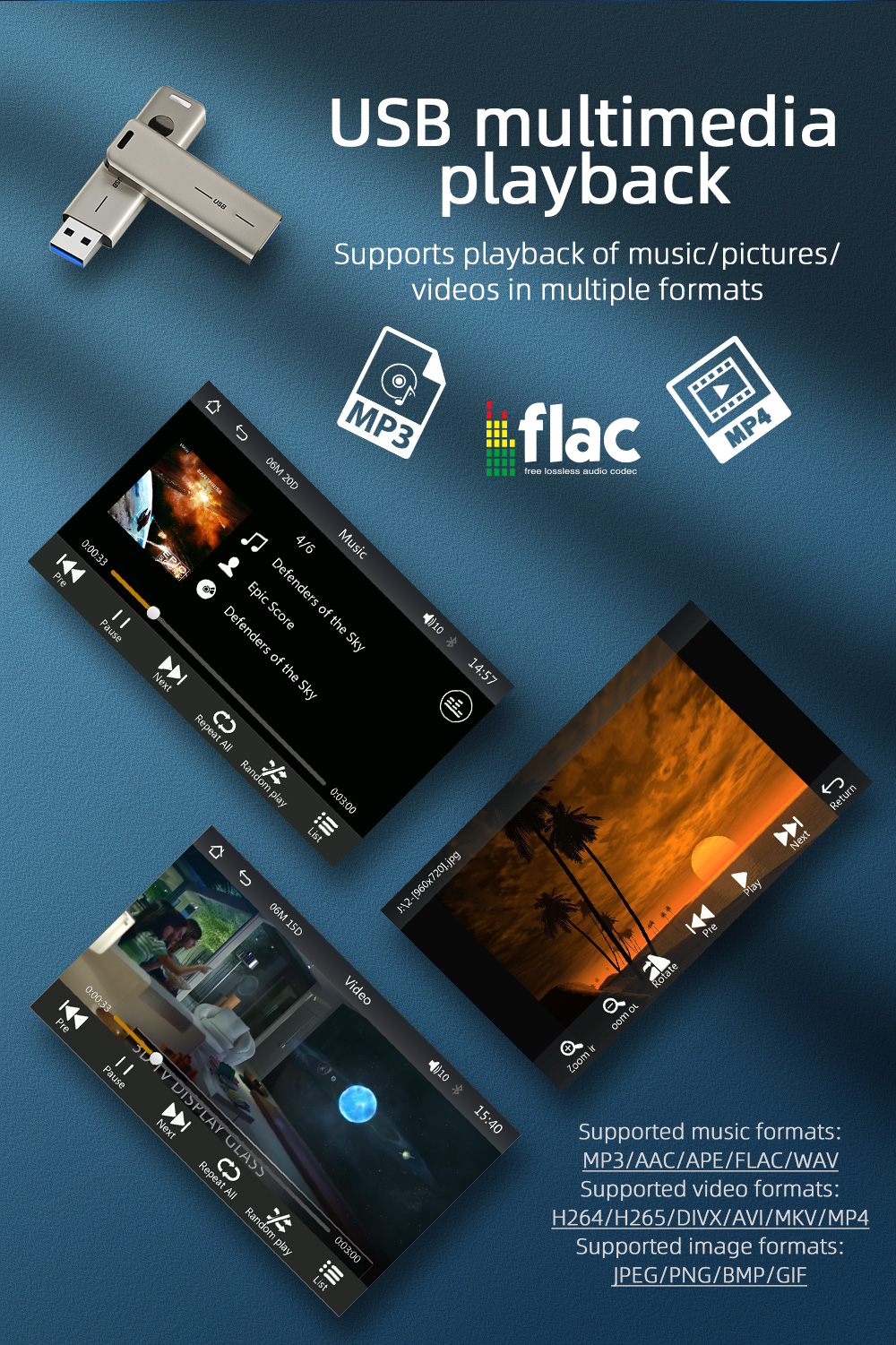

Audio format: MP3, FLAC, APE, WMA, WAV, AAC, AMR
Video format: AVI, ASF, MP4, MOV, MPGMPEG1 / 2/4, VOB, MKV, FLV, TS, WMV, RMVB, 3GP
OSD menu languages: English, German, French, Italian, Spanish, Portuguese, Russian, Turkish, Polish ...
Working voltage: 12V

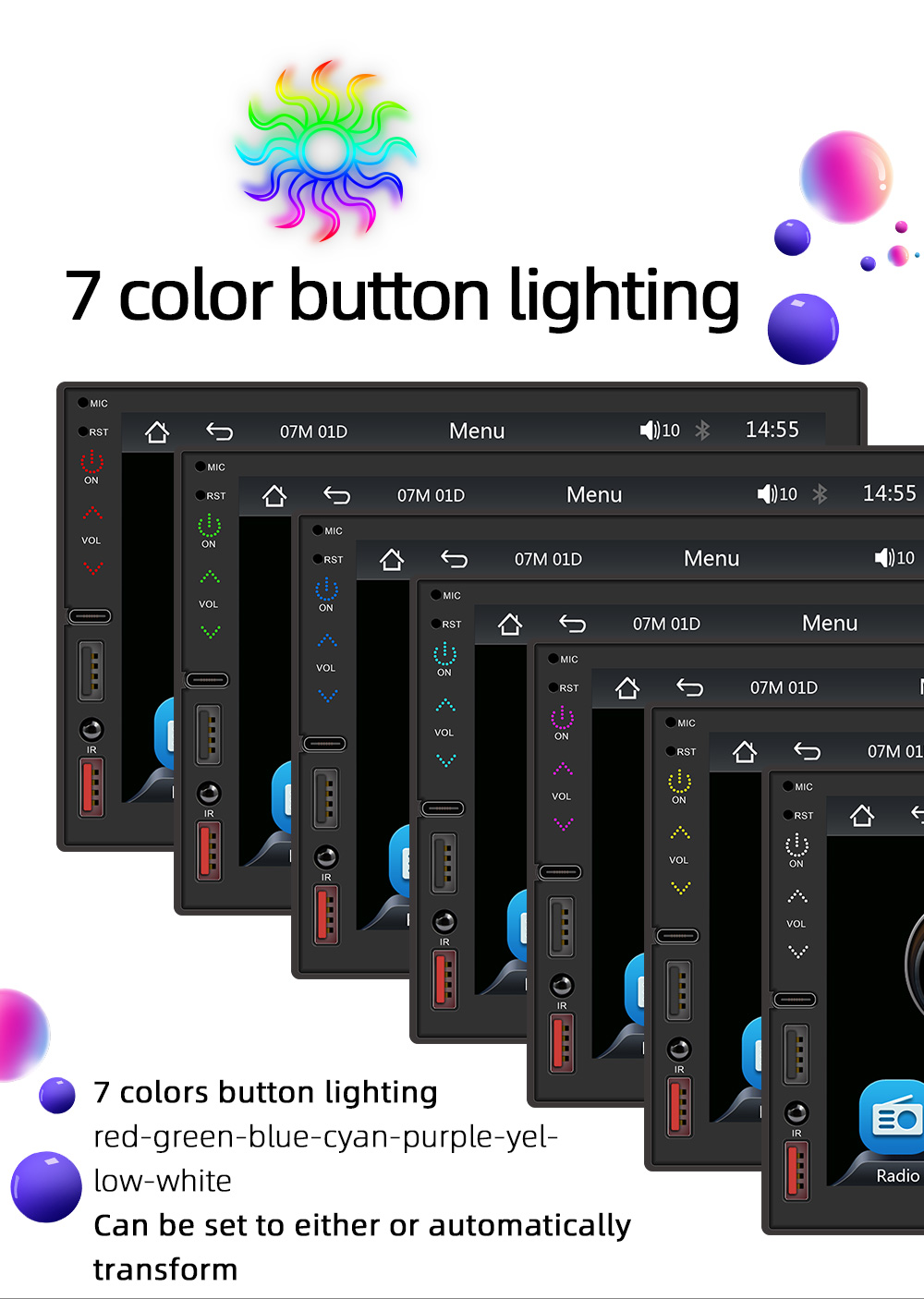

Key illumination: RED

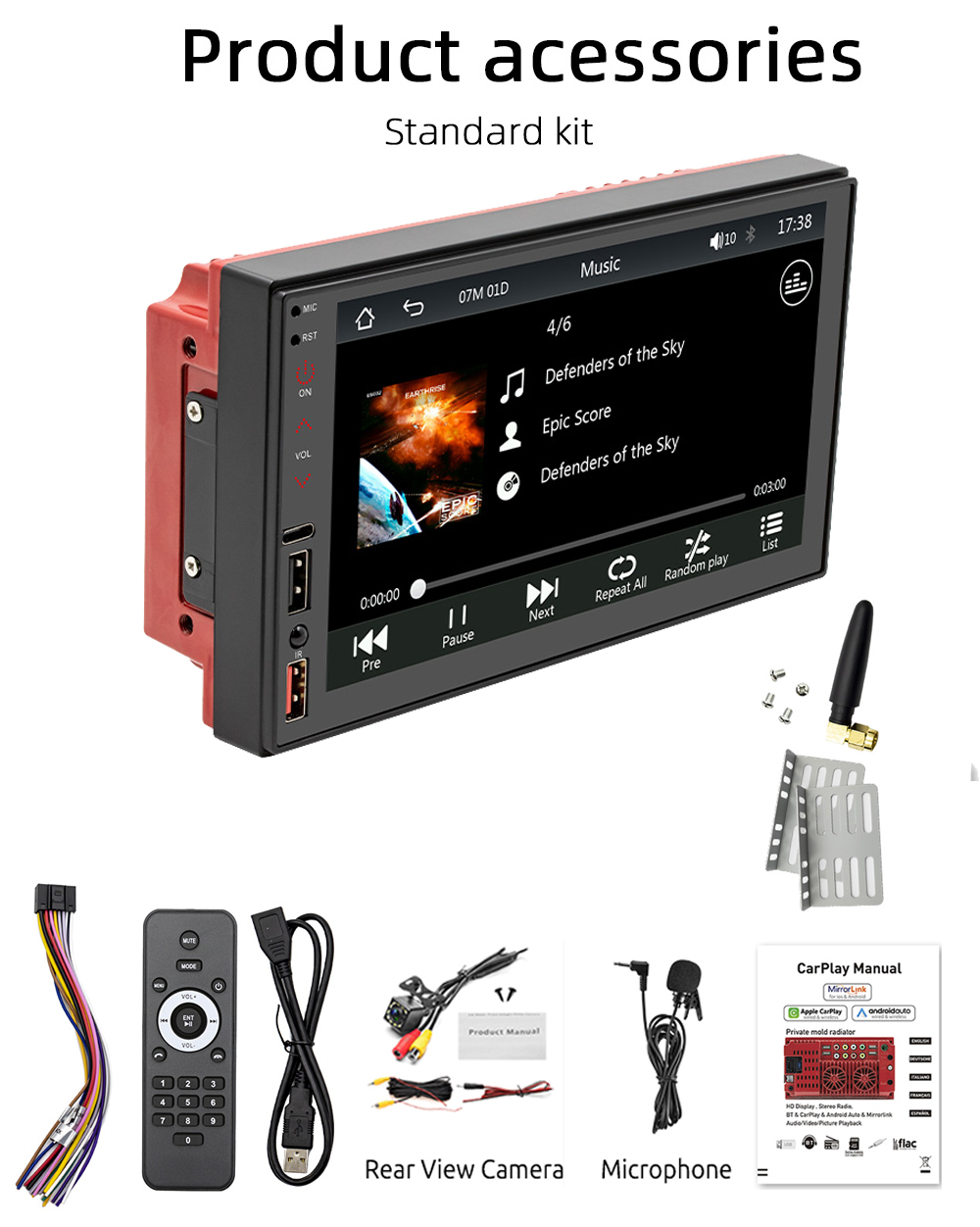

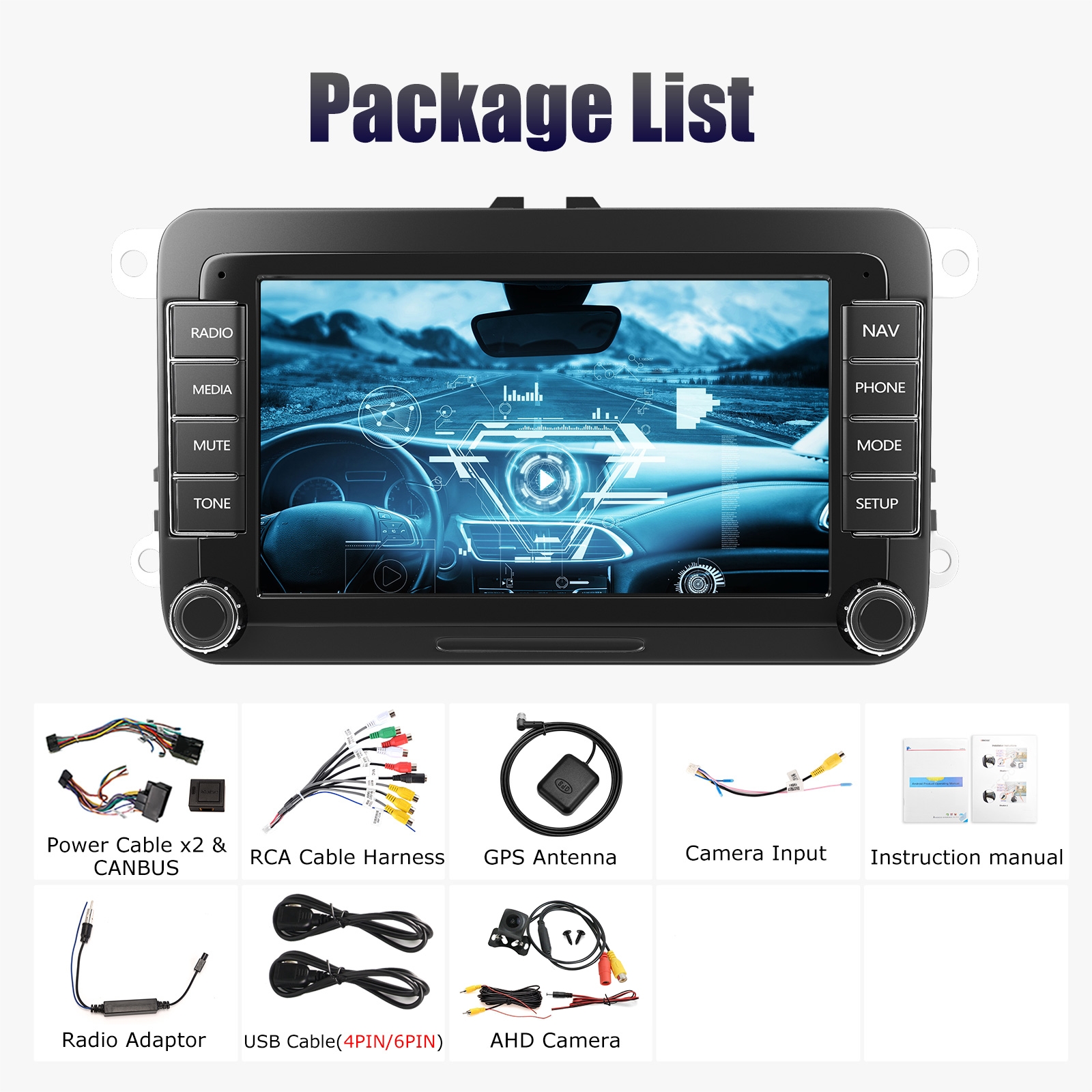

<Package List>

1 x 2 DIN Car Radio
1 x Radio Frame

1 x GPS Antenna

1 x Power Cable

1 x CANBUS Box

1 x Radio Antenna adapter
1 x Original USB Port Adapter Cable

1 x USB Cables

1 x Camera Input Cable

1 x RCA input / output

1 x User Manual

Q1：radio not power on/not shut off/power leakage/failure to power off

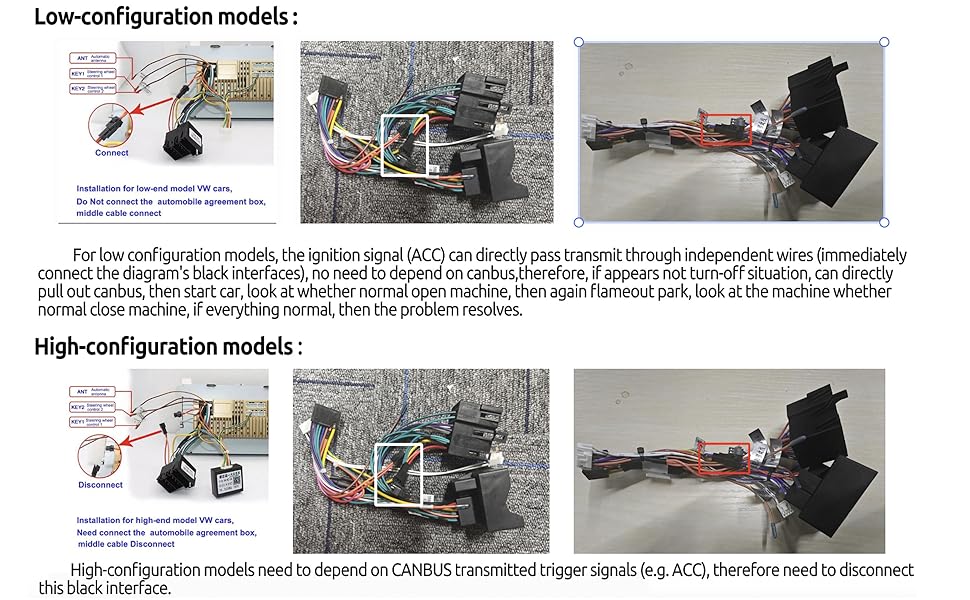

A1：Canbus box connection error, need install Canbus according to picture above

Q2：steering wheel controls malfunction

A2：Disconnect the black small connector on the power cable
