OBDSTAR iScan SEA-DOO Marine Marine Diagnostic Equipment for BRP SEA-DOO
ISCAN SEA-DOO (MARINE) is a portable tablet which has super performance and industrial appearance design specialized for SEA-DOO. It is a new generation of intelligent marine diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.
Note: It supports diagnose only, can't do key progarmming.
Functions
1. Android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.
8.Support multi-languages: English (EN), Spanish (ES), Portuguese (PT), French (FR), German (DE), Italian (IT),
(The default language is English, please register the device before changing language.
9. Two years free update. 80 USD for update per year. (If you renew it before it expires, the price is 64 USD)
Advanced Function
1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with ISCAN to make marine diagnosis more accurately and efficiently;
2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyze faults.
3. Support Device Configuration, Maintenance Notification Setting and other special functions.
Diagnostic support series
Support Most Models up to 2025. (Depending on the specific model, year and function, not all models be supported.)
Function Display-(From OBDSTAR Mobile App)
1) Main Page
2) Diag Socket/Diag Connector Location
Function Display-(From ISCAN)
1) Main Page/Brand Supported
2) Supported models
3) Data Flow Text/Waveform Diagram/Instrument Diagram
4) Special Functions

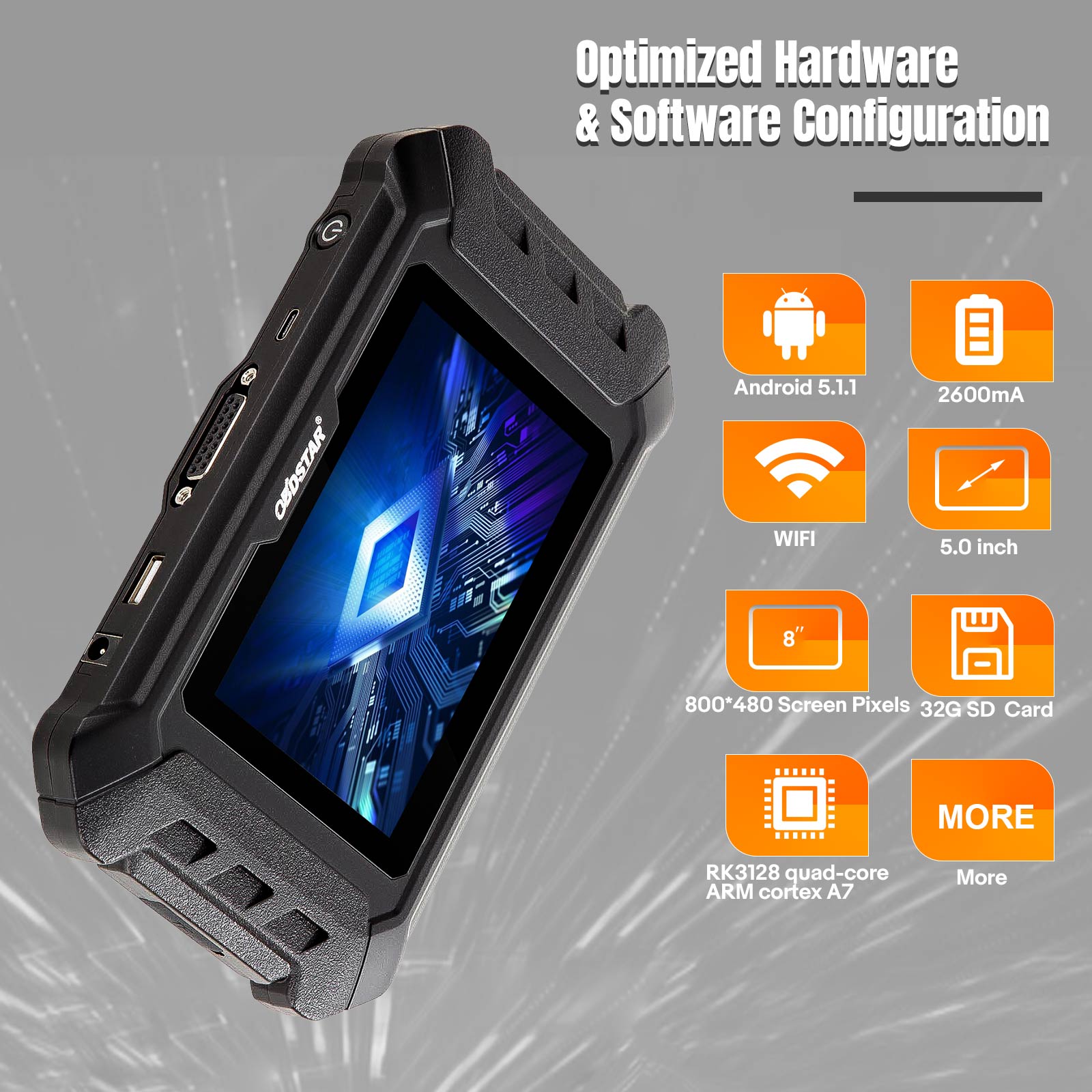

Specifications
Operation system | Android 5.1.1 |
CPU | RK3128 quad-core ARM cortex A7 |
Battery | 2600mA, rechargeable polymer lithium battery |
Extension memory card | 32G micro SD (TF) card supported |
LCD | 5.0 inch |
LCD resolution | 800*480 |
Touch screen | Capacitive touch screen |
Wifi | Supported |
Working temperature | -20℃~55℃ (14℉~131℉) |
Storage temperature | -20℃~70℃ (-4℉~158℉) |
Weight | About 700g |
Dimension | 198mm*115mm*31mm |

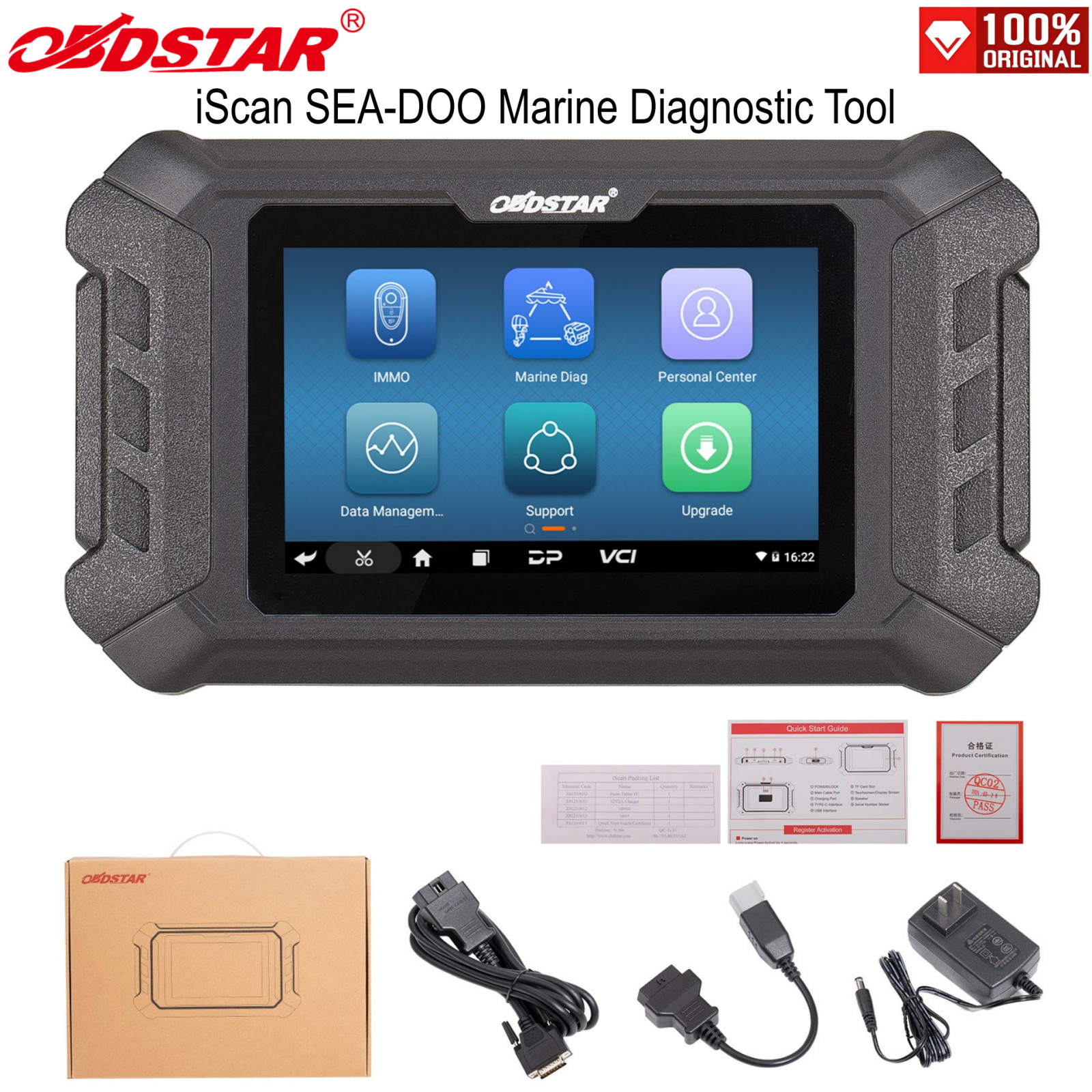

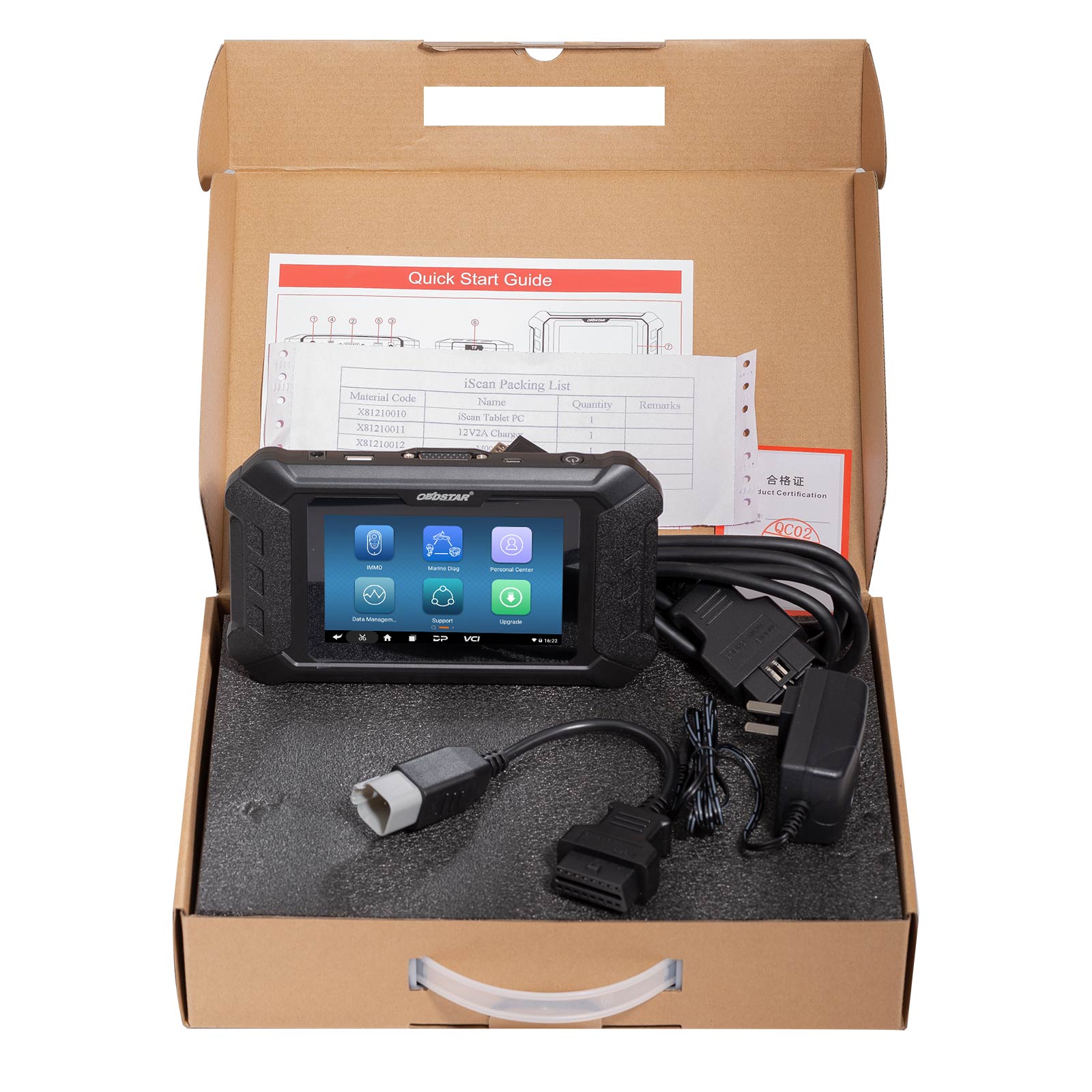

Package includes:
1pc x ISCAN SEA-DOO (MARINE) Tablet
1pc x M001B Main Cable
1pc x M043 BRP(SEA-DOO) Adapter Cable
1pc x 12V2A Charger
