VIAIR 00085 85P Portable Compressor Kit Sport Compact Series 12V 60 PSI 1.26cfm

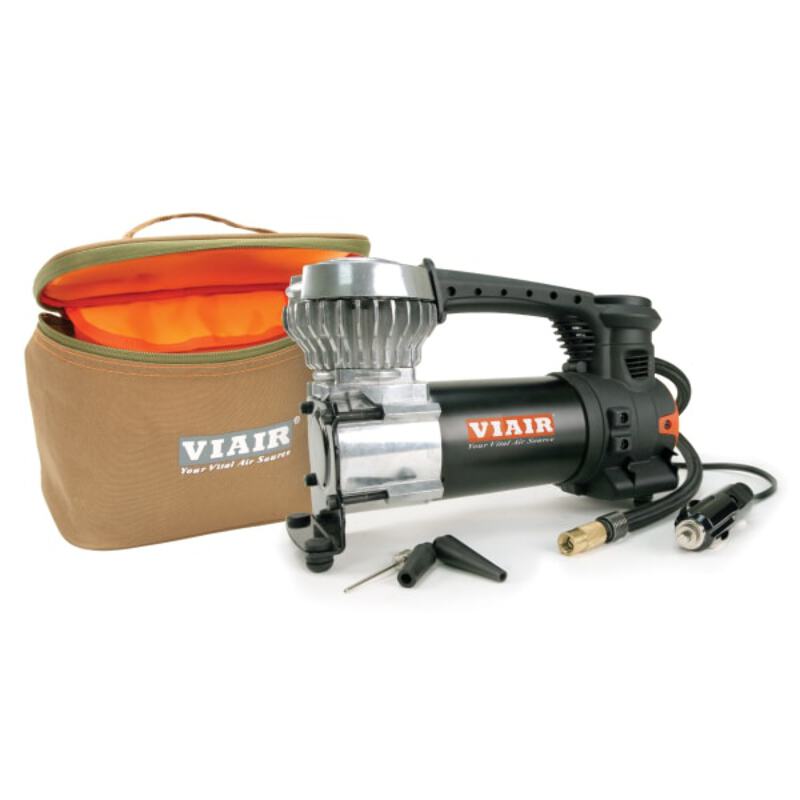

85P is a small portable compressor with a built-in LED work light, capable of inflating up to 31-inch tyres by simply plugging into your cigarette lighter power port (14.5 amps max.). Connect the screw-on tyre chuck to a tyre valve stem before turning the unit on. tyre pressure can be monitored using the gauge incorporated into the top of the unit. FEATURES – 100 PSI Pressure Gauge – LED Work Light / Power Indicator – Solid Brass Twist-on Tire Chuck – Accessory Power Plug – 3 pc. Inflation Tips Kit – Deluxe Carry Bag SPECIFICATIONS – 12-Volt – Permanent Magnetic Motor – Duty Cycle: 20 min. @ 30 PSI – Max. Working Pressure: 60 PSI – Max. Amp/Watt Draw: 15A/180W – Ingress Protection Rating: IP53 – Max. Ambient Temp: +158°F – Min. Ambient Temp: -4°F – Dimensions: 9.1″L x 3.1″W x 5.6″H – Net Weight: 4.30 lbs. – Power Cord Length: 10 ft. – Air Hose Length: 3 ft. PERFORMANCE DATA PSI CFM A BAR LPM A 0 1.26 13 0 35.7 13 10 1.22 13 1.0 33.5 13 20 1.13 13 2.0 29.3 14 30 1.02 14 3.0 24.8 15 40 0.92 15 4.0 20.5 13 50 0.80 14 60 0.71 13 * Supply Voltage: 13.8 Volts FILL RATES 195/70R14 FILL RATE 0 to 30 PSI 2 min. 10 sec. (±10 sec.) 15 to 30 PSI 1 min. 10 sec. (±05 sec.) 225/60R18 FILL RATE 0 to 30 PSI 3 min. 00 sec. (±10 sec.) 15 to 30 PSI 1 min. 35 sec. (±05 sec.) 31″ X 10.5″ FILL RATE 0 to 30 PSI 4 min. 50 sec. (±10 sec.) 15 to 30 PSI 2 min. 35 sec. (±05 sec.)
