Portable Electric Vehicle Charger Type 1 Sae J1772 16A 32A Charging Cable Type 2 IEC62196-2 11KW EU Plug Controller Wall Box

Descriptions:

• 【Fast Charging】
  Designed to make EV charging quick and effortless.Utilizing the standard Type2 IEC 62196-2 or Type1 Sae J1772 charging protocol, this charging cable is compatible with all electric cars and plug-in hybrid. Compact and durable, it is the perfect charging cable for home use and with the cable that is long enough for most driveways or garages.

• 【Level 2 Portable Charger】
  The EV charger portable box would allow you to charge your electric vehicle, if you want to switch the current, please set it before plugging the charger into the car. Level 2 charging cable will offer you the fast charging speed in comparison to your car’s original charger.

• 【Well-designed】
  The special socket effectively prevents dust from entering the EV charger interface. Cable is sturdy and durable, suitable for use in various parking lots or family garages. It can be hung on the holder after use, which is flexible and convenient. When fully charged, the device will automatically power off.

• 【Quick & Easy Operation】
  When you are traveling or visiting relatives and friends, you don't have to worry about charging, because our chargers can be carried with the car and you can check every charging data by OLED screen on the charger. Simply connect the plug with the EV inlet, and then the charger will automatically detect the connection status and start charging.

• 【High Quality&Security】
  It is rugged and robust, equipped with over-current protection, over-voltage protection, under-voltage protection, leakage protection, overheating protection, waterproof rating of IP65 and other safety protection measures. The indicating light on the charging station helps to show the various stages of charging and to warn of possible errors.

• 【High Compatibility】
  Unlike normal EV chargers, our EV chargers are compatible with most electric cars.

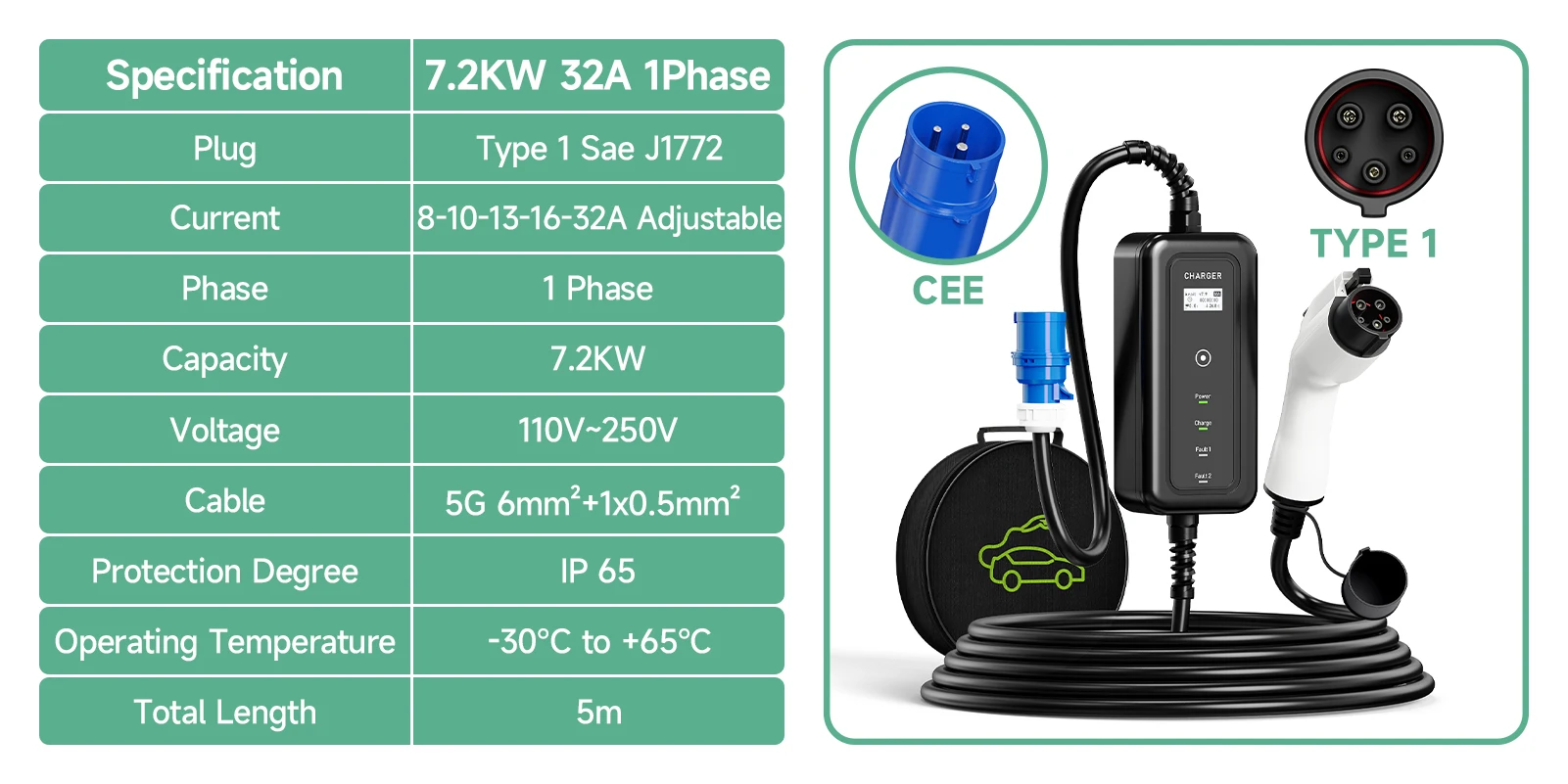

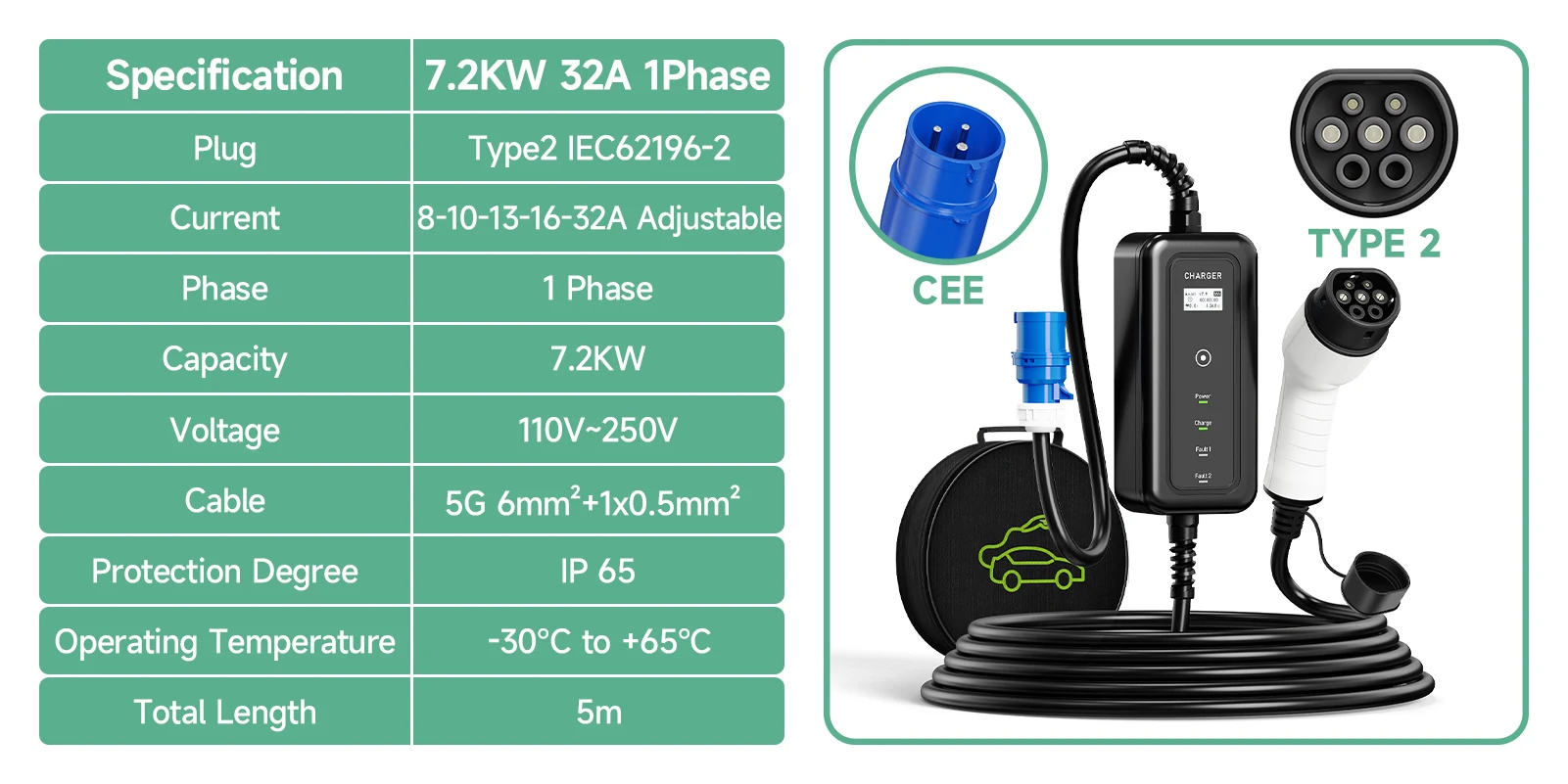

Main Features:

• Input power: 110V-250V

• Charging current: 10A-16A-25A-32A adjustable

• Output power: 7.2KW

• Protection level: IP65 (working state)

• Mechanical life: plugging and unplugging>10000 times

• Contact bushing: copper alloy, silver plated

• Number of phases: single phase

• Operating temperature: -30 °C ~ + 65 °C

• Cable length: 5 meters

Highlights:

• Aluminium alloy body：Provides excellent heat dissipation performance

• TPU wire：wear-resisting

• OLED display：Low temperature resistant environment

Control Box Function:

• Leakage protection

• Overvoltage or low pressure protection

• Overload protection

• Lightning protection

• Overheat protection

• Charging Current Adjustable.

OLED Display:

• Charging temperature

• Charging current

• Charging voltage

• Charging energy, KW/h

• Set current

• Charging speed (KW)
