1PC High Quality NZ-1 Manual Hand Dual-purpose Coil Counting and Winding Machine

Applicable to:

tape recorder heads, instrument coils, wires

Description:

1. Joystick

This winding is manually controlled, and simple winding work can be done by shaking the handle when working

2. Metal gear

Modified version upgrade steel gear, fine manufacturing, durable

3. Mechanical principle

The manual counting winding machine is driven by the driving gear of the crank handle to drive the main shaft, and the counter is counted by the driving gear without head gear transmission. The speed ratio of the main shaft and the counter shaft is 10:1. When the main shaft rotates 1, the counter shaft is 1/10 revolutions. That is, the number of letters in the counter is 1 revolution.

4. Metal manufacturing

The base of the whole machine is made of metal, made with fine craftsmanship, accurate counting, and stable performance

Product operation:

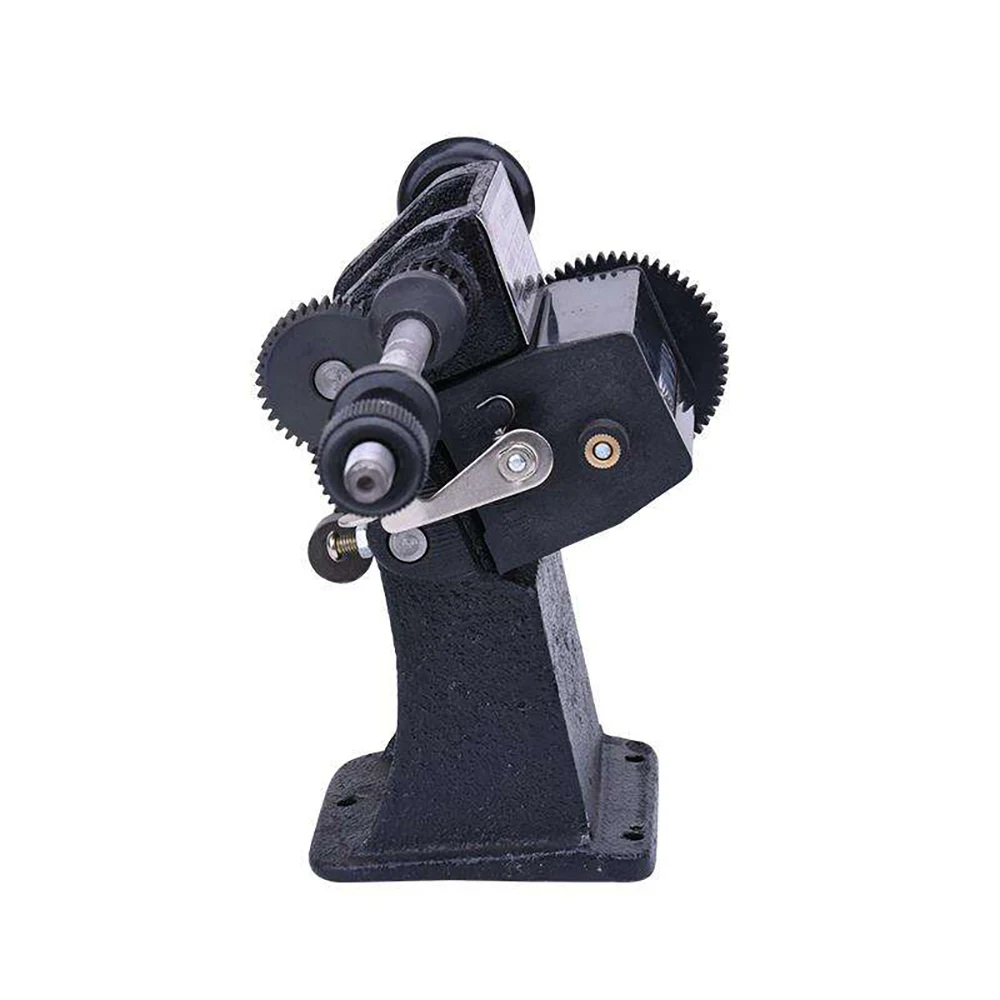

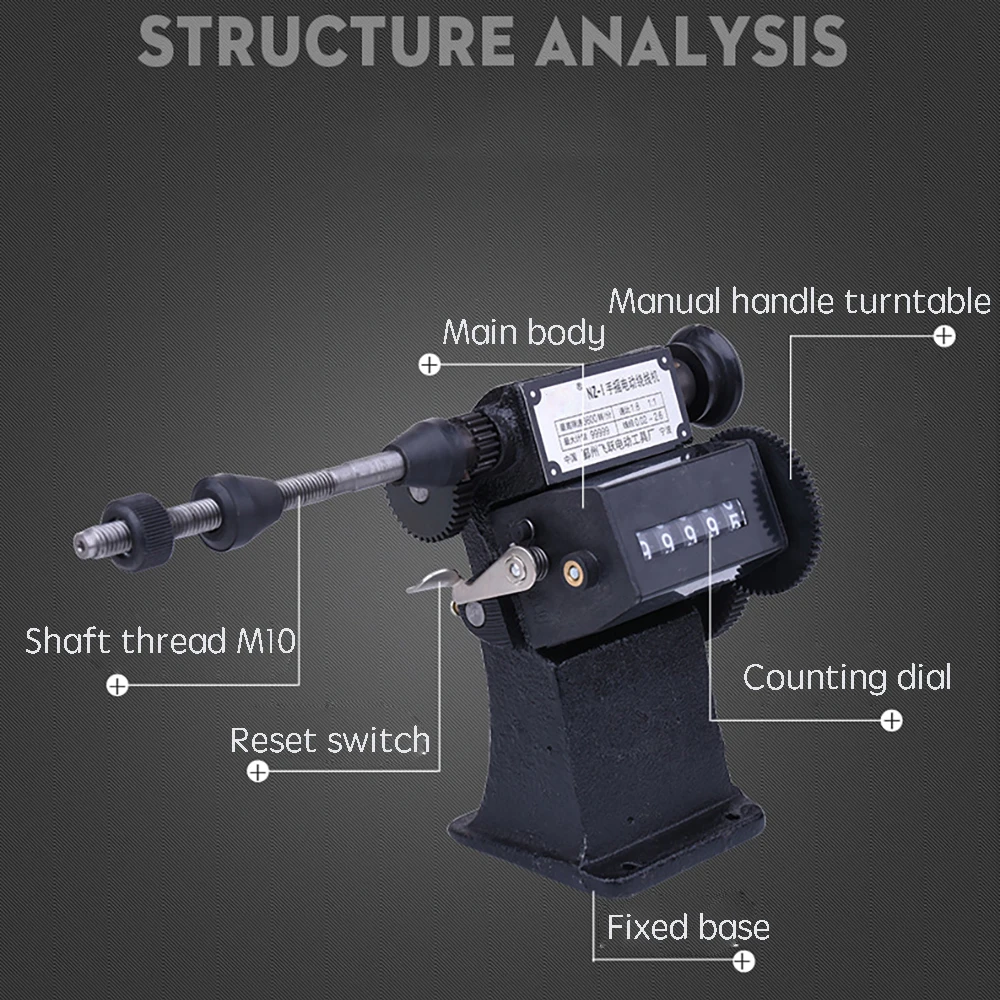

1. Reset switch

Use your left hand to move the counter reset handle to reset to 00000.

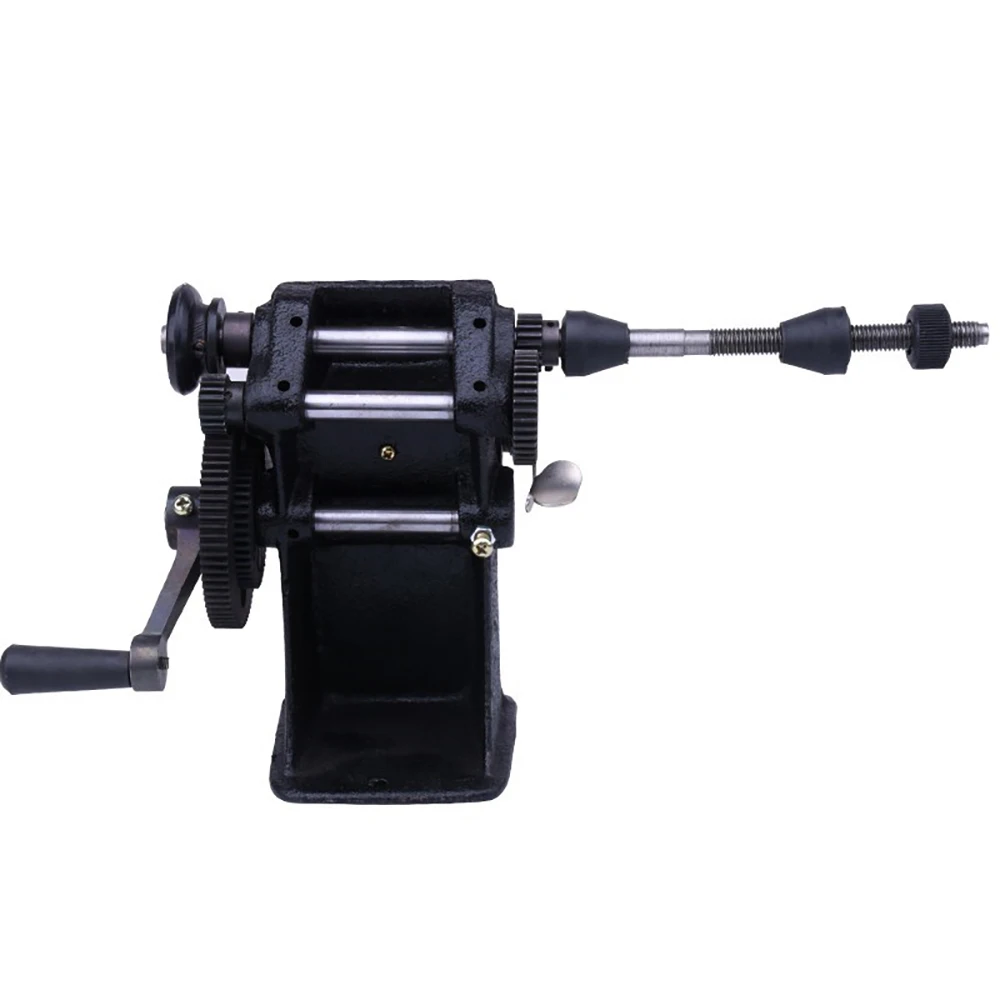

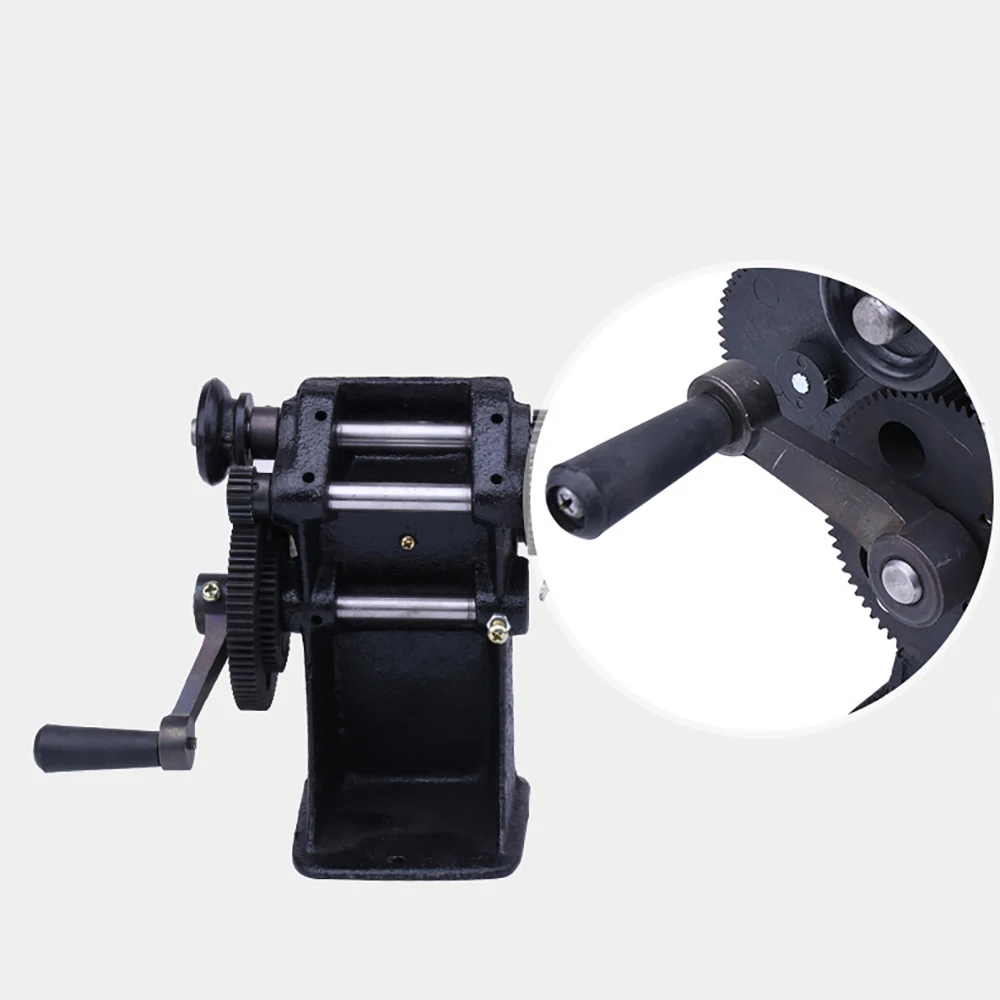

2. Manual joystick

Manual operation, the manual rocker is made of high-quality materials for durability.

3. Fix the base

The base has mounting holes, which can be fixed with the desktop, making the work more stable.

4. Counting dial

The counter axis is 1/10 revolutions, that is, the number of counter letters is 1.

Product parameters:

Product name: Hand counting winding machine

Material: cast iron

Shape: Cylindrical gear

Spindle direction: positive and negative

Product model: NZ-1

Product speed: 0-2000 rpm

Counting range: 0-99999 circles

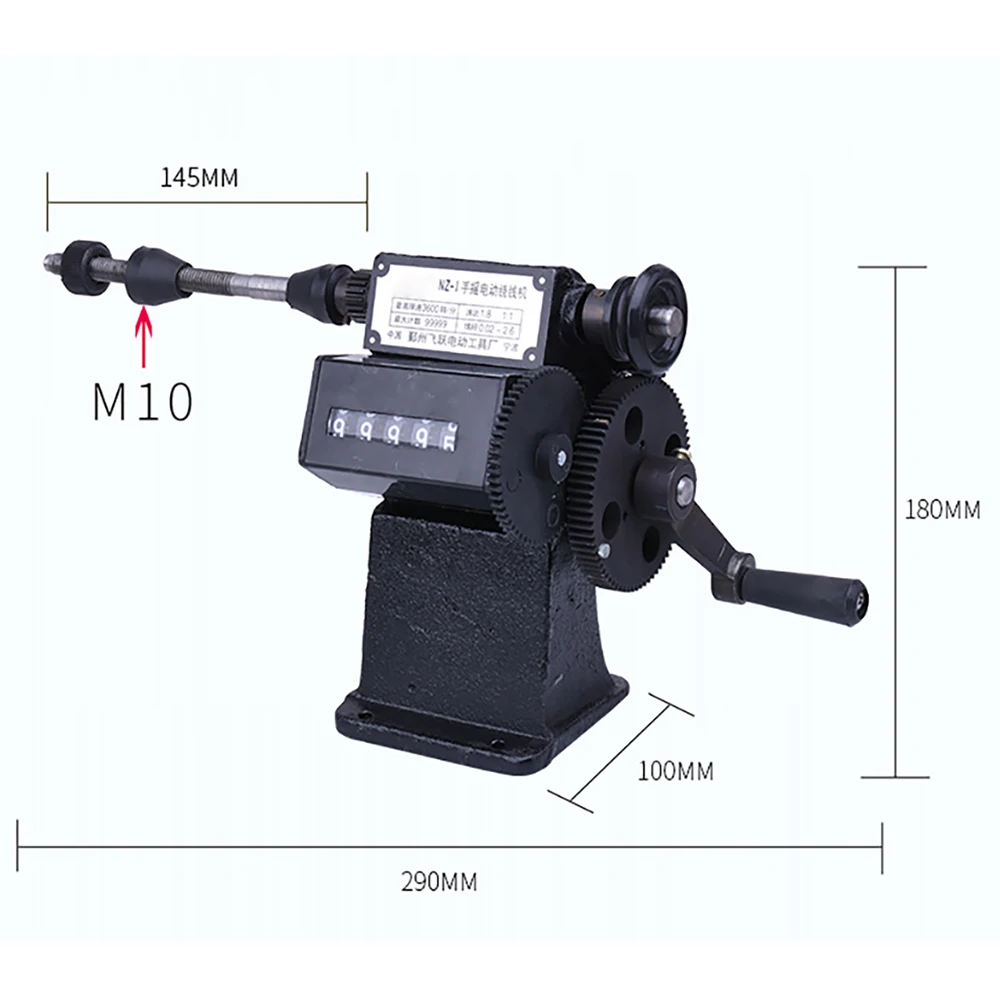

Product size: length, width and height 290*100* 180MM

Maximum coil length: 100MM

Maximum diameter of winding coil: 150MM

Shake handle and spool speed ratio: 1: 8

Applicable wire diameter: 0.02-2.6 (mm)

Note: The main oil hole is normal and a small amount of oil is added
