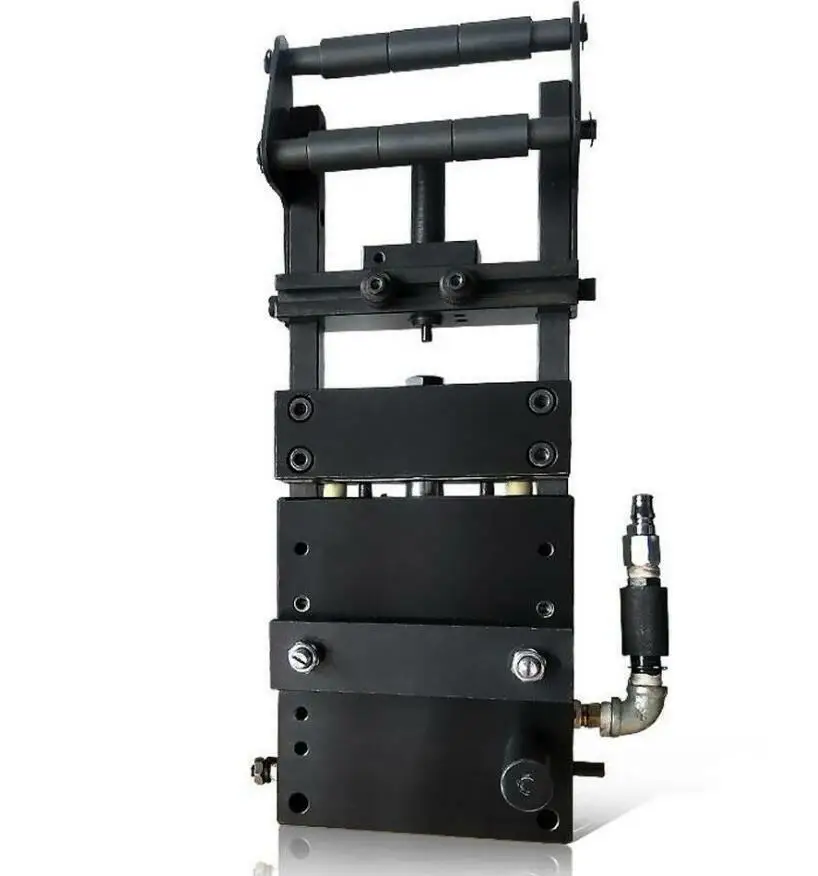

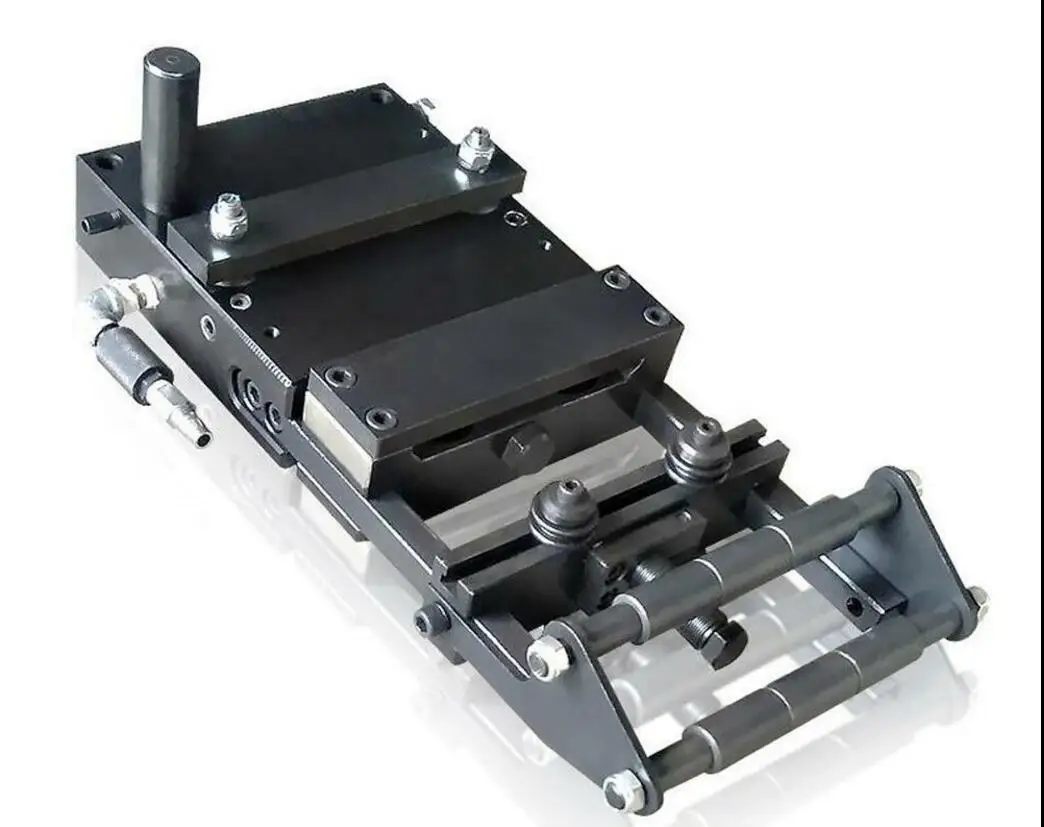

Punch press automatic feeding machine Air pneumatic automatic feeding machine Feeder peripheral automation
Features:

1. Air feeders, as a kind of automatic feeding device, are driven with compressed air.

2. Suitable for automated processing of thicker material

3. Using solenoidvalve control, inching switch to control feeding in advance or feeding postpone

4. Movable support, can change material optionally

5. Easy installation, safety operation, wear-resistance and high efficiency

6. High stability, precision and accurate feeding.

Parameters:

Max Feeding Width(mm): 150

Max Feeding Length(mm): 150

Thickness of parts(mm): 2

Air Pressure(kg/cm2): 4.5

Max feeding speed(s.m.c/mm): 80

Fixing Friction(kg): 78

Moving Friction(kg): 144.5

Leading force(kg): 41

Consumiing air(L/min): 100.5

Weight(kg): 40
