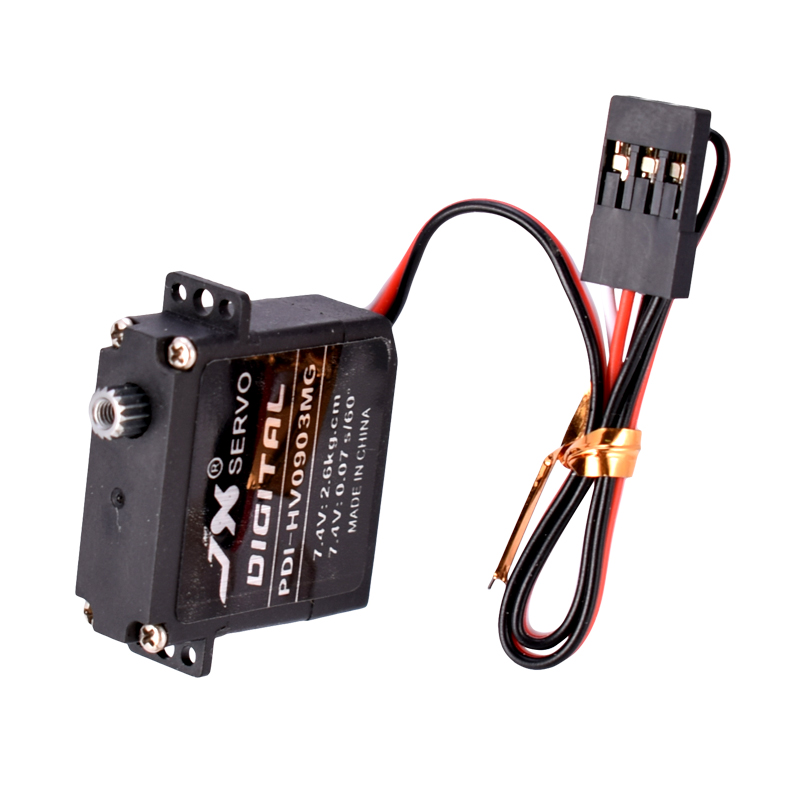

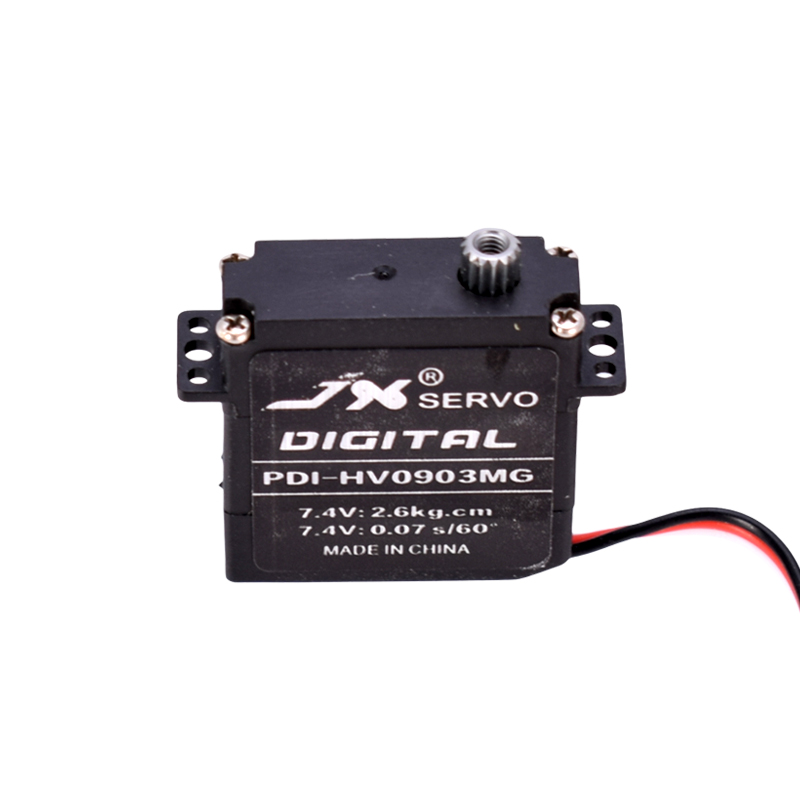

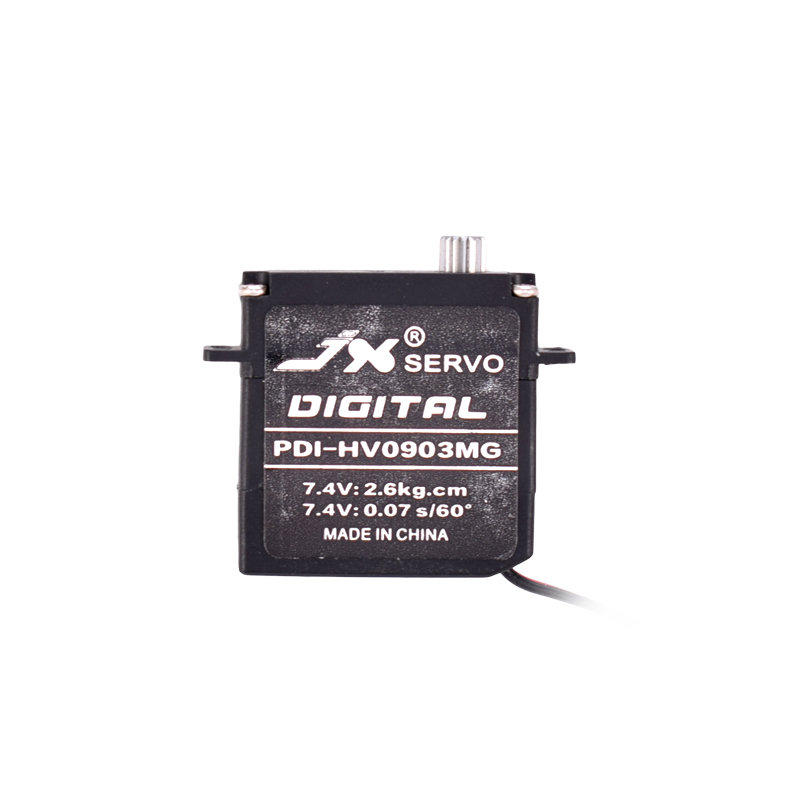

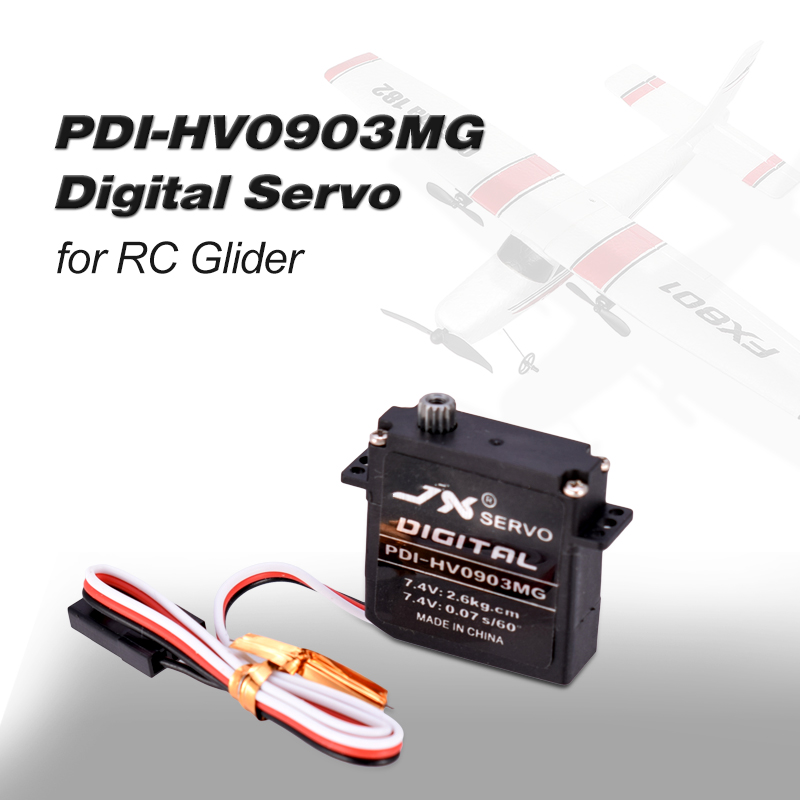

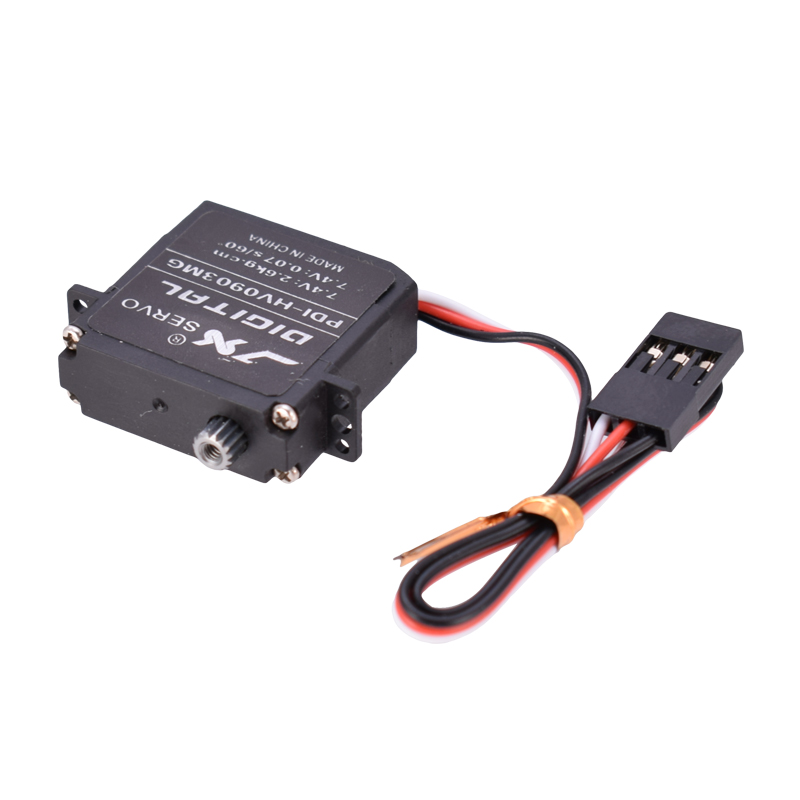

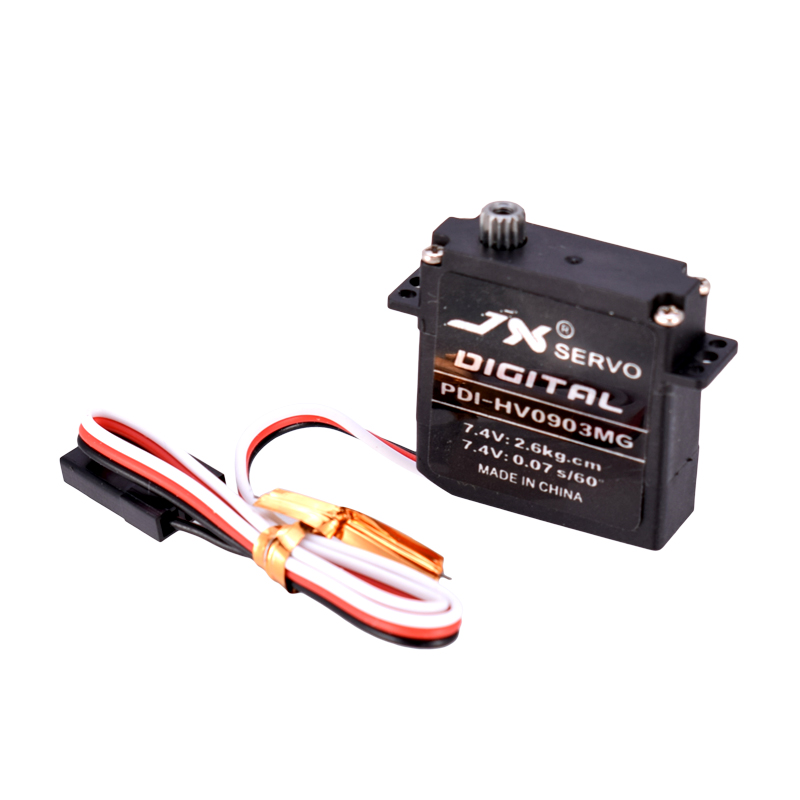

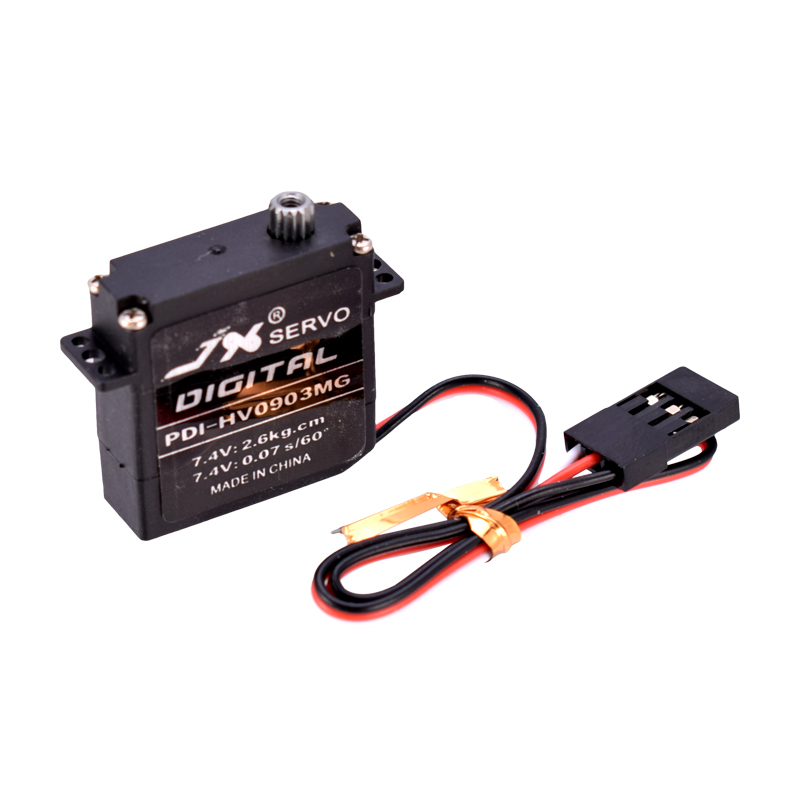

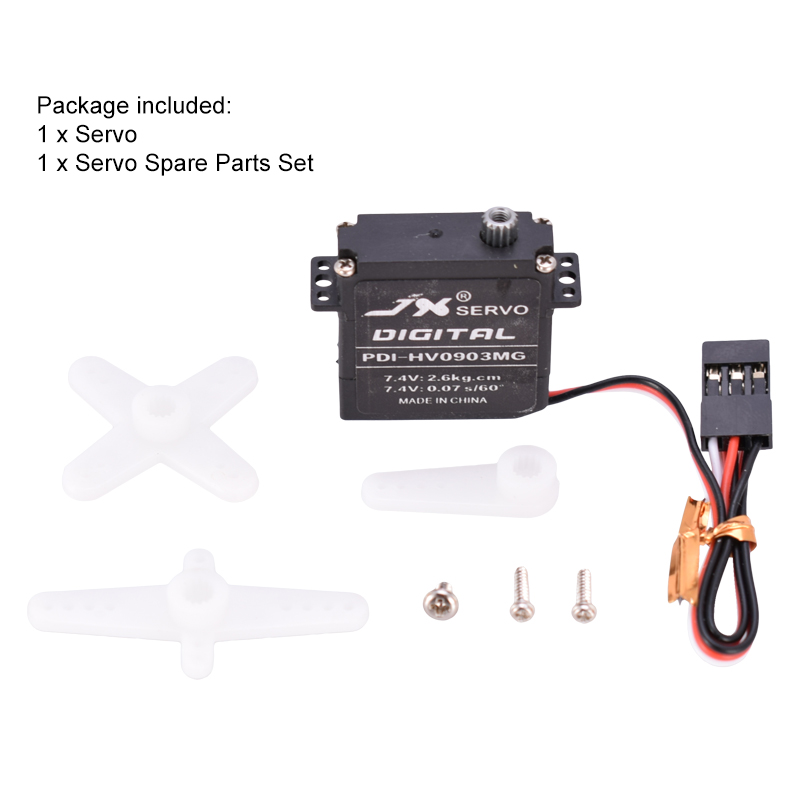

JX Servo PDI-HV0903MG 2.6kg Metal Gear Digital Flat Wing Servo Plastic Case for RC Glider
Features:
1.Light weight and mini size.2.Digital servo provides higher precision and better fixed force.
3.Comes with core motor and metal gear.
4.Fine workmanship ensures the longevity of the product.
5.Suitable for RC Fixed Wing Airplane.
Description:
1.This is Digital servo that is suitable for most of RC Fixed Wing Airplane.
2.With high quality ball bearing, large torque, it is a good choice for RC fans.
Specifications:
Brand:JX
Model:PDI-HV0903MG
Item name:Digital Servo
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC6~7.4 V
Motor:High quality core motor
Operating Temperature Range: -10 to + 60°C
Operating Speed (6V): 0.09sec/60°
Operating Speed (7.4V): 0.07sec/60°
Stall Torque (6V): 2kg.cm
Stall Torque (7.4V): 2.6kg.cm
Potentiometer Drive: Direct Drive
Connector Wire Length: JR/Futaba 150 mm
Bearing: 2BB

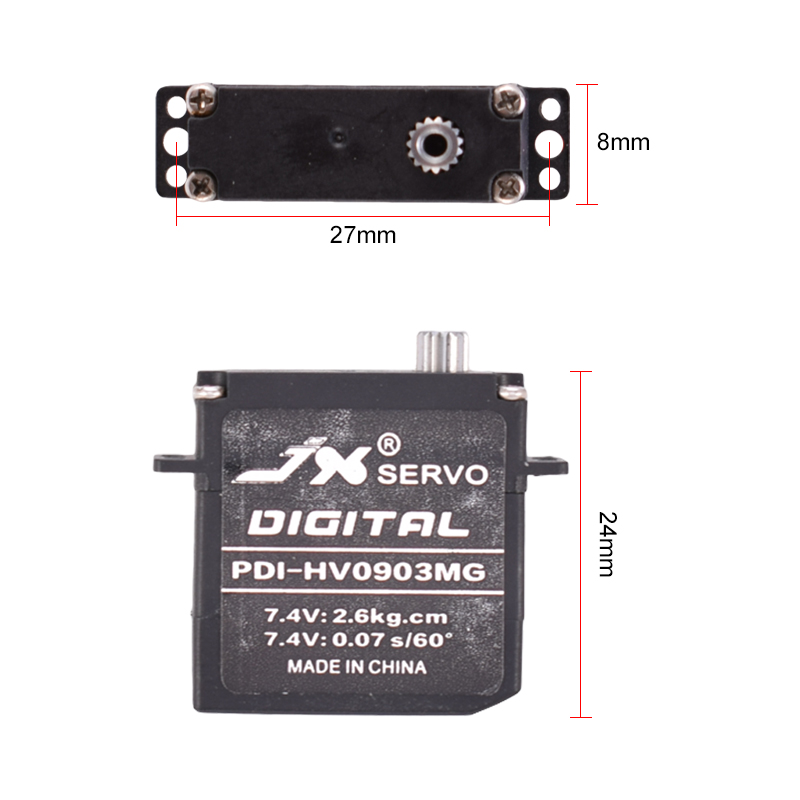

Size:27x24x8mm
Weight: 10g
Package information:
Package size:4.5*4.5*3cm
Package weight:17g
General box package
Noted:
1.Please allow 1-2mm errors due to manual measurement.
2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
