NOTE: Multiple versions will be shipped randomly. The functions are all the same.

LAUNCH RF-Sensor 2 In 1 (315MHz + 433MHz) Clamp-In OE-Level Programmable Sensor for Tire Pressure Monitoring System (TPMS) 100% Cloneable + Fits 98% Mainstream Vehicles / MX-Sensor 433 MHz /TPMS X431 TSGUN Programmer

Introduction

LAUNCH RF Sensor is LAUNCH own designed and produced RF-Sensor that provides 95% vehicle coverage to offer the best TPMS solutions for any repair shops or tire shops. lt can combine both 315MHz and 433MHz frequencies in one sensor.Features with an international leading automotive grade chip, the pressure value of LAUNCH RF Sensor can be accurate to 0.1BAR.The high Precision Air Valve can effectively prevent air leakage and ensures durability and stability.With the outstanding and reliable OE level performance,LAUNCH RF Sensor can replace all original replace original tire pressure sensors, copy the original tire pressure sensor data and can be programmed indefinitely.

LAUNCH sensors Highlights

2 In 1 (315MHz + 433MHz) FEATURE:

Only 1 Sensor to service nearly every TPMS equipped vehicle to lower repair cost and to have higher install efficiency with no relearn required. The RF-Sensor is 100% cloneable with the original sensor ID and put in the same position.

98% COVERAGE:

Featuring the latest and most comprehensive coverage of 98% OE sensors on the market, and up to 90% of North American, European and Asian vehicles, it nearly fits all types of wheels on the road.

EASY TO USE:

The maximum sensor signal strength allows sensors to be easily programmed wirelessly even when they have already been mounted to the wheel. Moreover, the unique PRESS release valve design makes the manual sensor replacement much easier.

SOLID & DURABLE:

Equipped with an automotive grade battery, a replaceable aluminum/rubber valve stem to withstand cold, hot and resistance corrosion, and a high-precision air valve to prevent air leakage, this sensor ensures superior stability and performance.

WARRANTY:

LAUNCH guarantees that the sensor is free from material and manufacturing defects for a period of 24 months or for 24,000 miles. Each sensor is marked with a series number to track the sensor quality from the factory to ensure that only the highest quality parts are installed.

High-Speed Accident Mostly Due To A Blow Out

Tire Aging/ Tire Leak/ High Temperature/ Speeding/ Overloaded...

Comprehensive Vehicle Coverage

Cover Over 98% of All OE Sensors on the Market

LAUNCH RF SENSOR Features

Compatible with over 95% OE sensors

Compatible with OE sensors of 315MHz/433MHz

Over-the-air wireless programming

Battery life ≥ 4-6 years

Unlimited number of reprogramming for LAUNCH sensors

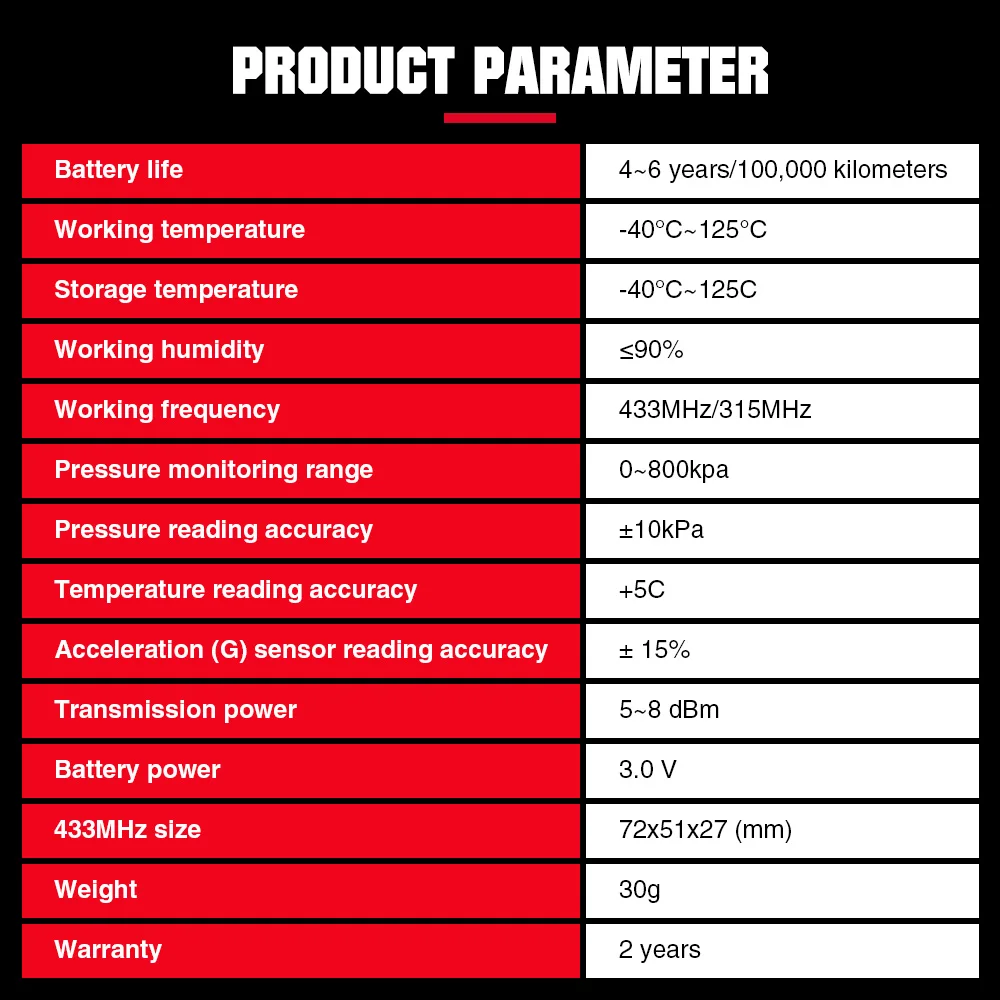

LAUNCH RF-SENSOR Parameter

Operating frequency: 315MHz/433MHz 2 in 1

Battery voltage: 3.0V

RF transmitter power: 5~8dBm

Storage Temperature: -40°C~125°C

Working Temperature: -40°C~125°C

Dimension: 50.8*24*17.8 mm

Weight: 42g (Metal), 48g (Rubber)

IP Rating: IP67

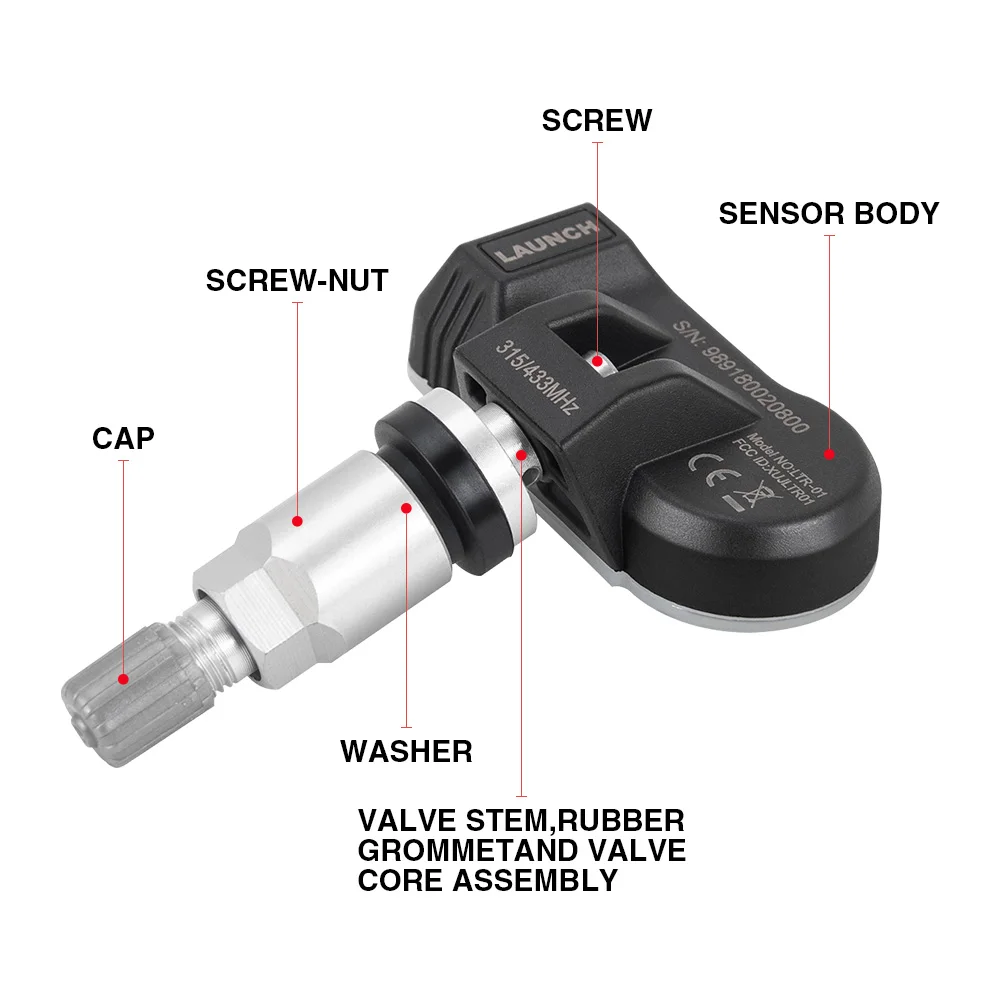

Launch RF-Sensor Packing List

Aluminum Valve / Rubber Valve Optional

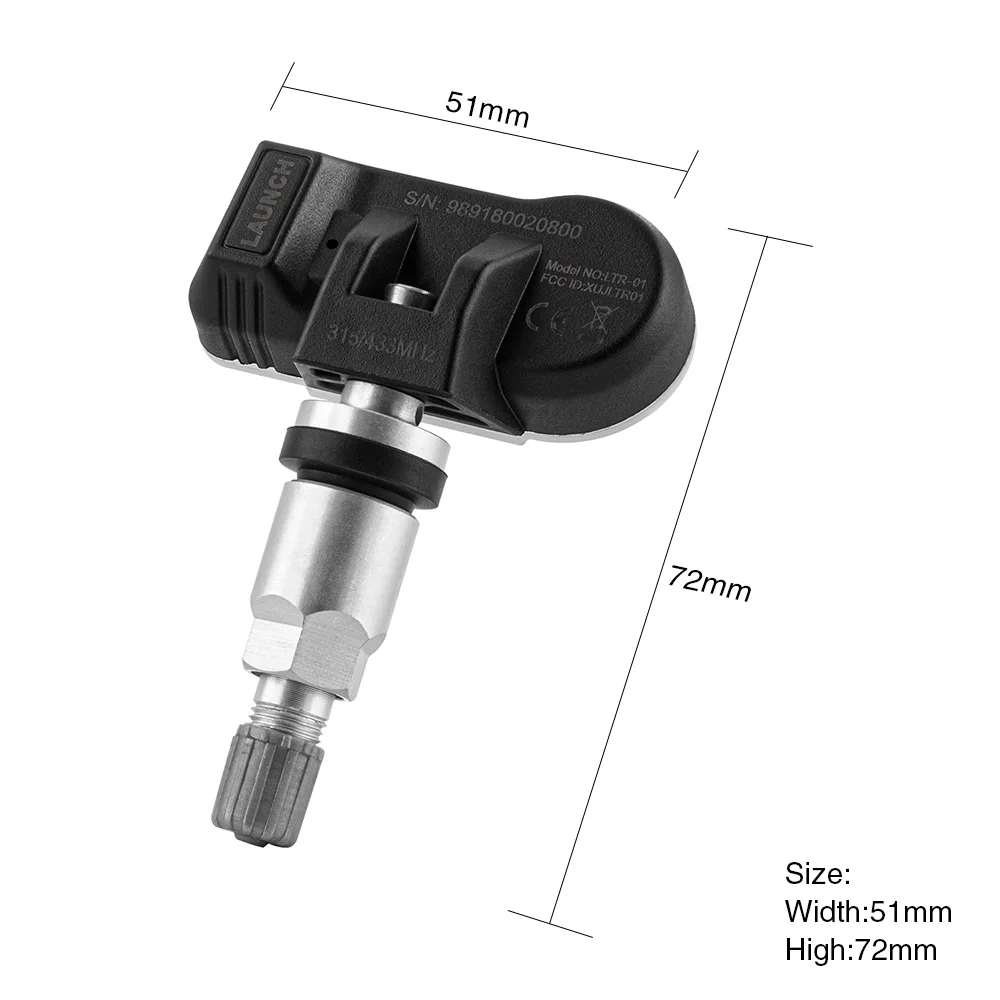

Launch RF-Sensor Size

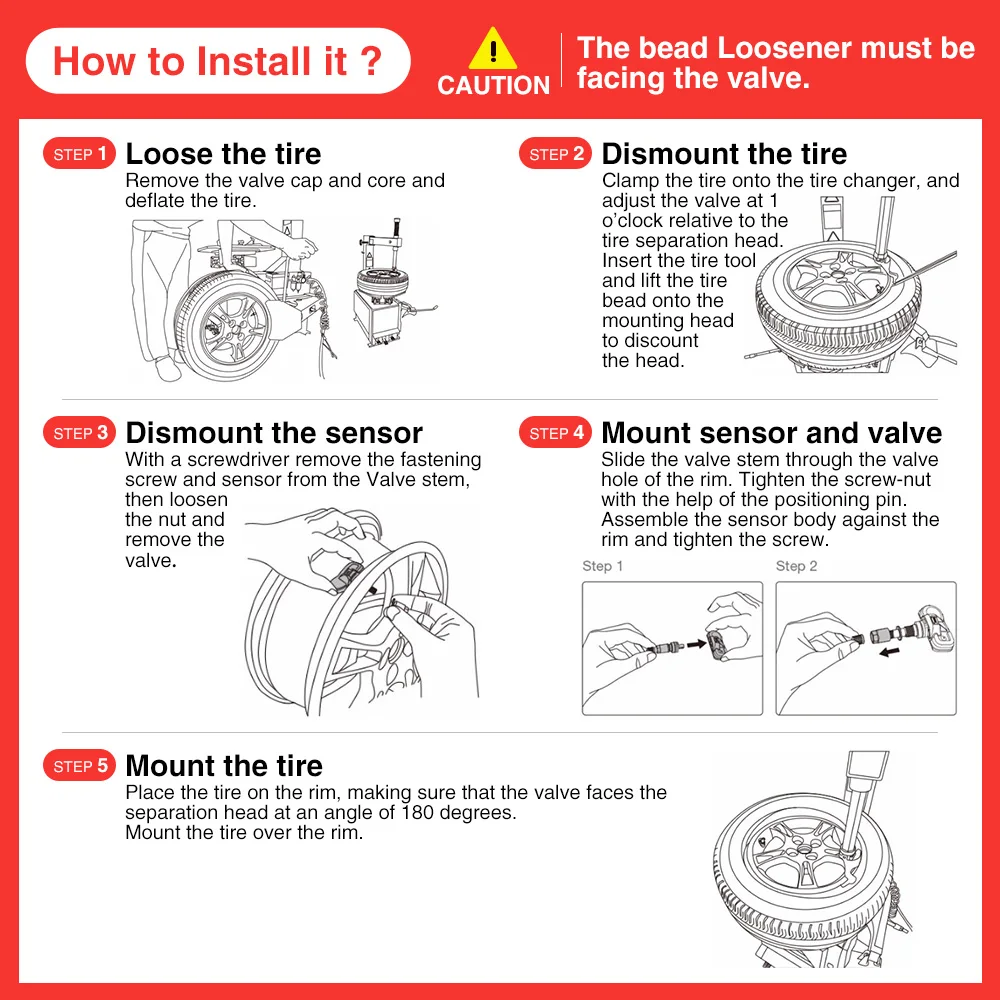

Installation Process
