7" Mirror Monitor Car Brake Light Reverse Backup Camera For Mercedes Benz W906 Sprinter Volkswagen VW Crafter Light Parking Rear View Camera

Monitor Specification

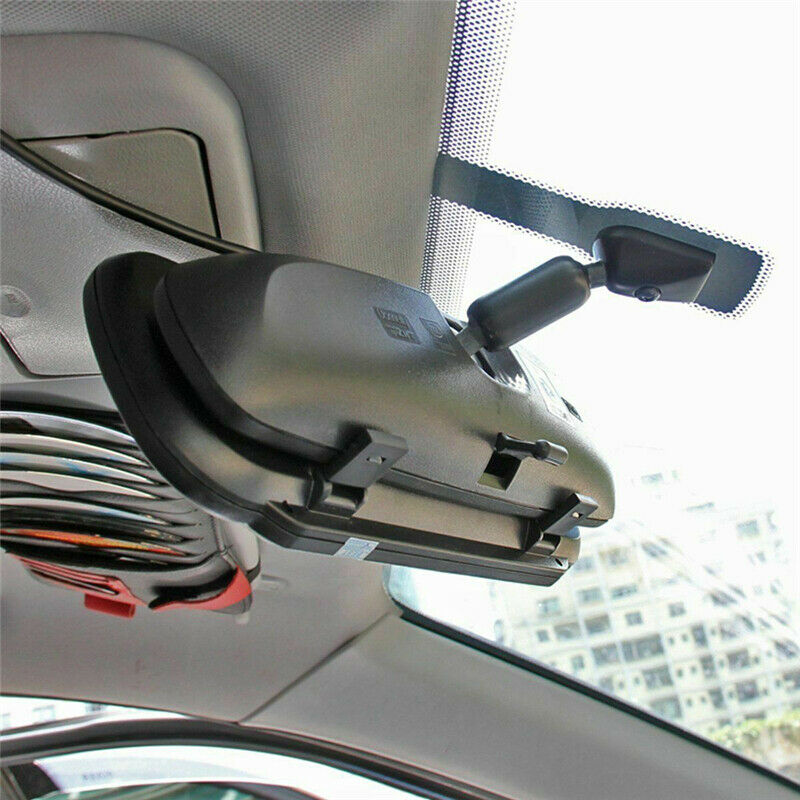

  • Built-into Rearview Mirror Assembly
  • Universal Size Clips onto Existing Mirrors
  • 7'' TFT / LCD Mirror Monitor Screen Display
  • 16:9 Wide Screen
  • Resolution: 800 x 480 Pixels (RGB)
  • Contrast Ratio: 400 CD/M2
  • Anti Glare Coating
  • Dual Video Inputs
  • Ability to Connect Additional Video Source
  • Power Consumption: 6W
  • Auto Switch PAL/NTSC
CMOS Color HD Night Vision Backup License Plate Camera Rear View Parking System Waterproof for Car Truck & Van / 6 LED Light Sensor Universal Vehicle Reversing Camera

Reverse Auto Backup Parking Camera

Main Features:

Image sensors:

CMOS

TV System:

NTSC default& PAL request

Minimum illumination:

0.1Lux

White Balance:

Auto

Video Color:

Colorful

Waterproof Class:

ip68

Effective Pixels:

728(H)*480(V)(NTSC)

Resolution:

480TV lines

Video Output:

1.0Vp-p,75

Electronic Shutter:

1/60(NTSC)-1/10000S

S/N ratio:

Better Than 48db

Lens Angle:

170°

Operation Temperature:

—30°C~+65°C RH95%

Storage Temperature:

—35°C~+70°C RH95%

Working Power (DCV):

12V

Current consumption:

90mA Max

Power:

DC 12V

Video cable is RCA connector

RCA

FEATURES
Parking guide line selectable
Mirror view and normal view switchable
Adopt digital high-resolution imaging process: 480TV lines
Automatic white balance function
Special waterproof camera lens designed for car
Compatible with any car monitor
Cable Length: 1.5M (the previous one is 0.6m, so this version can fit for more kinds of cars)

INSTALLATION METHOD
Method 1: Pin nail install - installed discreetly on the underside of the trunk handle above the license-plate. (Requires hole drilling)
Method 2: Install the bracket behind your license plate by removing the plate, placing the bracket, replace the plate, then tighten the license plate bolts.
Adjustable bracket
Hide the bracket behind license-plate, no need to drill holes for installation.

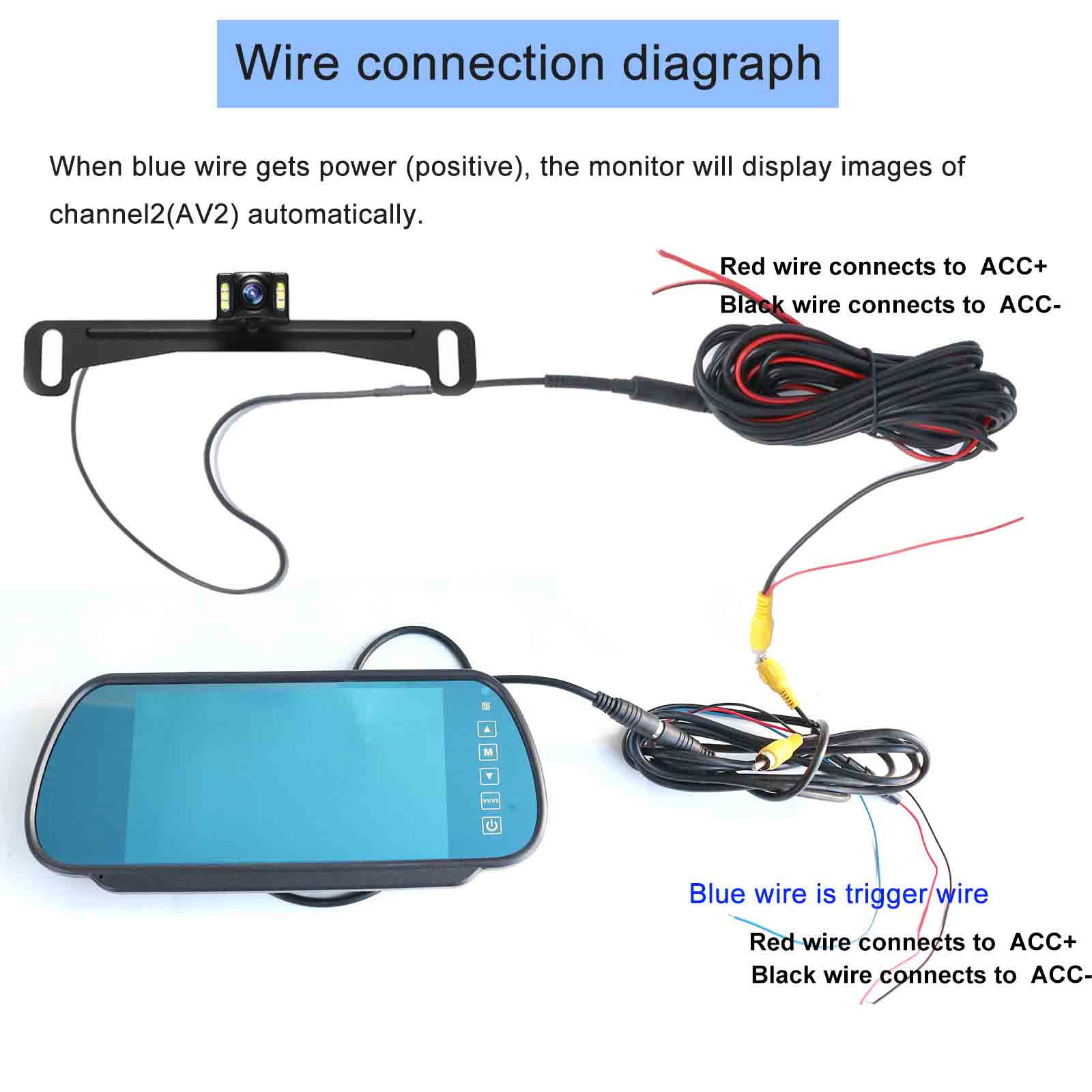

Parking Guide Line Selection
Default setting is without parking guide line. Cut off this green cable, parking guide line is enabled.

Package include:

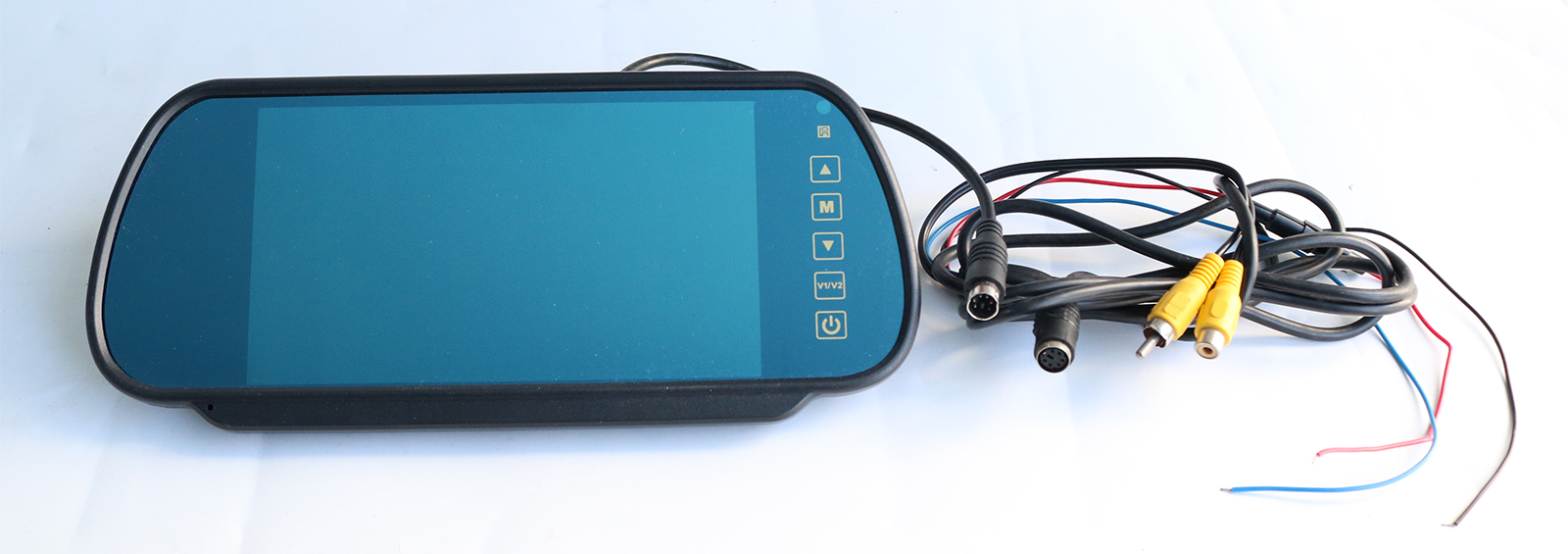

    • 1 x 7" TFT LCD Mirror Monitor
    • 1 x Remote Controller
    • 1 x Power Cable
    • 1 x Universal User Manual
    • 1 x Backup Camera
    • 1 x 6m AV cable
    • 1x Cigarette light adapter
