OBDSTAR iScan For Yamaha Motorcycle Diagnostic Equipment for YAMAHA

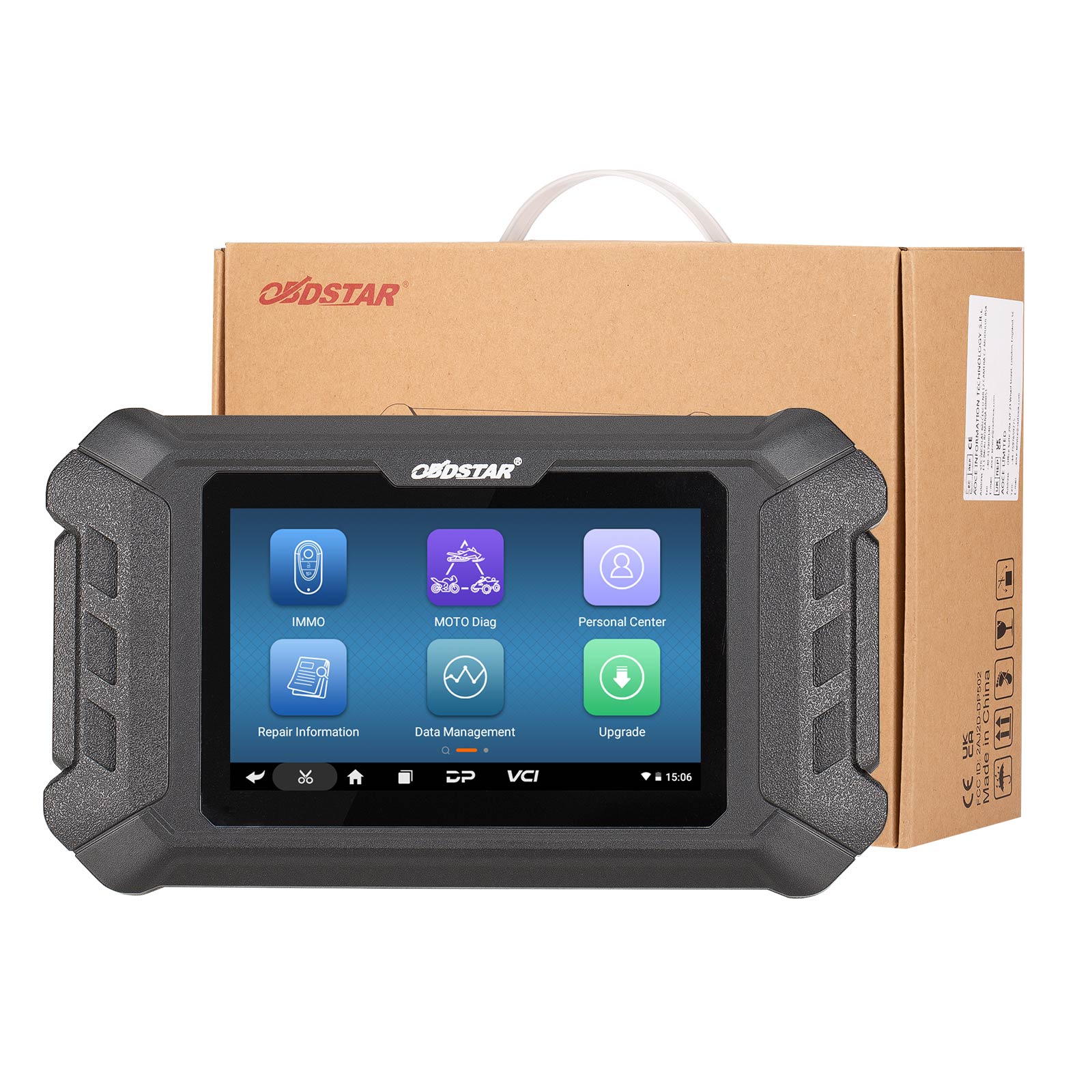

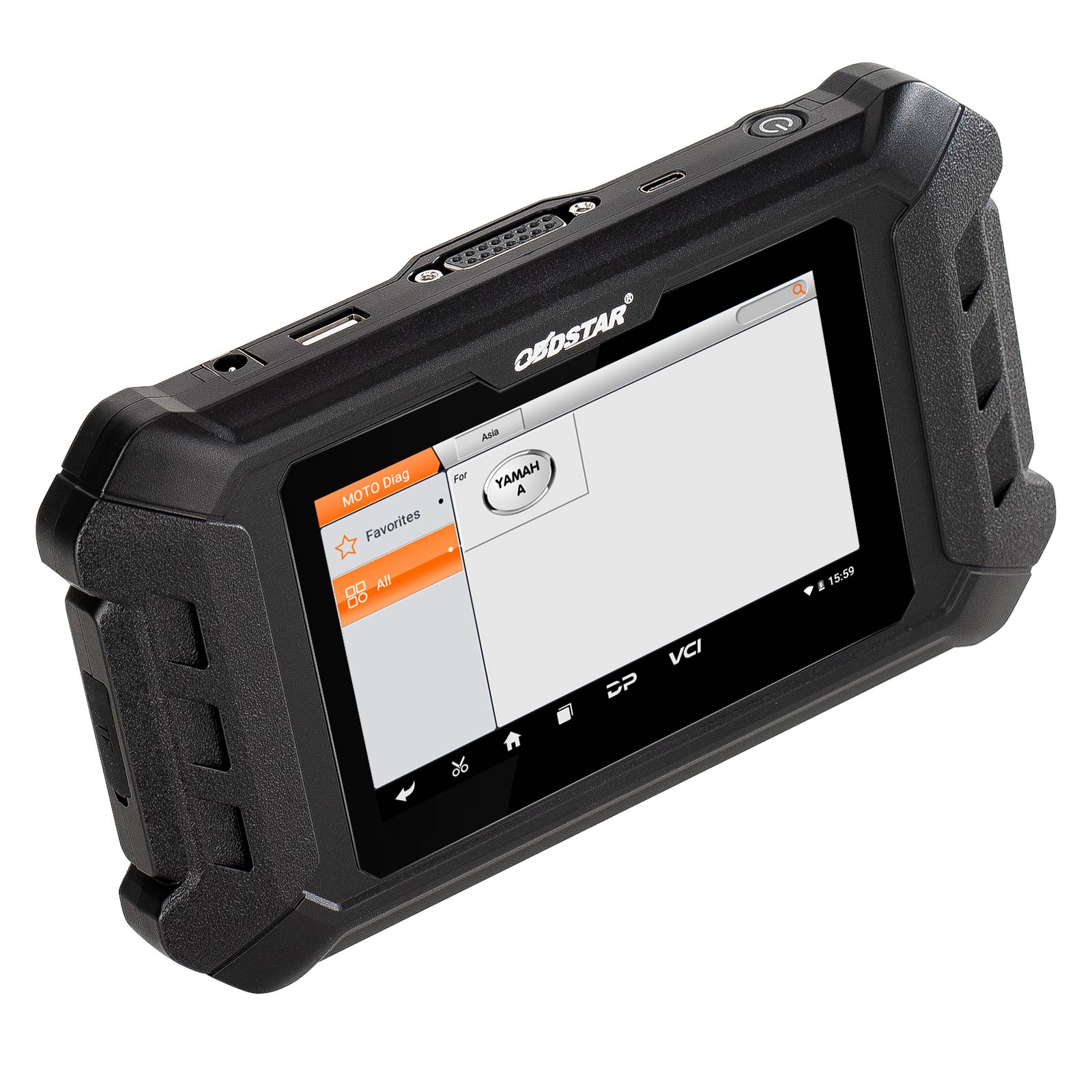

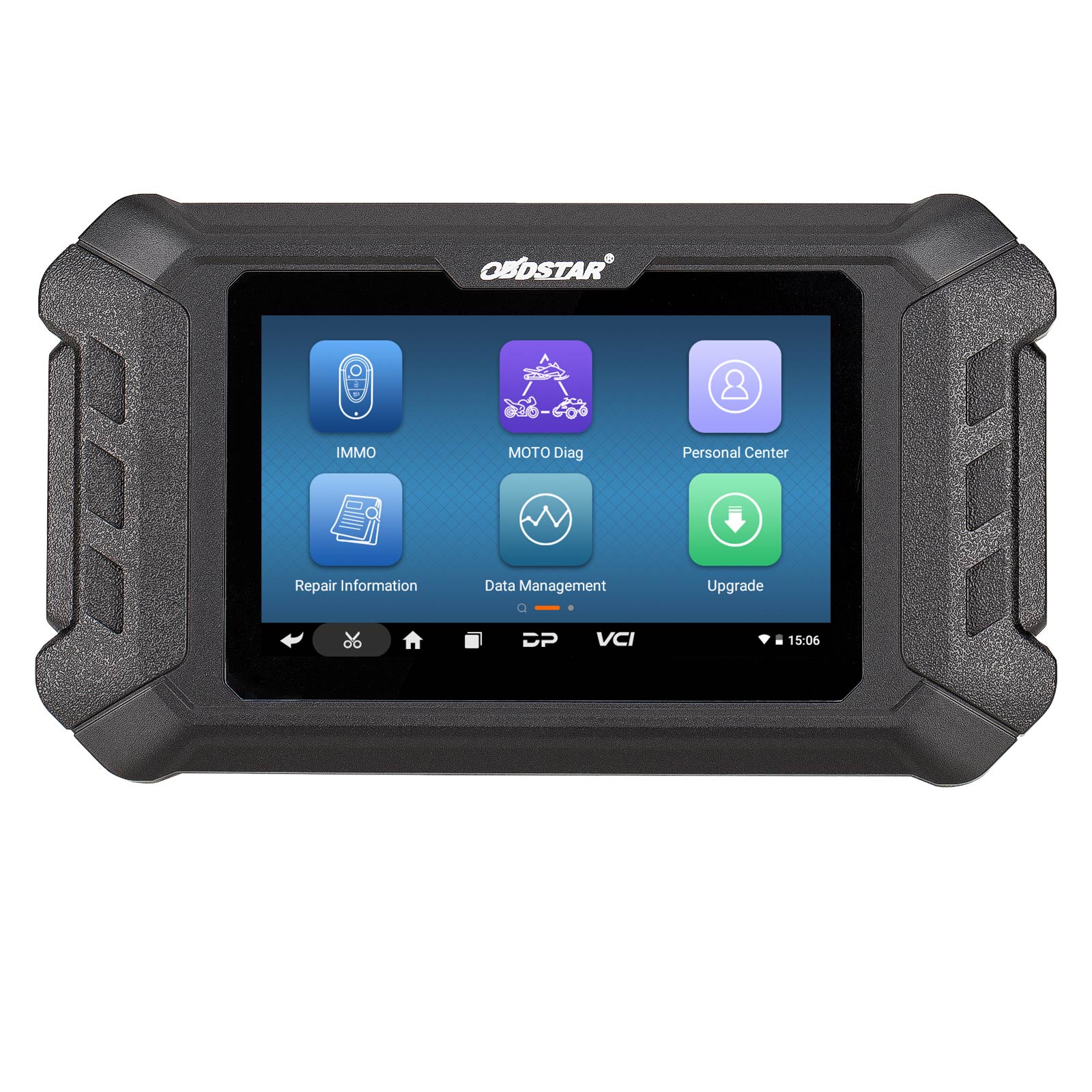

ISCAN YAMAHA is a portable tablet which has super performance and industrial appearance design specialized for YAMAHA. It is a new generation of motorcycle diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.
Functions
1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.
8. Support YAMAHA diagnosis and k-ey progarmming
Advanced function
1. The first fault guidance, help data, technical bulletin, diag socket etc help you diagnose accurately and efficiently;
2. Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module progarmming and coding, E-C-U setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.
4.Supported languages: EN,ES,RU,PT,TH,TR,FA,FR,DE,PL,IT,ID,VN
Motorcycle/snowmobile/ATV/UTV diagnostic support series
For YAMAHA
Function Display

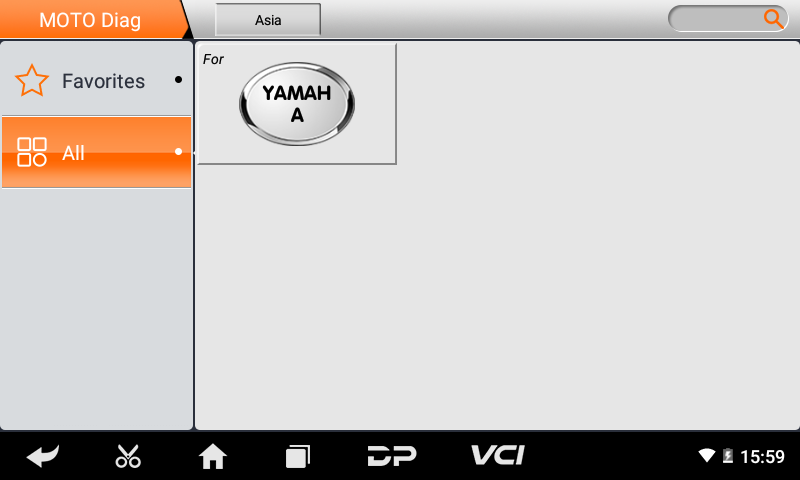

1) Main Page/Brand Supported
2) Help Data/Technical Bulletin
3）Supported Systems List/Vehicles List
4) Diag Socket/Diag Connector Location
5) Special Function
Specifications
Operation system | Android 5.1.1 |
CPU | RK3128 quad-core ARM cortex A7 |
Battery | 2600mA, rechargeable polymer lithium battery |
Extension memory card | 32G micro SD (TF) card supported |
| LCD | 5.0 inch |
LCD resolution | 800*480 |
Touch screen | Capacitive touch screen |
Wifi | Supported |
| Working temperature | -20℃~55℃ (14℉~131℉) |
Storage temperature | -20℃~70℃ (-4℉~158℉) |
Weight | About 700g |
Dimension | 198mm*115mm*31mm |

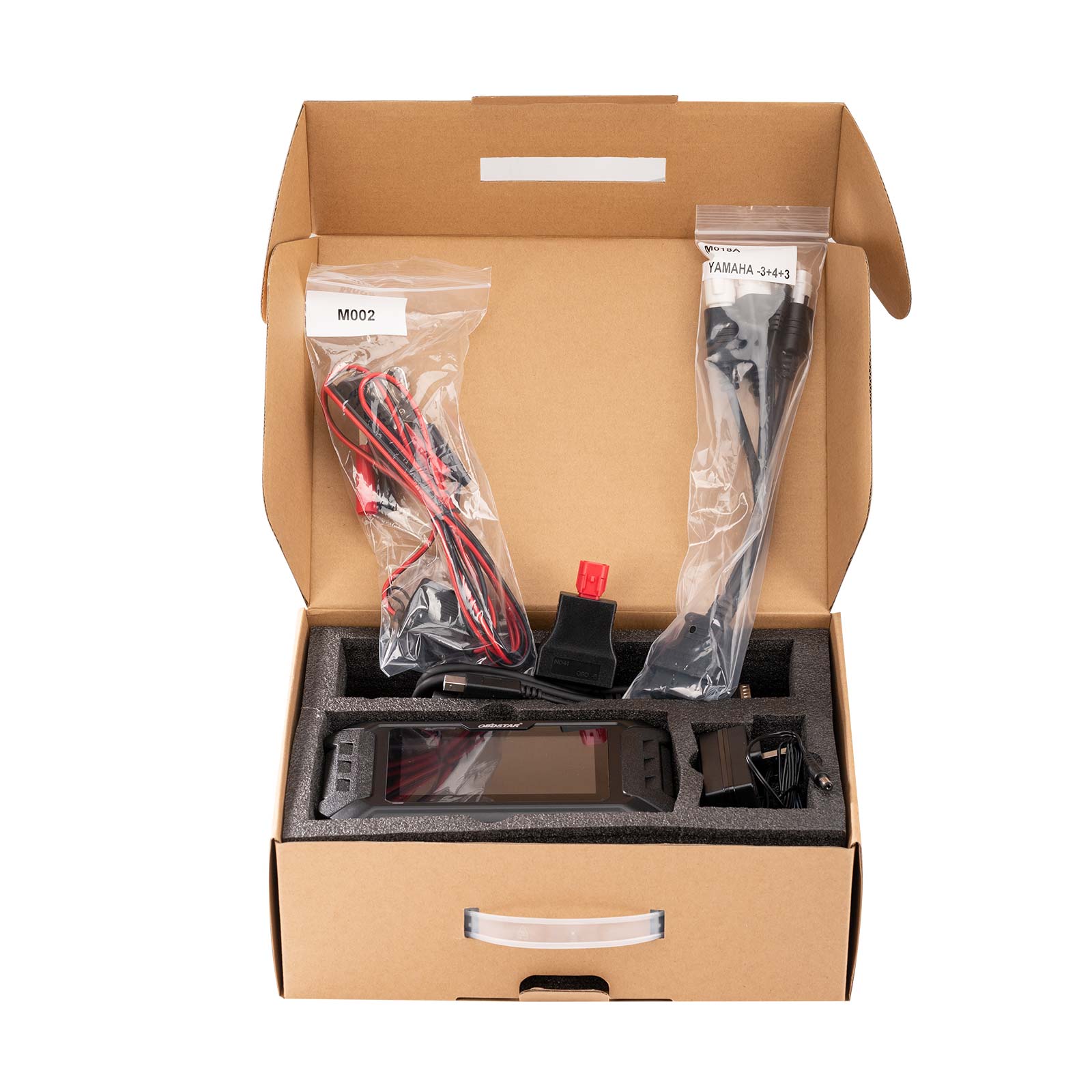

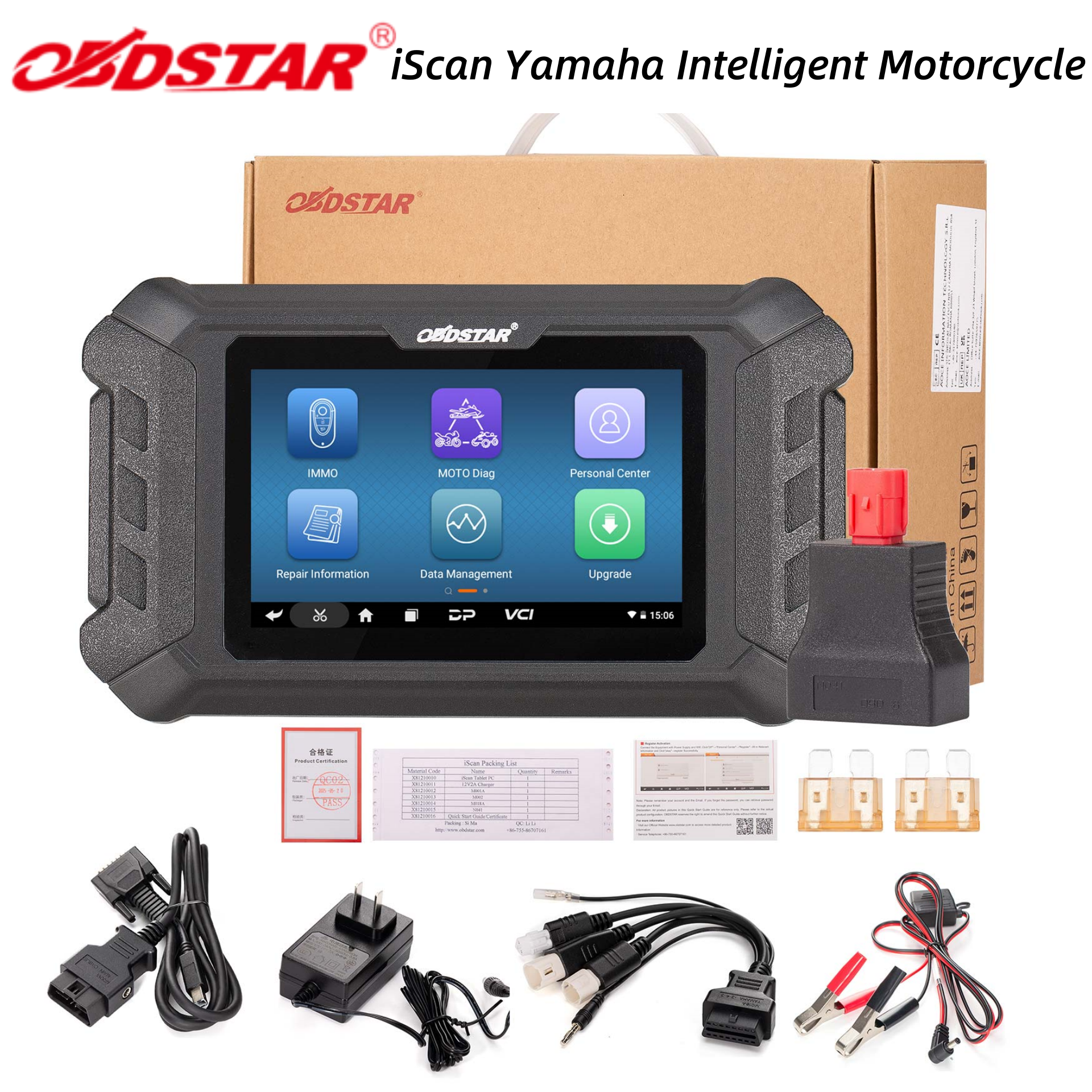

Package Includes:
1pc x ISCAN YAMAHA Tablet
1pc x M001A main cable
1pc x M002 Power cable
1pc x M018A Yamaha cable
1pc x N041 OBD-6 cable
1pc x 12V2A charger
Please note: optional accessories are not included in the package. If you want use k-ey progarmming function, you will need to purchase additional optional accessories.
