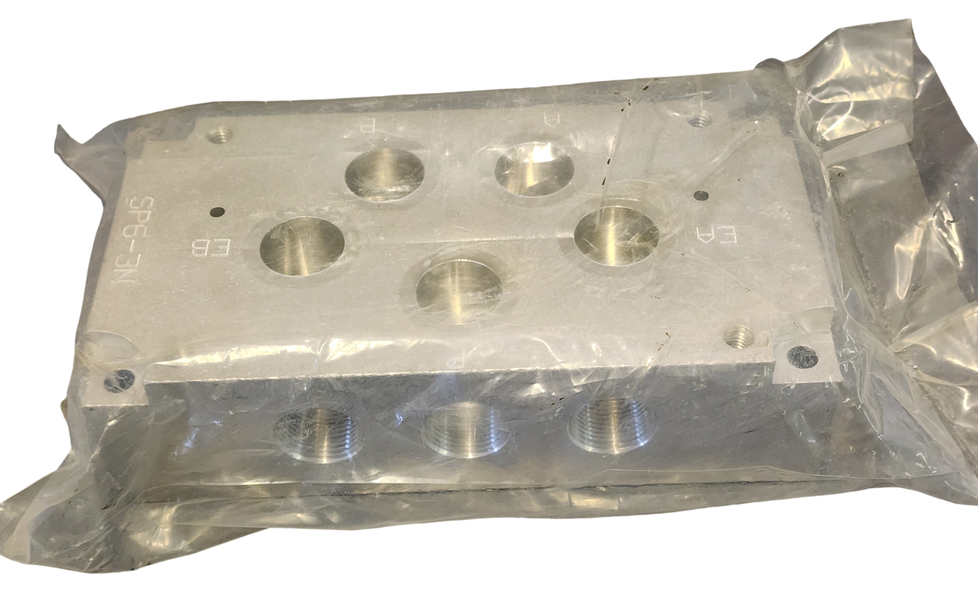

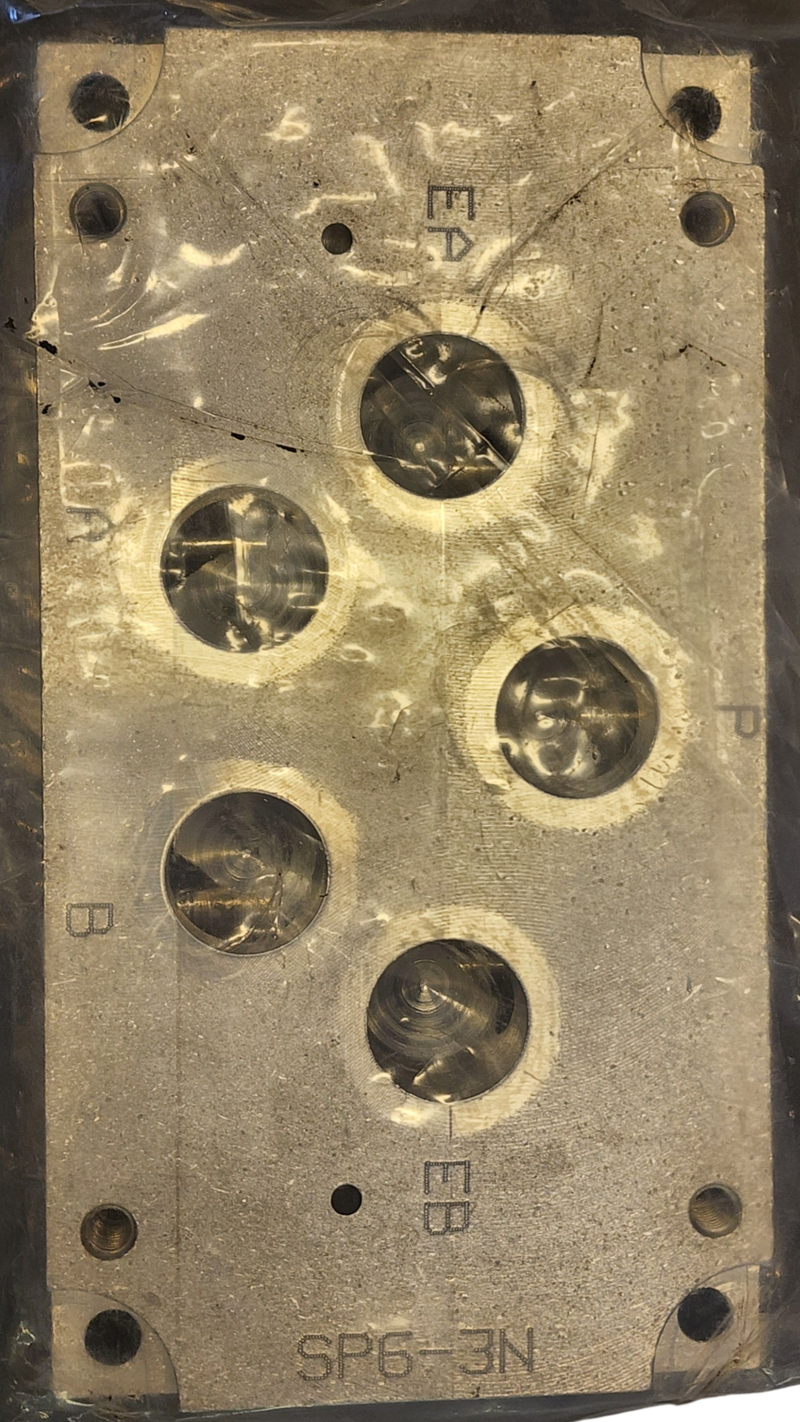

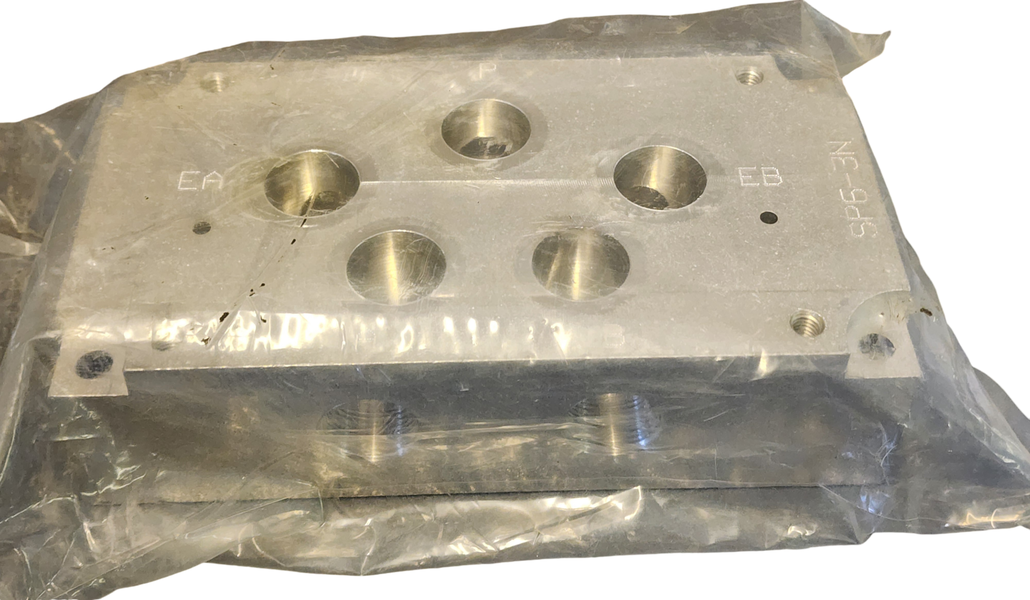

SP6-3N 3/4" NPTF Subplate Connection Base for 1" Size Subplate Valves

Upgrade your hydraulic systems with the SP6-3N 3/4" NPTF Subplate Connection Base. This base is designed for the mounting and connection of 1" size subplate type valves, offering reliable performance and durability.Key features include:Connection ports located on the sides of the subplate.Porting includes inlet, two exhausts, and two cylinder ports tapped into sides of subplate, with top detail for subplate style valve.Suitable for all 1" size subplate valves except piston operated (e.g., PP8P).Material: 6061-T6 aluminum.Weight: 7.3 lbs.Please note that no mounting hardware or seals are supplied with the subplate.Upgrade your hydraulic systems with the SP6-3N Subplate Connection Base for efficient and effective valve mounting and connection.

SP6-3N 3/4" NPTF Subplate Connection Base for 1" Size Subplate Valves


Upgrade your hydraulic systems with the SP6-3N 3/4" NPTF Subplate Connection Base. This base is designed for the mounting and connection of 1" size subplate type valves, offering reliable performance and durability.


Key features include:

  • Connection ports located on the sides of the subplate.

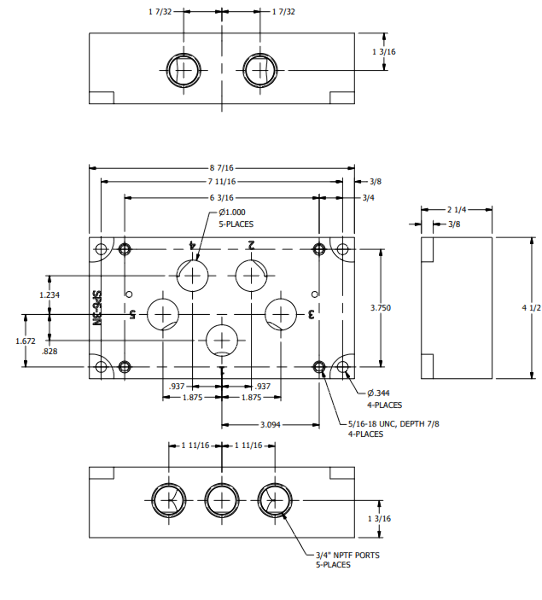

  • Porting includes inlet, two exhausts, and two cylinder ports tapped into sides of subplate, with top detail for subplate style valve.
  • Suitable for all 1" size subplate valves except piston operated (e.g., PP8P).
  • Material: 6061-T6 aluminum.
  • Weight: 7.3 lbs.

Please note that no mounting hardware or seals are supplied with the subplate.


Upgrade your hydraulic systems with the SP6-3N Subplate Connection Base for efficient and effective valve mounting and connection.
×
×
×
×
×
