9IMOD Brushless ESC Motor Combo AM32 30A Mini ESC 1224/1621/2204 Motor 2100/2500/3200/3600/4000KV Outrunner Motor For RC 1/18 1/24 Crawler Car Axial SCX24 TRX4M
Features:
1. AM32 custom firmware.
2. All wires of have been pre soldere.
3. Detachable design, convenient for cleaning and maintaining.
4. Aluminum Cooling System: The ESC possesses an aluminum cooling system offering excellent heat dissipation a strong
5. Small and light Brushless ESC Motor Combo, for your vehicle.

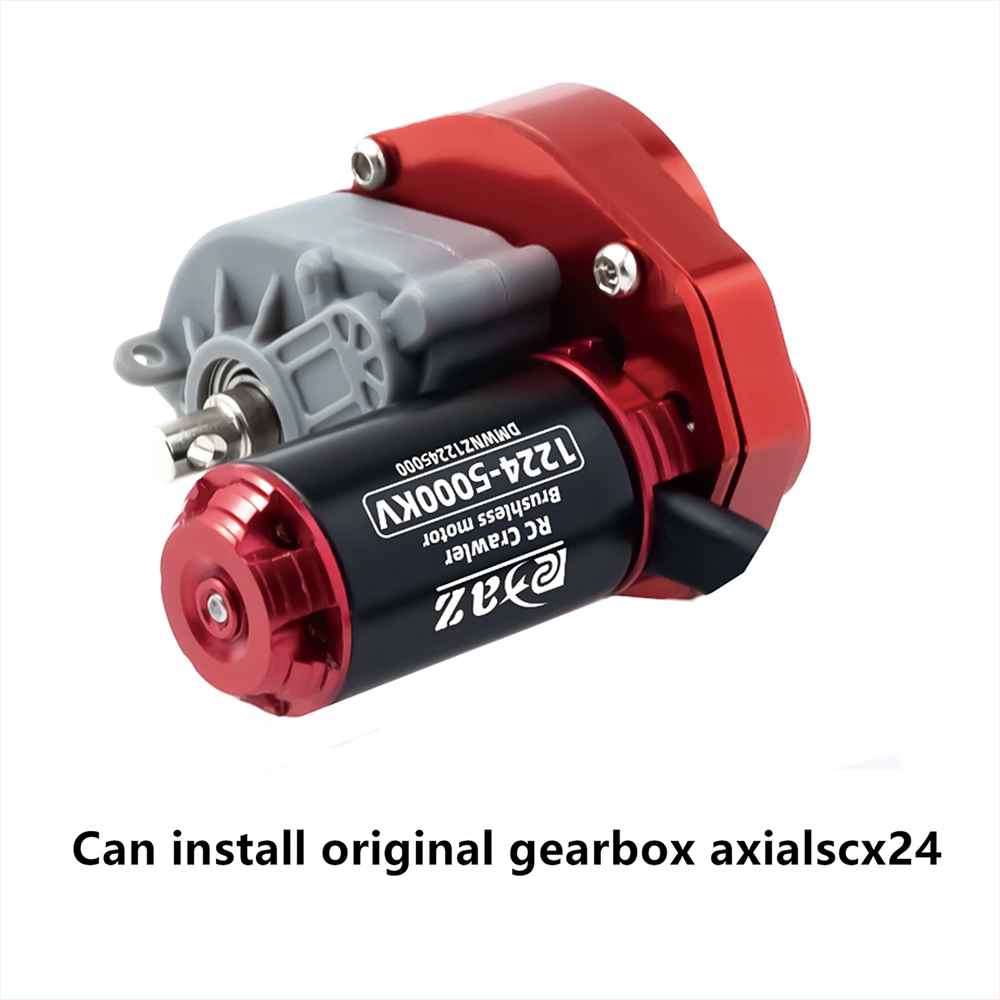

6. AM32 30A ESC and 1224 brushless motor combo Suitable for 1/24 Crawler Car Axial SCX24 Original Gearbox.
7. AM32 30A ESC and 1621 brushless motor combo Suitable for 1/18 Crawler Car Axial TRX4M Original Gearbox.
8. AM32 30A ESC and 2204 brushless motor combo Suitable for 1/18 1/24 Crawler Car Axial SCX24 TRX4M Modified Gearbox.
(Note:The remote must be adjusted to the neutral position for the ESC to connect)
Description:
9IMOD 1224/1621/2204 Brushless Motor with 30A Brushless ESC,suitable for 1/18 1/24 Crawler Car Axial SCX24 TRX4M.Small and light for your vehicle.
Specifications:

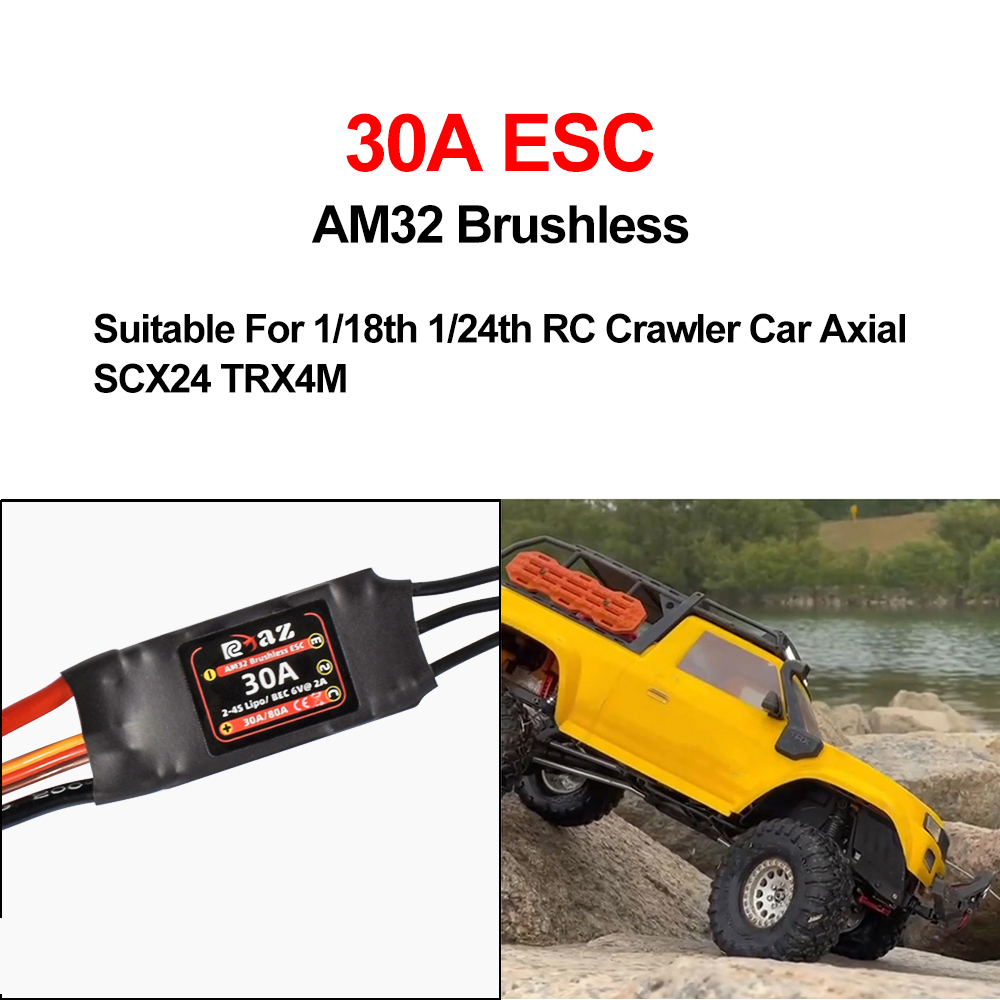

AM32 30A ESC
Brand: 9IMOD
Battery: 2~4S Lipo
BEC: 6V@2A
Continuous Current: 30A
Momentary Current(10s):80A
Motor:1224/1621/2204 Brushless Motor
Suitable For: 1/18 1/24Crawler Car Axial SCX24TRX4M
Dimensions:285x19x9mm
Weight: 15g

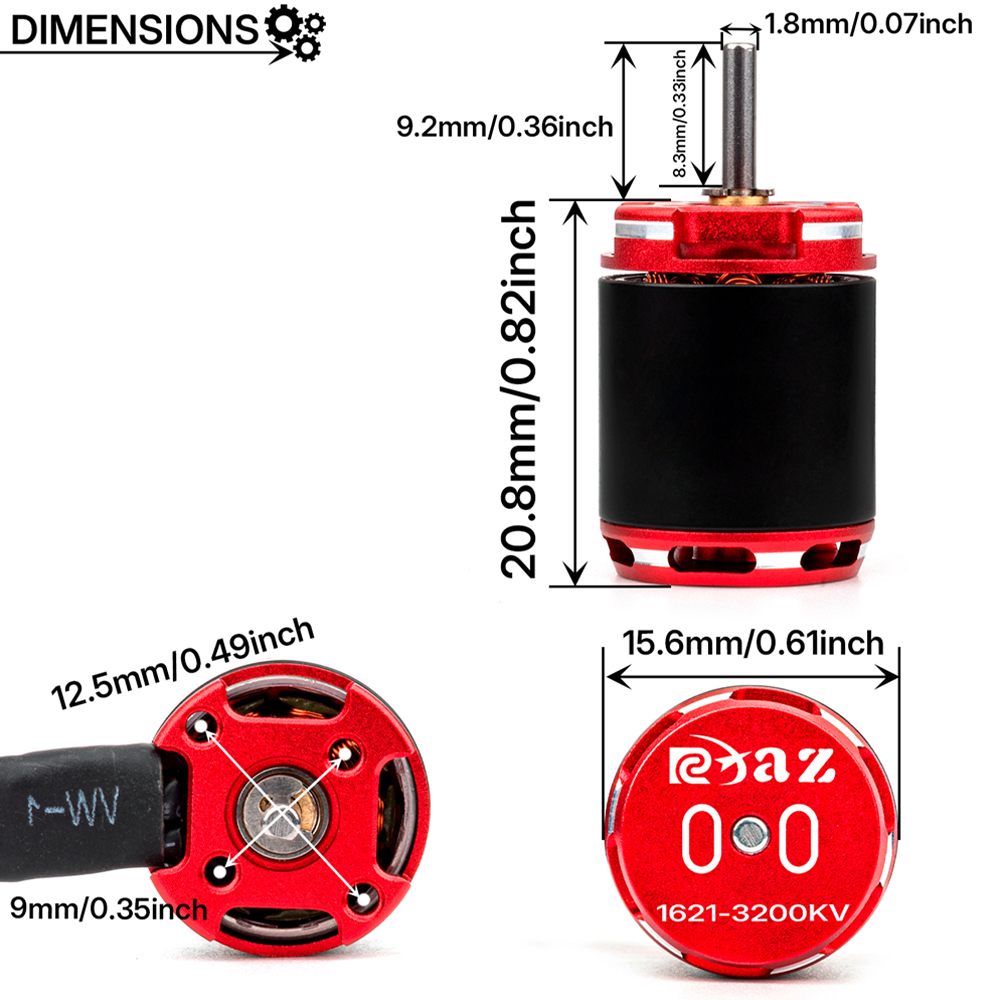

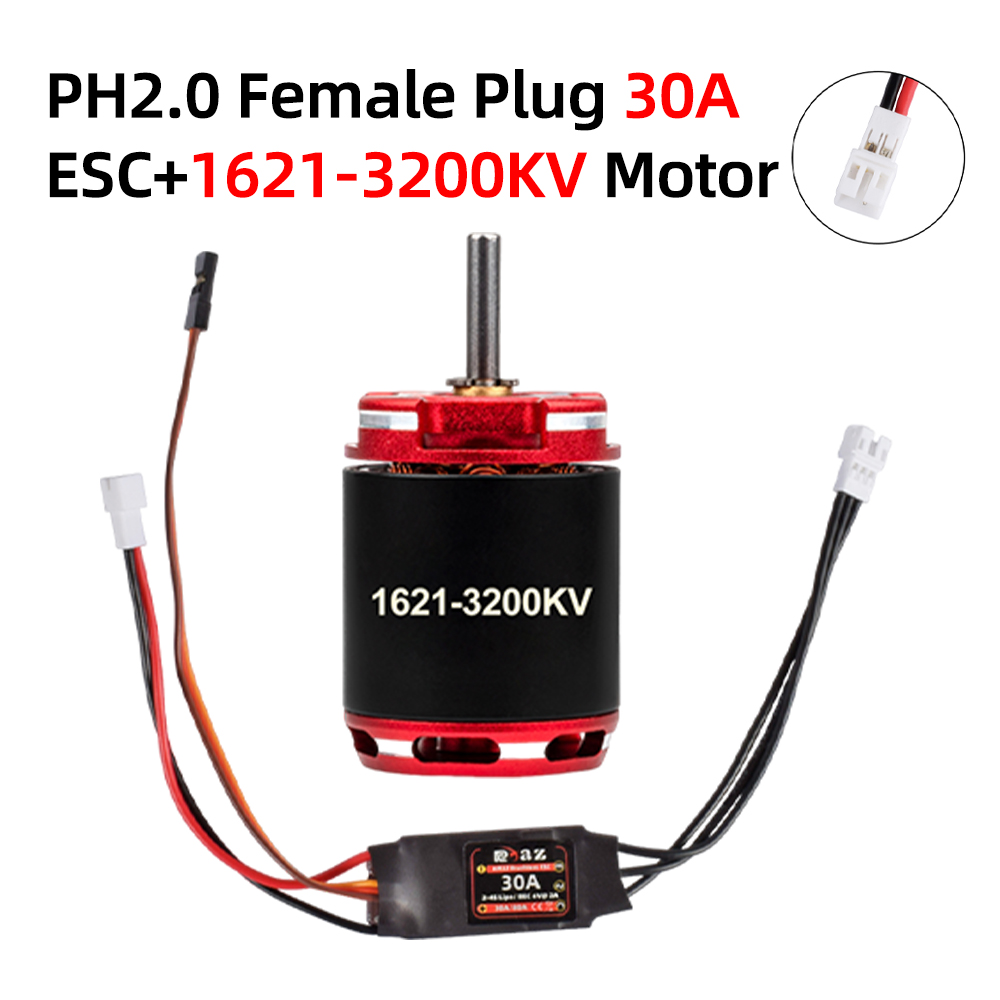

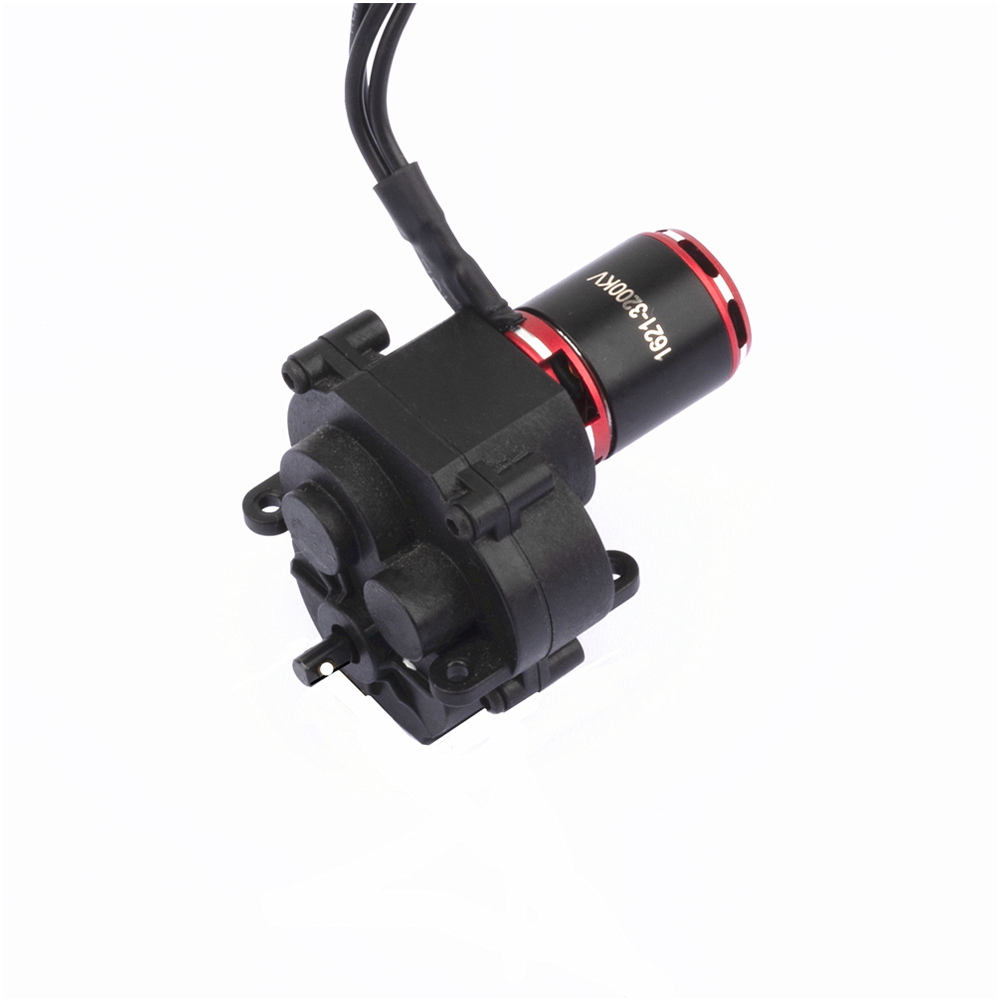

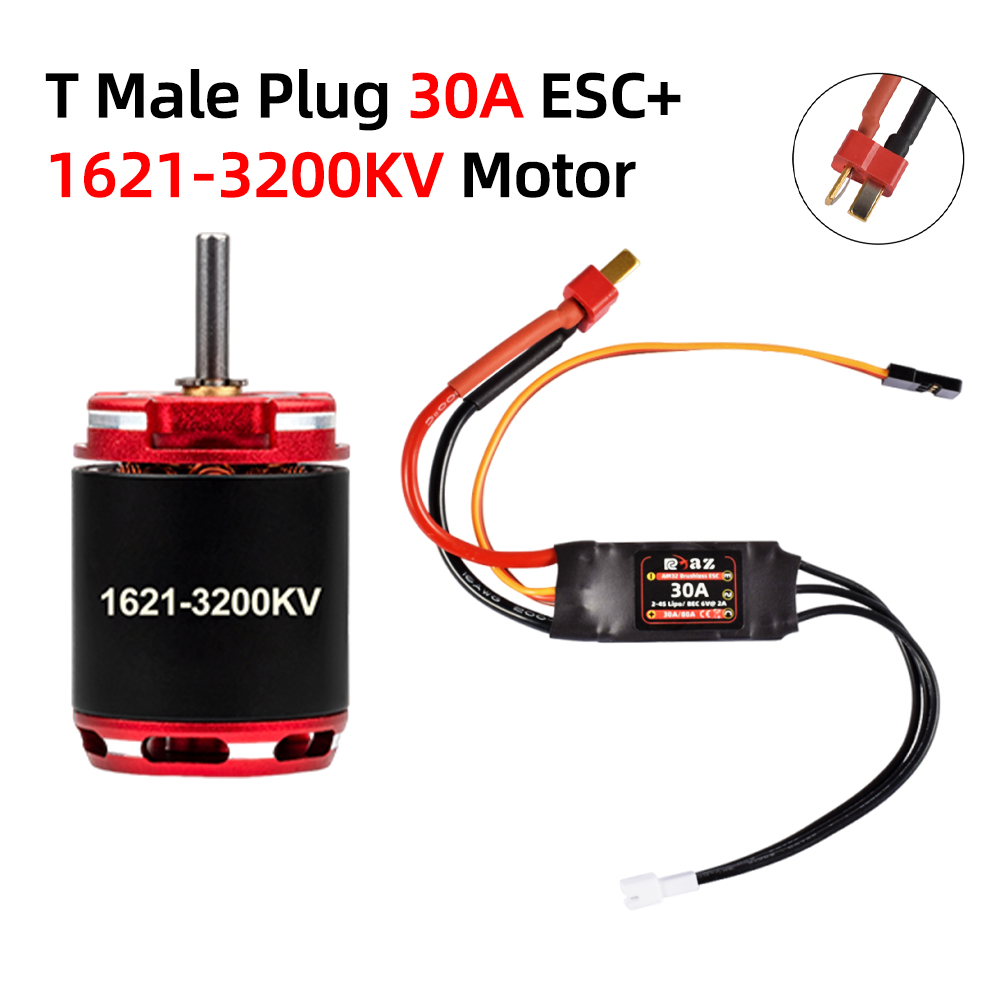

1621-3200KV Motor Specifications:
Stator Diameter: 12 mm(in)
Stator Thickness: 12 mm(in)
Number of Stator Slots: 9
Magnet Grade: 12
Motor winding: 1+2 Delta
Motor Wire Diameter: 0.29 mm
Motor KV Value: 3200KV RPM/Volt
No-Load Current (10V/11.1V): 0.4Amps
Maximum Current: 30 Amps
Maximum Power: 333 Watts
Motor internal Resistance (rm): 0.002 0hms
Motor Weight: 17Grams Amps
Motor Outer Diameter: 15.7mm(in)
Motor Shaft Diameter: 1.7 mm(in)
Motor Length: 20.9 mm
Overall Length (including shaft): 30 mm
Number of Cells (Battery Cells): 3S
Motor Timing: 1-4deg
Drive Frequency: 2kHz

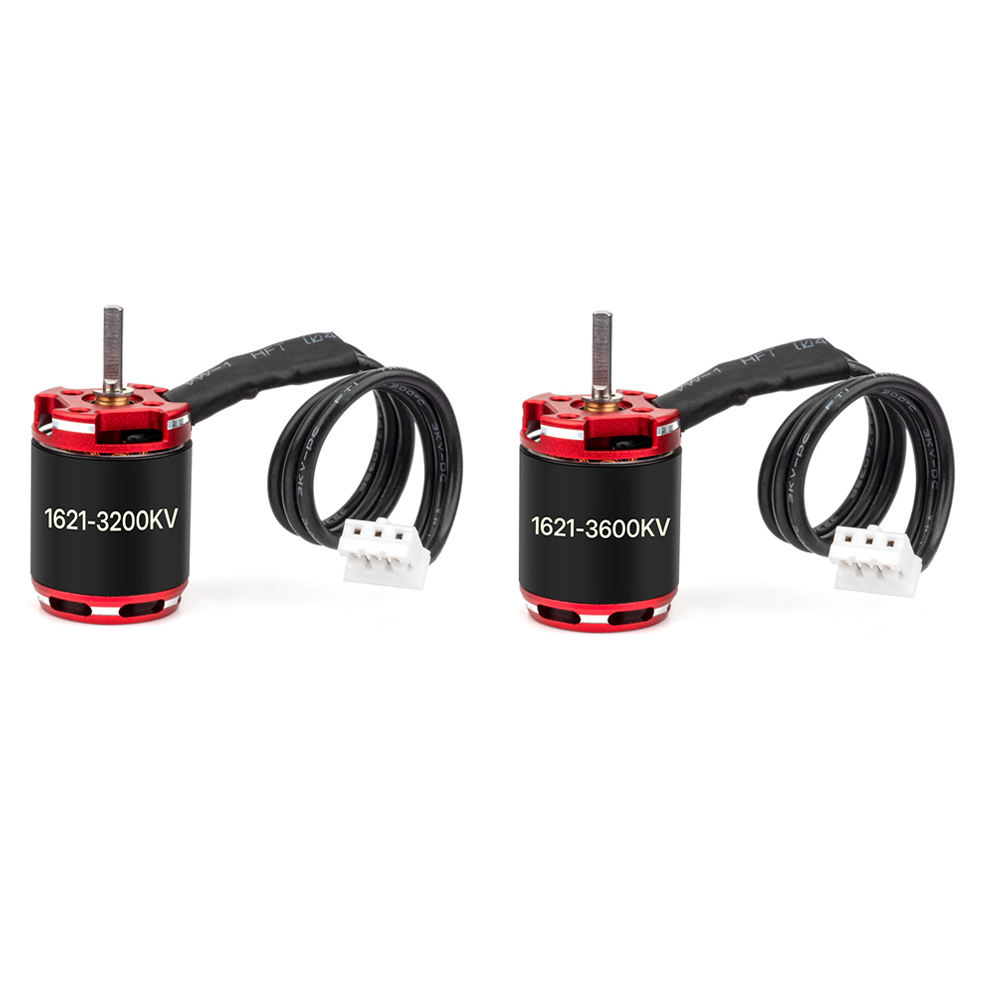

1621-3600KV Motor Specifications:
Stator Diameter: 12 mm(in)
Stator Thickness: 12 mm(in)
Number of Stator Slots: 9
Magnet Grade: 12
Motor winding: 1+2 Delta
Motor Wire Diameter: 0.29 mm
Motor KV Value: 3600KV RPM/Volt
No-Load Current (10V/11.1V): 0.9Amps
Maximum Current: 30 Amps
Maximum Power: 350 Watts
Motor internal Resistance (rm): 0.002 0hms
Motor Weight: 17Grams Amps
Motor Outer Diameter: 15.7mm(in)
Motor Shaft Diameter: 1.7 mm(in)
Motor Length: 20.9 mm
Overall Length (including shaft): 30 mm
Number of Cells (Battery Cells): 3S
Motor Timing: 1-4deg
Drive Frequency: 2kHz

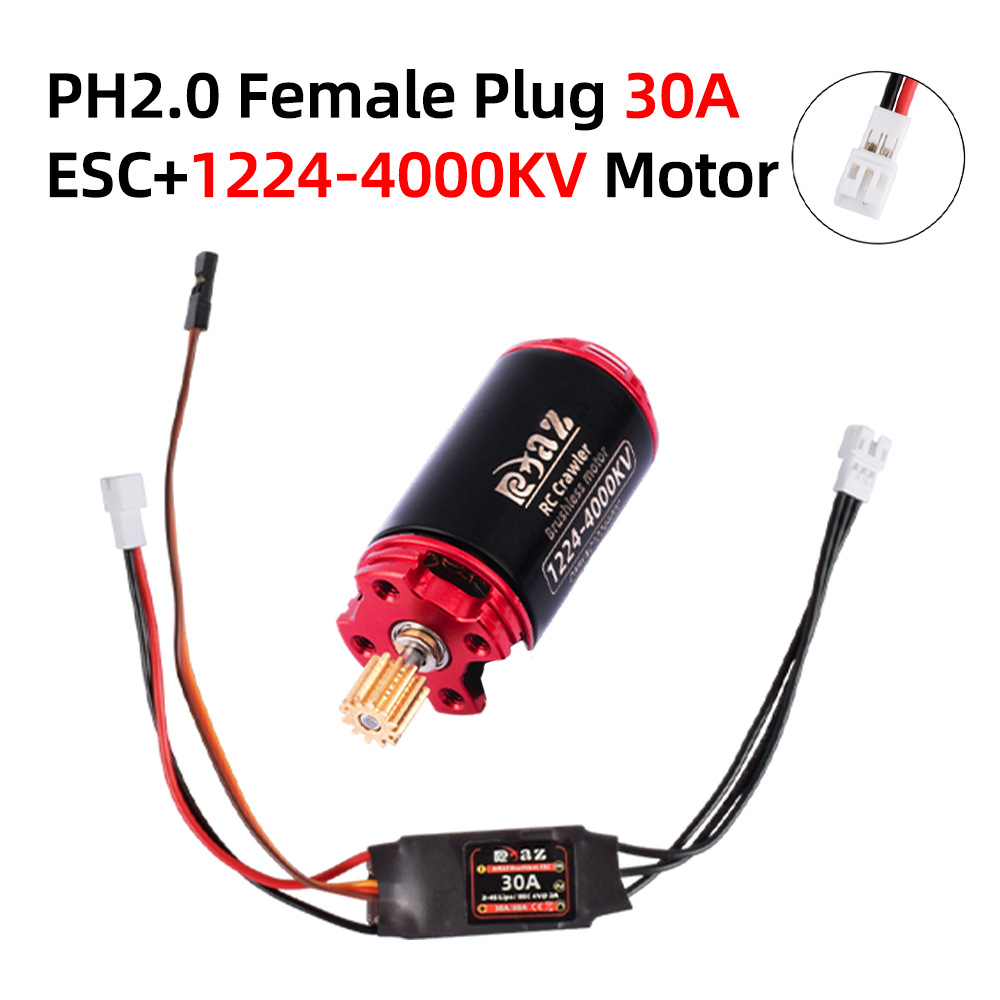

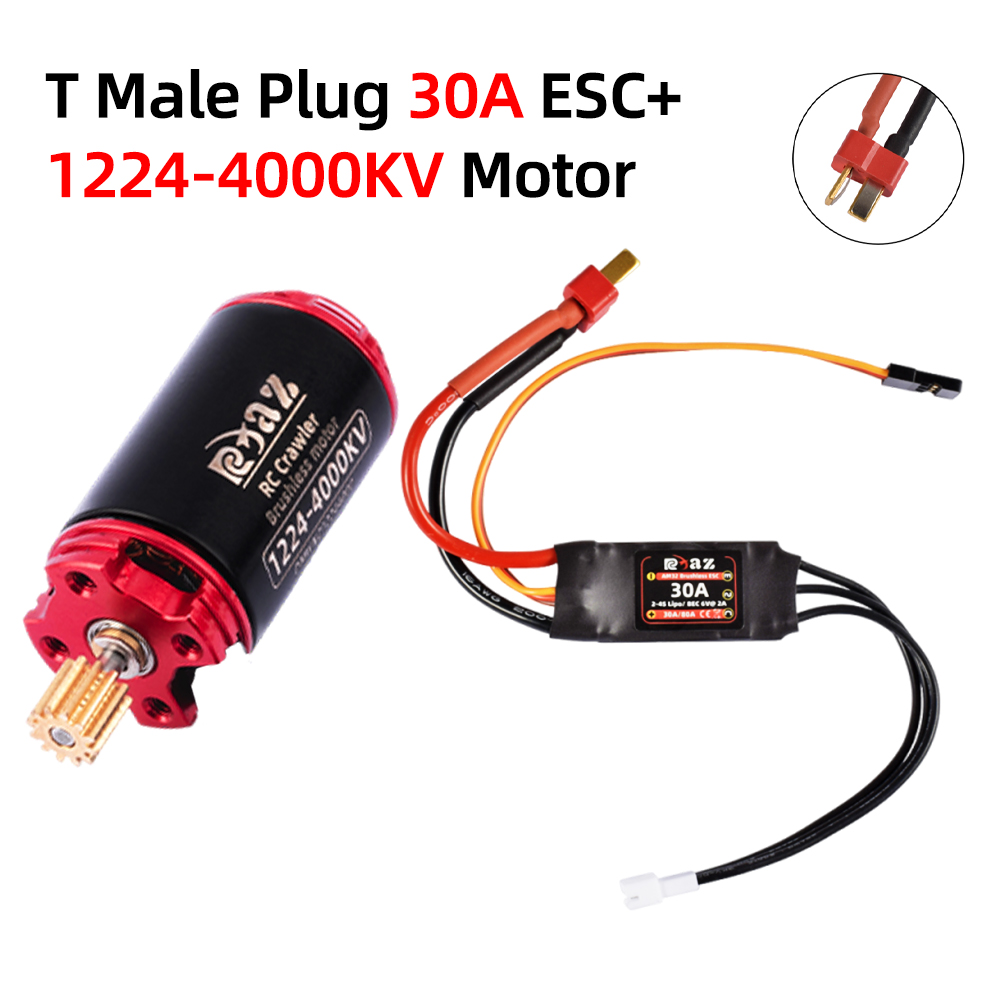

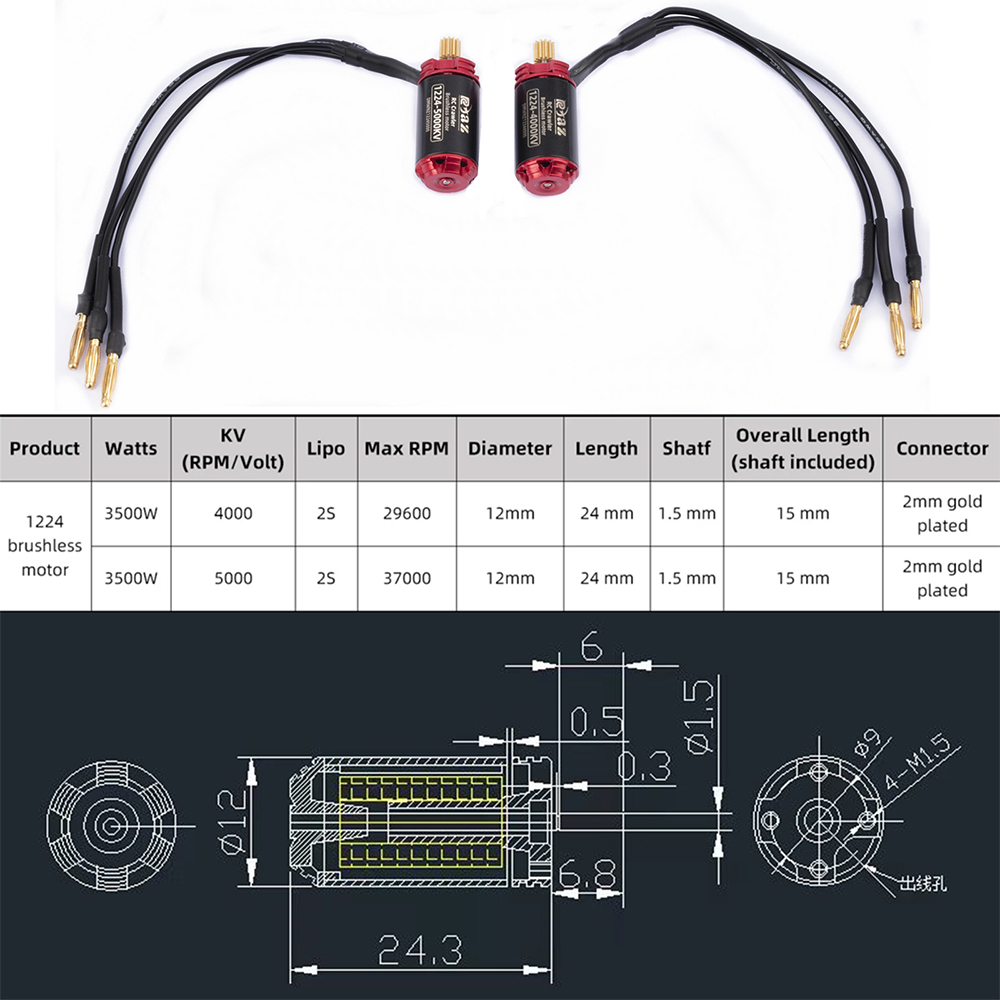

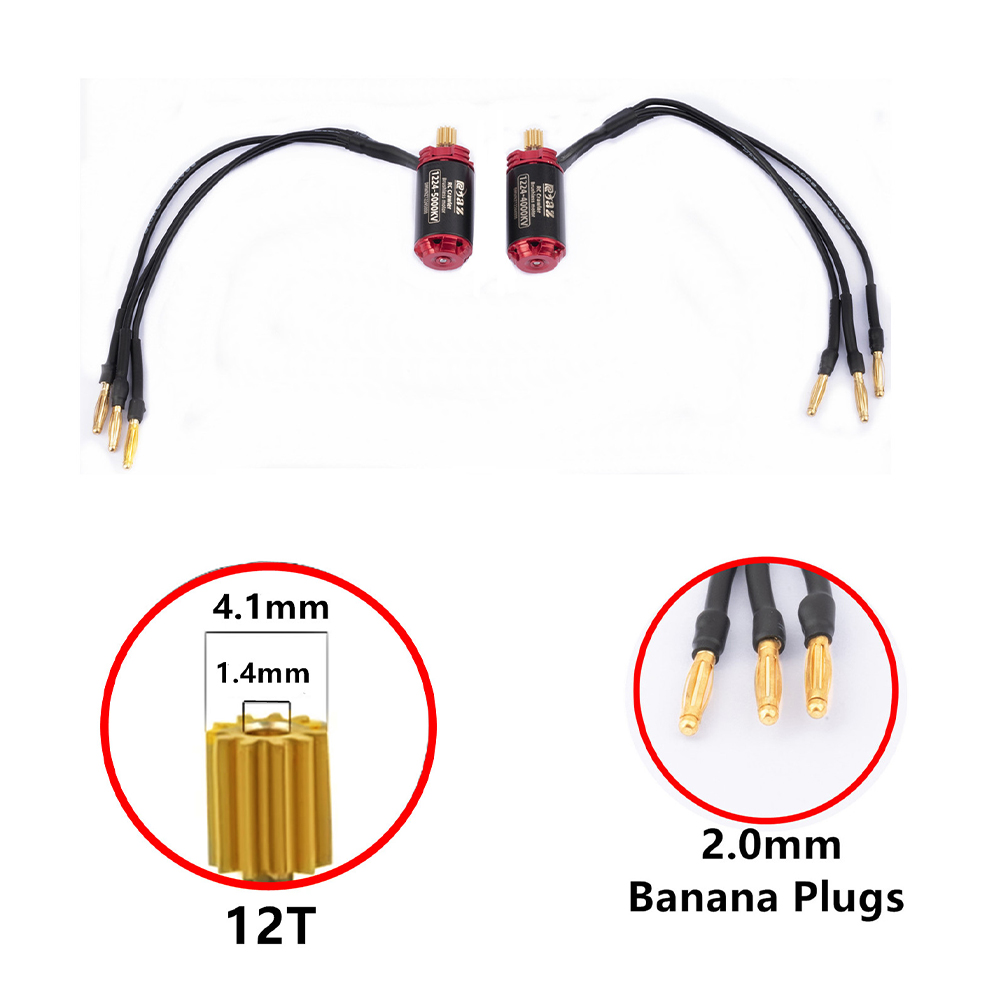

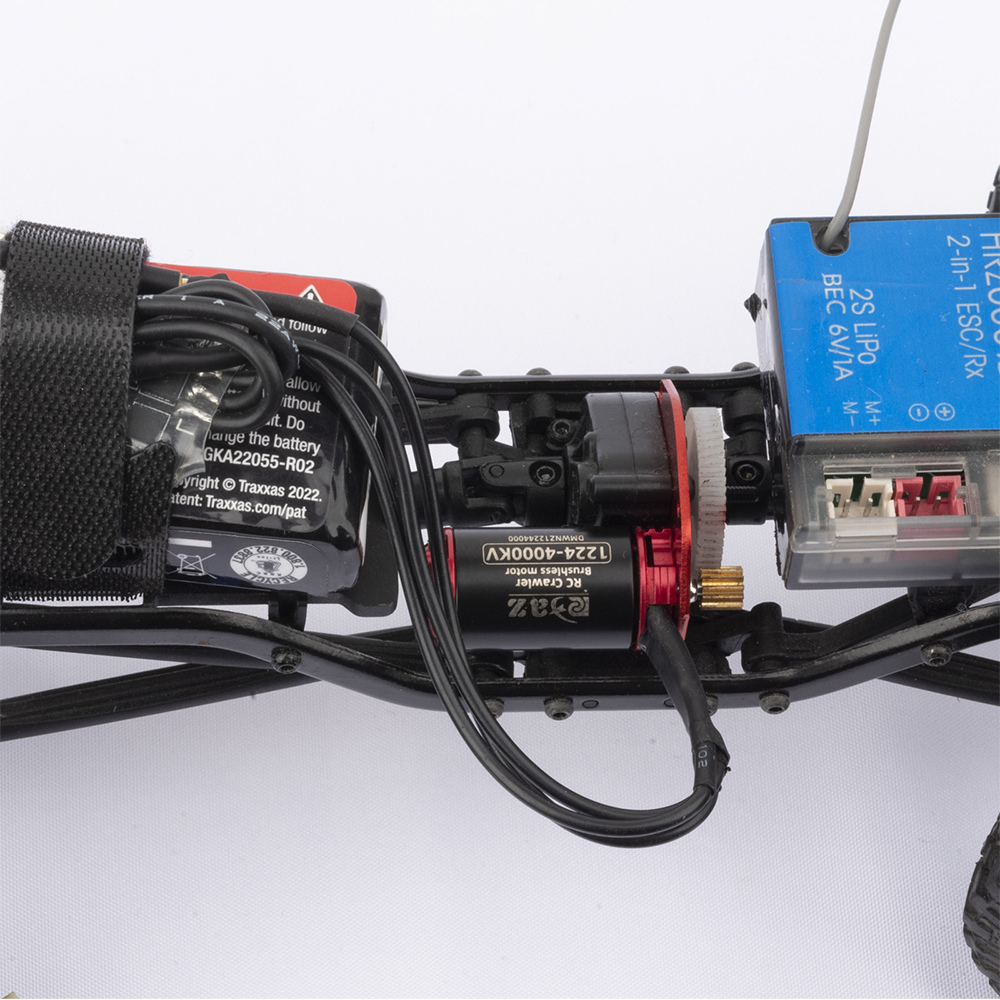

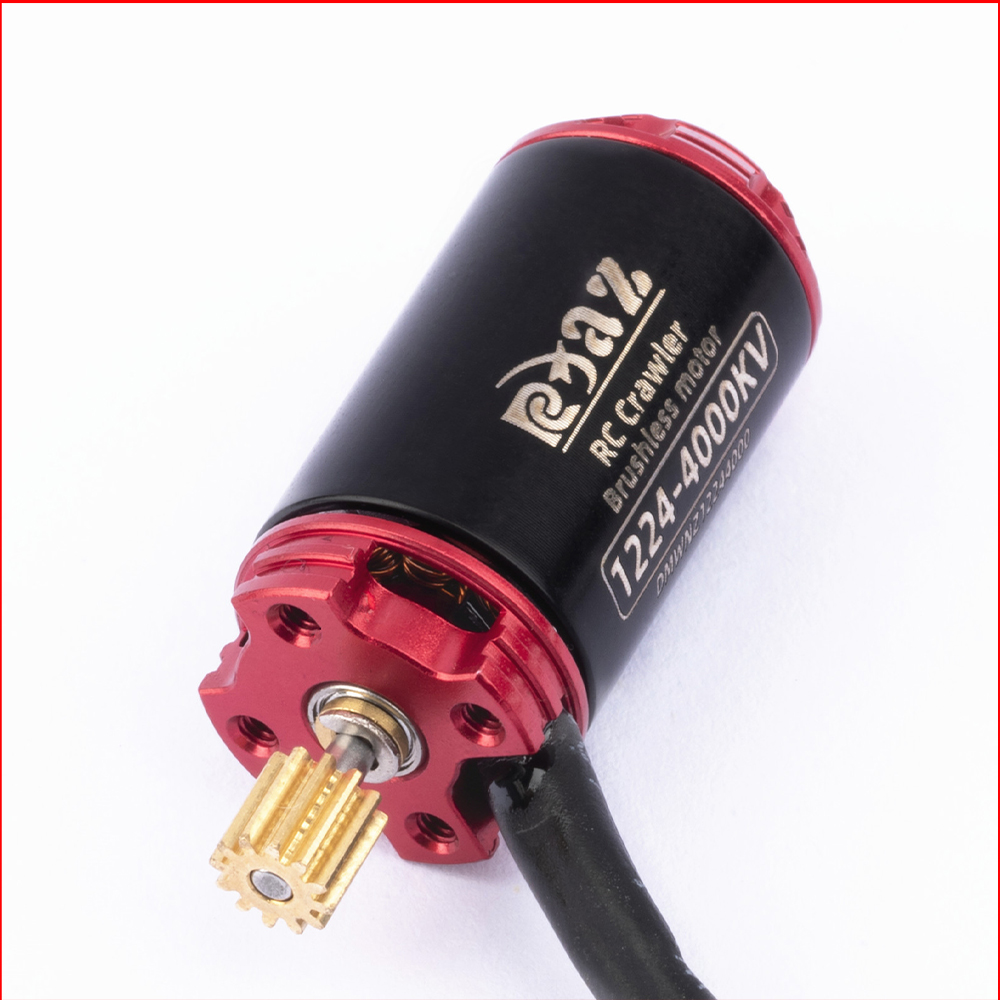

1224-4000kv Motor Specifications:
No load current (1o/7.4V):0.2Amps
Motor speed:29600
Madame resistance (rm):0.001 Ohms
Motor wire diameter:0.18mm
Suit for: 1/24 RC Crawler Car Axial SCX24 WPL FMS FCX24M

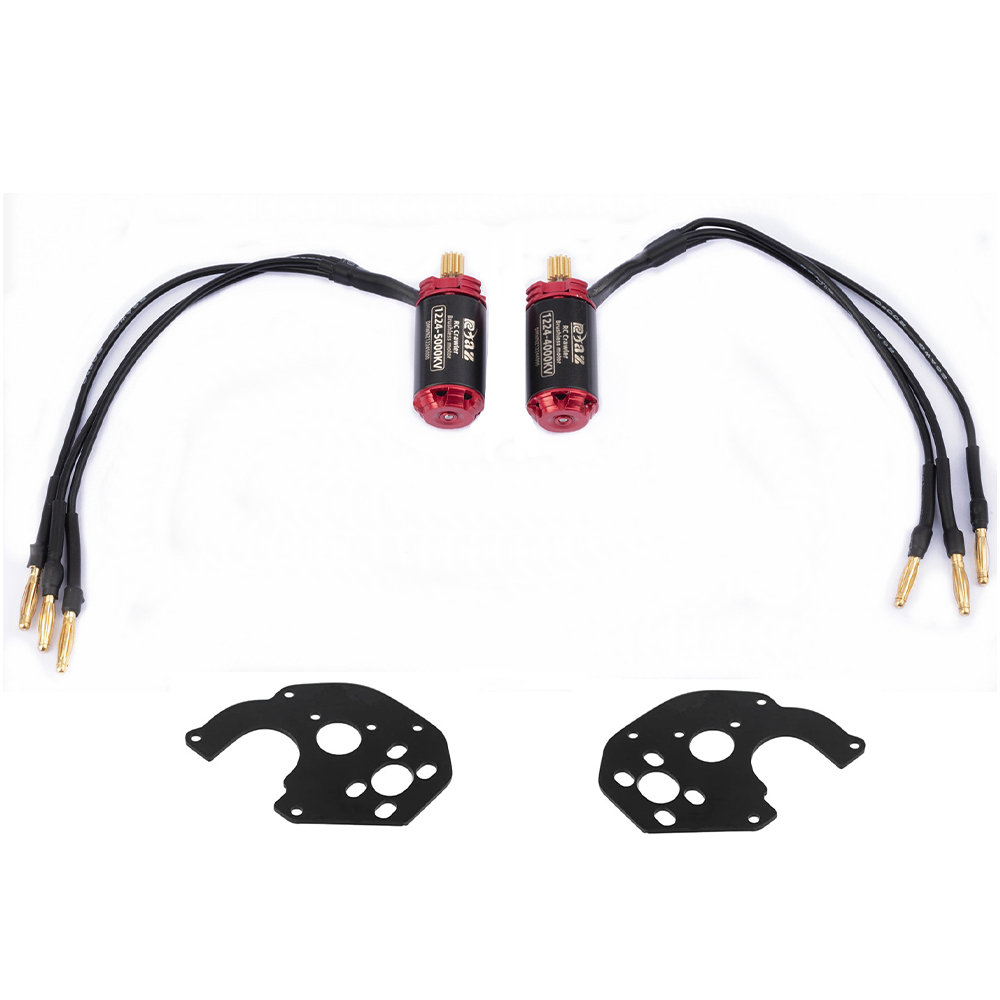

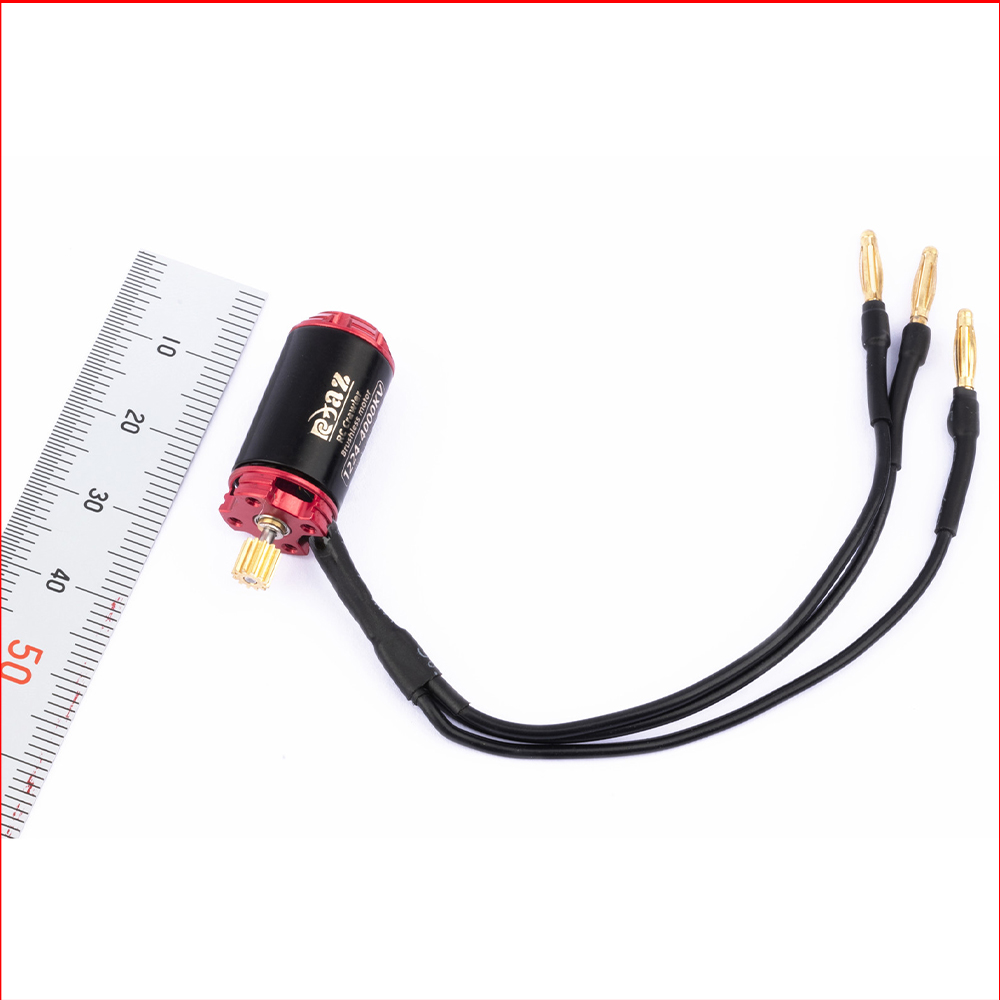

1224-3600KV Motor Specifications:
No load current (1o/7.4V):0.2Amps
Motor speed:25000
Madame resistance (rm):0.001 Ohms
Motor wire length:0.29mm

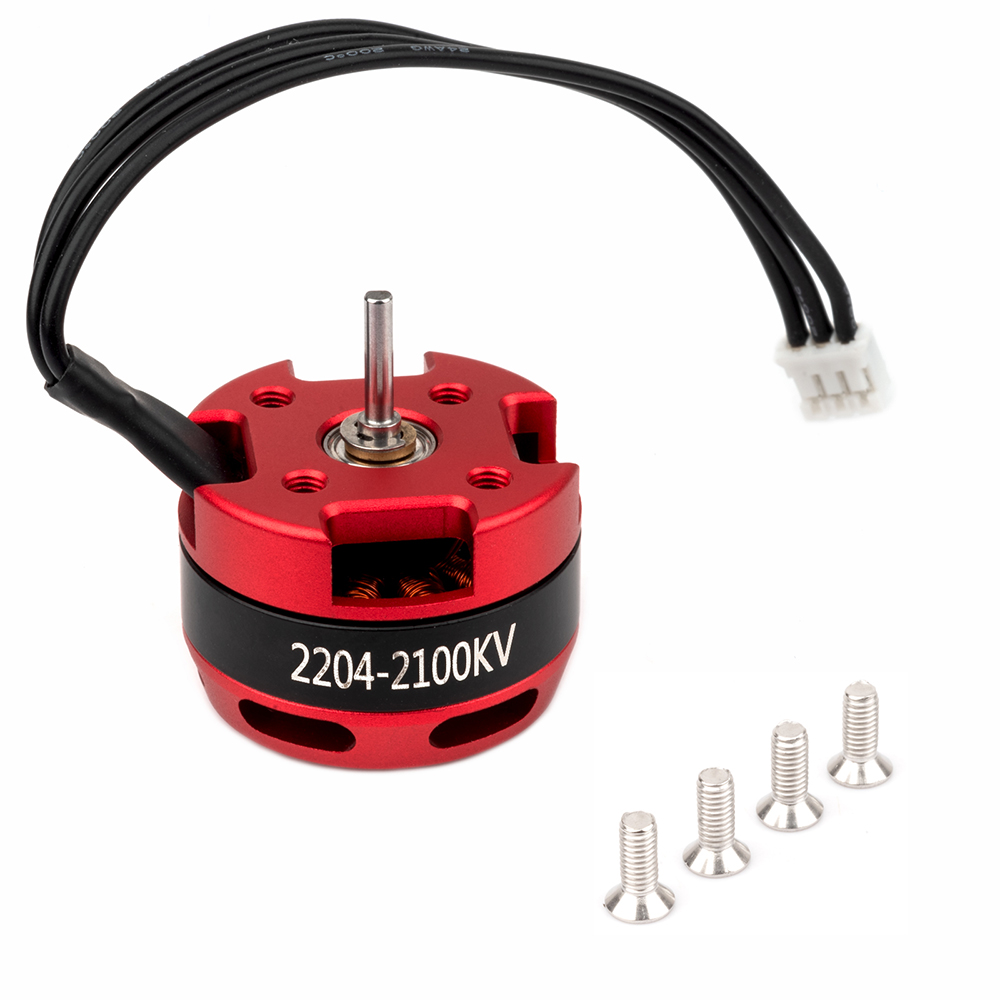

2204-2100KV Motor Specifications:
Stator Diameter: 22 mm(in)
Stator Thickness: 4.6mm(in)
Number of Stator slots: 12
Magnet Grade: 14
Motor wire Diameter: 0.25 mm
No-Load current: 0.5Amps
Maximum Power: 700Watts
Motor Outer Diameter: 28mm(in)
Motor Shaft Diameter: 2.0mm(in)
Motor Length: 19.2 mm
Overall Length (including shaft): 30.5mm
Number of Cells (Battery Cells): 3S11.1V

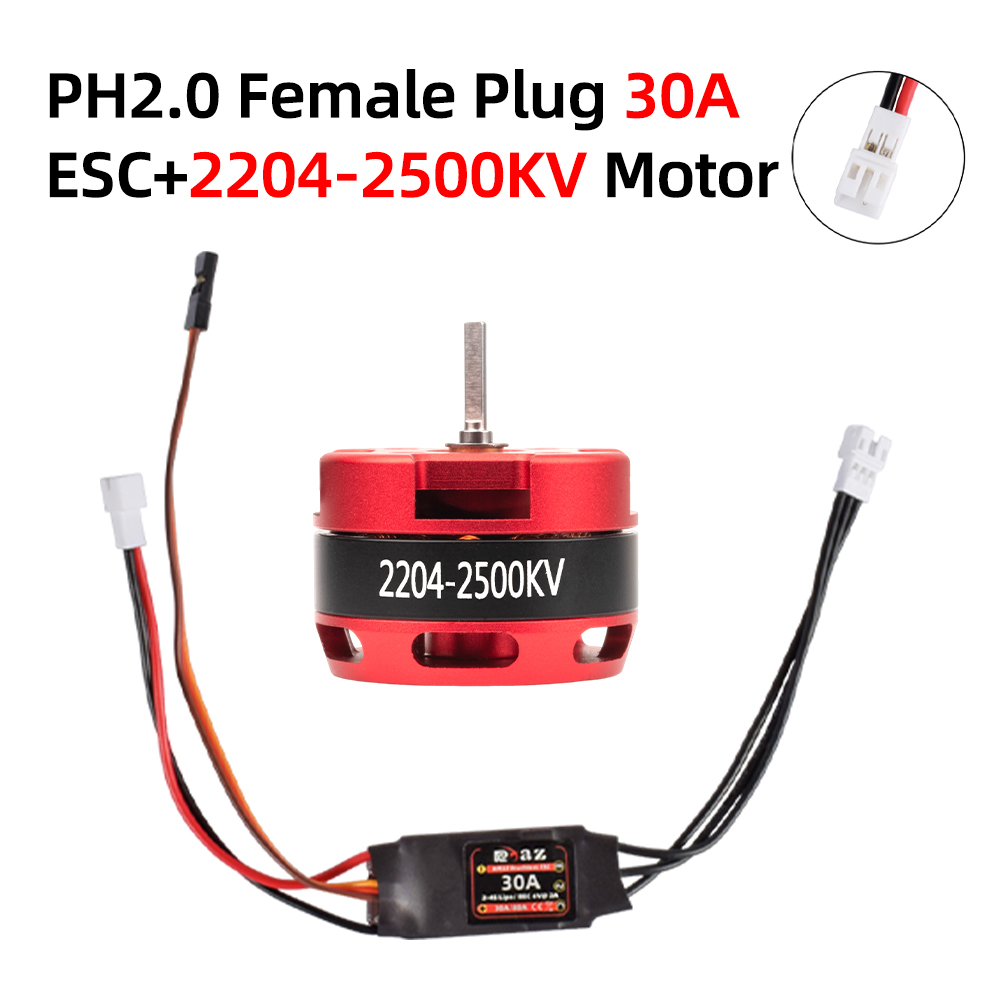

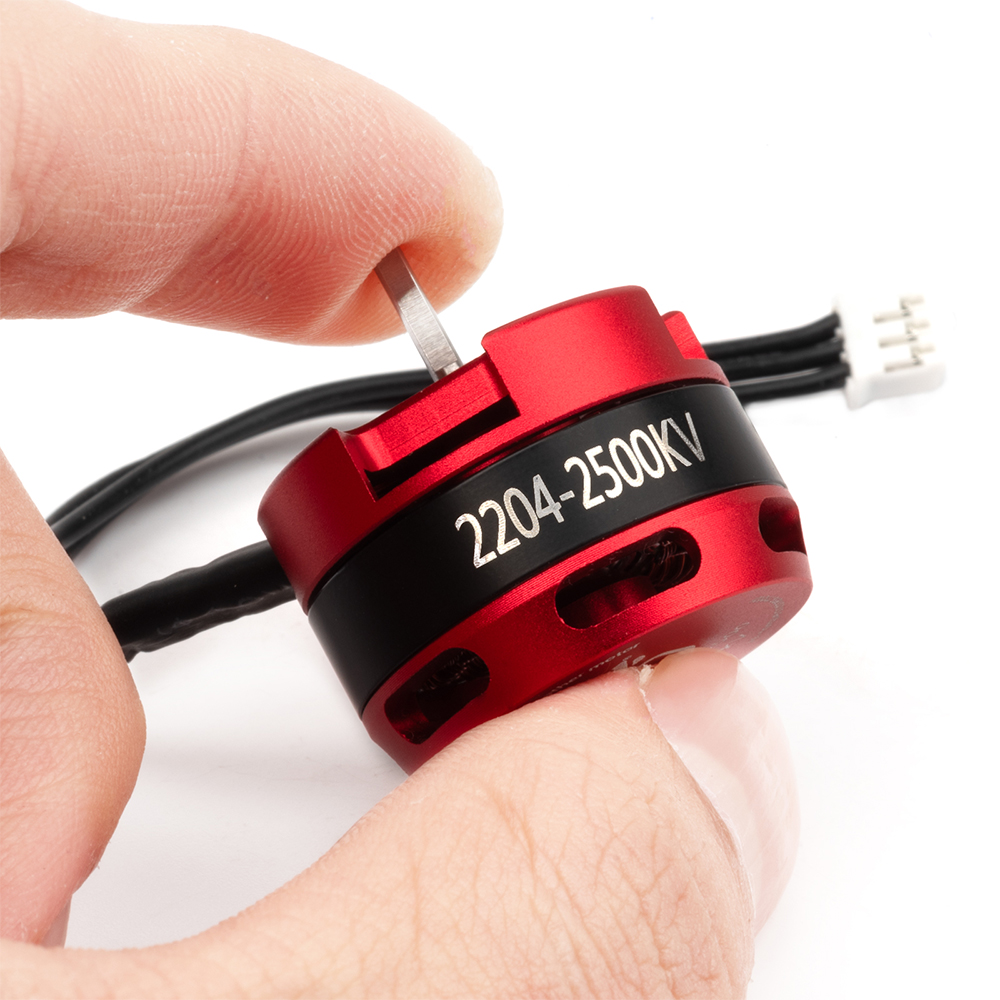

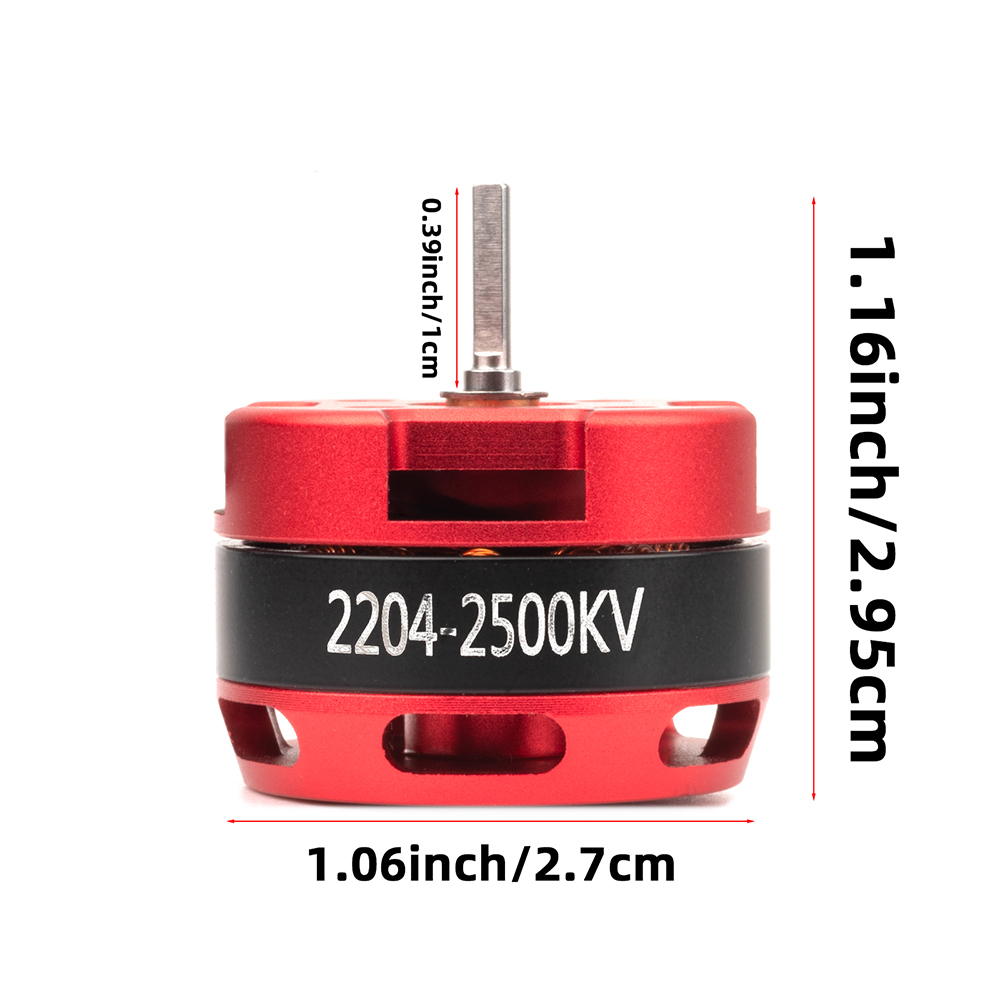

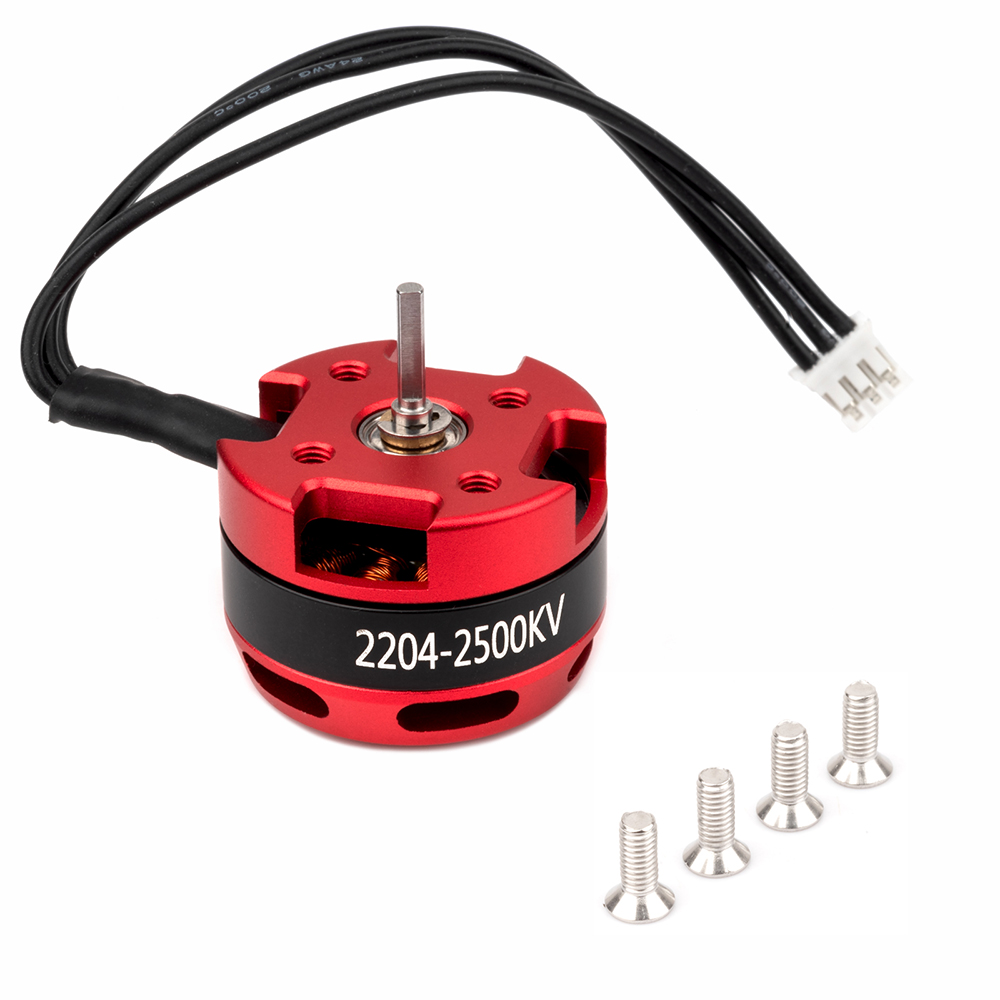

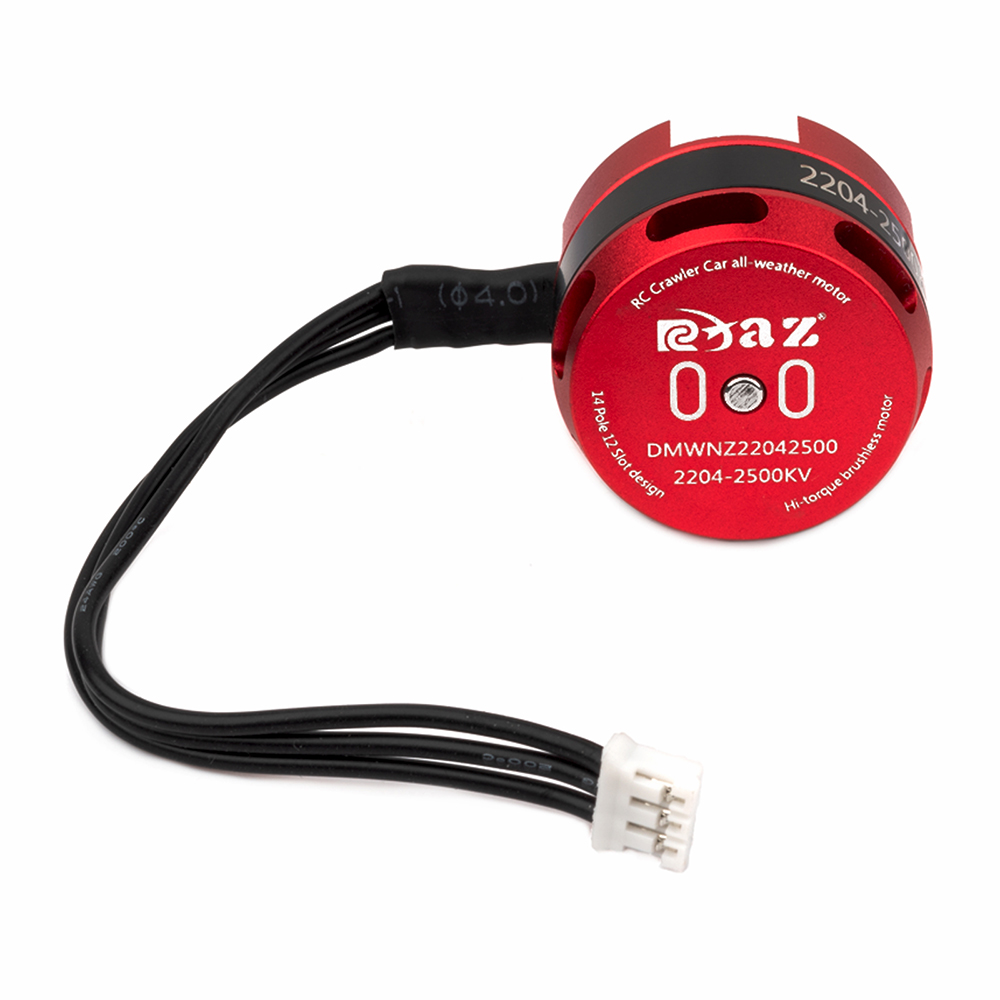

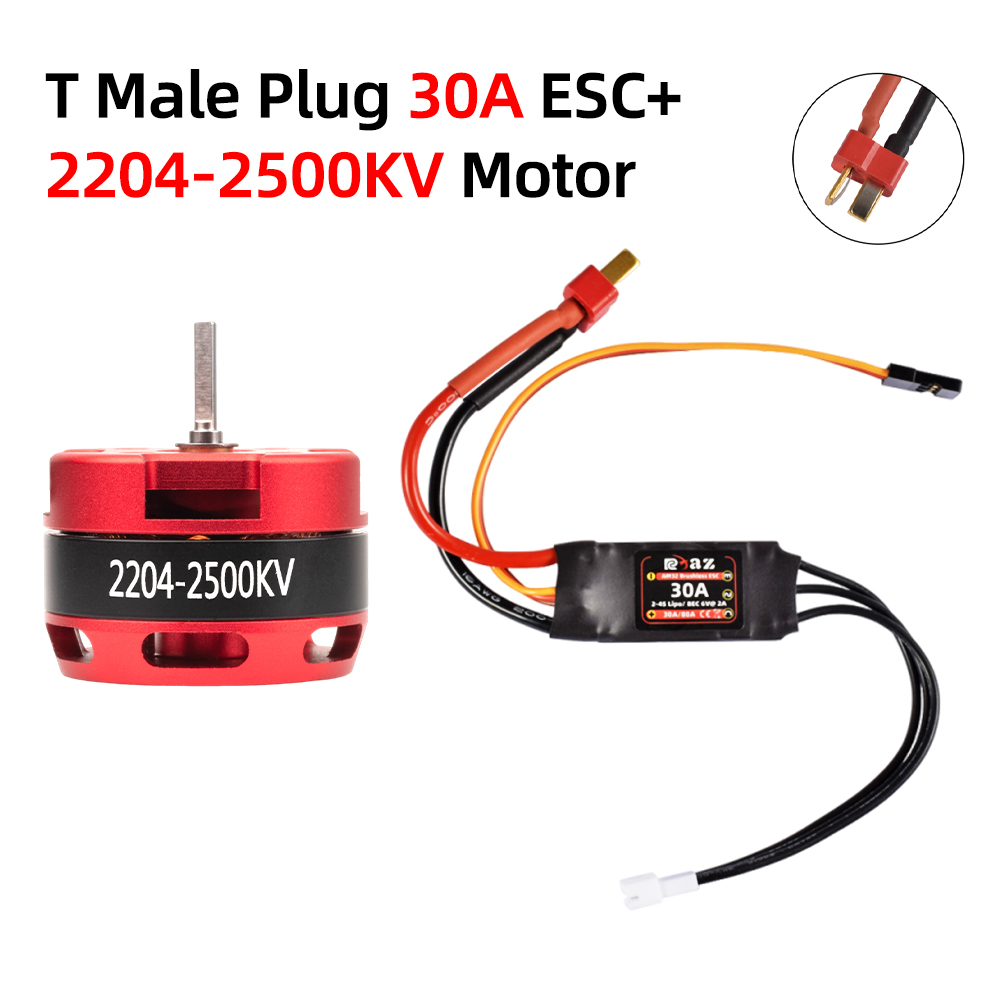

2204-2500KV Motor Specifications:
Stator Diameter: 22 mm(in)
Stator Thickness: 4.6mm(in)
Number of Stator slots: 12
Magnet Grade: 14
Motor wire Diameter: 0.25 mm
No-Load current: 0.7Amps
Maximum Power: 900Watts
Motor Outer Diameter: 28mm(in)
Motor Shaft Diameter: 2.0mm(in)
Motor Length: 19.2 mm
Overall Length (including shaft): 30.5mm
Number of Cells (Battery Cells): 3S11.1V
Package contents:
As you choose.
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
