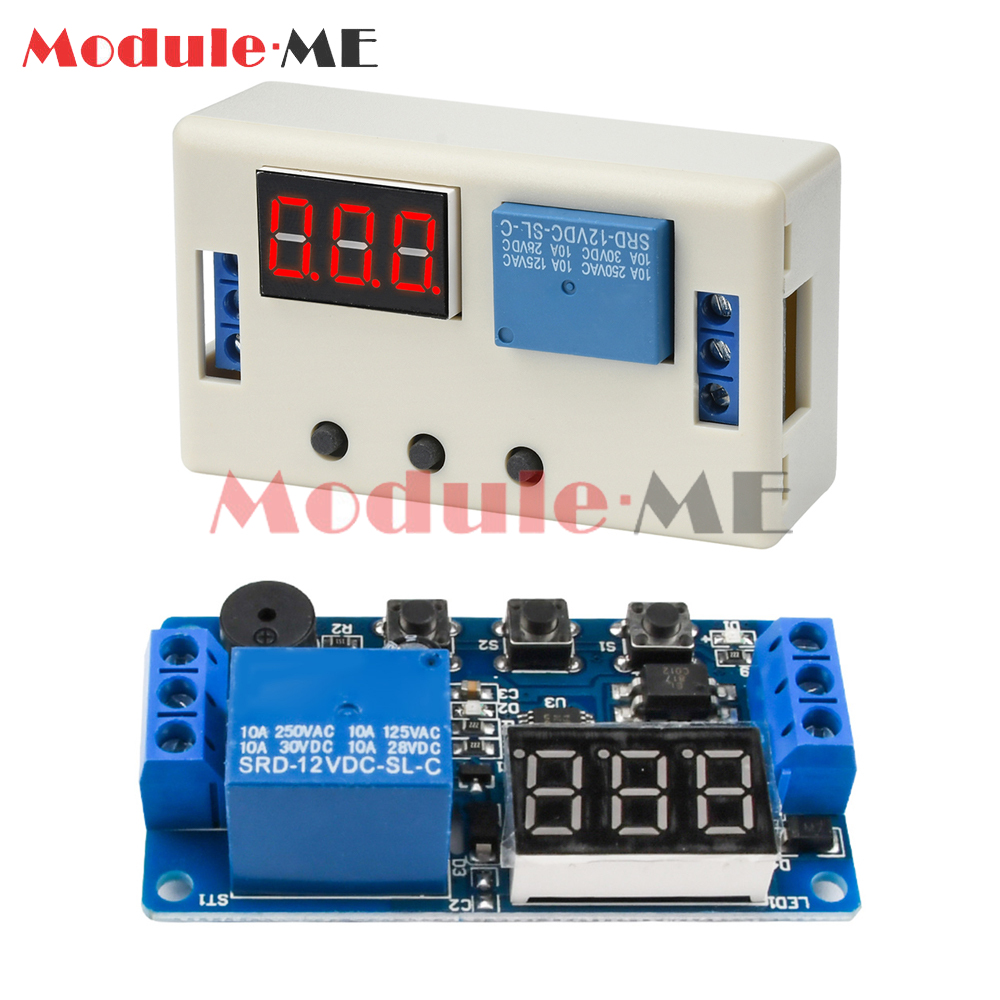

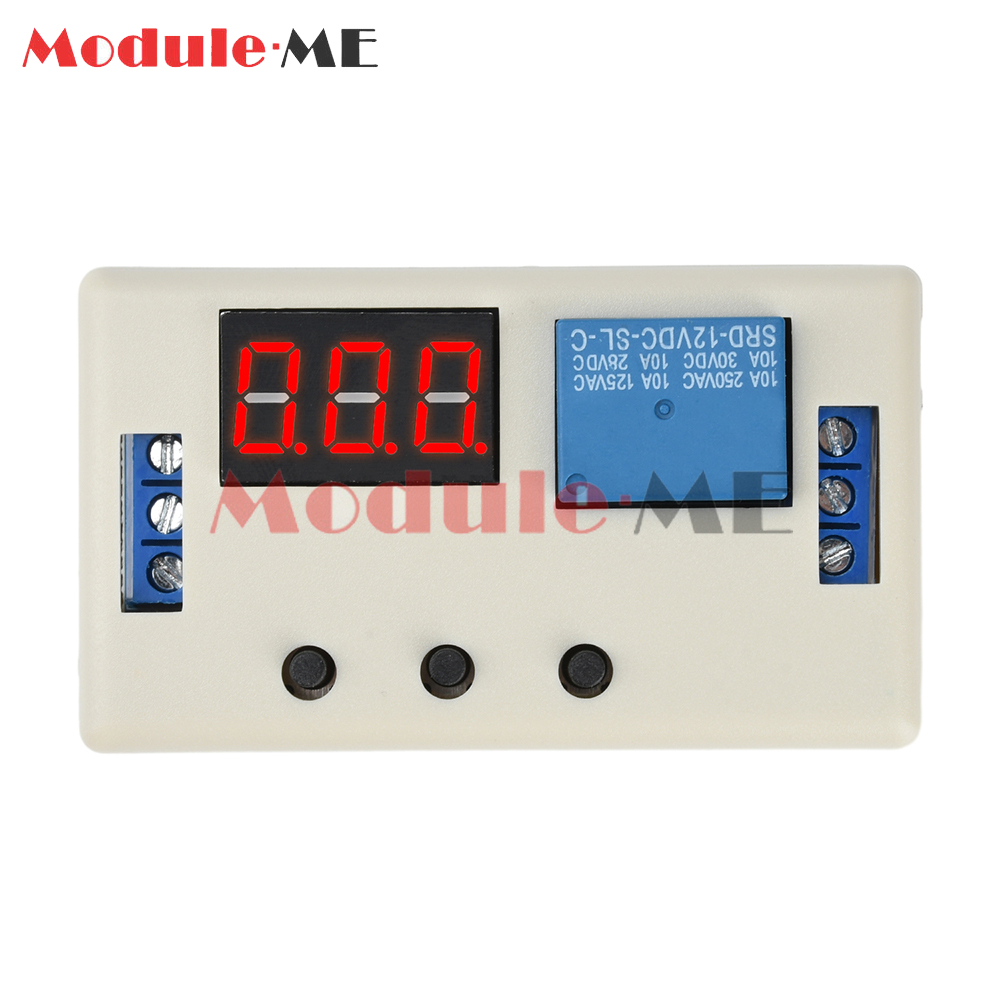

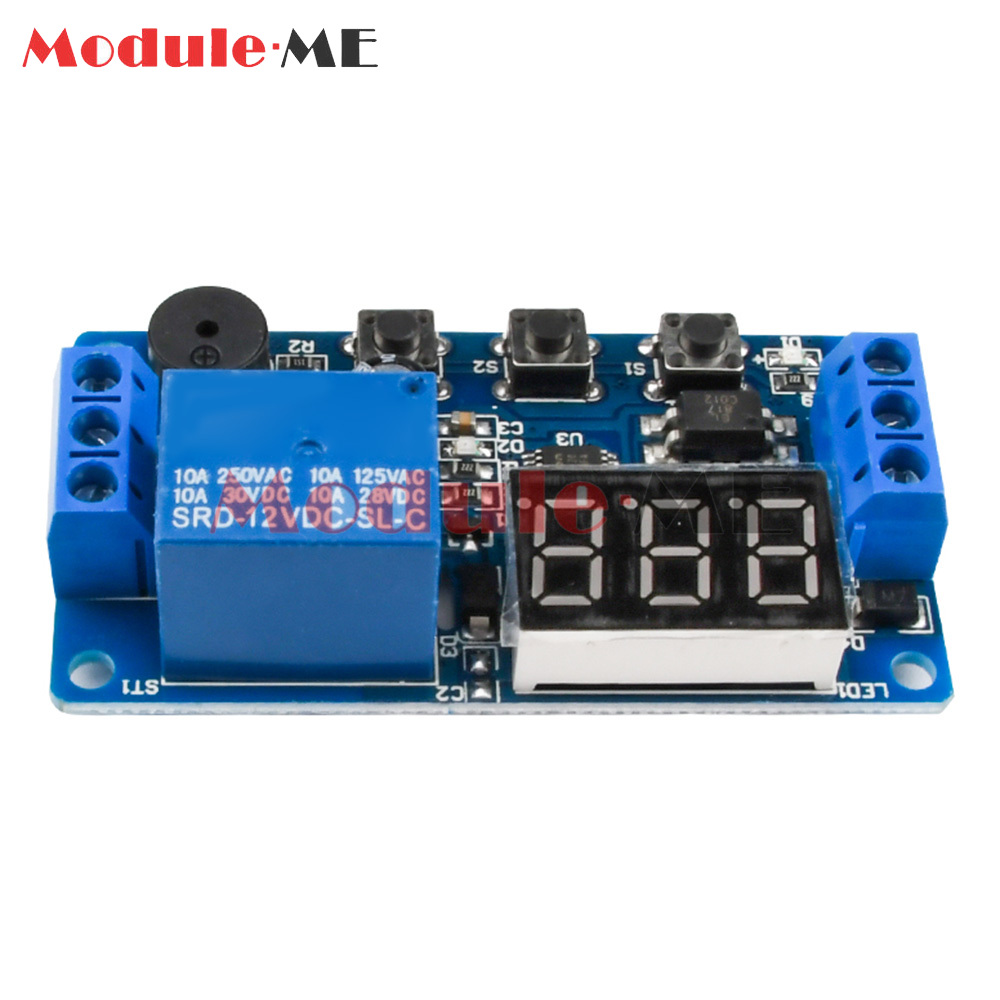

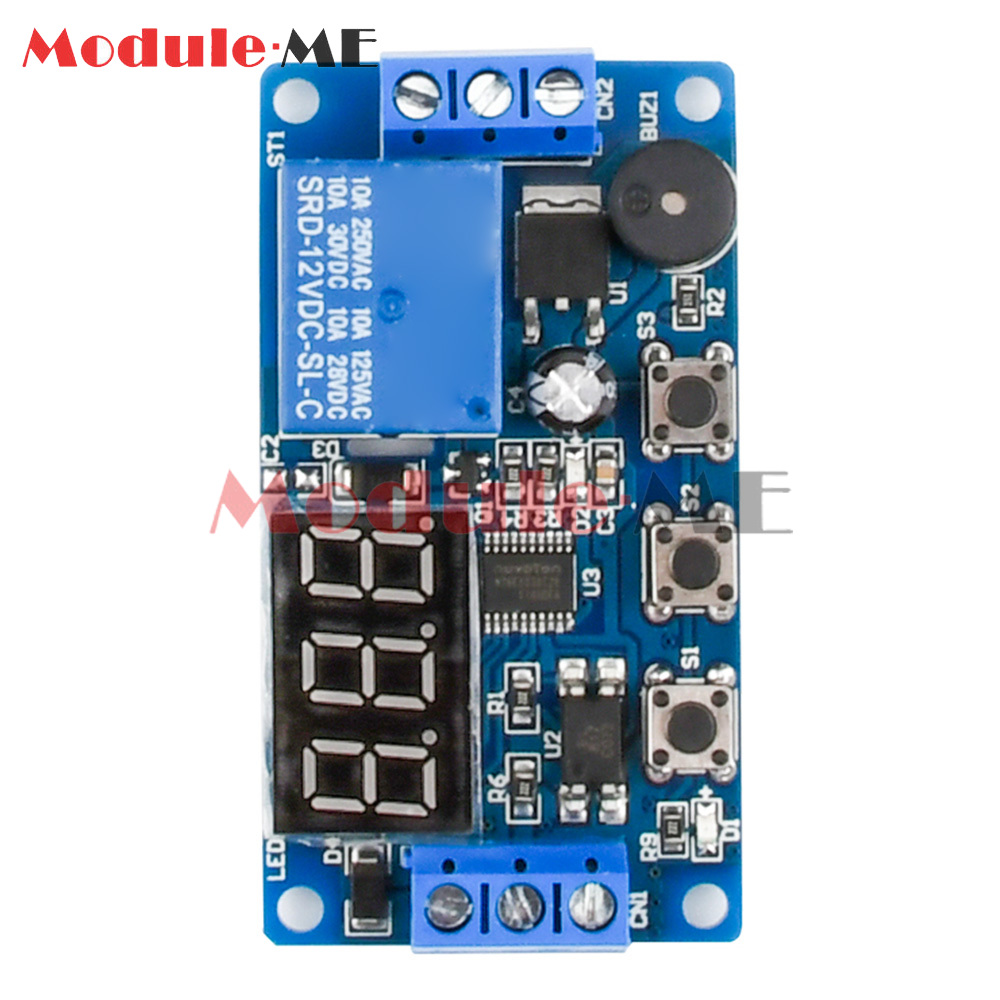

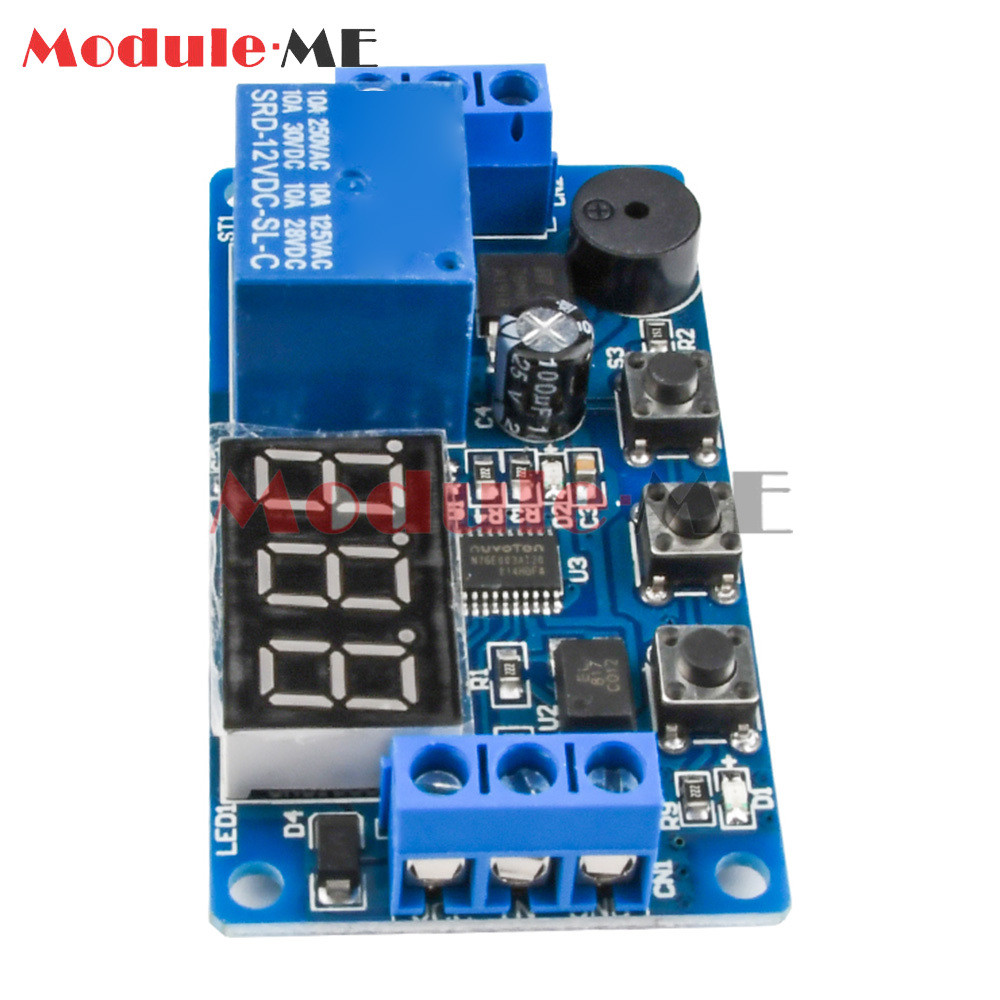

DC 12V LED Timer Relay Programmable Buzzer Button Module Delay Switch With Shell
1.Support DC12V working voltage, strong adaptability.
2. High level trigger, input range DC4V~20V, applicable to a variety of signal sources.
3. Maximum control capacity up to 30V/5A, meet DC or AC load requirements.
4. Built-in anti-reverse connection protection and optocoupler isolation to ensure stable and reliable operation.
5. Long service life, signal input optocoupler isolation, strong anti-interference ability.
Model: DK-C-01
Operating voltage: DC12V (Normal operating voltage DC10V~16V)

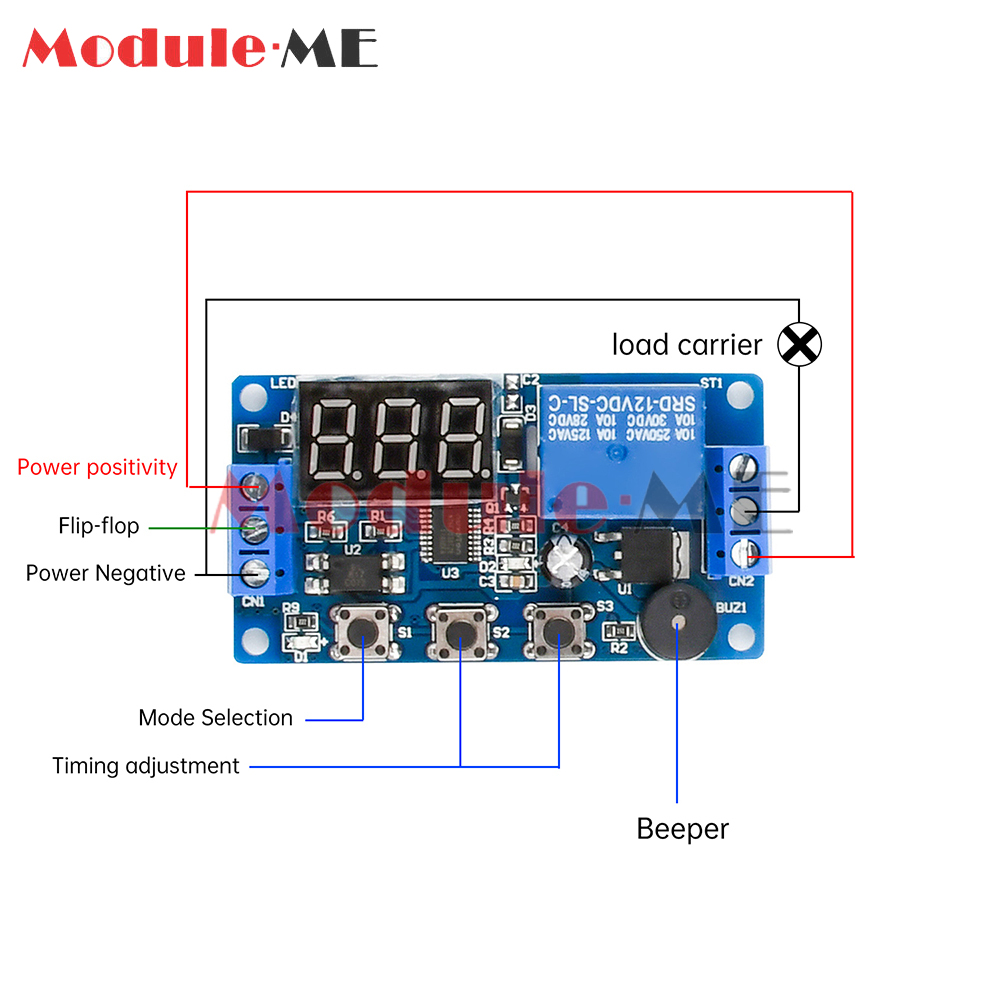

Source: High level, DC4V~20V (Positive triggering of public power button, PNP sensors, PLC signals, etc.).
Output capacity: you can control DC or AC 220V/5A within 30V /5A
Static current: 20mA
Operating current: 50mA
Operating temperature: -40~85℃

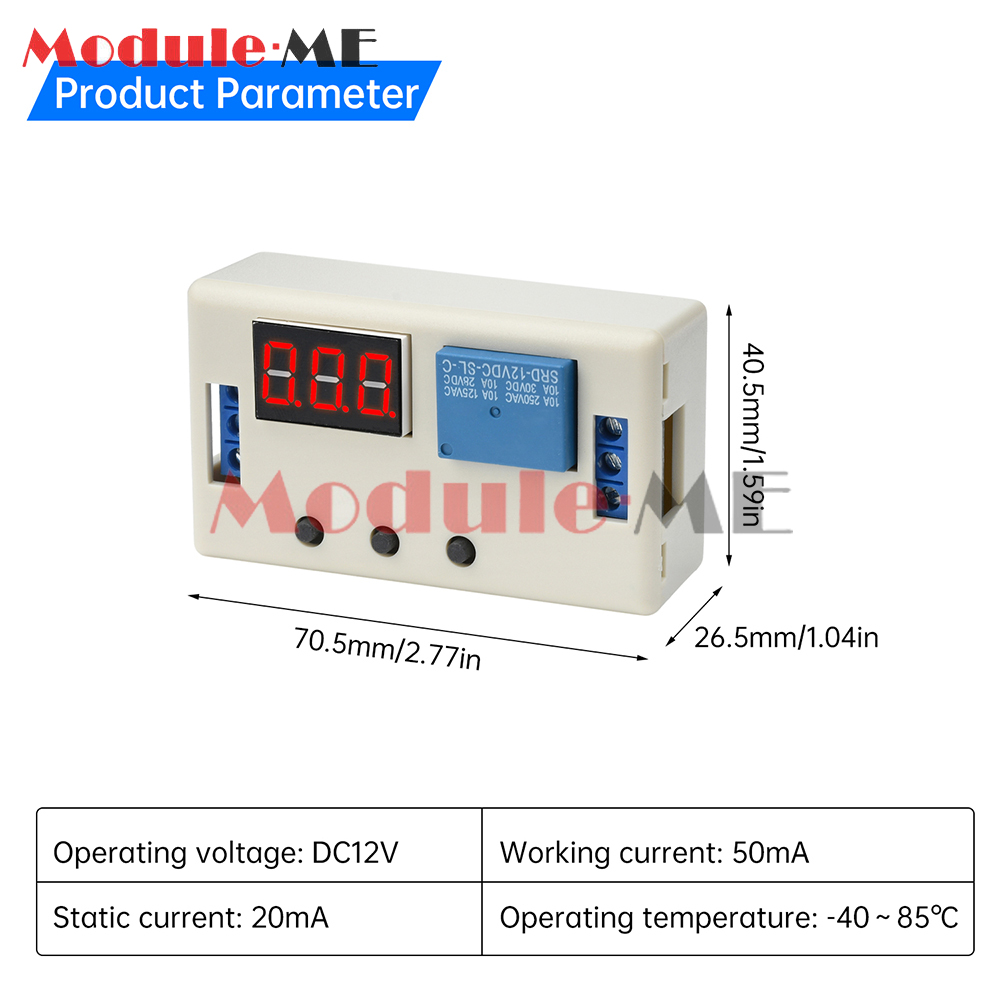

Dimensions: 64.2mm*34.8mm*18.5mm
Features: anti-reverse voltage input circuit, worry-free wiring. Signal input optocoupler isolation, strong anti-interference ability. Set the parameters of power supply and permanent memory.

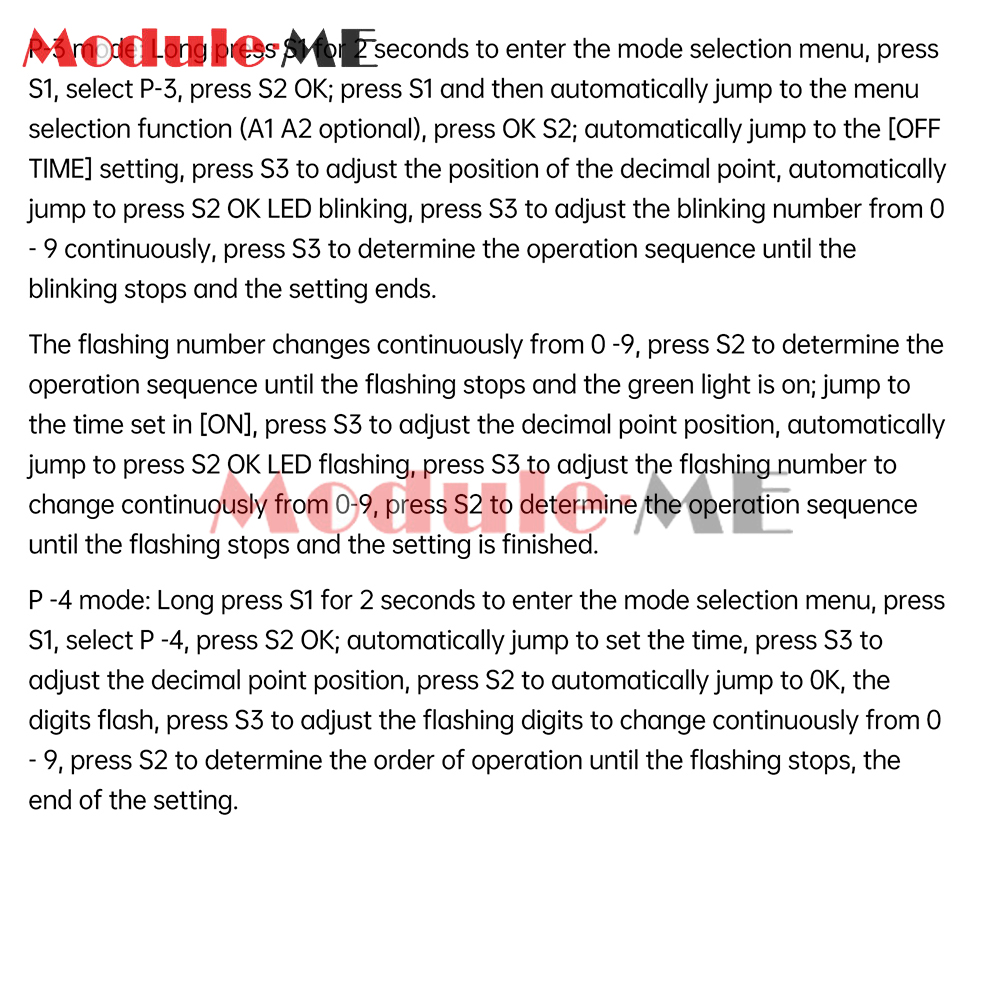

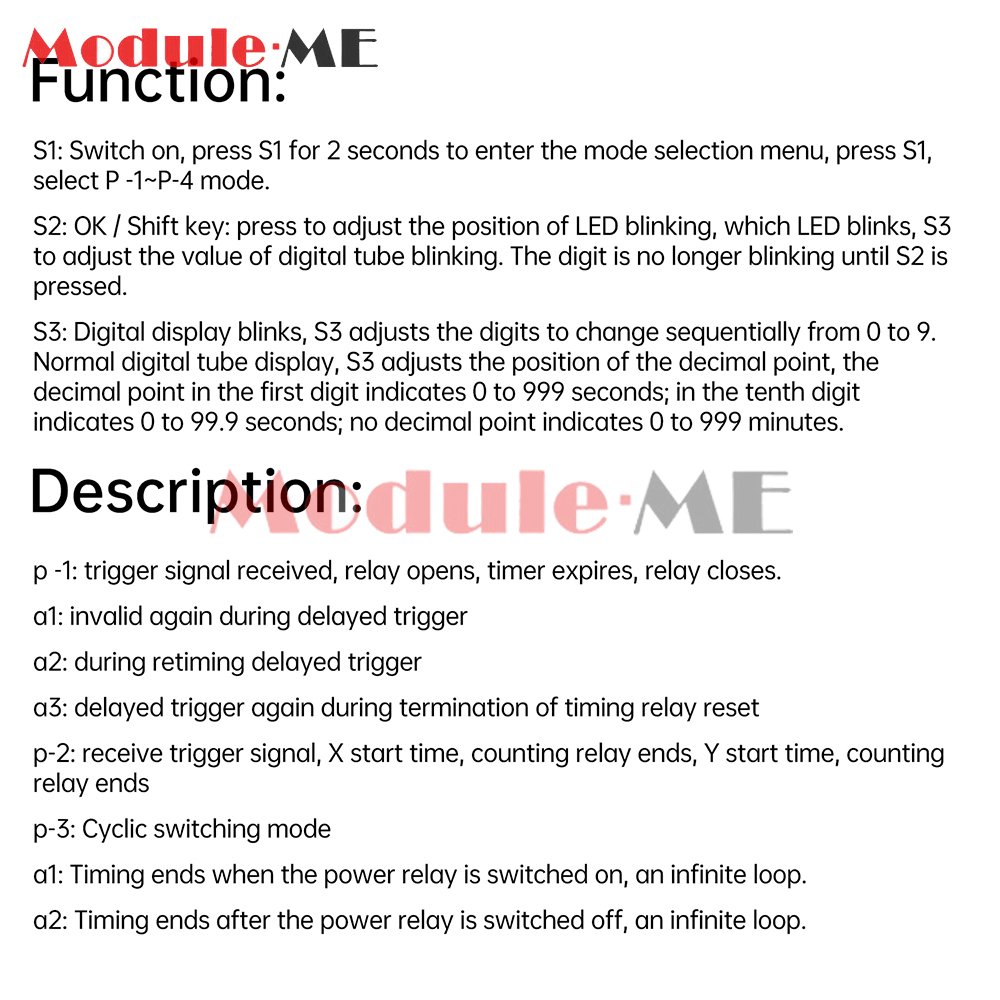

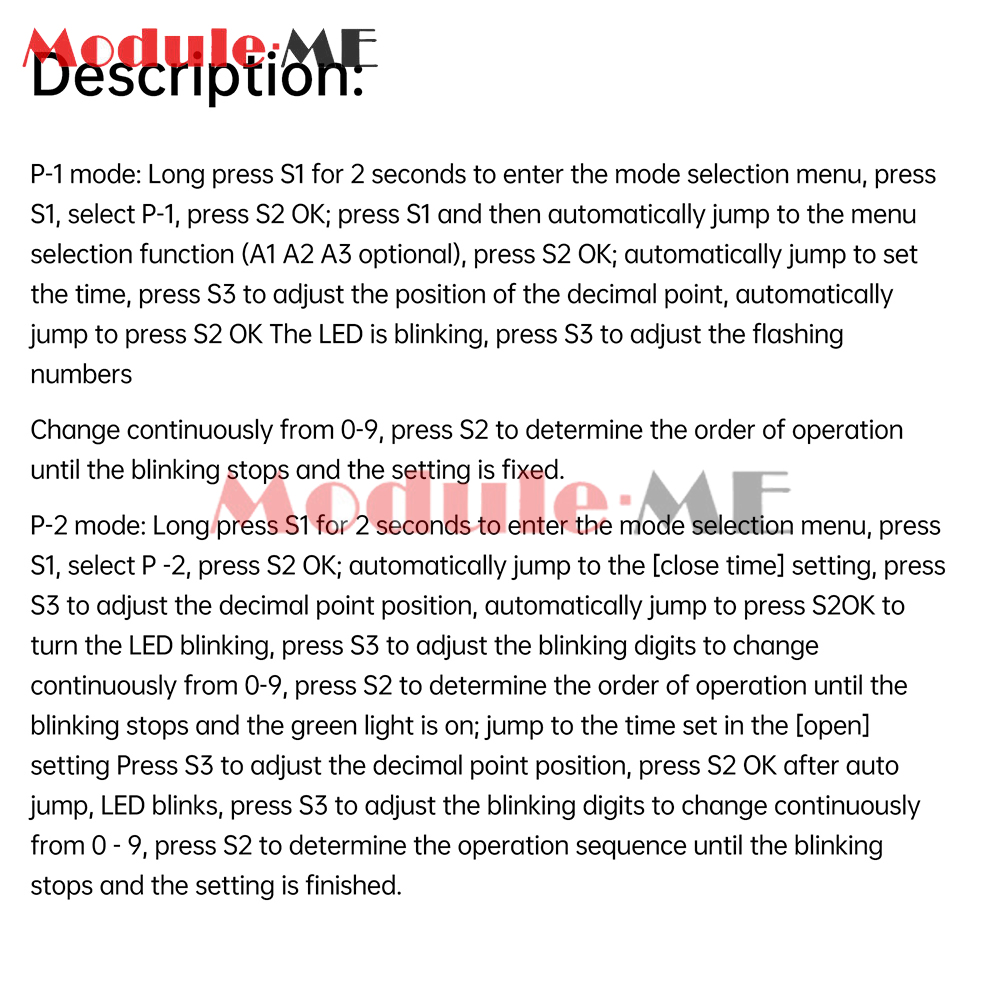

S1: Power on, press S12 seconds to enter mode selection menu, press S1, select P-1~P-4 mode.
S2: OK/Shift key: press to adjust the position of LED blinking, which LED blinks, S3 to adjust the value of digital tube blinking. The digit is no longer blinking until S2 is pressed.
S3: Digital display blinks, S3 adjusts the numbers to change sequentially from 0 to 9. Normal digital tube display, S3 adjusts the position of the decimal point, the decimal point in the first digit means 0 to 999 seconds: in the tenth digit means 0 to 99.9 seconds: no decimal point means 0 to 999 minutes.
P-1: Trigger signal received, relay opens, timer expires, relay closes.
a1: invalid again during delayed triggering
a2: during re-timing delayed triggering
a3: delayed triggering again during termination of timer relay reset
p-2: trigger signal received, X start time, counting relay expires, Y start time, counting relay expires
p-3: cyclic switching mode
a1: timer expires after power relay is turned on, an infinite loop.
a2: After the power relay is turned off, timing ends, an infinite loop.

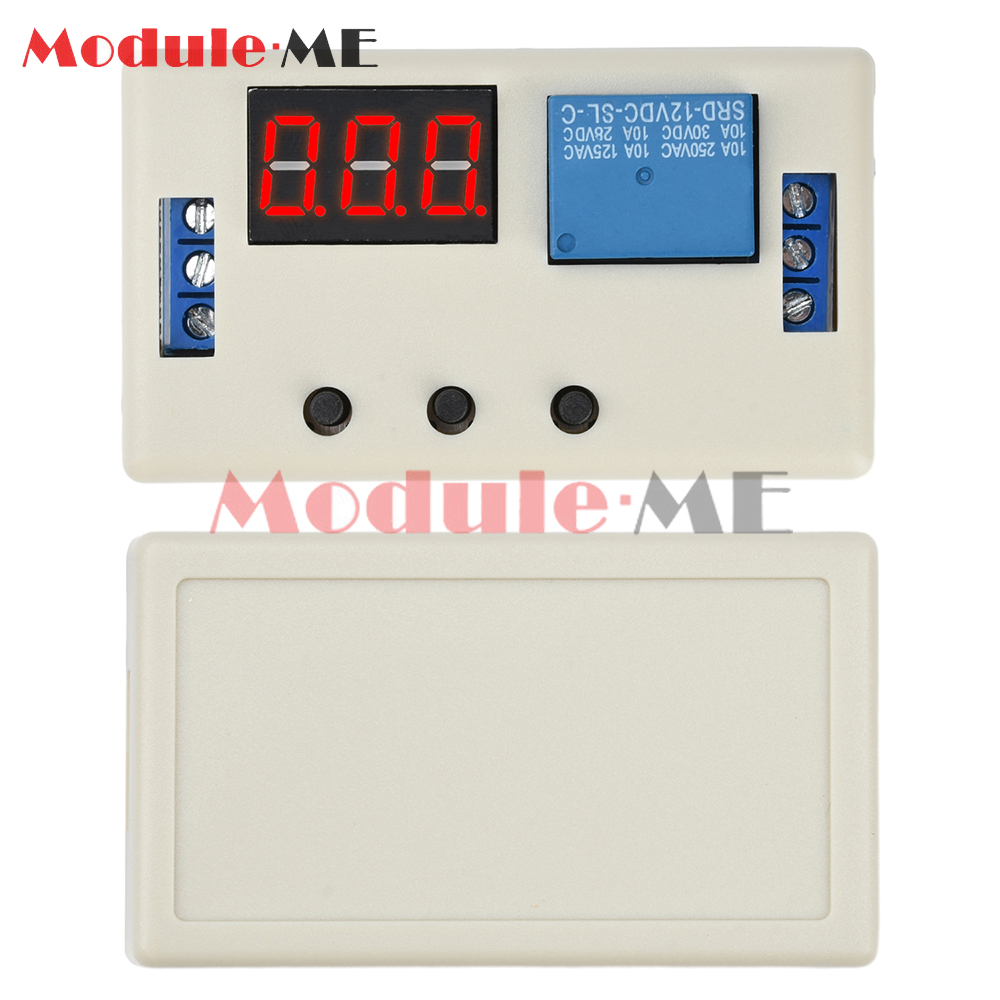

1 x Relay Module (without case/with case optional)
