Guide TK421 1280*960 FLCOS Display Handheld Thermal Imaging Monocular Telescope IP66 FCC CE RoHS 5H Life
Product Description
Product Description

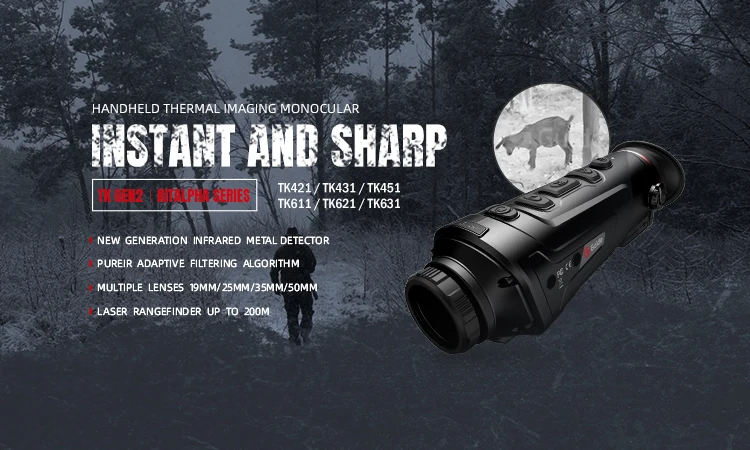

TK Gen2 Handheld Thermal Imaging Monocular
Equipped with the new self-developed infrared detector and the patented image processing technology, the TK Gen2 Kitalpha Series captures sharp imaging and is packed with powerful features like image and video recording, smooth zoom, pseudo-color adjustment, approximate ranging and PIP. Personalized image observation is supported in different scene modes. The builtin laser indicator and illuminator facilitate itself to be operated in harsh environment.
Product Features
Specification
|
Product model
|
TK421
|
TK431
|
TK451
|
TK611
|
TK621
|
TK631
|
||||||
|
Sensor
|
|
|
|
|
|
|
||||||
|
Type
|
Uncooled VOx Infrared Detector, 8 to 14 μm
|
|
|
|
|
|
||||||
|
Resolution
|
400×300, 17 μm
|
|
|
640×480, 12 μm
|
|
|
||||||
|
NETD
|
≤30mK
|
|
|
|
|
|
||||||
|
Frame rate
|
50Hz
|
|
|
|
|
|
||||||
|
Lens
|
|
|
|
|
|
|
||||||
|
Focal length
|
25mm, F1.1
|
35mm, F1.2
|
50mm, F1.2
|
19mm, F1.0
|
25mm, F1.0
|
35mm, F1.0
|
||||||
|
Field of view
|
15.4°×11.6°
|
11.1°×8.3°
|
7.8°×5.8°
|
22.9°×17.2°
|
17.5°×13.1°
|
12.5°×9.4°
|
||||||
|
Optical zoom
|
1.7x
|
2.3x
|
3.3x
|
1.1x
|
1.5x
|
2.0x
|
||||||
|
Digital zoom
|
1 ~ 4x
|
|
|
1 ~ 8x
|
|
|
||||||
|
Focus
|
Manual
|
|
|
|
|
|
||||||
|
Display
|
|
|
|
|
|
|
||||||
|
Display type
|
0.4'' FLCOS
|
|
|
|
|
|
||||||
|
Resolution
|
1280×960
|
|
|
|
|
|
||||||
|
Eyepiece
|
Exit pupil distance≥10 mm; Diopter: -4 to +2; Zoom: 13.8x
|
|
|
|
|
|
||||||
|
Video output
|
Digital video
|
|
|
|
|
|
||||||
|
Range Performance
|
|
|
|
|
|
|
||||||
|
Detection range
|
700 m
|
1000 m
|
1400 m
|
800 m
|
1000 m
|
1400 m
|
||||||
|
Hardware
|
|
|
|
|
|
|
||||||
|
Illuminator
|
Available
|
|
|
|
|
|
||||||
|
Functions
|
|
|
|
|
|
|
||||||
|
Scene modes
|
Enhanced, Highlight and Natural
|
|
|
|
|
|
||||||
|
Color palettes
|
Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot
|
|
|
|
|
|
||||||
|
Recording function
|
Photo/Video
|
|
|
|
|
|
||||||
|
WIFI
|
2.4 G
|
|
|
|
|
|
||||||
|
Supported Application
|
TargetIR
|
|
|
|
|
|
||||||
|
Others
|
PIP, Hot spot tracking, Rough ranging
|
|
|
|
|
|
||||||
|
Power
|
|
|
|
|
|
|
||||||
|
Battery type
|
2 built-in 18650 batteries (6000mAh)
|
|
|
|
|
|
||||||
|
Operating time
|
≥ 5 hours
|
|
|
≥ 4.5 hours
|
|
|
||||||
|
Interface
|
|
|
|
|
|
|
||||||
|
USB
|
USB Type-C
|
|
|
|
|
|
||||||
|
Video interface
|
micro HDMI
|
|
|
|
|
|
||||||
|
Mechanical interface
|
UNC ¼"-20 (Tripod mounting), Mechanical expansion interface
|
|
|
|
|
|
||||||
|
System
|
|
|
|
|
|
|
||||||
|
Language settings
|
Chinese / English / Russian / German / French
|
|
|
|
|
|
||||||
|
Memory capacity
|
16 GB
|
|
|
|
|
|
||||||
|
Environmental
|
|
|
|
|
|
|
||||||
|
Storage temperature
|
-30 °C to 60 °C
|
|
|
|
|
|
||||||
|
Humidity
|
10 % to 95 % non-condensing
|
|
|
|
|
|
||||||
|
Shock
|
30 G at 11 ms half sine pulse (as per IEC60068-2-27)
|
|
|
|
|
|
||||||
|
Drop
|
1 m
|
|
|
|
|
|
||||||
|
Encapsulation
|
IP66
|
|
|
|
|
|
||||||
|
Certification
|
IP66, FCC, CE, RoHS, EAC, un38.3
|
|
|
|
|
|
||||||
|
Physical
|
|
|
|
|
|
|
||||||
|
Weight
|
≤470 g
|
≤485 g
|
≤535 g
|
≤490 g
|
|
≤560 g
|
||||||
|
Size
|
192×65×71 mm
|
|
214×65×71 mm
|
192×65×71 mm
|
|
214×65×71 mm
|
||||||
|
Standard
|
Power adapter, USB cable (Type C), micro HDMI cable, lens cap, wrist strap, inner bag, shoulder strap, quick start guide
|
|
|
|
|
|
||||||
|
Optional
|
Extended bracket
|
|
|
|
|
|
||||||
