LABLT Engine Overhaul Rebuild Kit W/ Rods For Chevrolet Buick GMC 2.0L 2.4L

Specifics and Features:

All parts are hand inspected off the line before packaging and once again by our team before shipment.

Easy installation.

Condition:100% Brand New

Fitment Type:Direct Replacement

OE Number:

Main Rod Bearings Replace Part Number:

21018819,21018825,12591093

Pistons & Rings Kit Replace Part Number:

12578324 , 12578326 , 12593744

12593745 , 12603910 , 12608531

12609858 , 12616970 , 12621251

12631102 , 12631103 , 12631967

12643172 , 12646457 , 12657184

12659419 , 12665165 , 12784490

19180835 , 19180836 , 89018112

S224-3959, GA9034

Connecting Rods Part Number:

8217, 12598216, 12596088, 12611360,12654958

Size:

Pistons dimensions:

Cylinder Bore Ø [mm]: 88 mm

Length [mm]: 49.25 mm

Compression Height [mm]: 27.75 mm

Bolt length [mm]: 58 mm

Bolt Ø [mm]: 20 mm

Rings Details:

Top ring 88 * 1.20 mm

2nd ring 88 * 1.50 mm

Oil ring 88 * 2.50 mm

Compatible With:

Main Rod Bearings Fitment:

For BUICK LACROSSE 2.4L 2010-2011

For BUICK LACROSSE 2.4L 2012-2016

For BUICK REGAL 2.0L 2011-2013

For BUICK REGAL 2.4L2011

For BUICK REGAL 2.4L 2012-2016

For BUICK REGAL 2.4L 2012-2017

For BUICK VERANO 2.0L 2013-2016

For BUICK VERANO 2.4L 2012-2017

For CHEVROLET CAVALIER 2.2L 2003-2004

For CHEVROLET CAVALIER 2.2L 2002-2005

For CHEVROLET CLASSIC 2.2L 2004-2005

For CHEVROLET COBALT 2.0L 2005-2007

For CHEVROLET COBALT 2.0L 2008-2010

For CHEVROLET COBALT 2.2L 2005-2010

For CHEVROLET COBALT 2.4L 2006-2008

For CHEVROLET EQUINOX 2.4L 2010-2017

For CHEVROLET EQUINOX 2.4L 2012-2017

For CHEVROLET HHR 2.0L 2008-2010

For CHEVROLET HHR 2.2L 2006-2008

For CHEVROLET HHR 2.2L 2009-2011

For CHEVROLET HHR 2.4L 2006-2008

For CHEVROLET HHR 2.4L 2009-2011

For CHEVROLET IMPALA 2.4L2014

For CHEVROLET MALIBU 2.2L 2004-2008

For CHEVROLET MALIBU 2.4L 2008-2012

For CHEVROLET MALIBU 2.4L 2008-2014

For GMC TERRAIN 2.4L 2010-2017

For GMC TERRAIN 2.4L 2012-2017

For OLDSMOBILE ALERO 2.2L 2002-2004

For PONTIAC G5 2.2L 2007-2009

For PONTIAC G5 2.4L 2007-2008

For PONTIAC G6 2.4L 2006-2010

For PONTIAC GRAND AM 2.2L 2002-2005

For PONTIAC SOLSTICE 2.0L 2007-2009

For PONTIAC SOLSTICE 2.4L 2006-2009

For PONTIAC SUNFIRE 2.2L 2002-2005

For SAAB 44077 2.0L 2003-2011

For SAAB 44079 2.0L2011

For SAAB 9-3X 2.0L 2010-2011

For SATURN AURA 2.4L 2008-2009

For SATURN AURA 2.4L 2007-2009

For SATURN ION 2.0L 2004-2007

For SATURN ION 2.2L 2003-2007

For SATURN ION 2.4L 2006-2007

For SATURN L100 2.2L 2001-2002

For SATURN L200 2.2L 2001-2003

For SATURN L300 2.2L2004

For SATURN LS 2.2L2000

For SATURN LS1 2.2L2000

For SATURN LW1 2.2L2000

For SATURN LW200 2.2L 2001-2003

For SATURN SKY 2.0L 2007-2010

For SATURN SKY 2.4L 2007-2010

For SATURN VUE 2.2L 2002-2007

For SATURN VUE 2.4L 2008-2010

For SATURN VUE 2.4L 2007-2009

Pistons & Rings Kit Fitments For:

For BUICK LACROSSE 2.4L 2384CC 145CID L4 DOHC, (16 VALVE) 2010-2011

For BUICK LACROSSE 2.4L 2384CC 145CID L4 ELECTRIC/GAS DOHC, (16 VALVE) 2012-2016

For BUICK REGAL 2.4L 2384CC 145CID L4 DOHC, (16 VALVE)2011

For BUICK REGAL 2.4L 2384CC 145CID L4 ELECTRIC/GAS DOHC, (16 VALVE) 2012-2016

For BUICK REGAL 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE) 2012-2017

For BUICK VERANO 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE) 2012-2017

For CHEVROLET CAPTIVA SPORT 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE) 2012-2015

For CHEVROLET COBALT 2.4L 2384CC 145CID L4 DOHC, (16 VALVE) 2006-2008

For CHEVROLET EQUINOX 2.4L 2384CC 145CID L4 DOHC, (16 VALVE) 2010-2017

For CHEVROLET EQUINOX 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE) 2012-2017

For CHEVROLET HHR 2.4L 2384CC 145CID L4 DOHC, (16 VALVE) 2006-2008

For CHEVROLET HHR 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE) 2009-2011

For CHEVROLET IMPALA 2.4L 2384CC 145CID L4 ELECTRIC/GAS DOHC, (16 VALVE)2014

For CHEVROLET MALIBU 2.4L 2384CC 145CID L4 DOHC, (16 VALVE) 2008-2012

For CHEVROLET MALIBU 2.4L 2384CC 145CID L4 ELECTRIC/GAS DOHC, (16 VALVE) 2008-2014

For CHEVROLET MALIBU 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE) 2010-2012

For GMC TERRAIN 2.4L 2384CC 145CID L4 DOHC, (16 VALVE) 2010-2017

For GMC TERRAIN 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE) 2012-2017

For PONTIAC G5 2.4L 2384CC 145CID L4 DOHC, (16 VALVE) 2007-2008

For PONTIAC G6 2.4L 2384CC 145CID L4 DOHC, (16 VALVE) 2006-2010

For PONTIAC G6 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE)2010

For PONTIAC SOLSTICE 2.4L 2384CC 145CID L4 DOHC, (16 VALVE) 2006-2009

For SATURN AURA 2.4L 2384CC 145CID L4 DOHC, (16 VALVE) 2008-2009

For SATURN AURA 2.4L 2384CC 145CID L4 ELECTRIC/GAS DOHC, (16 VALVE) 2007-2009

For SATURN ION 2.4L 2384CC 145CID L4 DOHC, (16 VALVE) 2006-2007

For SATURN SKY 2.4L 2384CC 145CID L4 DOHC, (16 VALVE) 2007-2010

For SATURN VUE 2.4L 2384CC 145CID L4 DOHC, (16 VALVE) 2008-2010

For SATURN VUE 2.4L 2384CC 145CID L4 ELECTRIC/GAS DOHC, (16 VALVE) 2007-2009

Head Gasket Set Fitment:

For Buick Allure 2010 2.4 L4 (2384cc.)

For Chevrolet Captiva Sport 2012-2015 2.4 L4 (2384cc.)

For Chevrolet Captiva Sport 2012 2.4 L4 (2405cc.)

For Chevrolet Equinox 2010-2012 2.4 L4 (2384cc.)

For Chevrolet Impala 2014 2.4 L4 (2384cc.)

For Buick LaCrosse 2010-2016 2.4 L4 (2384cc.)

For Chevrolet Orlando 2012-2013 2.4 L4 (2384cc.)

For Buick Regal 2011-2017 2.4 L4 (2384cc.)

For GMC Terrain 2010-2012 2.4 L4 (2384cc.)

For Buick Verano 2012-2017 2.4 L4 (2384cc.)

(Please refer to compatibility chart for details)

Connecting Rods Fitment:

For Buick Allure 2010-2015 2.4L

For Buick LaCrosse 2010-2016 4 Cyl 2.4L

For Buick Regal 2011-2017

For Buick Verano 2012-2017 4 Cyl 2.4L

For Chevrolet Captiva Sport 2012-2015 4 Cyl 2.4L

For Chevrolet Cobalt 2006-2010 4 Cyl 2.2L, 4 Cyl 2.4L

For Chevrolet Equinox 2010-2017 4 Cyl 2.4L

For Chevrolet HHR 2006-2011 4 Cyl 2.2L Flex, 4 Cyl 2.4L

For Chevrolet Impala 2014 4 Cyl 2.4L

For Chevrolet Malibu 2008-2014 4 Cyl 2.4L

For Chevrolet Orlando 2012-2014 4 Cyl 2.4L

For GMC Terrain 2010-2017 4 Cyl 2.4L

For Pontiac G5 2007-2010

For Pontiac G6 2006-2010 4 Cyl 2.4L

For Pontiac Pursuit 2006

For Pontiac Solstice 2006-201 04 Cyl 2.4L

For Saturn Aura 2007-2009 4 Cyl 2.4L

For Saturn Ion 2006-2007

For Saturn Sky 2007-2010

For Saturn Vue 2007-2010

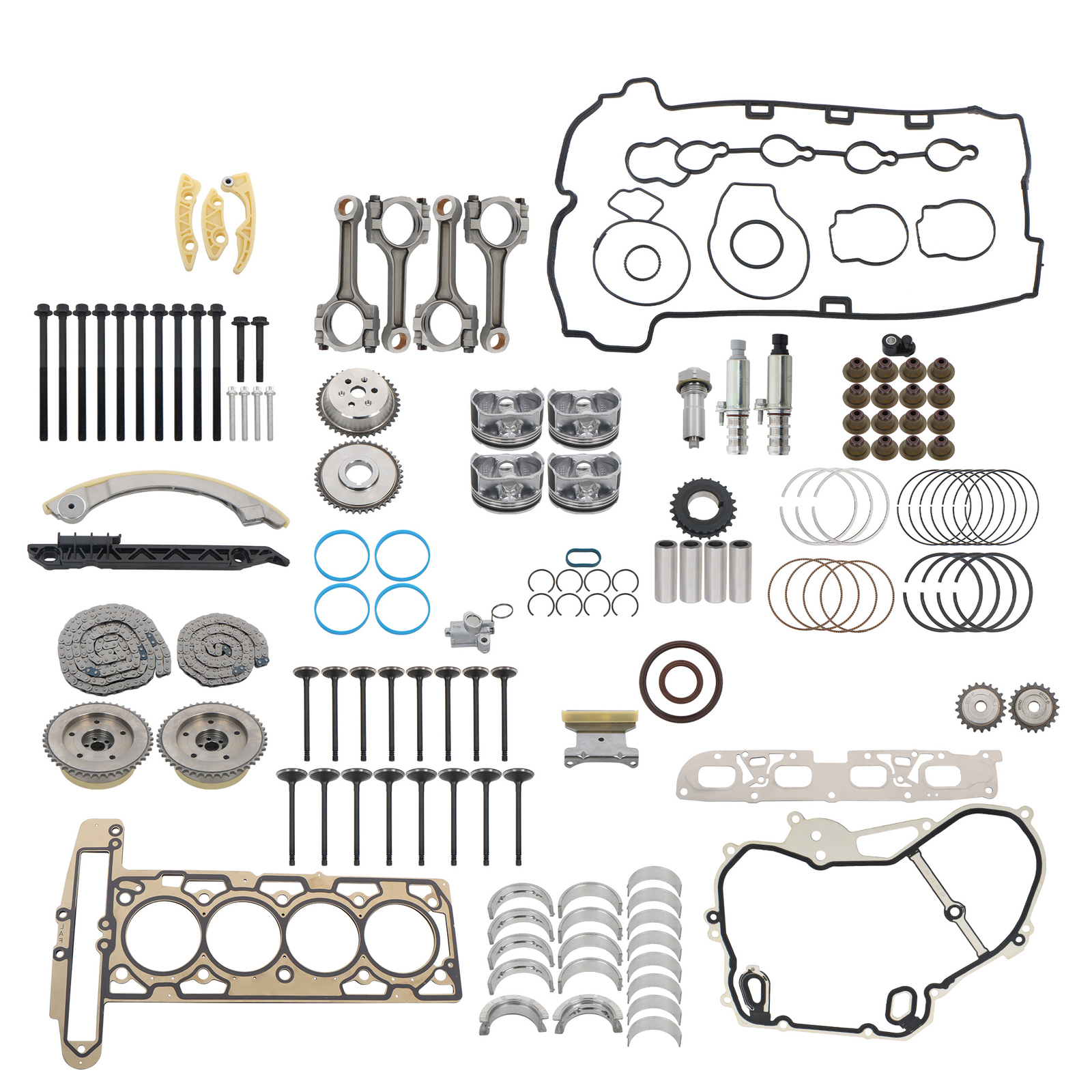

Package Includes:

Timing Chain Kit:

1 Timing Chain (148 Links)

1 Tensioner

2 VVT Camshaft Gears (Intake & Exhaust)

1 Exhaust Camshaft Position Actuator

1 Intake Variable Valve Timing Solenoids

1 Exhaust Variable Valve Timing Solenoids

1 Crank Sprocket (23 Teeth)

1 Guide Rail (Tensioner Guide )

1 Guide Rail (Left For Cam Chain)

1 Guide Rail (Upper For Cam Chain)

1 Timing Chain Balance Shaft (134 Links)

1 Balance Shaft Tensioner

1 Crank Sprocket (Inner - 42 Teeth)

1 Balance Shaft Sprocket (Intake Side)

1 Balance Shaft Sprocket (Exhaust Side)

1 Guide Rail Balance Shaft (Upper)

1 Guide Rail Balance Shaft (Left)

1 Guide Rail Balance Shaft (Right)

2 VVT Engine Variable Timing Solenoid

All included" Contain:

4pcs × Connecting Rods

1set × Main & Rod Bearing Set (STD Size)

1set × Pistons & Rings Kit

1set × Gasket Seal Kits

10pcs × Head Bolt

16pcs × Intake & Exhaust Valve

1set × Timing Chain Kit

W/O Installation Instruction

Notes：
We strongly recommend professional installation.
If you are unsure whether the product is suitable for your vehicle, please contact us promptly before purchasing to confirm.
Due to the fact that all detailed dimensions of the product are manually measured, please allow for measurement errors.
Due to lighting issues during photography, the product images in the link may not reflect the actual color of the item.
Thank you for collecting our store and looking forward to working with you.

Item Specifics
Brand	LABLT
Type	Engine Rebuild Kit
Manufacturer Part Number	QS571840QR
OE/OEM Part Number	21018819,21018825,12591093
Features	Durable, Sealed
Finish	Polished
Items Included	Pistons & Rings / Main & Rod Bearing/ Connecting Rods
Items Included 2	Timing Chain Kit /Intake & Exhaust Valve /Head Bolt /Gasket
Manufacturer Warranty	1 Year
Interchange Part Number	12578324 , 12578326 , 12593744 12593745 , 12603910 , 12608531
Superseded Part Number	8217, 12598216, 12596088, 12611360,12654958
Engine	2.0L / 2.2L / 2.4L
Fitment	For BUICK /CHEVROLET /PONTIAC /SATURN /GMC
Cylinder Bore Ø [mm]	88 mm
Length [mm]	49.25 mm
Compression Height [mm]	27.75 mm
Bolt length [mm]	58 mm
Bolt Ø [mm]	20 mm
